Blended fiber lace composite lace cloth

Technical Field

The utility model relates to the technical field of weaving, specifically be a composite lace cloth of blend fiber bud silk lace.

Background

The lace fabric is made of terylene, chinlon, long yarns, short fibers, black yarns, cotton, rayon and the like, is widely applied to clothes, but most of the existing composite lace fabrics adopt a multilayer structure, and the layers are connected by glue and the like, so that the layering phenomenon is easy to occur.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a compound lace cloth of blend fibre bud silk lace has solved present compound lace cloth and has adopted multilayer structure more, adopts connections such as glue between each layer, appears the phenomenon of layering easily, and in addition in order to avoid the surface fabric too thick, often only antibiotic, remove mite, fire-retardant and waterproof one or two kinds, be difficult to realize the problem of multiple effect.

In order to achieve the above object, the utility model provides a following technical scheme: the top of the inner base cloth is interwoven with a flame-retardant water-resisting layer, the top of the flame-retardant water-resisting layer is interwoven with a first antibacterial mite-killing flannelette layer, the bottom of the inner base cloth is interwoven with a second antibacterial mite-killing flannelette layer, the first antibacterial mite-killing flannelette layer and the second antibacterial mite-killing flannelette layer respectively comprise bamboo cotton fibers, nano-silver antibacterial fibers, antibacterial mite-killing nylon fibers and a flocking layer, the bamboo cotton fibers, the nano-silver antibacterial fibers and the antibacterial mite-killing nylon fibers are interwoven in a longitudinal and transverse mode to form the antibacterial mite-killing layers, the inner sides of the flocking layers are interwoven with the outer sides of the antibacterial mite-killing layers, and the inner base cloth, the flame-retardant water-resisting layer, the first antibacterial mite-killing flannelette layer and the second antibacterial mite-killing flannelette layer are interwoven through the antibacterial mite-killing nylon fibers.

Preferably, the flame-retardant water-resisting layer comprises polytetrafluoroethylene fibers and mulberry silk fibers, and the flame-retardant water-resisting layer is formed by longitudinally and transversely interweaving the polytetrafluoroethylene fibers and the mulberry silk fibers.

Preferably, the inner-layer base cloth is one of a horsecloth, a yarn flannelette and a non-woven fabric, and the thickness of the inner-layer base cloth is three hundred micrometers.

Preferably, lace buds are interwoven on the outer side of the flocking layer, and the thickness of the lace buds is two hundred microns.

Preferably, the thickness of the flocking layer is four hundred micrometers, and the thickness of the antibacterial mite removing layer is two hundred micrometers.

Preferably, the inner base fabric is woven by warp yarns and weft yarns, and the weaving density of the warp yarns and the weft yarns is 60 yarns/10 cm.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the inner base cloth, the flame-retardant water-resisting layer, the first antibacterial mite-killing flannelette layer and the second antibacterial mite-killing flannelette layer are mutually interwoven through the antibacterial mite-killing nylon fibers to form an integral structure, so that the connection strength is enhanced, and the layering phenomenon is avoided;

2. the utility model discloses utilize polytetrafluoroethylene fibre and mulberry silk fibre can carry out water proof and fire resistance, add waterproof and flame retardant efficiency, bamboo cotton fiber, nano silver antibacterial fiber and antibiotic mite nylon fiber that removes form antibiotic mite layer that removes through interweaving each other, can carry out antibiotic mite that removes to realize antibiotic, remove mite, fire-retardant and waterproof whole functions.

Drawings

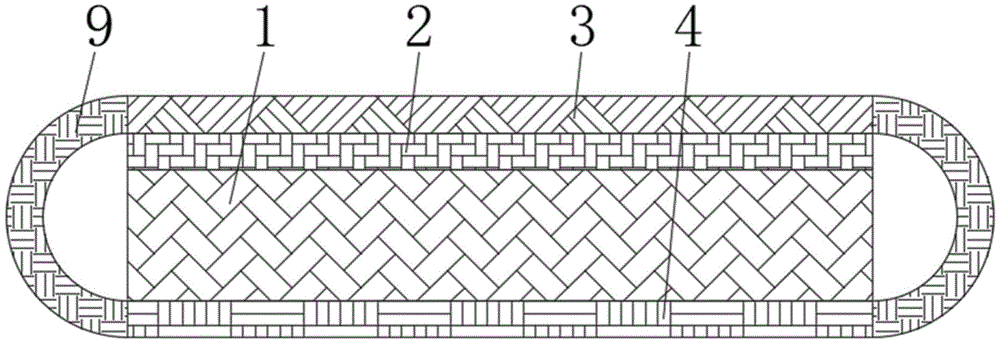

FIG. 1 is a front view of the structure of the present invention;

FIG. 2 is a partial top view of the flame-retardant water-barrier layer of the present invention;

FIG. 3 is a partial cross-sectional view of the antibacterial mite-killing flannelette layer;

fig. 4 is a top partial cross-sectional view of the antibacterial mite-killing flannelette layer of the present invention.

In the figure: 1. inner layer base cloth; 2. a flame-retardant water-barrier layer; 21. polytetrafluoroethylene fibers; 22. mulberry silk fiber; 3. a first antibacterial mite-killing flannelette layer; 4. a second antibacterial mite-killing flannelette layer; 5. bamboo cotton fiber; 6. nano silver antibacterial fiber; 7. antibacterial mite-killing nylon fiber; 8. a flocking layer; 9. lace and bud thread.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, a blended fiber lace composite lace fabric comprises an inner layer base fabric 1, a flame-retardant water-proof layer 2 interwoven on the top of the inner layer base fabric 1, a first antibacterial mite-killing flannelette layer 3 interwoven on the top of the flame-retardant water-proof layer 2, a second antibacterial mite-killing flannelette layer 4 interwoven on the bottom of the inner layer base fabric 1, wherein the first antibacterial mite-killing flannelette layer 3 and the second antibacterial mite-killing flannelette layer 4 comprise bamboo cotton fiber 5, nano-silver antibacterial fiber 6, antibacterial mite-killing nylon fiber 7 and a flocked layer 8, the bamboo cotton fiber 5, the nano-silver antibacterial fiber 6 and the antibacterial mite-killing nylon fiber 7 are interwoven to form an antibacterial mite-killing layer, the inner side of the flocked layer 8 is interwoven with the outer side of the antibacterial mite-killing layer, the inner layer base fabric 1, the flame-retardant layer 2, the first antibacterial mite-killing flannelette layer 3 and the second antibacterial mite-killing flannelette layer 4 are interwoven through the antibacterial mite-killing nylon fiber 7, the inner base cloth 1, the flame-retardant waterproof layer 2, the first antibacterial mite-killing flannelette layer 3 and the second antibacterial mite-killing flannelette layer 4 are mutually interwoven through antibacterial mite-killing nylon fibers 7 to form an integral structure, so that the connection strength is enhanced, and the layering phenomenon is avoided; utilize polytetrafluoroethylene fiber 21 and mulberry silk fibre 22 can carry out water proof and fire resistance, add waterproof and flame retardant efficiency, bamboo cotton fiber 5, nano silver antibacterial fiber 6 and antibiotic mite nylon fiber 7 that removes form antibiotic mite layer through interweaving, can carry out antibiotic mite that removes to realize antibiotic, remove mite, fire-retardant and waterproof whole functions.

Further, the flame-retardant waterproof layer 2 comprises polytetrafluoroethylene fibers 21 and mulberry silk fibers 22, and the flame-retardant waterproof layer 2 is formed by vertically and horizontally interweaving the polytetrafluoroethylene fibers 21 and the mulberry silk fibers 22, so that flame-retardant and waterproof effects are ensured.

Further, the inner base cloth 1 is one of a horsecloth, a yarn flannelette and a non-woven fabric, and the thickness of the inner base cloth 1 is three hundred micrometers, so that the flexibility can be ensured.

Further, lace 9 is interwoven on the outer side of the flocking layer 8, the thickness of the lace 9 is two hundred microns, and the lace 9 can be used for decoration.

Furthermore, the thickness of the flocking layer 8 is four hundred micrometers, the thickness of the antibacterial mite removing layer is two hundred micrometers, and the thickness of the cloth can be controlled.

Further, the inner layer base fabric 1 is woven by warp yarns and weft yarns, and the weaving density of the warp yarns and the weft yarns is 60 yarns/10 cm, so that flexibility is ensured.

The working principle is as follows: the waterproof flame-retardant material is prepared from the polytetrafluoroethylene fibers 21 and the mulberry silk fibers 22 with waterproof and flame-retardant functions, so that the fabric can prevent water permeation and combustion, meanwhile, the nylon fibers with antibacterial and anti-mite functions are used as raw materials of the antibacterial and anti-mite layer, the lace fabric is endowed with excellent antibacterial and anti-mite functions, the bamboo cotton fibers 5 have antibacterial and bacteriostatic functions, bacteria cannot reproduce on the fabric or even cannot survive, the nano-silver antibacterial fibers 6 continuously release nano-silver particles, the fabric using an addition method is resistant to washing and has lasting antibacterial effects, the better antibacterial property of the lace is ensured, the mites can be removed by the antibacterial and anti-mite nylon fibers 7, and the layers are mutually interwoven and connected through the antibacterial and anti-mite nylon fibers 7, so that the connection strength is enhanced.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A blended fiber lace lace composite lace cloth, comprising an inner layer base cloth (1), characterized in that: the top of the inner layer base cloth (1) is interwoven with a flame retardant water barrier (2), and the A first antibacterial and mite-removing flannel layer (3) is interwoven on the top of the combustion and water-proof layer (2), and a second antibacterial and mite-removing flannel layer (4) is interwoven at the bottom of the inner base fabric (1). The antibacterial and mite-removing flannel layer (3) and the second antibacterial and mite-removing flannel layer (4) both include bamboo cotton fibers (5), nano-silver antibacterial fibers (6), antibacterial and mite-removing nylon fibers (7) and a flocking layer (8). ), the bamboo cotton fiber (5), the nano silver antibacterial fiber (6) and the antibacterial mite removal nylon fiber (7) are interwoven vertically and horizontally to form an antibacterial mite removal layer, and the inner side of the flocking layer (8) and the antibacterial mite removal layer are interwoven vertically and horizontally. The outer sides of the mite layer are interwoven and connected, and the inner layer base fabric (1), the flame-retardant water-repellent layer (2), the first antibacterial and mite-removing flannel layer (3) and the second antibacterial and mite-removing flannel layer (4) pass through Antibacterial and mite-removing nylon fibers (7) are interwoven and connected.

2. A kind of blended fiber lace lace composite lace fabric according to claim 1, is characterized in that: described flame retardant water barrier layer (2) comprises polytetrafluoroethylene fiber (21) and mulberry silk fiber (22), The flame-retardant water-repellent layer (2) is formed by interweaving polytetrafluoroethylene fibers (21) and mulberry silk fibers (22) vertically and horizontally.

3. A kind of blended fiber lace lace composite lace fabric according to claim 1, characterized in that: the inner layer base fabric (1) is one of horse flannel, yarn flannel, and non-woven fabric, and the The thickness of the inner layer base fabric (1) is 300 microns.

4. A kind of blended fiber lace lace composite lace fabric according to claim 1, characterized in that: the outer side of the flocking layer (8) is interwoven with lace lace (9), the thickness of the lace lace (9) to two hundred microns.

5. A kind of blended fiber lace lace composite lace fabric according to claim 1, characterized in that: the thickness of the flocking layer (8) is 400 microns, and the thickness of the antibacterial and mite removal layer is 200 microns.

6. a kind of blended fiber lace lace composite lace cloth according to claim 1, is characterized in that: described inner layer base cloth (1) is woven by warp yarn and weft yarn, and the weaving density of warp yarn and weft yarn is 60 pieces /10cm.
