Abstract

The utility model discloses an anti-radiation health care eye mask, which comprises a fixing belt and an eye mask body. The eye mask body corresponds to two cavities. The upper, lower, left and right sides of the cavity are symmetrically arranged with magic stickers. Reversibly connected to block or reveal the cavity, each side of the eye mask body is connected with a fixing strap, and the two fixing straps are attached by Velcro. The eye mask body sequentially includes a bamboo charcoal fiber fabric layer and a graphene flake layer. , Apocynum fiber layer, skin-friendly inner layer, apocynum fiber layer is mixed with several magnets, and several magnets are arranged according to the acupoints around the eyes, and the skin-friendly inner layer is blended with Tencel fiber and aloe vera fiber. The utility model has the functions of inhibiting bacteria, removing diseases, emitting far-infrared rays, improving human microcirculation, relaxing eyes, alleviating fatigue and the like;

Description

Radiation-proof health-care eye patch

Technical Field

The utility model relates to an eye-shade technical field especially relates to a radiation protection health care eye-shade.

Background

The eyeshade is worn on eyes to protect or shield the eyes, and has an important function of eliminating fatigue in life and travel. The eyeshade can provide a dull sleeping environment for a sleeper in the daytime and promote sleeping.

With the popularization of computers and smart phones, people look at a screen for at least half of the time in daily life and work, the blinking frequency is reduced, secretion lubricants in eyes are reduced, and meanwhile, flickering and jumping of the screen directly stimulate the eyes to cause eye fatigue and induce other eye diseases.

However, the conventional eyeshade can only provide a certain level of anti-disturbance function only for shading light when the user sleeps, but cannot relieve fatigue of the eyes, and is not deep enough in design of health care function.

SUMMERY OF THE UTILITY MODEL

In view of this, the present invention provides a radiation-proof health-care eye patch with radiation-proof, shading, antibacterial and eye fatigue relieving functions.

The utility model provides a radiation protection health care eye-shade, including fixed band and eye-shade body, the eye-shade body corresponds eyes position and is two cavitys, each the equal symmetry in upper and lower left and right sides of cavity sets up first magic subsides thorn hair layer, and the upside of radiation protection printing opacity separation blade is made up in the top of pasting thorn hair layer at last first magic, the third party all sets up first area of pasting about radiation protection printing opacity separation blade, all be provided with first magic subsides round hair layer on the first area of pasting, so that radiation protection printing opacity separation blade shelters from or shows the cavity, each side of eye-shade body all adopt two point fixing mode with the fixed band links to each other, and the outside of first fixed band sets up second magic subsides thorn hair layer, and the inboard of second fixed band sets up second magic subsides round hair layer, the eye-shade body includes bamboo charcoal fiber fabric layer, graphite alkene wadding layer, apocynum venetum fiber layer in proper order, The apocynum venetum fiber layer is internally mixed with a plurality of magnets which are arranged according to acupuncture points around eyes, and the skin-friendly lining layer is formed by blending tencel fibers and aloe fibers.

Preferably, the bamboo charcoal fiber fabric layer, the graphene wadding layer, the apocynum venetum fiber layer and the skin-friendly lining layer are combined in a sewing or adhesive connection mode.

Preferably, the eyeshade body is sewn into a grid shape by fibers.

Preferably, a nose pad is arranged below the eyeshade body.

Preferably, the cavity is oval.

Preferably, a plurality of the magnets are arranged in an oval shape around acupuncture points around the circumference of the eye.

Preferably, the magnet is one or more of a plum blossom jade and a rare earth permanent magnet.

Preferably, the radiation-proof health-care eyeshade further comprises a shading blocking piece, the lower side of the shading blocking piece is sewn below the lower first magic tape stabbing wool layer, second tape tapes are arranged on the left side and the right side of the shading blocking piece, and third magic tape round wool layers are arranged on the second tape tapes, so that the shading blocking piece can block or expose the cavity.

Preferably, the radiation-proof health-care eye patch is further provided with a medicine adding bag, a third magic tape bur layer is arranged on the surface of the medicine adding bag, a fourth magic tape circular hair layer is arranged at the center of one side, away from the eyes, of the shading separation blade, and the fourth magic tape circular hair layer is attached to the third magic tape bur layer.

Preferably, the medicine bag is provided with a zipper, so that traditional Chinese medicines or plants can be conveniently filled in the medicine bag.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the eye patch is provided with a bamboo charcoal fiber fabric layer, a graphene wadding sheet layer and a apocynum venetum fiber layer, and has the multifunctional characteristics of bacteriostasis, disease removal, far infrared ray emission, human microcirculation improvement and the like.

2. The magnets are arranged according to acupuncture points around eyes and used for generating a micro magnetic field, and the micro magnetic field can play a role in relaxing eyes and relieving fatigue.

3. The eyeshade has both a visual radiation protection function and a shielding function, is worn during work, realizes the visual function by using the radiation protection blocking piece, can prevent electromagnetic radiation from entering eyes, and simultaneously can perform physical therapy on the eyes by using the magnets; wear the eye-shade during the rest, use the shading separation blade, realize sheltering from the function, the magnetite can also the physiotherapy eyes in the time of the shading, and can add medicine bag and apply eyes.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

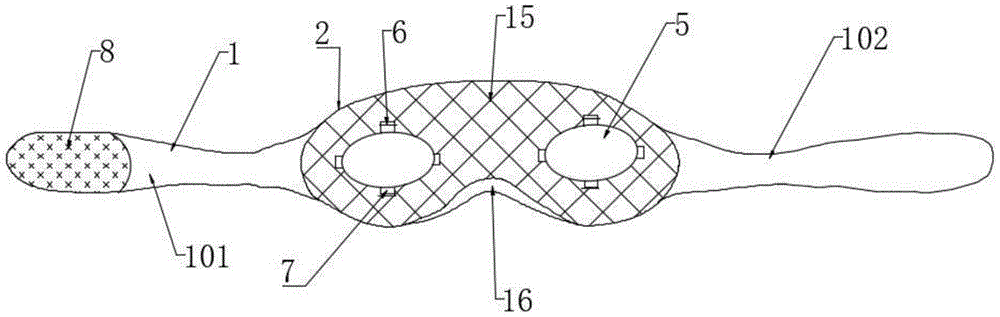

Fig. 1 is a schematic structural view of a radiation-proof health-care eye patch according to a first embodiment of the present invention;

FIG. 2 is a schematic structural view of the first embodiment of the present invention with the radiation-proof transparent barrier removed;

FIG. 3 is a schematic view of the backside structure of FIG. 2;

FIG. 4 is a schematic structural view of a radiation-proof light-transmitting barrier sheet;

FIG. 5 is a schematic cross-sectional view of the mask body according to the present embodiment;

FIG. 6 is a schematic view of a radiation-proof health-care eye patch according to a second embodiment of the present invention, wherein a radiation-proof transparent blocking sheet is attached to a cavity;

FIG. 7 is a schematic view of a light shielding plate;

FIG. 8 is a schematic structural view of a radiation-proof health-care eye patch according to a second embodiment of the present invention, when a light-shielding blocking piece is stuck to a cavity;

fig. 9 is a schematic structural view of a radiation-proof health-care eye patch according to a third embodiment of the present invention (with the radiation-proof transparent barrier hidden);

description of reference numerals:

1-fixing band, 101-first fixing band, 102-second fixing band, 2-eyeshade body, 3-cavity, 4-first magic tape stabbing layer, 401-upper first magic tape stabbing layer, 402-lower first magic tape stabbing layer, 5-radiation-proof light-transmitting baffle, 6-sewing thread, 7-first tape, 8-second magic tape stabbing layer, 9-second magic tape round hair layer, 10-bamboo charcoal fiber fabric layer, 11-graphene wadding layer, 12-apocynum fiber layer, 13-skin-friendly lining layer, 14-magnet, 15-grid, 16-nose pad, 17-shading baffle, 18-second tape, 19-third magic tape round hair layer and 20-medicine bag.

Detailed Description

In order to further understand the present invention, the following description will be made in conjunction with the drawings in the embodiments of the present invention, and the technical solution in the embodiments of the present invention is clearly and completely described, and obviously, the described embodiments are only a part of the embodiments of the present invention, but not all embodiments, and based on the embodiments in the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the protection scope of the present invention.

It should be noted that all the directional indicators (such as upper, lower, left, right, front, and rear … …) in the embodiment of the present invention are only used to explain the relative position relationship between the components, the motion situation, etc. in a specific posture, if the specific posture is changed, the directional indicator is changed accordingly.

In addition, the descriptions related to "first", "second", "third", "fourth", etc. in the present invention are for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicit to the number of technical features indicated. Thus, a feature defined as "first," "second," "third," or "fourth" may explicitly or implicitly include at least one of the feature. In addition, the technical solutions in the embodiments may be combined with each other, but it must be based on the realization of those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should not be considered to exist, and is not within the protection scope of the present invention.

Referring to fig. 1-5, a first embodiment of the present invention provides a radiation-proof health eye mask, comprising a fixing band 1 and an eye mask body 2, wherein the eye mask body 2 has two cavities 3 corresponding to the eye parts, a first magic tape burl layer 4 is symmetrically arranged on the upper, lower, left and right sides of each cavity 3, the upper side of a radiation-proof transparent blocking piece 5 is sewn (indicated by sewing line 6 in the figure) above the upper first magic tape burl layer 401, first tapes 7 are arranged on the left, lower, left and right sides of the radiation-proof transparent blocking piece 5, a first magic tape round hair layer is arranged on each first tape 7 so that the cavity 3 is shielded or exposed by the radiation-proof transparent blocking piece 5, each side of the eye mask body 2 is connected with the fixing band 1 by two-point fixing, a second magic tape burl layer 8 is arranged on the outer side of the first fixing band 101, a second magic tape round hair layer 9 is arranged on the inner side of the second fixing band 102, the eyeshade body 2 sequentially comprises a bamboo charcoal fiber fabric layer 10, a graphene wadding layer 11, an apocynum venetum fiber layer 12 and a skin-friendly lining layer 13, wherein a plurality of magnets 14 are arranged in the apocynum venetum fiber layer 12 in an interlayer mode and are arranged according to acupuncture points around eyes, and the skin-friendly lining layer 13 is made by blending tencel fibers and aloe fibers.

The bamboo charcoal fiber is prepared by taking bamboo as a raw material, adopting a new calcining process and a new technology of pure oxygen high temperature and nitrogen blocking time delay to enable micropores of the natural bamboo charcoal to be more refined and honeycombed, and then carrying out melt spinning on the bamboo charcoal and polyester modified slices with a honeycomb micropore structure trend. The unique fiber structure design has the characteristics of moisture absorption, ventilation, bacteriostasis, antibiosis, warmness in winter and coolness in summer, environmental protection and the like. The bamboo charcoal fiber can release negative ions permanently, the negative ions are vitamins in the air, and the bamboo charcoal fiber has the effects of calming, hypnotizing, relieving pain, relieving cough and the like, is beneficial to body health, improves sleep quality, and can enhance the immunity of a human body. Through detection, the bamboo charcoal fiber is contacted with bacteria liquid of five bacteria, namely bacillus subtilis, escherichia coli, staphylococcus aureus, bacillus megaterium and pseudomonas fluorescens for 24 hours, and the antibacterial rate is as high as 84%; the mould-proof degree of the knitted fabric (19.38Tex) made of 100% bamboo charcoal fiber in 14 days is grade 1. The bamboo charcoal fiber can generate far infrared ray with emissivity as high as 0.87, and can increase blood metabolism of microvascular on human body surface. The concentration of the negative ions emitted by the bamboo charcoal fiber is 6800/cm³Is equivalent to the concentration of negative ions in suburb fields, thereby being beneficial to the bodyThe body is healthy. The mineral content is high, and the health care function is special: the bamboo charcoal fiber contains minerals such as potassium and calcium beneficial to health.

The bamboo charcoal fiber fabric layer 10 has the characteristics of moisture absorption, air permeability, bacteriostasis, warmness in winter and coolness in summer, negative ion release and the like, and is beneficial to body health.

Graphene is a novel nano material which is the thinnest, the largest in strength and the strongest in electric conduction and heat conduction performance and is known as the king of a new material, and the flocculus added with the graphene also has the multifunctional characteristics of far infrared temperature rise, heat preservation, ventilation, static resistance, bacteria resistance and the like. Far infrared rays are also called long-wave infrared rays, the wavelength range of the far infrared rays is from 5.6 micrometers to 1000 micrometers, the far infrared heating technology utilizes the far infrared rays emitted by a hot object source to irradiate a heated material, so that internal molecules and atoms generate heat energy through resonance after the material absorbs the far infrared rays, and the purpose of heating is achieved. Therefore, the eye mask can effectively relieve the symptoms of dry eyes, acerbity and fullness, insufficient sleep, black eyes, large eye bags, eye fatigue and the like which often appear in human eye tissues and organs.

In the embodiment, the graphene flocculus layer 11 is adopted, so that the multifunctional characteristics of far infrared heating, heat preservation, ventilation, static resistance, bacteria resistance and the like are achieved, eyestrain can be relieved, and eye health is improved.

The apocynum venetum fiber is a natural far infrared emission material, can emit far infrared light waves of 8-15 microns, can permeate into skin and subcutaneous tissues, and can generate a resonance absorption effect with water molecules in tissue cells. Reducing blood lipid, reducing the formation of cardiovascular diseases such as cerebral arteriosclerosis, and improving microcirculation. The far infrared ray makes the eye cover have the function of keeping warm, the warmth retention is 2 times of that of the all-cotton fabric below 8 ℃, the air permeability is 2.5 times of that of the pure cotton fabric above 21 ℃, and the eye cover is characterized by being warm in winter and cool in summer in solitary. Researches show that the apocynum venetum fiber is rich in various medicinal components such as flavonoid compounds, amino acids, organic acid compounds, calcium, magnesium, potassium, zinc, iron, selenium and other effective components, and the pharmacological effects of the apocynum venetum fiber include coronary artery flow increasing, epinephrine increasing, inflammation resisting, allergy resisting and the like. The clinical observation results show that the apocynum venetum fiber has better prevention and treatment effects on hypertension and chronic tracheitis, also has the effects of inhibiting bacteria, removing diseases and emitting far infrared rays, has the cotton softness and silk luster, and the hemp freshness, and has the effects that the effective medicinal ingredients in the apocynum venetum fiber act on channels, qi and blood, viscera and local focuses through the far infrared ray effect and skin permeation (such as plaster principle) through the body surface orifice acupoints to participate in blood circulation, thereby playing the effects of strengthening body and improving body functions. The apocynum venetum fiber has good antibacterial activity and has obvious inhibition effect on candida albicans, staphylococcus aureus, escherichia coli, pseudomonas aeruginosa and the like.

In the embodiment, the apocynum venetum fiber layer 12 is adopted, has the characteristics of bacteriostasis, warmness in winter and coolness in summer, far infrared ray release and the like, improves eye microcirculation, and is beneficial to body health.

Tencel fiber belongs to a kind of cellulose fiber, and is generally prepared by a solvent spinning technology. The raw material of the tencel fiber is wood pulp mainly made of conifer, and no derivative or chemical action is generated in the spinning process, so that the tencel fiber is a safe and environment-friendly fabric. The tencel fiber has strong hygroscopicity and air permeability, can quickly absorb sweat on a body, and is excellent in comfort and smooth in touch. It has the comfort of cotton, the strength of terylene, the luxurious aesthetic feeling of wool fabric and the unique touch and soft drooping of real silk.

The aloe fiber is regenerated cellulose prepared by using cotton pulp as a raw material and through alkali soaking, squeezing, ageing, yellowing, mixing, filtering, defoaming, ripening, spinning, refining and drying, has chemical and physical properties very close to those of cotton, and is comfortable to wear. The natural anthraquinone glycoside or anthracene derivative in aloe can absorb ultraviolet ray and prevent skin red and brown spot. Aloe has antibacterial, antifungal effects, which are derived from the cytokine function of Aloin, which has relatively aggressive biochemical properties that allow Aloe to kill bacteria directly. This example is preferably aloe fiber manufactured by Huzhou Pearl nanometer materials science and technology development Limited in the "Kuilan" model.

The skin-friendly inner layer 13 of the embodiment is made by blending tencel fibers and aloe fibers, so that the skin-friendly inner layer 13 has good air permeability and antibacterial activity and has the advantage of being comfortable to wear.

Furthermore, the four sides of the bamboo charcoal fiber fabric layer 10, the graphene wadding sheet layer 11, the apocynum venetum fiber layer 12 and the skin-friendly lining layer 13 are combined in a sewing or adhesive connection mode.

Further, the eyeshade body 2 is sewn into a grid shape 15 by using fibers.

Specifically, one grid 15 has at most one magnet 14.

By adopting the technical scheme, the eye patch can form a whole body, so that the graphene flocculus layer 11 is prevented from being loose, and the magnet 14 is prevented from being gathered.

Further, a nose pad 16 is provided below the eyecup body 2. The nose pad 16 reduces compression of the eye mask against the nose of the user.

Further, the cavity 3 is oval. The shape of the cavity 3 is related to the shape of the orbit, the size of the cavity 3 being larger than the size of the orbit.

Further, a plurality of magnets 14 are arranged in an oval shape around the acupuncture points around the eye. The eye acupoints of this example include Qingming, Zanzhu, Cheng Qi, and Sichuan bamboo. It is understood that the magnet 14 may be provided in a place where there is no acupoint.

Further, the magnet 14 is one or more of a plum blossom jade and a rare earth permanent magnet.

The plum blossom jade is jade formed by condensing rock slurry sprayed from volcano. The plum blossom jade contains not only the components of ordinary jade (silicon, oxygen and other elements), but also microelements such as iron, zinc, sodium, magnesium, potassium, calcium and the like, and also contains components such as magnet, medical stone and the like. The plum blossom jade has the effects of releasing infrared rays, magnetic fields and negative ions, can uniformly act on eyes of a human body, and achieves the purposes of relieving eye fatigue, activating cells, improving eyesight and resisting inflammation.

The rare-earth permanent magnet has relatively stable magnetism and relatively long decay period. The rare earth permanent magnet stone can generate optimal magnetic flux and energy required by human cells, can act 5 cm under the skin, and has the effects of expanding blood vessels, increasing blood flow and oxygen carrying capacity of red blood cells, improving microcirculation, reducing blood viscosity, promoting metabolism, enhancing cell activity and repairing capability of damaged tissues, eliminating fatigue and promoting eyesight recovery.

Referring to fig. 6-8, in the second embodiment, the radiation-proof health-care eye patch further includes a light-shielding blocking piece 17, the lower side of the light-shielding blocking piece 17 is sewn (indicated by a sewing line 6 in the figure) under the lower first magic tape stabbing wool layer 402, the left, right, upper three sides of the light-shielding blocking piece 17 are both provided with second tapes 18, and the second tapes 18 are both provided with third magic tape round wool layers 19, so that the light-shielding blocking piece 17 shields or exposes the cavity 3.

Aiming at the crowd who is suitable for facing the computer screen for a long time, the electromagnetic wave generated by the computer during working can hurt the glasses. The radiation-proof light-transmitting baffle 5 has the light-transmitting effect and the radiation-proof effect, filters and blocks dazzling hard light, reduces stimulation, plays the roles of relieving eyestrain and protecting vision, and can receive magnetic therapy while normally working when the eye patch is worn.

The radiation-proof transparent barrier sheet 5 of the present embodiment can be made of an electromagnetic shielding film of ann shield electronics limited.

Referring to fig. 9, in the third embodiment, the radiation-proof health-care eye patch further includes a medicine adding bag 20, a third hook and loop fastener bur layer is disposed on the surface of the medicine adding bag 20, a fourth hook and loop fastener round bur layer is disposed at the central portion of the side of the light-shielding blocking piece 17 away from the eyes, and the fourth hook and loop fastener round bur layer is attached to the third hook and loop fastener bur layer.

Further, the medicine adding bag 20 is provided with a zipper, which facilitates the filling of traditional Chinese medicines or plants. The traditional Chinese medicine or plant of this embodiment is selected from one or more of myrrh, borneol, frankincense, cicada slough, rosemary, cassia seed, caulis polygoni multiflori, lily, sweet osmanthus, lavender and rose petal. It is understood that the Chinese herbs or plants of this embodiment may also be other Chinese herbs or plants that improve blood circulation, nourish heart, soothe nerves or aid sleep. The traditional Chinese medicine of the embodiment is a traditional Chinese medicine with a health-care effect or a treatment effect on eyes, and the plant of the embodiment is a Chinese herbal medicine with a health-care effect or a treatment effect on eyes or a dried flower, grass and petal of the plant capable of releasing smell.

Referring to fig. 1 and 4, the upper side of the radiation-proof transparent blocking piece 5 in the first embodiment is sewn (indicated by sewing line 6 in the figure) above the first magic tape burl layer 401 on the eyeshade body 2, the left, right, lower three sides of the radiation-proof transparent blocking piece 5 are both attached to the eyeshade body 2 through magic tapes, specifically, the first magic tape round hair layers on the first tape 7 of the left, right, lower three sides of the radiation-proof transparent blocking piece 5 are attached to the first magic tape burl layer 4, so that the radiation-proof transparent blocking piece 5 blocks the cavity 3; the first hook and loop fastener round wool layer is separated from the first hook and loop fastener thorn wool layer 4, so that the cavity 3 is exposed. It can be understood that in another embodiment, the upper side of the radiation-proof transparent blocking sheet 5 is adhered above the upper first magic tape stabbing layer 401 by an adhesive manner, or the upper side of the radiation-proof transparent blocking sheet 5 is connected above the upper first magic tape stabbing layer 401 by a zipper.

Referring to fig. 6-7, in the second embodiment, the lower side of the light shielding blocking piece 17 is sewn (indicated by sewing thread 6 in the figure) under the lower first magic tape bur layer 402 of the eyeshade body 2, the left, right and upper three sides of the light shielding blocking piece 17 are both attached to the eyeshade body 2 through magic tapes, specifically, the third magic tape round hair layer 19 on the second tape 18 of the left, right and upper three sides of the light shielding blocking piece 17 is attached to the first magic tape bur layer 4, so that the light shielding blocking piece 17 shields the cavity 3; the third magic tape round wool layer is separated from the 19 first magic tape stabbing wool layer 4, so that the cavity 3 is exposed. It is understood that the lower side of the light shielding flap 17 is adhered to the lower portion of the lower first hook and loop fastener 402 by an adhesive method, or the lower side of the light shielding flap 17 is connected to the lower portion of the lower first hook and loop fastener 402 by a zipper method in another embodiment.

The utility model discloses the application method of first embodiment:

the eye mask has visual radiation protection function. Wear eye-shade (fig. 1) during the work, will protect against radiation printing opacity separation blade 5 downwards, will protect against radiation printing opacity separation blade 5 about the first magic of three party paste that the first tape 7 was pasted and circle the wool layer on the first magic subsides wool layer 4 that corresponds, wear the eye-shade on glasses, with on first fixed band 101 second magic subsides wool layer 8 and the second fixed band 102 on the second magic subsides circle the wool layer 9 laminating can, realize visual function, protect against radiation printing opacity separation blade 5 can prevent that electromagnetic radiation from getting into eyes, magnetite 14 can also the physiotherapy eyes simultaneously.

The utility model discloses the application method of second embodiment:

the eyeshade has the functions of visual radiation protection and shielding. During work, wearing an eye patch (figure 7), downwards placing a radiation-proof light-transmitting separation blade 5, enabling a first magic tape round wool layer on a first tape 7 of a left side, a right side and a lower side of the radiation-proof light-transmitting separation blade 5 to be on a corresponding first magic tape thorn wool layer 4, enabling a light-shielding separation blade 17 to naturally droop, wearing the eye patch on glasses, and attaching a second magic tape thorn wool layer 8 on a first fixing band 101 to a second magic tape round wool layer 9 on a second fixing band 102, so that a visual function is realized, the radiation-proof light-transmitting separation blade 5 can prevent electromagnetic radiation from entering eyes, and a magnet 14 can also perform physical therapy on the eyes; wear eye-shade (fig. 8) during the rest, will protect against radiation printing opacity separation blade 5 upwards pull-up, then with shading separation blade 17 upwards pull-up, paste third magic subsides circle wool layer 19 on the second of shading separation blade 17 left and right sides upper part third party pastes the area 18 on the first magic subsides thorn wool layer 4 that corresponds, then the natural flagging part of radiation protection printing opacity separation blade 5 covers shading separation blade 17, wear the eye-shade on glasses, paste second magic subsides on thorn wool layer 8 and the second fixed band 102 second magic subsides circle wool layer 9 laminating can on with first fixed band 101, the realization is sheltered from the function, magnetite 14 can also physiotherapy eyes in the shading.

The utility model discloses the application method of third embodiment:

the eyeshade has the functions of visual radiation protection and shielding medicine application. During work, wearing an eye patch (figure 7), downwards placing a radiation-proof light-transmitting separation blade 5, placing a first magic tape round hair layer on a first tape 7 of a left side, a right side and a lower side of the radiation-proof light-transmitting separation blade 5 on a corresponding first magic tape thorn hair layer 4, taking down a medicine adding bag, naturally dropping a shading separation blade 17 at the moment, wearing the eye patch on glasses, and attaching a second magic tape thorn hair layer 8 on a first fixing band 101 and a second magic tape round hair layer 9 on a second fixing band 102, so that a visual function is realized, the radiation-proof light-transmitting separation blade 5 can prevent electromagnetic radiation from entering eyes, and a magnet 14 can also perform physical therapy on the eyes; wearing an eye mask (figure 8) during rest, pulling up the radiation-proof light-transmitting blocking piece 5, when the medicine adding bag is not installed, then pulling up the light-shielding blocking piece 17, putting a third magic tape round hair layer 19 on a second tape 18 of the left, right and upper parts of the light-shielding blocking piece 17 on a corresponding first magic tape thorn hair layer 4, then covering the light-shielding blocking piece 17 by the naturally drooping part of the radiation-proof light-transmitting blocking piece 5, wearing the eye mask on glasses, and attaching a second magic tape thorn hair layer 8 on a first fixing band 101 to a second magic tape round hair layer 9 on a second fixing band 102 to realize the shielding function, wherein the magnet 14 can be used for physiotherapy of eyes while shielding light; when a user leans against the medicated bag (figure 9), the medicated bag 20 is attached to the surface of the shading baffle 17 through a magic tape (the magic tape is not shown in the figure), and traditional Chinese medicines or plants are added into the medicated bag 20, so that the medicines can be applied to eyes, and the effects of activating blood and relieving fatigue are achieved.

The utility model provides a radiation protection health care eye patch, which adopts unique fiber and structure combination, and is provided with a bamboo charcoal fiber fabric layer, a graphene wadding sheet layer and a kendir fiber layer, and has the multifunctional characteristics of bacteriostasis, disease removal, far infrared ray emission, improvement of human microcirculation and the like; the magnets are arranged according to acupuncture points around the eyes and are used for generating a micro magnetic field, so that the effects of relaxing the eyes and relieving fatigue can be achieved; the eyeshade has both a visual radiation protection function and a shielding function, the eyeshade is worn during work, the visual function is realized by using the radiation protection light-transmitting blocking piece, electromagnetic radiation can be prevented from entering the eyes, and meanwhile, the magnets can also perform physical therapy on the eyes; wear the eye-shade during the rest, use the shading separation blade, realize sheltering from the function, the magnetite can also the physiotherapy eyes in the time of the shading, and can add medicine bag and apply eyes.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims (10)

1. A radiation-proof health-care eye mask is characterized in that, comprising a fixing belt and an eye mask body, the corresponding eye parts of the eye mask body are two cavities, and the upper, lower, left and right sides of each of the described cavities are symmetrically provided with the first Velcro The burr layer, the upper side of the radiation-proof and light-transmitting baffle is sewn on the top of the upper first Velcro burr layer. The tapes are all provided with a first Velcro round hair layer, so that the radiation-proof and light-transmitting baffles can block or reveal the cavity, and each side of the eye mask body is fixed with the eye mask at two points. The fixing belts are connected, the outer side of the first fixing belt is provided with a second Velcro burr layer, the inner side of the second fixing belt is provided with a second Velcro round hair layer, and the eye mask body sequentially includes a bamboo charcoal fiber fabric layer and a graphene flake layer , Apocynum fiber layer, skin-friendly inner layer, a number of magnets are mixed in the apocynum fiber layer, and a number of the magnets are arranged according to the acupoints around the eyes. 2. a kind of radiation protection health eye mask according to claim 1, is characterized in that, described bamboo charcoal fiber fabric layer, described graphene flake layer, described apocynum fiber layer, described skin-friendly inner layer four layers The peripheries in between are joined by stitching or gluing. 3 . The radiation protection health care eye mask according to claim 1 , wherein the eye mask body is sewn into a mesh shape by using fibers. 4 . 4 . The radiation protection health care eye mask according to claim 1 , wherein a nose pad is arranged under the eye mask body. 5 . 5 . The radiation protection health care eye mask according to claim 1 , wherein the cavity is elliptical. 6 . 6 . The radiation protection health care eye mask according to claim 1 , wherein a plurality of the magnets are arranged in an oval shape around the acupoints around the eyes. 7 . 7 . The radiation-proof health-care eye mask according to claim 1 , wherein the magnet is one of plum blossom jade and rare earth permanent magnet. 8 . 8 . The radiation protection health care eye mask according to claim 1 , wherein the radiation protection health care eye mask further comprises a shading baffle, and the lower side of the shading baffle is sewn on the lower first Velcro burr layer. 9 . Below, the left, right, and upper three sides of the light-shielding baffles are provided with second tapes, and the second tapes are all provided with a third Velcro round hair layer, so that the light-shielding baffles block or reveal the empty space. cavity. 9 . The radiation protection health care eye mask according to claim 8 , wherein the radiation protection health care eye mask is further provided with a medicated bag, and the surface of the medicated bag is provided with a third Velcro burr layer, so the A fourth velcro round bristle layer is provided on the central part of the side of the light-shielding baffle away from the eyes, and the fourth velcro round bristle layer is attached to the third velcro burr layer. 10 . The radiation-proof health care eye mask according to claim 9 , wherein the drug-adding bag is provided with a zipper, which is convenient for loading traditional Chinese medicines or plants. 11 .
