本实用新型公开了一种具有人脸识别及零件储存结构的电力智能柜，包括柜体、转动块和控制装置，所述柜体的内壁连接有柜门，且柜门的右侧连接有锁定块，并且柜体的内部安装有放置板，所述锁定块的顶部连接有传动块，且锁定块的右侧固定有滑块，所述滑块的右侧连接有气囊，且气囊的外侧固定有连接板，所述转动块安装于连接板的一侧，且转动块的一端连接有盖板，所述盖板的内侧连接有磁性块，且磁性块的底部安装有摄像头，所述控制装置安装于柜体的内部，且控制装置的底贴合有垫片。该电力智能柜具有一定的防尘效果，且可以通过人脸识别对柜门进行打开，同时便于对零件进行存储。
The utility model discloses a power intelligent cabinet with a face recognition and parts storage structure, comprising a cabinet body, a rotating block and a control device. The inner wall of the cabinet body is connected with a cabinet door, and the right side of the cabinet door is connected with a lock The top of the locking block is connected with a transmission block, and the right side of the locking block is fixed with a slider, the right side of the slider is connected with an air bag, and the outer side of the air bag is fixed There is a connecting plate, the rotating block is installed on one side of the connecting plate, and one end of the rotating block is connected with a cover plate, the inner side of the cover plate is connected with a magnetic block, and the bottom of the magnetic block is installed with a camera, the control device It is installed inside the cabinet, and a gasket is attached to the bottom of the control device. The power smart cabinet has a certain dustproof effect, and the cabinet door can be opened through face recognition, and at the same time, it is convenient to store parts.
Description
Technical Field
The utility model relates to an intelligence cabinet technical field specifically is an electric power intelligence cabinet with face identification and part store structure.
Background
The intelligent cabinet is the modernized intelligent cabinet that has intelligent control, prevents invading entrance guard and long-range centralized management and control function, and electric power system needs to use a large amount of instruments and instruments now, is higher because of the frequency of use, loses easily and is difficult to look for, in order to avoid artificially putting in disorder, misplacing to lead to instrument and instrument to fail in time to acquire and influence maintenance efficiency, and the intelligent cabinet on the market still has certain not enough, for example:
1. at present, the traditional intelligent cabinet still has certain not enough in the storage of less parts, and in the in-process of power equipment maintenance, some less power equipment parts can be used often, if can not carry out classified storage to the part, the phenomenon of unexpected losing appears because of the volume is less easily.
2. At present traditional intelligent cabinet still has certain not enough in face identification unlocking, and some intelligent cabinets are unblanked to use the key on the market, forget when carrying or losing as the key, appear the problem that the article in the cabinet is difficult to take out easily.
To the existing problem, the innovation on the basis of the original intelligent cabinet is urgently needed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an electric power intelligence cabinet with face identification and part store structure to solve and still have certain not enough in the storage of less part that proposes in the above-mentioned background art, if can not carry out classified storage to the part, the accident appears losing because of the volume is less easily, still there is certain not enough simultaneously on face identification unlocking, some intelligent cabinets are unblanked using the key on the market, forget when carrying or losing when the key, the problem that article in the cabinet are difficult to take out appears easily.
In order to achieve the above object, the utility model provides a following technical scheme: an electric intelligent cabinet with a face recognition and part storage structure comprises a cabinet body and a control device, wherein the inner wall of the cabinet body is connected with a cabinet door, the right side of the cabinet door is connected with a locking block, a placing plate is arranged in the cabinet body, the top of the locking block is connected with a transmission block, the right side of the locking block is fixed with a sliding block, the right side of the sliding block is connected with an air bag, the outer side of the air bag is fixed with a connecting plate, one side of the connecting plate is provided with a rotating block, one end of the rotating block is connected with a cover plate, the inner side of the cover plate is connected with a magnetic block, the bottom of the magnetic block is provided with a camera, the control device is arranged in the cabinet body, the bottom of the control device is provided with a gasket, the two ends of the control device are connected with second connecting blocks, the bottom of the second connecting blocks is connected with sliding blocks, the inner parts of the sliding blocks are connected with rotating rods, and the outer side of the sliding block is fixed with a base.
Preferably, the locking block and the air bag form an elastic telescopic structure through a sliding block, and the locking block is connected with the transmission block in a meshing manner.
Preferably, the cover plate forms a rotating structure with the connecting plate through a rotating block, and the camera is connected with the connecting plate in a clamping manner.
Preferably, the internal connection of placing the board has the box of placing, and the both ends of placing the board are connected with first linkage block to one side of first linkage block is connected with the movable block, and the external fixation of movable block has the fixed block simultaneously.
Preferably, place the box nestification and set up in the inside of placing the board, and place and be connected for the block between board and the first linkage block to first linkage block passes through the movable block and constitutes sliding construction with the fixed block.
Preferably, the bottom of the control device is attached to the top of the gasket, two second connecting blocks are symmetrically arranged on the central axis of the control device, and the second connecting blocks form a sliding structure through sliding blocks and the base.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the electric intelligent cabinet with the face recognition and part storage structure is provided with a camera and a cover plate, wherein the camera is connected with a connecting plate and fixed by screws, the camera can recognize a face and transmit information of the face to a control device, the information is compared with information stored in the control device, when the information is correct, the control device controls a transmission block to move so as to open a cabinet door, when the camera is not used, the cover plate is pushed, the cover plate drives a rotating block to rotate on the connecting plate, the cover plate is adsorbed to a magnetic block, and the camera has a good dustproof effect;
2. the electric intelligent cabinet with the face recognition and part storage structure is provided with the transmission block and the locking block, the transmission block rotates to drive the locking block to move, the locking block drives the sliding block to move and compress the air bag, the locking block is separated from the cabinet door, the cabinet door is opened conveniently, and a key is not needed to be used for opening;
3. this electric power intelligence cabinet with face identification and part storage structure is provided with places the board and places the box, places the box and places the board and link to each other, and places the box and be provided with a plurality ofly, places board and first connecting block and connects for the block, and the board is placed in the pulling, places the board and drives first connecting block and the movable block slides on the fixed block, lets place the board roll-off, and then lets place the part in the box and take out and place comparatively convenient.
Drawings

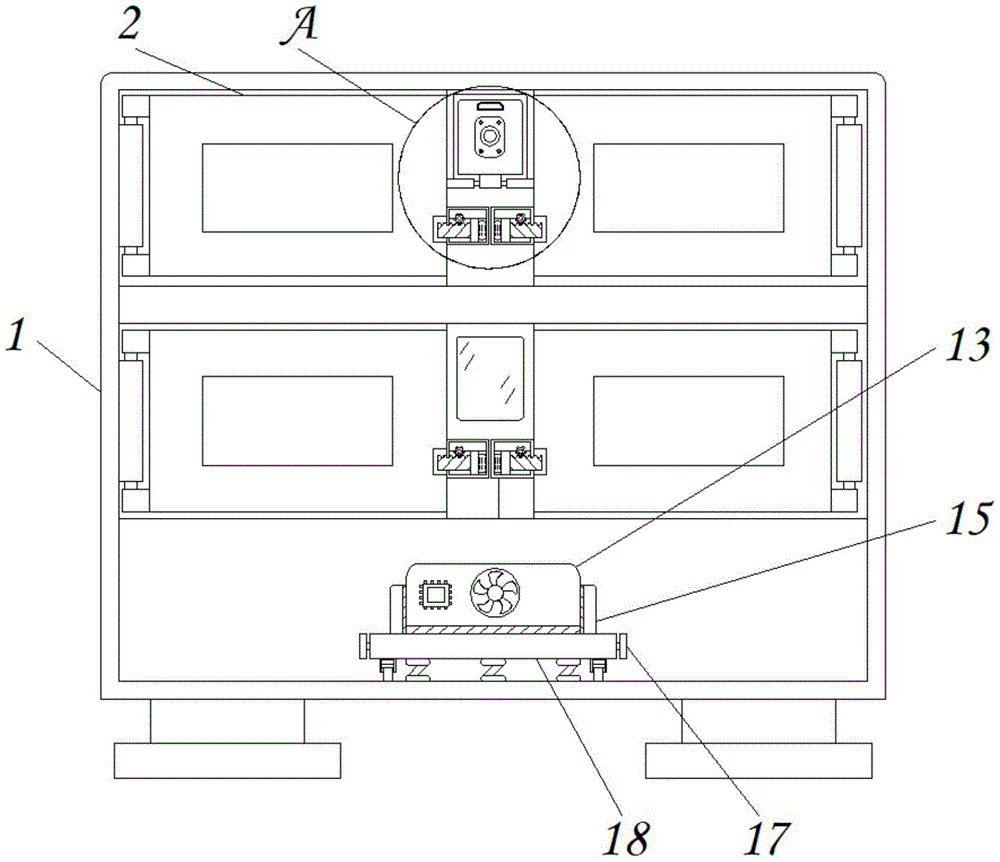

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
fig. 2 is a schematic top view of the locking block of the present invention;
fig. 3 is a schematic side view of the camera of the present invention;
FIG. 4 is a schematic view of the connection structure between the cabinet body and the placing plate of the present invention;
fig. 5 is a schematic view of the connection structure between the control device and the rotating rod of the present invention;
fig. 6 is an enlarged schematic structural diagram of a in fig. 1 according to the present invention.
In the figure: 1. a cabinet body; 2. a cabinet door; 3. a locking block; 4. a transmission block; 5. a slider; 6. an air bag; 7. a connecting plate; 8. rotating the block; 9. a cover plate; 10. a magnetic block; 11. a camera; 12. placing the plate; 1201. placing the box; 1202. a first connection block; 1203. a movable block; 1204. a fixed block; 13. a control device; 14. a gasket; 15. a second connecting block; 16. a slider; 17. rotating the rod; 18. a base.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: an electric intelligent cabinet with a face recognition and part storage structure comprises a cabinet body 1, a cabinet door 2, a locking block 3, a transmission block 4, a sliding block 5, an air bag 6, a connecting plate 7, a rotating block 8, a cover plate 9, a magnetic block 10, a camera 11, a placing plate 12, a placing box 1201, a first connecting block 1202, a movable block 1203, a fixed block 1204, a control device 13, a gasket 14, a second connecting block 15, a sliding block 16, a rotating rod 17 and a base 18, wherein the inner wall of the cabinet body 1 is connected with the cabinet door 2, the right side of the cabinet door 2 is connected with the locking block 3, the placing plate 12 is installed inside the cabinet body 1, the top of the locking block 3 is connected with the transmission block 4, the right side of the locking block 3 is fixedly provided with the sliding block 5, the right side of the sliding block 5 is connected with the air bag 6, the outer side of the air bag 6 is fixedly provided with the connecting plate 7, the rotating block 8 is installed on one side of the connecting plate 7, and one end of the rotating block 8 is connected with the cover plate 9, the inner side of the cover plate 9 is connected with a magnetic block 10, the bottom of the magnetic block 10 is provided with a camera 11, a control device 13 is arranged inside the cabinet body 1, the bottom of the control device 13 is attached with a gasket 14, two ends of the control device 13 are connected with second connecting blocks 15, the bottom ends of the second connecting blocks 15 are connected with sliding blocks 16, the inside of the sliding blocks 16 is connected with rotating rods 17, and the outer sides of the sliding blocks 16 are fixed with bases 18;
the locking block 3 and the air bag 6 form an elastic telescopic structure through the sliding block 5, the locking block 3 is meshed with the transmission block 4, the transmission block 4 rotates to drive the locking block 3 to move, the locking block 3 drives the sliding block 5 to move and compresses the air bag 6, the locking block 3 is separated from the cabinet door 2, the cabinet door 2 is opened, the cabinet door 2 is convenient to open, and a key is not needed to open;
the cover plate 9 and the connecting plate 7 form a rotating structure through the rotating block 8, the cover plate 9 and the magnetic block 10 form a magnetic structure, the camera 11 is connected with the connecting plate 7 in a clamping mode, the camera 11 is connected with the connecting plate 7 and fixed through screws, the camera 11 can identify a human face and transmit information of the human face to the control device 13, the information is compared with information stored in the control device 13, when the information is correct, the control device 13 controls the transmission block 4 to move to open the cabinet door 2, when the camera 11 is not used, the cover plate 9 is pushed, the cover plate 9 drives the rotating block 8 to rotate on the connecting plate 7, the cover plate 9 is adsorbed with the magnetic block 10, and the camera 11 has a good dustproof effect;
the placing box 1201 is nested in the placing plate 12, the placing plate 12 is connected with the first connecting block 1202 in a clamping manner, the first connecting block 1202 and the fixed block 1204 form a sliding structure through the movable block 1203, the placing box 1201 is connected with the placing plate 12, the placing box 1201 is provided with a plurality of placing boxes, the placing plate 12 is connected with the first connecting block 1202 in a clamping manner, the placing plate 12 is pulled, the placing plate 12 drives the first connecting block 1202 and the movable block 1203 to slide on the fixed block 1204, the placing plate 12 slides out, and therefore parts in the placing box 1201 can be conveniently taken out and placed;
the bottom of controlling means 13 is laminated with the top of gasket 14 mutually, and second connecting block 15 is provided with two about controlling means 13's axis symmetry, and second connecting block 15 passes through sliding block 16 and base 18 constitution sliding structure, rotate dwang 17, dwang 17 and sliding block 16 are threaded connection, drive sliding block 16 and second connecting block 15 and move on base 18, and the screw thread at dwang 17 both ends sets up for opposite, let second connecting block 15 move in opposite directions, come to carry out the centre gripping to controlling means 13, let the fixed comparatively convenient of installation of controlling means 13, and controlling means 13 bottom is connected with gasket 14, a plurality of springs are installed to base 18 bottom, carry out buffer protection to controlling means 13.
The working principle is as follows: the electric power intelligent cabinet with the face recognition and part storage structure has the use flow that according to the figures 1-3 and 6, firstly, the rotating rod 17 is rotated, the rotating rod 17 is in threaded connection with the sliding block 16, the sliding block 16 and the second connecting block 15 are driven to move on the base 18, threads at two ends of the rotating rod 17 are oppositely arranged, the second connecting block 15 moves oppositely to clamp the control device 13, the control device 13 is convenient and fast to install and fix, the bottom of the control device 13 is connected with the gasket 14, the bottom of the base 18 is provided with a plurality of springs to achieve the purpose of buffering and protecting the control device 13, the device is provided with the camera 11, the camera 11 is connected with the connecting plate 7 and is fixed by screws, the camera 11 can recognize the face and convey information of the face to the control device 13, and is compared with information stored in the control device 13, when the information is correct, the control device 13 controls the transmission block 4 to move, the transmission block 4 rotates to drive the locking block 3 to move, the locking block 3 drives the sliding block 5 to move and compress the air bag 6, and then the locking block 3 is separated from the cabinet door 2, so that the cabinet door 2 is opened;
according to fig. 1 and 4-5, when the camera 11 is not used, the cover plate 9 is pushed, the cover plate 9 drives the rotating block 8 to rotate on the connecting plate 7, the cover plate 9 is made to be adsorbed to the magnetic block 10, so that the purpose of preventing dust for the camera 11 is achieved, when parts need to be stored, the placing box 1201 is connected with the placing plate 12, the placing box 1201 is provided with a plurality of placing boxes, the placing plate 12 is connected with the first connecting block 1202 in a clamping mode, the placing plate 12 is pulled, the placing plate 12 drives the first connecting block 1202 and the movable block 1203 to slide on the fixed block 1204, the placing plate 12 slides out, so that the purpose of taking out and placing the parts is achieved conveniently, the cooling fan and the temperature control device are installed on the control device 13, when the temperature control device detects that the temperature is high, information is fed back to the control device 13, and the control device 13 controls the fan to rotate, so as to cool the control device 13.
Those not described in detail in this specification are within the skill of the art.
