CN214189111U

CN214189111U - Double-blade multifunctional pencil sharpener convenient to disassemble

Info

Publication number: CN214189111U
Application number: CN202023121748.7U
Authority: CN
Inventors: 吴翠珊
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-12-22
Filing date: 2020-12-22
Publication date: 2021-09-14
Anticipated expiration: 2030-12-22

Abstract

A dual-blade multifunctional pencil sharpener that is easy to disassemble, comprising a casing, a two-entry pen assembly and a pen scrap box arranged in the casing, and a handle arranged outside the casing, the casing comprising a casing and a removable The rear cover is connected to the rear end of the casing, the gear set is arranged on the rear cover, the handle drives the two pencil sharpeners stored in the casing through the gear set, and the casing has three Knob installation holes, three knobs with one end inserted into the three knob installation holes are movably penetrated on the back cover, and two clamping slots are arranged on these knob installation holes oppositely, and these knobs are provided with There are two protrusions matched with the corresponding two said card slots. The utility model not only greatly improves the assembling and disassembling convenience of the rear cover, but also facilitates the replacement of the pencil sharpening component and the cleaning of the pencil dust box.

Description

Double-blade multifunctional pencil sharpener convenient to disassemble

Technical Field

The utility model belongs to the technical field of the stationery technique and specifically relates to a multi-functional ware of cutting of double knives convenient to dismantle.

Background

The pencil sharpener, also called a pencil sharpener or a pencil sharpener, is a tool for sharpening a pencil, and the pencil sharpener is divided into an electric sharpener and a manual sharpener, wherein the manual sharpener is divided into a hand sharpener and a manual sharpener without hand cranking. Hand pencil sharpener passes through the twist grip, can accomplish and dig a function, can make closed structure usually, and the bits box is the mode of horizontal pull for the pencil piece is difficult for scattering.

There is a need in the art for a dual-blade multifunctional pencil sharpener that is easy to disassemble and replace a pencil sharpening assembly or clean a pencil scrap box.

SUMMERY OF THE UTILITY MODEL

The utility model provides a convenient to detach's multi-functional ware of cutting of double knives of realizing above-mentioned purpose.

In order to achieve the above object, the utility model adopts the following technical scheme:

the utility model provides a multi-functional ware of cutting of double knives convenient to dismantle, include the shell, set up in two advance a subassembly and a bits box in the shell and set up in the outer handle of shell, the shell include the casing with can dismantle connect in the back lid of casing rear end, the gear train set up in back is covered, the handle passes through the gear train drive accomodate in two in the shell cut a subassembly, it has three knob mounting hole to open on the casing, back is covered the activity and has been worn to put three one end and insert threely the knob in the knob mounting hole, this a little relatively be provided with two draw-in grooves on the knob mounting hole, this a little be equipped with on the knob with corresponding two draw-in groove matched with two archs.

Compared with the prior art, the beneficial effects of the utility model are that:

due to the adoption of the structural design, the protrusions on the knob are matched with the clamping grooves in the knob mounting hole, and the rotary clamping structure is formed, during mounting, the knob is pushed into the knob mounting hole to rotate for a certain angle, so that the protrusions and the clamping grooves can be clamped, the rear cover is fixed with the shell, during dismounting, the knob and the rear cover can be successively taken down by reversely rotating for a certain angle, the mounting and dismounting convenience of the rear cover is greatly improved, and the replacement of the pencil sharpening assembly and the cleaning of the pencil scrap box are facilitated.

Drawings

FIG. 1 is a schematic structural view of the present invention;

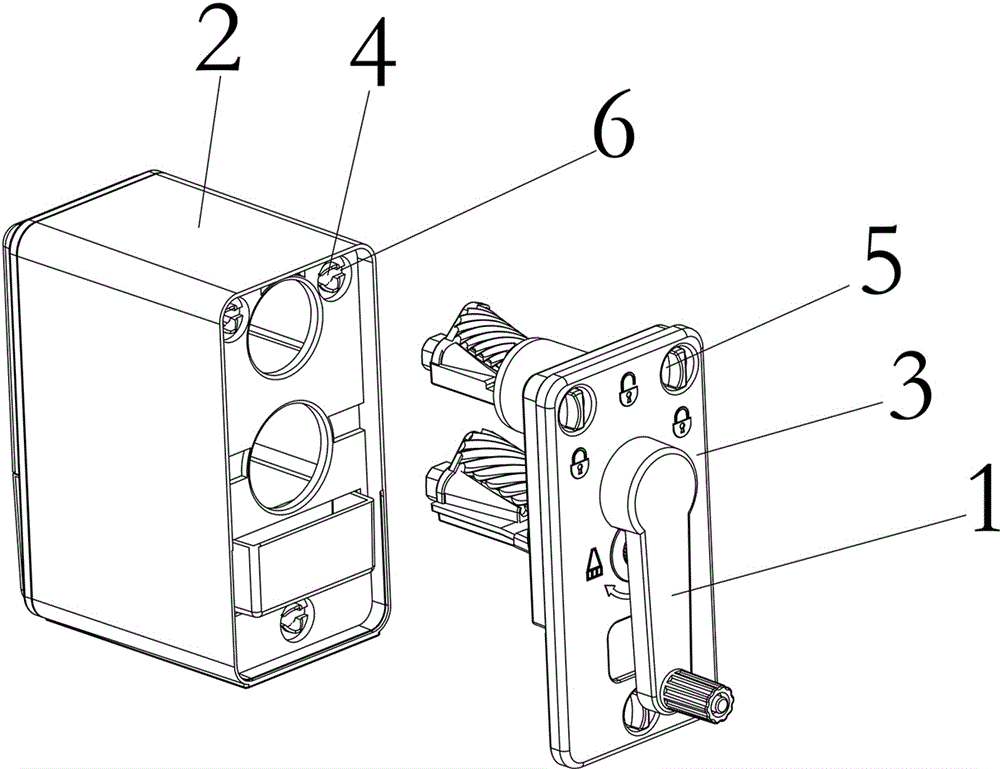

fig. 2 is a schematic exploded view of the present invention.

The reference numbers in the figures are respectively: (1) the handle, (2) the casing, (3) the back lid, (4) knob mounting hole, (5) the knob, (6) the draw-in groove, (7) the arch.

Detailed Description

The invention will be described in further detail with reference to the accompanying drawings:

referring to fig. 1 and 2, the utility model relates to a detachable multifunctional pencil sharpener with double knives, which comprises a housing, two pencil feeding assemblies and a pencil scrap box arranged in the housing, and a handle 1 arranged outside the housing, wherein the housing comprises a shell 2 and a rear cover 3 detachably connected to the rear end of the shell, a gear set is arranged on the rear cover, the handle 1 drives the two pencil sharpening assemblies accommodated in the housing through the gear set, three knob mounting holes 4 are arranged on the shell 2, three knobs 5 with one ends inserted into the three knob mounting holes are movably arranged on the rear cover 3, two clamping grooves 6 are oppositely arranged on the knob mounting holes 4, two protrusions 7 matched with the two corresponding clamping grooves 6 are arranged on the knobs 5, and the protrusions on the knobs correspond to the clamping grooves on the knob mounting holes when the sharpener is installed through the structural design, then push the knob in the knob mounting hole on, rotatory certain angle can enough make arch and draw-in groove block, and then make back lid and casing together fixed, during the dismantlement, can take off knob and back lid in proper order to reverse certain angle of rotation, not only greatly promoted the convenience of installing and removing of back lid, also be convenient for cut the change of subassembly and the clearance of pencil bits box. The housing, the pencil feeding assembly, the pencil sharpening assembly and the pencil chip box and the connection relationship therebetween are prior art and will not be described herein.

To sum up, the utility model discloses an foretell structural design solves the weak point among the prior art, has characteristics such as reasonable in design, novel, the dismantlement is convenient.

The above-mentioned embodiments, further detailed description of the objects, technical solutions and advantages of the present invention, it should be understood that the above-mentioned embodiments are only specific embodiments of the present invention, and are not intended to limit the present invention, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principle of the present invention should be included in the scope of the present invention.

Claims

1. The utility model provides a multi-functional ware of cutting of double knives convenient to dismantle which characterized in that: including the shell, set up in two advance a subassembly and a bits box in the shell and set up in handle outside the shell, the shell include the casing with can dismantle connect in the back lid of casing rear end, the gear train set up in cover after, the handle passes through the gear train drive accomodate in two in the shell cut a subassembly, it has three knob mounting hole to open on the casing, it has three one end to insert threely to cover the activity after, it is a little relatively be provided with two draw-in grooves on the knob mounting hole, it is a little be equipped with on the knob with corresponding two draw-in groove matched with two archs.
