Efficient machine part drilling equipment

Technical Field

The utility model relates to the field of machinary, specifically be an efficient machine part drilling equipment.

Background

The mechanical part, also called mechanical element, is the basic element that constitutes the machine and is a non-detachable single piece that constitutes the machine and the machine. The mechanical parts are a subject of researching and designing mechanical basic parts in various devices and are also a general term of parts and components. In the process of machining mechanical parts, boring is often required to be performed on the surfaces of the parts so as to assemble, thread and the like the parts.

At present, in the production link, a milling machine and the like are generally used for boring parts, and the milling machine needs manual feeding and other operations, so that the processing efficiency is low, and the requirements of automatic production cannot be met.

SUMMERY OF THE UTILITY MODEL

The utility model mainly solves the technical problem existing in the prior art and provides an efficient mechanical part drilling device.

In order to achieve the above object, the utility model provides a following technical scheme: an efficient mechanical part drilling device comprises a workbench, wherein the inner side of the workbench is rotatably connected with a first transmission roller and a second transmission roller, the surfaces of the first driving roller and the second driving roller are connected with a conveyor belt in a transmission way, one side of the workbench is fixedly provided with a first motor, the output end of the first motor is fixedly connected with the first transmission roller, the upper side of the workbench is fixedly connected with a bracket, a second motor is fixedly arranged on one side of the bracket, a first threaded rod is fixedly connected with the output end of the second motor, the first threaded rod is rotationally connected with the bracket, the thread turning directions of two ends of the first threaded rod are opposite, the surface of the first threaded rod is in threaded connection with two clamping blocks which are symmetrically arranged at the two ends of the first threaded rod, the inner side of the support is fixedly connected with a first sliding rod, and the clamping block is connected with the first sliding rod in a sliding mode.

Preferably, the lower side of the clamping block is fixedly connected with a wedge-shaped shovel plate, the surface of the clamping block is fixedly connected with a rubber pad, the inner side of the support is fixedly connected with a second sliding rod, and the second sliding rod penetrates through the upper side of the wedge-shaped shovel plate.

Preferably, one side fixed mounting of support has the third motor, the output end fixedly connected with second threaded rod of third motor, the surperficial threaded connection of second threaded rod has the slider, the inboard fixedly connected with third slide bar of support, slider and third slide bar sliding connection.

Preferably, one side fixed mounting of slider has electric putter, electric putter's downside fixedly connected with mounting bracket, the fixed surface of mounting bracket installs the fourth motor, the output fixedly connected with drill bit of fourth motor, the fixed surface of mounting bracket is connected with the fourth slide bar, fourth slide bar and slider sliding connection.

Preferably, one side of the workbench is fixedly connected with a partition plate, and a collection box is arranged on the lower side of the partition plate.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a first motor drives first driving roller and rotates, and cooperation second driving roller drives the conveyer belt and conveys the part, drives first threaded rod through the second motor and rotates, drives clamp splice relative movement and carries out the centre gripping to the part, and cooperation wedge shovel board holds up the part, makes the part leave the conveyer belt surface, conveniently drills to the part, improves machining efficiency.

2. The utility model discloses a third motor drives the slider and removes, drives the fourth motor through electric putter and descends, drills to the part through the drill bit is rotatory, and the piece that the drilling produced falls the conveyer belt surface and conveys, makes the piece drop to collect the incasement and collect.

Drawings

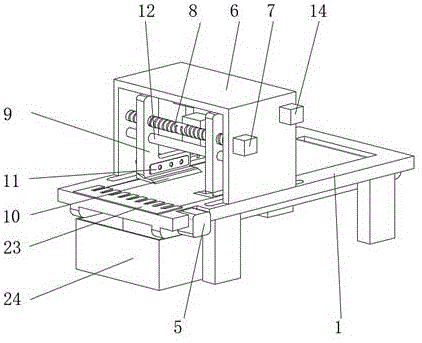

FIG. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic view of the three-dimensional cross-sectional structure of the present invention;

fig. 3 is a schematic view of the three-dimensional structure of the slider of the present invention.

In the figure: the automatic conveying device comprises a workbench, a first driving roller 2, a second driving roller 3, a conveying belt 4, a first motor 5, a support 6, a second motor 7, a first threaded rod 8, a clamping block 9, a wedge-shaped shovel plate 10, a rubber pad 11, a first sliding rod 12, a second sliding rod 13, a third motor 14, a second threaded rod 15, a sliding block 16, a third sliding rod 17, an electric push rod 18, a mounting rack 19, a fourth motor 20, a drill bit 21, a fourth sliding rod 22, a partition plate 23 and a collection box 24.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, an efficient mechanical part drilling device comprises a worktable 1, a first driving roller 2 and a second driving roller 3 are rotatably connected to the inner side of the worktable 1, a conveyor belt 4 is rotatably connected to the surfaces of the first driving roller 2 and the second driving roller 3, a first motor 5 is fixedly installed at one side of the worktable 1, the output end of the first motor 5 is fixedly connected to the first driving roller 2, a bracket 6 is fixedly connected to the upper side of the worktable 1, a second motor 7 is fixedly installed at one side of the bracket 6, a first threaded rod 8 is fixedly connected to the output end of the second motor 7, the first threaded rod 8 is rotatably connected to the bracket 6, the thread turning directions of the two ends of the first threaded rod 8 are opposite, two clamping blocks 9 are threadedly connected to the surface of the first threaded rod 8, the two clamping blocks 9 are symmetrically arranged at the two ends of the first threaded rod 8, a first sliding rod 12 is fixedly connected to the inner side of the bracket 6, clamp splice 9 and first slide bar 12 sliding connection, the downside fixedly connected with wedge shovel board 10 of clamp splice 9, the fixed surface of clamp splice 9 is connected with rubber pad 11, the inboard fixedly connected with second slide bar 13 of support 6, second slide bar 13 runs through the upside of wedge shovel board 10, drive first driving roller 2 through first motor 5 and rotate, cooperation second driving roller 3 drives conveyer belt 4 and conveys the part, it rotates to drive first threaded rod 8 through second motor 7, it carries out the centre gripping to the part to drive clamp splice 9 relative movement, cooperation wedge shovel board 10 holds up the part, make the part leave conveyer belt 4 surfaces, conveniently drill the part.

Referring to fig. 2 and 3, a third motor 14 is fixedly installed on one side of a support 6, a second threaded rod 15 is fixedly connected to an output end of the third motor 14, a slider 16 is connected to a surface thread of the second threaded rod 15, a third slide bar 17 is fixedly connected to an inner side of the support 6, the slider 16 is slidably connected to the third slide bar 17, an electric push rod 18 is fixedly installed on one side of the slider 16, a mounting frame 19 is fixedly connected to a lower side of the electric push rod 18, a fourth motor 20 is fixedly installed on a surface of the mounting frame 19, a drill bit 21 is fixedly connected to an output end of the fourth motor 20, a fourth slide bar 22 is fixedly connected to a surface of the mounting frame 19, the fourth slide bar 22 is slidably connected to the slider 16, a partition plate 23 is fixedly connected to one side of the workbench 1, a collection box 24 is installed on a lower side of the partition plate 23, the slider 16 is driven by the third motor 14 to move, the fourth motor 20 is driven by the electric push rod 18 to descend, the part is drilled through the rotation of the drill bit 21, the chips generated by drilling fall onto the surface of the conveying belt 4 to be conveyed, the chips fall into the collecting box 24 to be collected, after the processing is finished, the clamping blocks 9 are separated from each other, and the parts fall onto the surface of the conveying belt 4 to be conveyed in cooperation with the third sliding rod 17.

The working principle is as follows: drive 2 rotations of first driving roller through first motor 5, cooperation second driving roller 3 drives conveyer belt 4 and conveys the part, it rotates to drive first threaded rod 8 through second motor 7, it carries out the centre gripping to the part to drive clamp splice 9 relative movement, cooperation wedge shovel 10 holds up the part, make the part leave conveyer belt 4 surface, conveniently drill the part, it removes to drive slider 16 through third motor 14, it descends to drive fourth motor 20 through electric putter 18, drill the part through the rotation of drill bit 21, the piece that the drilling produced falls conveyer belt 4 surface and conveys, make the piece drop and collect in collection box 24, after the processing is accomplished, clamp splice 9 parts each other, cooperation third slide bar 17 makes the part fall and conveys conveyer belt 4 surface.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An efficient drilling device for mechanical parts, comprising a workbench (1), characterized in that: a first drive roller (2) and a second drive roller (3) are rotatably connected to the inner side of the workbench (1) , a conveyor belt (4) is connected to the surface of the first drive roller (2) and the second drive roller (3), and a first motor (5) is fixedly installed on one side of the worktable (1). The output end of the first motor (5) is fixedly connected with the first transmission roller (2), the upper side of the worktable (1) is fixedly connected with a bracket (6), and one side of the bracket (6) is fixedly installed with a bracket (6). A second motor (7), the output end of the second motor (7) is fixedly connected with a first threaded rod (8), the first threaded rod (8) is rotatably connected to the bracket (6), and the first threaded rod (8) is rotatably connected to the bracket (6). The threads at both ends of the threaded rod (8) have opposite directions of rotation, and two clamping blocks (9) are threadedly connected on the surface of the first threaded rod (8), and the two clamping blocks (9) are symmetrically arranged on the first threaded rod (8) The inner side of the bracket (6) is fixedly connected with a first sliding rod (12), and the clamping block (9) is slidably connected with the first sliding rod (12).

2. An efficient drilling device for mechanical parts according to claim 1, characterized in that: the lower side of the clamping block (9) is fixedly connected with a wedge-shaped shovel plate (10), and the clamping block (9) A rubber pad (11) is fixedly connected to the surface of the bracket (6), a second sliding rod (13) is fixedly connected to the inner side of the bracket (6), and the second sliding rod (13) penetrates to the upper side of the wedge-shaped shovel plate (10). .

3. An efficient drilling device for mechanical parts according to claim 1, characterized in that: a third motor (14) is fixedly installed on one side of the bracket (6), and the third motor (14) The output end of the bracket (6) is fixedly connected with a second threaded rod (15), the surface of the second threaded rod (15) is threadedly connected with a slider (16), and the inner side of the bracket (6) is fixedly connected with a third sliding rod ( 17), the sliding block (16) is slidably connected with the third sliding rod (17).

4. An efficient drilling device for mechanical parts according to claim 3, characterized in that: an electric push rod (18) is fixedly installed on one side of the slider (16), and the electric push rod (18) A mounting frame (19) is fixedly connected to the lower side of the ), a fourth motor (20) is fixedly mounted on the surface of the mounting frame (19), and a drill bit (21) is fixedly connected to the output end of the fourth motor (20). A fourth sliding rod (22) is fixedly connected to the surface of the mounting bracket (19), and the fourth sliding rod (22) is slidably connected with the slider (16).

5. An efficient drilling device for mechanical parts according to claim 1, characterized in that: a partition plate (23) is fixedly connected to one side of the worktable (1), and the partition plate (23) ) is provided with a collection box (24) on the lower side.
