Abstract
本实用新型公开了一种平板电脑放置用工作台，包括支撑板，所述支撑板底部的两侧均固定安装有安装座，所述安装座的底部设置有滚轮，所述支撑板的顶部固定安装有电机外壳，所述支撑板的顶部且位于电机外壳的内部固定安装有正反转电机。本实用新型通过设置支撑板用于对正反转电机进行安装和支撑，提高正反转电机的稳定性，防止正反转电机在使用中出现晃动的情况，通过设置安装座用于对滚轮进行安装和限位，防止滚轮在滚动的时候出现偏移，导致装置无法移动，同时解决了现有平板电脑放置用工作台在使用中不具备调节使用高度的功能，由于不同工作者的身高不同，对工作台的高度要求不同，以达到工作时舒服，提高工作效率的问题。
The utility model discloses a workbench for placing a tablet computer, which comprises a support plate, two sides of the bottom of the support plate are fixedly installed with mounting seats, the bottom of the mounting seat is provided with rollers, and the top of the support plate is fixed A motor housing is installed, and a forward and reverse rotation motor is fixedly installed on the top of the support plate and inside the motor housing. The utility model provides a support plate for installing and supporting the forward and reverse motors, improves the stability of the forward and reverse motors, and prevents the forward and reverse motors from shaking during use. The installation and position limit prevent the rollers from shifting when rolling, which makes the device unable to move. At the same time, it solves the problem that the existing workbench for placing tablet computers does not have the function of adjusting the height of use during use. Due to the different heights of different workers, The height requirements of the workbench are different, in order to achieve the problem of comfortable work and improve work efficiency.
Description
Technical Field
The utility model relates to a workstation technical field specifically is a tablet computer places and uses workstation.
Background
The workstation adopts the preparation of high-quality cold rolling board finish work to form, firm table frame, it is firm steady, can make table bearing 1000kg, multiple work desktop is selected, can cooperate the requirement of different uses, instrument wall cupboard (case), side cabinet (case) lighting fixture, adjust the foot cup, the appearance is pleasing to the eye, the plywood, the drawer takes advantage of the quality, it is great to bear, can divide wantonly as required in the drawer, save the space, the suitability is strong, current panel computer is placed and is not possessed the function of adjusting use height with workstation in use, because different worker's height is different, the altitude requirement to the workstation is different, in order to reach during operation comfortablely, and the work efficiency is improved.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a tablet computer is placed and is used workstation possesses height-adjusting's advantage, has solved current tablet computer and has placed and do not possess the function of adjusting use height with workstation in use, because different workers ' height is different, and is different to the altitude requirement of workstation to reach the during operation comfortablely, improve work efficiency's problem.
In order to achieve the above object, the utility model provides a following technical scheme: a workbench for placing a tablet personal computer comprises a supporting plate, wherein mounting seats are fixedly mounted on two sides of the bottom of the supporting plate, rollers are arranged at the bottom of the mounting seats, a motor shell is fixedly mounted at the top of the supporting plate, a forward and reverse rotating motor is fixedly mounted at the top of the supporting plate and positioned in the motor shell, a threaded rod is fixedly mounted at the output end of the forward and reverse rotating motor, the top of the threaded rod penetrates through the top of the motor shell, a movable block is arranged on the surface of the threaded rod, a threaded groove is formed in the movable block, the threaded rod penetrates through the threaded groove and is in threaded connection with the threaded groove, connecting rods are rotatably connected to two sides of the movable block, a limiting block is fixedly mounted at the top of the threaded rod, a workbench body is arranged above the supporting plate, and sliding grooves are formed in two sides of the bottom of the workbench body, the inside sliding connection of spout has the slider, the relative one side fixed mounting who keeps away from of spout has damping spring, damping spring's opposite side and slider fixed connection, the bottom of slider and the top of connecting rod rotate to be connected.
Preferably, the two sides of the top of the supporting plate are fixedly provided with a placing cabinet, and the top of the placing cabinet is provided with a protective pad.
Preferably, the locating levers are fixedly mounted on two sides of the top of the supporting plate and located on two sides of the placement cabinet.
Preferably, the both sides of workstation body all fixed mounting have the connecting plate, the top of locating lever runs through in the inside of connecting plate and with connecting plate sliding connection.
Preferably, a fixture block is fixedly mounted at the top of the positioning rod and is located above the connecting plate.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a set up the backup pad and be used for installing and supporting just reversing motor, improve the stability of just reversing motor, prevent just reversing motor condition that rocks when using, be used for installing and spacing the gyro wheel through setting up the mount pad, prevent that the gyro wheel from appearing squinting when rolling, lead to the device can't remove, be convenient for remove the device through setting up the gyro wheel, very big satisfied the removal demand of device, be used for just reversing motor through setting up the motor casing and protect, prevent just reversing motor from colliding, lead to the damage of just reversing motor, through setting up just reversing motor and being used for driving the threaded rod and rotating, and then the threaded rod drives the movable block and reciprocates, the movable block drives the connecting rod and slides the slider, thereby the slider plays height-adjusting's effect to the workstation body, be used for carrying out the shock attenuation to the slider through setting up damping spring, the utility model discloses a workstation is used to work platform, has solved simultaneously that current panel computer is placed and is used workstation in use and do not possess the function of adjusting the use height, because different workers 'height is different, and the requirement for height to the workstation is different to reach the during operation comfortable, improve work efficiency's problem.
2. The utility model discloses a setting is placed the cabinet and is used for placing the required article of during operation, is used for sliding and spacing to the workstation body through setting up locating lever and connecting plate and mutually supporting, has improved the stability of workstation body when height-adjusting, prevents the skew of workstation body, is used for preventing the workstation body when height-adjusting through setting up the fixture block, and the connecting plate breaks away from the locating lever, leads to the unstability of workstation body.
Drawings

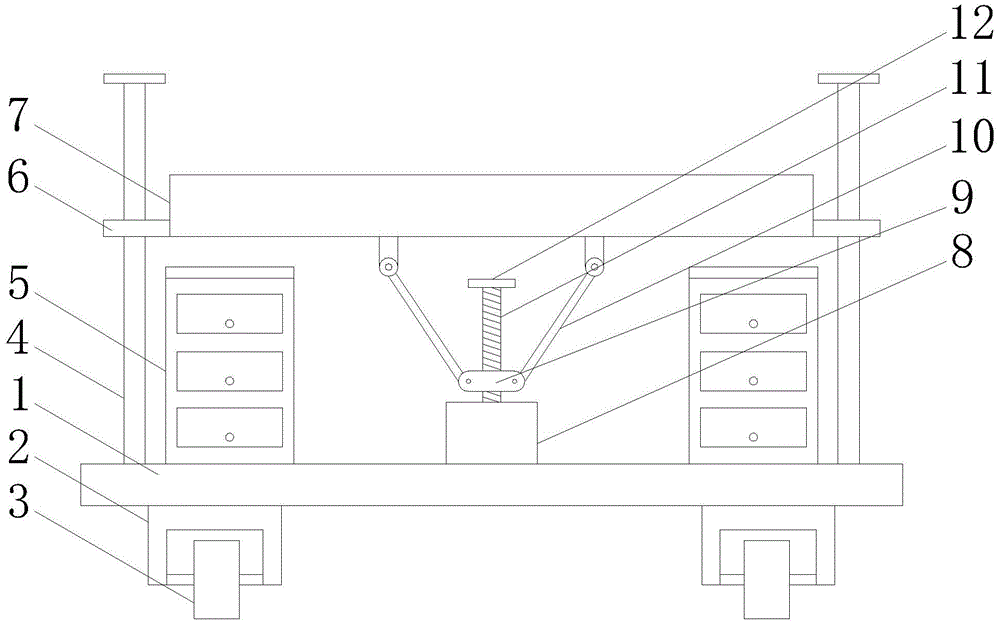

FIG. 1 is a front view of the present invention;
FIG. 2 is a schematic cross-sectional structure of the present invention;
fig. 3 is a schematic view of the top view structure of the movable block of the present invention.
In the figure: 1. a support plate; 2. a mounting seat; 3. a roller; 4. positioning a rod; 5. a placing cabinet; 6. a connecting plate; 7. a table body; 8. a motor housing; 9. a movable block; 10. a connecting rod; 11. a threaded rod; 12. a limiting block; 13. a positive and negative rotation motor; 14. a chute; 15. a slider; 16. a damping spring; 17. a thread groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description herein, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings to facilitate the description of the patent and to simplify the description, but do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus are not to be considered limiting of the patent. In the description of the present application, it should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can, for example, be fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Referring to fig. 1-3, a workbench for placing a tablet computer comprises a support plate 1, wherein mounting seats 2 are fixedly mounted on two sides of the bottom of the support plate 1, rollers 3 are arranged at the bottom of the mounting seats 2, a motor housing 8 is fixedly mounted at the top of the support plate 1, a forward and reverse motor 13 is fixedly mounted at the top of the support plate 1 and positioned inside the motor housing 8, a threaded rod 11 is fixedly mounted at the output end of the forward and reverse motor 13, the top of the threaded rod 11 penetrates through the top of the motor housing 8, a movable block 9 is arranged on the surface of the threaded rod 11, a threaded groove 17 is formed inside the movable block 9, the threaded rod 11 penetrates through the threaded groove 17 and is in threaded connection with the threaded groove 17, connecting rods 10 are rotatably connected to two sides of the movable block 9, a limiting block 12 is fixedly mounted at the top of the threaded rod 11, a workbench body 7 is arranged above the support plate 1, and sliding grooves 14 are formed in two sides of the bottom of the workbench body 7, the inside sliding connection of spout 14 has slider 15, the one side fixed mounting that spout 14 kept away from relatively has damping spring 16, damping spring 16's opposite side and slider 15 fixed connection, the top of slider 15 rotates with the top of connecting rod 10 to be connected, through setting up backup pad 1 and being used for just adjusting the motor 13 of reversal and installing and supporting, improve the stability of motor 13 of just reversing, prevent that motor 13 of just reversing from appearing the condition of rocking in use, through setting up mount pad 2 and being used for installing and spacing gyro wheel 3, prevent that gyro wheel 3 from appearing the skew when rolling, lead to the device unable removal, be convenient for remove the device through setting up gyro wheel 3, very big satisfied the removal demand of device, through setting up motor housing 8 and being used for just reversing motor 13 and protecting, prevent motor 13 of just reversing from colliding, lead to the damage of motor 13 of just reversing, the height adjusting device is characterized in that a positive and negative rotation motor 13 is arranged for driving a threaded rod 11 to rotate, the threaded rod 11 drives a movable block 9 to move up and down, the movable block 9 drives a connecting rod 10 to slide a sliding block 15, so that the sliding block 15 has the height adjusting function on a workbench body 7, a damping spring 16 is arranged for damping the sliding block 15, and the damping effect on the workbench body 7 is achieved when the height is adjusted simultaneously, a placing cabinet 5 is fixedly arranged on two sides of the top of a supporting plate 1, a protective pad is arranged on the top of the placing cabinet 5, the placing cabinet 5 is used for placing articles required during working, positioning rods 4 are fixedly arranged on two sides of the top of the supporting plate 1, the positioning rods 4 are arranged on two sides of the placing cabinet 5, the positioning rods 4 and the connecting plate 6 are mutually matched for sliding and limiting the workbench body 7, and the stability of the workbench body 7 during height adjustment is improved, prevent workstation body 7's skew, the equal fixed mounting in both sides of workstation body 7 has connecting plate 6, the top of locating lever 4 run through in connecting plate 6 inside and with connecting plate 6 sliding connection, the top fixed mounting of locating lever 4 has the fixture block, and the fixture block is located the top of connecting plate 6, is used for preventing workstation body 7 when the height-adjusting through setting up the fixture block, and connecting plate 6 breaks away from locating lever 4, leads to workstation body 7's unstability.
During the use, when the use height of workstation body 7 needs to be adjusted, start positive reverse motor 13, drive threaded rod 11 and rotate under positive reverse motor 13's effect, and then threaded rod 11 drives movable block 9 and reciprocates, and movable block 9 drives connecting rod 10 and slides slider 15 to slider 15 plays height-adjusting's effect to workstation body 7, thereby has reached the purpose of adjusting workstation body 7 use height.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a tablet computer places uses workstation, includes backup pad (1), its characterized in that: the improved structure of the roller is characterized in that mounting seats (2) are fixedly mounted on two sides of the bottom of the supporting plate (1), rollers (3) are arranged on the bottom of the mounting seats (2), a motor shell (8) is fixedly mounted on the top of the supporting plate (1), a forward and reverse motor (13) is fixedly mounted on the top of the supporting plate (1) and located inside the motor shell (8), a threaded rod (11) is fixedly mounted on the output end of the forward and reverse motor (13), the top of the threaded rod (11) penetrates through the top of the motor shell (8), a movable block (9) is arranged on the surface of the threaded rod (11), a threaded groove (17) is formed in the movable block (9), the threaded rod (11) penetrates through the threaded groove (17) and is in threaded connection with the threaded groove (17), connecting rods (10) are rotatably connected on two sides of the movable block (9), and limit blocks (12) are fixedly mounted on the top of the threaded rod (11), the top of backup pad (1) is provided with workstation body (7), spout (14) have all been seted up to the both sides of workstation body (7) bottom, the inside sliding connection of spout (14) has slider (15), one side fixed mounting that spout (14) kept away from relatively has damping spring (16), the opposite side and slider (15) fixed connection of damping spring (16), the bottom of slider (15) and the top of connecting rod (10) are rotated and are connected.
2. The workbench for placing a tablet computer according to claim 1, wherein: the supporting plate is characterized in that the two sides of the top of the supporting plate (1) are fixedly provided with a placing cabinet (5), and the top of the placing cabinet (5) is provided with a protective pad.
3. The workbench for placing a tablet computer according to claim 2, wherein: locating rods (4) are fixedly mounted on two sides of the top of the supporting plate (1), and the locating rods (4) are located on two sides of the placement cabinet (5).
4. The workbench for placing a tablet computer according to claim 3, wherein: the two sides of the workbench body (7) are fixedly provided with connecting plates (6), and the top of the positioning rod (4) penetrates through the inside of the connecting plates (6) and is in sliding connection with the connecting plates (6).
5. The workbench for placing a tablet computer according to claim 4, wherein: the top of the positioning rod (4) is fixedly provided with a clamping block, and the clamping block is positioned above the connecting plate (6).
