Abstract
本实用新型公开了一种防污抗腐微机保护机箱，包括箱体、移动机构和进风机构，箱体：其前端为开口结构，箱体的前端通过螺栓固定连接有箱门，箱体的右侧面中部竖向排列有出风口，出风口的内部右端均通过铰链转动连接有挡板，箱体的顶壁中部设有温度感应器，移动机构：设置于箱体的上端，进风机构：设置于箱体的下端，其中：还包括单片机控制器，所述单片机控制器设置于箱体的后侧内壁上端，单片机控制器的输入端电连接于外部电源，该防污抗腐微机保护机箱，全方位的阻挡灰尘的进入，防止箱体的内部产生污垢，保证机箱内部的清洁程度，保障微机的正常工作，提升机箱的抗腐蚀性，提高机箱的使用寿命。
The utility model discloses an anti-fouling and anti-corrosion microcomputer protection case, which comprises a case body, a moving mechanism and an air intake mechanism. There are air outlets arranged vertically in the middle of the right side. The inner right end of the air outlet is connected with a baffle plate through hinges. The middle of the top wall of the box is provided with a temperature sensor. The moving mechanism is arranged on the upper end of the box. : arranged at the lower end of the box, wherein: it also includes a single-chip controller, the single-chip controller is arranged on the upper end of the rear inner wall of the box, the input end of the single-chip controller is electrically connected to the external power supply, and the anti-fouling and anti-corrosion microcomputer protects The chassis can block the entry of dust in all directions, prevent the inside of the box from generating dirt, ensure the cleanliness of the inside of the chassis, ensure the normal operation of the computer, improve the corrosion resistance of the chassis, and improve the service life of the chassis.
Description
Technical Field
The utility model relates to a computer protection machine case technical field specifically is an antifouling anti-corrosion computer protection machine case.
Background
A microcomputer is composed of large-scale integrated circuit, small-size electronic computer consisting of microprocessor, memory chip, I/O chip and system bus, and features small size, high flexibility, low cost and convenient use, and is a bare computer based on microprocessor and composed of internal memory, I/0 interface circuit and auxiliary circuits, the case is also an indispensable part and is mainly used for placing and fixing accessories of each microcomputer to play roles of protection and support, in addition, the case also has an important role of shielding electromagnetic radiation to ensure the normal use of the microcomputer, because the microcomputer can raise the internal temperature in the using process, a fan is required to be arranged in the machine type to suck external air and blow air to the microcomputer to dissipate heat of the microcomputer, when the microcomputer does not work, the fan stops, external dust can enter the case through an air outlet to damage the microcomputer, the normal use of the microcomputer is influenced, dust can also enter the case through an inlet hole formed in the case for the microcomputer, the protection of the dust is not comprehensive enough, and the dust appears in the case to influence the normal use of the microcomputer.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome current defect, provide an antifouling anti-corrosion computer protection machine case, the omnidirectional blocks the entering of dust, prevents that the inside of box from producing the dirt, and the normal work of guarantee computer can effectively solve the problem in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: an antifouling and corrosion-resistant microcomputer protection case comprises a case body, a moving mechanism and an air inlet mechanism;
a box body: the front end of the box body is of an open structure, the box door is fixedly connected to the front end of the box body through bolts, air outlets are vertically arranged in the middle of the right side face of the box body, the right ends inside the air outlets are rotatably connected with baffle plates through hinges, and a temperature sensor is arranged in the middle of the top wall of the box body;
a moving mechanism: the upper end of the box body is provided with a connecting rod;
air inlet mechanism: the lower end of the box body is provided with a connecting rod;
wherein: the intelligent cabinet temperature controller is characterized by further comprising a single-chip microcomputer controller, the single-chip microcomputer controller is arranged on the upper end of the inner wall of the rear side of the cabinet body, the input end of the single-chip microcomputer controller is electrically connected with an external power supply, the output end of the temperature sensor is electrically connected with the input end of the single-chip microcomputer controller, the output end of the single-chip microcomputer controller is electrically connected with an external alarm, dust is prevented from entering the cabinet in an all-dimensional mode, dirt is prevented from being produced inside the cabinet body, the cleaning degree inside the cabinet is guaranteed, normal work of a microcomputer is guaranteed, the service life of the microcomputer is prolonged, the corrosion resistance of the cabinet is improved, the service life of the cabinet is prolonged, the surface of the cabinet is prevented from being corroded, the protection effect of the cabinet is prevented from being affected, and the normal use of the microcomputer is guaranteed.
Further, moving mechanism includes rotary column, torsion spring, semicircle frid, handle and mounting hole, the mounting hole symmetry sets up in the side upper end about the box, and the inside upper end of mounting hole all rotates and is connected with the rotary column, and the middle part of rotary column all is equipped with torsion spring, and torsion spring's front end all with the front side inner wall fixed connection of the mounting hole of vertical correspondence, torsion spring's rear end all with the inside fixed connection of the rotary column that vertically corresponds, the extrados lower extreme of rotary column all is equipped with the handle, and semicircle frid symmetry sets up in the inner wall upper end about the box, and the inside of semicircle frid communicates with the mounting hole of homonymy respectively, conveniently takes and puts to quick-witted case, the regulation of the quick-witted case position of being convenient for.
Further, the air inlet mechanism includes fresh air inlet, electric fan, filter screen and mounting bracket, fresh air inlet evenly distributed is in the left surface lower extreme of box, and the filter screen sets up in the left side inner wall lower extreme of box and all transversely corresponds with the fresh air inlet, and the mounting bracket sets up in the left side inner wall lower extreme of box, and the left surface of mounting bracket is equipped with the electric fan, and the electric fan is located the right side of filter screen and transversely corresponds with the filter screen, and the input electricity of electric fan is connected in microcontroller's output, inhales the inside of quick-witted case with outside air, prevents the entering of dust simultaneously.
Furthermore, the four corners of the lower surface of the box body are provided with rubber bottom blocks, and the outer side surfaces of the box body and the box door are coated with protective paint, so that the corrosion resistance of the case is improved.
Furthermore, the right flank lower extreme of box is equipped with the entrance hole, and the inside in entrance hole is equipped with the rubber buffer, makes things convenient for laying of microcomputer circuit, prevents the entering of dust.
Compared with the prior art, the beneficial effects of the utility model are that: the antifouling and corrosion-resistant microcomputer protection case has the following advantages:
1. through single chip microcomputer controller's regulation and control, start the electric fan, the electric fan rotates, inhale the air of outside from the inlet vent, blow in the inside of box, the dust in the filter screen can filter off the air, leave the dust outside, prevent that the dust from getting into the inside of box, influence the normal work of microcomputer, simultaneously because the entering of air, the inside atmospheric pressure of box risees, make the baffle rotate, discharge inside hot-air, dispel the heat to the microcomputer, when the microcomputer stop work, the electric fan stops, the baffle resets under the effect of self gravity, the omnidirectional blocks the entering of dust, prevent that the inside of box from producing the dirt, guarantee the clean degree of quick-witted incasement portion, ensure the normal work of microcomputer, improve the life of microcomputer.
2. The lower surface four corners of box all is equipped with the rubber bottom piece, and the lateral surface of box and chamber door all is scribbled protective paint, and the rubber bottom piece can reduce the direct contact of quick-witted case and ground, reduces the humidity of quick-witted case surface, and protective paint can completely cut off the surface and the outside air contact of box and chamber door, reduces the oxidation, promotes the corrosion resistance of quick-witted case, improves the life of quick-witted case, prevents that quick-witted case surface from being corroded, avoids the guard action of quick-witted case to receive the influence, guarantees the normal use of computer.
Drawings

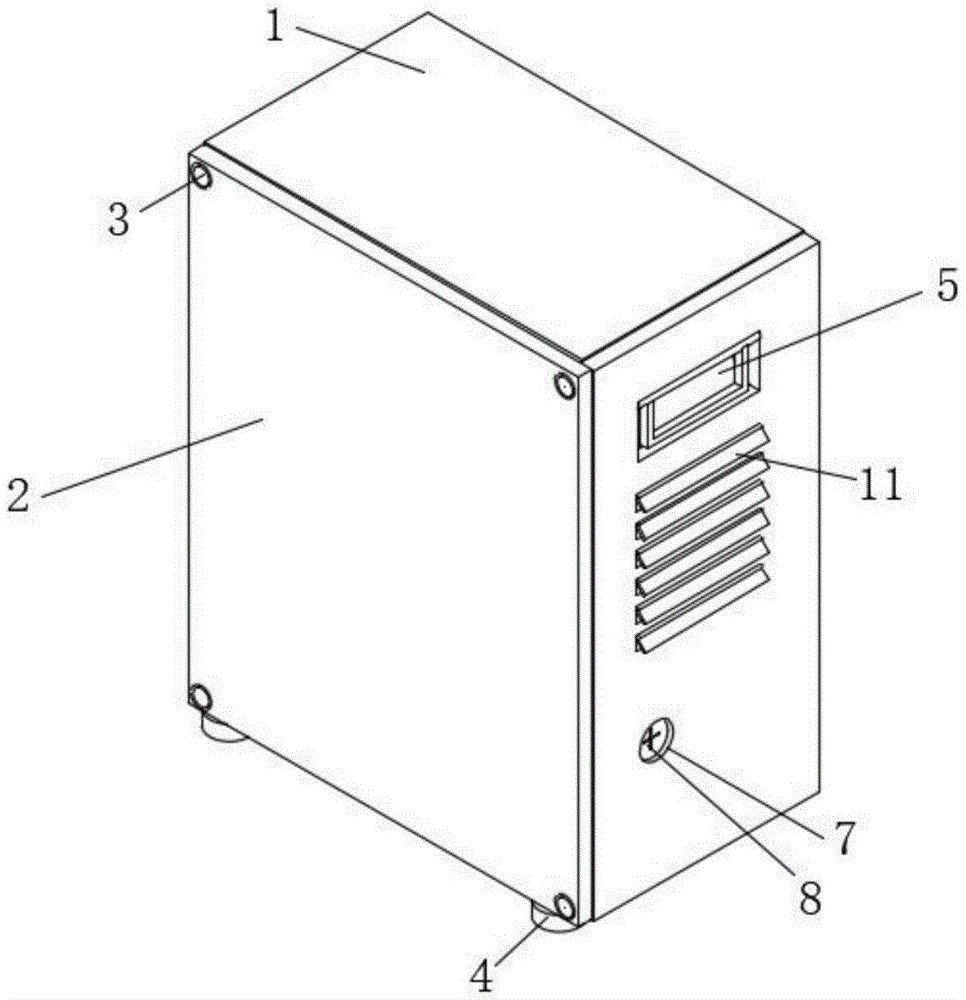

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the air intake mechanism of the present invention;
fig. 3 is a schematic structural diagram of the moving mechanism of the present invention.
In the figure: the device comprises a box body 1, a box door 2, a bolt 3, a rubber bottom block 4, a moving mechanism 5, a rotating column 51, a torsion spring 52, a semicircular groove plate 53, a handle 54, a mounting hole 55, an air inlet mechanism 6, an air inlet hole 61, an electric fan 62, a filter screen 63, a mounting frame 64, a wire inlet hole 7, a rubber plug 8, a single-chip microcomputer controller 9, a temperature sensor 10, a baffle 11 and an air outlet 12.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: an antifouling and corrosion-resistant microcomputer protection case comprises a case body 1, a moving mechanism 5 and an air inlet mechanism 6;
a box body 1: the front end of the box body 1 is of an open structure, so that a microcomputer can be conveniently installed, the box door 2 is fixedly connected to the front end of the box body 1 through bolts 3, the microcomputer after installation is protected, air outlets 12 are vertically arranged in the middle of the right side face of the box body 1, the right end inside the air outlets 12 is rotatably connected with a baffle plate 11 through hinges, the baffle plate 11 is rotated by the rising of air pressure, internal hot air is discharged to dissipate heat of the microcomputer, a temperature sensor 10 is arranged in the middle of the top wall of the box body 1, so that the temperature inside a case can be conveniently sensed, the heat dissipation condition can be known, rubber bottom blocks 4 are arranged at four corners of the lower surface of the box body 1, protective paint is coated on the outer side faces of the box body 1 and the box door 2, the rubber bottom blocks 4 can reduce the direct contact between the case and the ground, the humidity on the surface of the case can be reduced, the contact between the surfaces of the case body 1 and the box door 2 and the outside air can be isolated by the protective paint, the oxidation can be reduced, the corrosion resistance of the case can be improved, the lower end of the right side surface of the box body 1 is provided with a wire inlet hole 7, a rubber plug 8 is arranged inside the wire inlet hole 7, and a wire inlet of a microcomputer can enter from the middle part of the rubber plug 8, so that the entering of a circuit is ensured, and external dust is blocked;
the moving mechanism 5: the moving mechanism 5 comprises rotary columns 51, torsion springs 52, semicircular groove plates 53, handles 54 and mounting holes 55, the mounting holes 55 are symmetrically arranged at the upper ends of the left and right side surfaces of the box body 1, the rotary columns 51 are rotatably connected at the upper ends of the inner parts of the mounting holes 55, the torsion springs 52 are respectively arranged at the middle parts of the rotary columns 51, the front ends of the torsion springs 52 are fixedly connected with the inner walls of the front sides of the mounting holes 55 which longitudinally correspond to each other, the rear ends of the torsion springs 52 are fixedly connected with the inner parts of the rotary columns 51 which longitudinally correspond to each other, the handles 54 are respectively arranged at the lower ends of the outer cambered surfaces of the rotary columns 51, the semicircular groove plates 53 are symmetrically arranged at the upper ends of the left and right inner walls of the box body 1, the inner parts of the semicircular groove plates 53 are respectively communicated with the mounting holes 55 at the same side, when the position of the box needs to be moved, the handles 54 are rotatably connected through the rotary columns 51, the box is moved through the handles 54 at the two ends of the box, so that the moving process is more convenient and labor-saving, after the movement is finished, the handle 54 is loosened, the rotating column 51 drives the handle 54 to reset under the elastic force action of the torsion spring 52, and meanwhile, the semicircular groove plate 53 is arranged to facilitate the rotation of the handle 54, so that the damage to a human body caused by the sudden reset of the handle 54 is avoided;
air inlet mechanism 6: the air inlet mechanism 6 comprises air inlet holes 61, electric fans 62, a filter screen 63 and a mounting frame 64, the air inlet holes 61 are uniformly distributed at the lower end of the left side surface of the box body 1, the filter screen 63 is arranged at the lower end of the left inner wall of the box body 1 and transversely corresponds to the air inlet holes 61, the mounting frame 64 is arranged at the lower end of the left inner wall of the box body 1, the electric fans 62 are arranged at the left side surface of the mounting frame 64, the electric fans 62 are positioned at the right side of the filter screen 63 and transversely correspond to the filter screen 63, the input ends of the electric fans 62 are electrically connected with the output end of the singlechip controller 9, the electric fan 62 is started through the regulation and control of the singlechip controller 9, the electric fan 62 rotates, external air is sucked from the air inlet 61 and blown into the interior of the box body 1, the filter screen 63 can filter out dust in the air and leave the dust outside, and the dust is prevented from entering the interior of the box body 1 to influence the normal work of a microcomputer;
wherein: the electric fan temperature detection device is characterized by further comprising a single-chip microcomputer controller 9, wherein the single-chip microcomputer controller 9 is arranged at the upper end of the inner wall of the rear side of the box body 1, the input end of the single-chip microcomputer controller 9 is electrically connected to an external power supply, the output end of the temperature sensor 10 is electrically connected to the input end of the single-chip microcomputer controller 9, the output end of the single-chip microcomputer controller 9 is electrically connected to an external alarm, the electric fan 62 is controlled to start and stop, and the temperature inside the case is detected.
When in use: the bolt 3 is rotated, the box door 2 is separated from the box body 1, the microcomputer is installed in the box body 1, the inlet wire of the microcomputer can enter from the middle of the rubber plug 8, the entering of a circuit is ensured, and external dust is blocked, the bolt 3 respectively penetrates through the installation holes at the four corners of the box door 2 and is in threaded connection with the threaded holes at the four corners of the front surface of the box body 1, the position between the box door 2 and the box body 1 is fixed, the microcomputer is protected, the electric fan 62 is started through the regulation and control of the singlechip controller 9, the electric fan 62 rotates to suck external air from the air inlet hole 61 and blow the air into the box body 1, the dust in the air can be filtered by the filter screen 63, the dust is kept outside, the dust is prevented from entering the box body 1 and affecting the normal work of the microcomputer, meanwhile, the air pressure in the box body 1 is increased because the material density of the baffle 11 is slightly greater than the density of the air, when the microcomputer stops working, the electric fan 62 stops, the baffle 11 resets under the action of self gravity, dust is prevented from entering, dirt is prevented from being generated inside the box body 1, the rubber bottom block 4 can reduce direct contact between the box body and the ground and reduce the humidity on the surface of the box body in the using process of the box body, protective paint can isolate the surfaces of the box body 1 and the box door 2 from being contacted with external air, oxidation is reduced, corrosion resistance of the box body is improved, when the position of the box body needs to be moved, the rotating column 51 is connected with the handle 54 in a rotating mode, the box body is moved through the handles 54 at two ends of the box body, the moving process is more convenient and labor-saving, after the moving is completed, the handle 54 is loosened, and the rotating column 51 drives the handle 54 to reset under the elastic force of the torsion spring 52, meanwhile, the semicircular groove plate 53 is arranged to facilitate the turning-out of the handle 54, so that the handle 54 is prevented from being suddenly reset to hurt the human body, when the temperature inside the case is too high, the temperature sensor 10 can transmit a signal to the single chip microcomputer controller 9, and the single chip microcomputer controller 9 can send a signal to an external alarm in time to inform a worker of timely processing.
It is to be noted that the single chip microcomputer controller 9 disclosed in this embodiment may be a single chip microcomputer controller of type PIC16F1823-I/P of shenzhen yuejie technologies ltd, the temperature sensor 10 and the electric fan 62 may be freely configured according to practical application scenarios, the electric fan 62 may be a heat dissipation fan of type 12020 of shenzhen space electronics ltd, the temperature sensor 10 may be a temperature sensor of type 10TP583T of ningbo high novelties, and the single chip microcomputer controller 9 controls the temperature sensor 10 and the electric fan 62 to work by methods commonly used in the prior art.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
