Abstract
本实用新型公开了一种烘干机加装风暴装置，涉及烘干机配件设备技术领域。一种烘干机加装风暴装置，包括进风斗，进风斗一端卡接有外壳，外壳另一端固定连接有出风斗，外壳一端顶部和底部均固定连接有第一螺母，出风斗靠近外壳的一端底部和顶部均固定连接有第二螺母，第二螺母和第一螺母之间设置有螺栓，外壳内壁顶部和底部之间分别固定连接有滤网和固定架。本实用新型通过进风斗、出风斗、主加速管和副加速管的设置和使用，会使流经的空气被自动加速，通过主风机和副风机的设置会使设备主动引流空气，通过流线板的设置和使用，可以使流经的空气被分割成股再旋转扭曲成旋风状，实现了设备可以对流经空气的旋转和加速的效果。
The utility model discloses a storm device for adding a dryer, which relates to the technical field of accessories and equipment for a dryer. A dryer is equipped with a storm device, comprising an air inlet bucket, one end of the air inlet bucket is clamped with a casing, the other end of the outer casing is fixedly connected with an air outlet bucket, the top and bottom of one end of the casing are fixedly connected with a first nut, and the air outlet bucket is fixedly connected. A second nut is fixedly connected to the bottom and the top of one end near the casing, a bolt is arranged between the second nut and the first nut, and a filter screen and a fixing frame are respectively fixedly connected between the top and bottom of the inner wall of the casing. Through the setting and use of the air inlet bucket, the air outlet bucket, the main accelerating pipe and the auxiliary accelerating pipe, the air flowing through the utility model can be automatically accelerated; The setting and use of the streamline board can make the passing air be divided into strands and then twisted into a cyclone, realizing the effect that the device can rotate and accelerate the passing air.
Description
Technical Field
The utility model relates to a drying-machine accessory equipment technical field specifically is a drying-machine installs storm device additional.
Background
Dryers can be divided into industrial dryers, also called drying plants or dryers, and domestic dryers, which are one type of washing machine, are generally used to remove moisture from garments and other textiles after dehydration in a water wash. The dryer has several modes, such as belt drying, roller drying, box drying, tower drying and the like; the heat source is coal, electricity, gas and the like; the materials are in a hot air flow type, a radiation type and the like in the drying process, the hot air roller drying is that hot air flows forwards from the tail part and is fully contacted with the materials, and the heat transfer quantity is fully utilized through heat conduction, convection and radiation; heat energy is directly transferred to the materials, so that moisture of the materials is continuously evaporated in the cylinder, and a large amount of moisture and wet air flow is extracted by an air inducing device at the feeding port, so that secondary pollution caused by dust discharge is prevented; the materials are pushed to move through internal spiral stirring, sweeping and shoveling plates, and the whole drying process is completed; and the countercurrent conduction dehumidification is adopted, so that repeated drying procedures are avoided.
Most of the currently used dryers are internally provided with a wind accelerating device to promote the increase of the wind power of the dryer, so that the dryers have better drying effect, but the internally mounted accelerating device generally cannot well divide the wind power to accelerate the rotation.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a dryer installs storm device additional to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a dryer is additionally provided with a storm device, which comprises an air inlet hopper, wherein one end of the air inlet hopper is clamped with a shell, the other end of the shell is fixedly connected with an air outlet hopper, the top and the bottom of one end of the shell are fixedly connected with first nuts, the bottom and the top of one end, close to the shell, of the air outlet hopper are fixedly connected with second nuts, bolts are arranged between the second nuts and the first nuts, a filter screen and a fixing frame are respectively and fixedly connected between the top and the bottom of the inner wall of the shell, a main accelerating tube and an auxiliary accelerating tube are respectively and fixedly connected to one side of the filter screen, the auxiliary accelerating tubes are uniformly distributed around the main accelerating tube, a support rod is respectively and fixedly connected to one side, close to the filter screen, of the main accelerating tube and one side, close to the filter screen, of the main accelerating tube is provided with a main fan, one side of the main fan is fixedly connected with one side of the support rod, and one side of the auxiliary accelerating tube is provided with an auxiliary fan, the utility model discloses a fan, including casing, auxiliary fan, bracing piece, mount, stopper, shaft post outer wall equidistance fixedly connected with streamline board, auxiliary fan one side and bracing piece one side fixed connection, mount one side and the equal fixedly connected with stopper of shell one end inner wall, the slip joint has the shaft post between the stopper, shaft post outer wall equidistance fixedly connected with streamline board.
Preferably, the air inlet hopper is close to the first joint piece of the equal fixedly connected with in one end top and the bottom of shell, first joint piece one side fixedly connected with tenon, the shell is close to the equal fixedly connected with second joint piece in one end top and the bottom of air inlet hopper, second joint piece one side fixedly connected with fourth of the twelve earthly branches head.
Preferably, the tenon is matched with the mortise.
Preferably, the main accelerating tube and the auxiliary accelerating tube are both trumpet-shaped, and the specification of the main accelerating tube is larger than that of the auxiliary accelerating tube.
Preferably, the main fan and the auxiliary fan have the same structure, and the specification of the main fan is larger than that of the auxiliary fan.
Preferably, one end of the air outlet hopper is fixedly connected to the dryer.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) this drying-machine installs storm device additional, through air inlet fill, play wind fill, main accelerating tube and vice accelerating tube's setting and use, can make the air of flowing through by automatic acceleration, can make equipment initiative drainage air through main blower and vice fan's setting, through the setting and the use of flow line board, can make the air of flowing through cut apart into the thigh again rotatory distortion become whirlwind form, realized that equipment can be to the rotation of the air of flowing through and effect with higher speed.
(2) This drying-machine installs storm device additional, through the setting and the use of bolt, nut and joint piece, can make equipment dismantle fast and assemble, has realized the effect that equipment makes things convenient for quick assembly disassembly.
Drawings

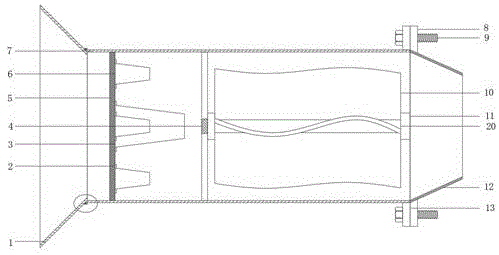

FIG. 1 is a schematic view of the main section structure of the present invention;
fig. 2 is a schematic structural view of the fan of the present invention;
fig. 3 is a schematic view of the structure of the tenon and mortise structure of the present invention.
In the figure: 1. an air inlet hopper; 2. a support bar; 3. a main acceleration pipe; 4. a fixed mount; 5. filtering with a screen; 6. a secondary acceleration tube; 7. a housing; 8. a second nut; 9. a bolt; 10. a flow line plate; 11. a limiting block; 12. an air outlet hopper; 13. a first nut; 14. a main fan; 15. an auxiliary fan; 16. a first clamping block; 17. a tenon; 18. a second clamping block; 19. riveting heads; 20. and (4) a shaft column.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It should be noted that, in the description of the present invention, the terms "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, which is only for the convenience of description and simplification of the description, and do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
Further, it will be appreciated that the dimensions of the various elements shown in the figures are not drawn to scale, for ease of description, and that the thickness or width of some layers may be exaggerated relative to other layers, for example.
It should be noted that like reference numerals and letters refer to like items in the following figures, and thus, once an item is defined or illustrated in one figure, it will not need to be further discussed or illustrated in detail in the description of the following figure.
As shown in fig. 1-3, the utility model provides a technical solution: a dryer is additionally provided with a storm device, which comprises an air inlet hopper 1, one end of the air inlet hopper 1 is clamped with a shell 7, the other end of the shell 7 is fixedly connected with an air outlet hopper 12, the top and the bottom of one end of the shell 7 are fixedly connected with first nuts 13, the bottom and the top of one end, close to the shell 7, of the air outlet hopper 12 are fixedly connected with second nuts 8, bolts 9 are arranged between the second nuts 8 and the first nuts 13, a filter screen 5 and a fixing frame 4 are respectively and fixedly connected between the top and the bottom of the inner wall of the shell 7, one side of the filter screen 5 is respectively and fixedly connected with a main accelerating tube 3 and an auxiliary accelerating tube 6, the auxiliary accelerating tubes 6 are uniformly distributed around the main accelerating tube 3, one sides, close to the filter screen 5, of the main accelerating tube 3 and the auxiliary accelerating tube 6 are respectively and fixedly connected with a support rod 2, one side of the main fan 14 is fixedly connected with one side, 15 one side of auxiliary fan and 2 one side fixed connection of bracing piece, the equal fixedly connected with stopper 11 of mount 4 one side and 7 one end inner walls of shell, the slip joint has the jack-post 20 between the stopper 11, jack-post 20 outer wall equidistance fixedly connected with streamline board 10.
As shown in fig. 3, the air inlet hopper 1 is close to the first clamping block 16 fixedly connected to the top and the bottom of the end of the outer shell 7, the tenon 17 fixedly connected to one side of the first clamping block 16, the second clamping block 18 fixedly connected to the top and the bottom of the end of the outer shell 7 close to the air inlet hopper 1, and the mortise 19 fixedly connected to one side of the second clamping block 18.
As shown in fig. 3, the tenon 17 is matched with the mortise 19.
As shown in fig. 1, the main acceleration pipe 3 and the auxiliary acceleration pipe 6 are both horn-shaped, and the main acceleration pipe 3 is larger in size than the auxiliary acceleration pipe 6.
As shown in fig. 1, the main fan 14 and the auxiliary fan 15 have the same structure, and the main fan 14 is larger than the auxiliary fan 15 in size.
As shown in fig. 1-3, one end of the air outlet hopper 12 is fixedly connected to the dryer.
The working principle is as follows: when the utility model is used, firstly, the air outlet hopper 12 is fixedly connected on an air pipe of a dryer, the fixed connection between the air outlet hopper 12 and the shell 7 is further realized by the bolt 9 in threaded connection with the first nut 13 and the second nut 8, the clamping fixation between the shell 7 and the air inlet hopper 1 is further realized by the clamping fixation between the tenon 17 on the first clamping block 16 and the tenon 19 on the second clamping block 18, the equipment is further electrified to be used, the main fan 14 and the auxiliary fan 15 can introduce air into the device, when the air passes through the air inlet hopper 1, because the air inlet hopper 1 is horn-shaped, the air can be accelerated, the accelerated air can be further accelerated when passing through the main accelerating tube 3 and the auxiliary accelerating tube 6, the further accelerated air can continuously flow to the other end of the shell 7, when the accelerated air passes through the flow line board 10, the air can be divided by the flow line board 10, the further air can drive the flow line plate 10 to rotate, the rotation of the flow line plate 10 can enable a plurality of air strands to be twisted and accelerated to form a cyclone state, and the further accelerated cyclone-shaped air flows out through the air outlet hopper 12.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
