CN214172037U

CN214172037U - Annular LED projecting lamp

Info

Publication number: CN214172037U
Application number: CN202023308356.1U
Authority: CN
Inventors: 唐晨
Original assignee: Shenyang Huaxing Explosion Proof Equipment Co ltd
Current assignee: Shenyang Huaxing Explosion Proof Equipment Co ltd
Priority date: 2020-12-31
Filing date: 2020-12-31
Publication date: 2021-09-10
Anticipated expiration: 2030-12-31

Abstract

The utility model discloses a ring-shaped LED floodlight, which relates to the field of floodlights. The top of the middle plate away from the snap ring is provided with a light plate, and the middle plate is provided with a through groove matched with the light plate. The utility model pulls the first fixing ring and the second fixing ring to engage with the cylinder, so that the inclined plate and the middle plate are abutted, the blocking rod is abutted with the light plate, and then the snap ring is engaged with the cylinder, so that the two sets of devices are connected to the cylinder. After the cylinder is engaged, the stud is passed through the connectors of the two sets of snap rings, and the nut is rotated to make the two sets of snap rings squeeze the cylinder, so as to fix the device, so that the first fixing ring and the second fixing ring are fixed in position. The hook spring and the spring make the first fixing ring and the second fixing ring more firmly engaged with the cylinder, so that through the cooperation of the two sets of devices, the floodlight can be installed on cylinders of different diameters, which is more convenient to use.

Description

Annular LED projecting lamp

Technical Field

The utility model relates to a projecting lamp field specifically is an annular LED projecting lamp.

Background

The LED projector is also called as a spotlight, and is also called as a spotlight, which controls an illumination intensity on a designated illuminated surface to be higher than that of a surrounding environment by a built-in microchip. In general, it can be aimed in any direction and has a structure that is not affected by the climatic conditions. The method is mainly used for large-area operation field mines, building outlines, stadiums, overpasses, monuments, parks, flower beds and the like. Therefore, almost all large-area lighting fixtures used outdoors can be regarded as floodlights, and a ring-shaped LED floodlight is one of floodlights, mainly mounted on a trunk or a pillar.

The present annular LED projecting lamp can not install on the trunk or the post of different diameters, and it is comparatively inconvenient to use, and the inconvenient height-adjusting after the installation of present projecting lamp, and easy being sheltered from by debris when the projecting lamp uses, influences the result of use of projecting lamp.

Disclosure of Invention

The utility model aims to provide a: in order to solve the problem that the existing annular LED projection lamp cannot be installed on trunks or columns with different diameters, the annular LED projection lamp is inconvenient to use, the height of the existing projection lamp is inconvenient to adjust after installation, the projection lamp is easy to be shielded by sundries when in use, and the using effect of the projection lamp is influenced, and the annular LED projection lamp is provided.

In order to achieve the above object, the utility model provides a following technical scheme: an annular LED projection lamp comprises two groups of middle plates, wherein the middle plates are matched, a matched clamping ring is arranged on one side of each of the two groups of middle plates, a lamp plate is arranged at the top of one side of each of the middle plates, which is far away from the clamping ring, the middle plate is provided with a through groove matched with the lamp plate, one side of the bottom of the middle plate close to the lamp plate is rotatably connected with an inclined plate, a first fixing ring is arranged at one end of the inclined plate far away from the middle plate, a hook spring is arranged between the bottom of the middle plate and the inclined plate, and a spring is arranged between the through groove and the snap ring at the top of the middle plate, a second fixing ring is arranged at the top of the spring, and the outer side of the second fixing ring is provided with a plurality of groups of stop levers which are rotationally connected with the top of the lamp panel, two ends of the two groups of middle plates are both provided with connectors, and threaded connection's double-screw bolt runs through in two sets of connectors, the double-screw bolt is provided with the matched with nut, the inboard of lamp plate is provided with multiunit LED lamp pearl.

Preferably, an empty groove is formed between the stop levers, and a plurality of groups of reinforcing strips are arranged in the through groove.

Preferably, the first fixing ring is provided with anti-slip teeth inside, and the second fixing ring is provided with a non-slip mat inside.

Preferably, the second fixing ring and the middle plate are provided with connecting blocks, and the second fixing ring and the middle plate are provided with springs through the connecting blocks.

Preferably, the top of lamp plate and the bottom of medium plate all are provided with the pivot, and lamp plate and medium plate rotate through the pivot and are connected with pin and swash plate.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses a pulling first solid fixed ring and second solid fixed ring and cylinder block, make the swash plate offset with the medium plate, the pin offsets with the lamp plate, snap ring and cylinder block again, after making two sets of devices and cylinder block, pass the double-screw bolt through the connector of two sets of snap rings, swivel nut makes two sets of snap rings extrude the cylinder, thereby fix the device, make first solid fixed ring and second solid fixed ring fixed position, the couple spring and spring make first solid fixed ring and second solid fixed ring more firm with the cylinder block, thereby through the cooperation of two sets of devices, make the projecting lamp install on the cylinder of different diameters, it is comparatively convenient to use;

2. the utility model discloses a double-screw bolt and nut are fixed to the median plate, when needs adjusting device height, swivel nut makes two sets of medium plates separately, pull first solid fixed ring and the solid fixed ring of second again with the cylinder block, rethread double-screw bolt and nut carry out fixed mounting can, the pin can block the debris that fall on the lamp plate, and debris can be in the same direction as the angle landing of pin, can not shelter from the lamp plate, even there is little debris to pass the pin and fall on the lamp plate, the slope of lamp plate makes debris fall along leading to the groove, thereby it is comparatively convenient to make the projecting lamp height-adjusting, and debris are difficult for falling on the lamp plate, avoid the result of use of lamp plate.

Drawings

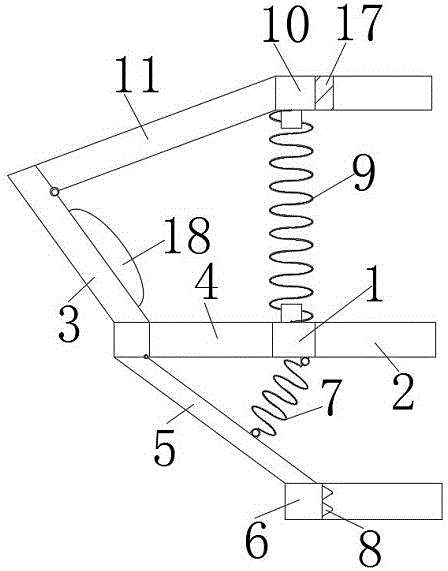

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a top view of the present invention;

fig. 3 is a top view of the middle plate of the present invention.

In the figure: 1. a middle plate; 2. a snap ring; 3. a lamp panel; 4. a through groove; 5. a sloping plate; 6. a first retaining ring; 7. a hook spring; 8. anti-slip teeth; 9. a spring; 10. a second retaining ring; 11. a stop lever; 12. a connector; 13. a stud; 14. a nut; 15. an empty groove; 16. reinforcing the strips; 17. a non-slip mat; 18. LED lamp pearl.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected" and "disposed" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention according to its overall structure.

Referring to fig. 1-3, an annular LED projection lamp comprises a middle plate 1, wherein two sets of middle plates 1 are provided, and a matching snap ring 2 is provided on one side of the two sets of middle plates 1 opposite to each other, a lamp plate 3 is provided on the top of the middle plate 1 away from the snap ring 2, and the middle plate 1 is provided with a through groove 4 matching with the lamp plate 3, a sloping plate 5 is rotatably connected to one side of the bottom of the middle plate 1 close to the lamp plate 3, a first fixing ring 6 is provided on one end of the sloping plate 5 away from the middle plate 1, a hook spring 7 is provided between the bottom of the middle plate 1 and the sloping plate 5, a spring 9 is provided between the through groove 4 and the snap ring 2 on the top of the middle plate 1, a second fixing ring 10 is provided on the top of the spring 9, a plurality of stop rods 11 rotatably connected with the top of the lamp plate 3 are provided on the outer side of the second fixing ring 10, two ends of the two sets of middle plates 1 are provided with connectors 12, and a stud 13 connected with a thread penetrates through the two sets of connectors 12, the stud 13 is provided with a matched nut 14, and the inner side of the lamp panel 3 is provided with a plurality of groups of LED lamp beads 18.

The utility model discloses a solid fixed ring 10 of first solid fixed ring 6 of pulling and second and cylinder block, make swash plate 5 offset with medium plate 1, pin 11 offsets with lamp plate 3, snap ring 2 and cylinder block again, make behind two sets of devices and the cylinder block, pass two sets of snap ring 2's connector 12 with double-screw bolt 13, swivel nut 14 makes two sets of snap ring 2 extrusion cylinders, thereby fix the device, make solid fixed ring 10 fixed position of first solid fixed ring 6 and second, couple spring 7 makes solid fixed ring 6 and the solid fixed ring 10 of second more firm and cylinder block with spring 9, thereby cooperation through two sets of devices, make the projecting lamp can install on the cylinder of different diameters, it is comparatively convenient to use.

Please refer to fig. 2, the hollow slots 15 are disposed between the stop rods 11, and the through slots 4 are disposed with a plurality of reinforcing strips 16, according to the present invention

Please refer to fig. 1, the inside of the first fixing ring 6 is provided with the anti-slip teeth 8, the inside of the second fixing ring 10 is provided with the anti-slip mat 17, the utility model discloses an anti-slip teeth 8 and the anti-slip mat 17 make the more firm clamping cylinder of the first fixing ring 6 and the second fixing ring 10.

Please refer to fig. 1 again, the second fixing ring 10 is provided with a connecting block with the middle plate 1, and the second fixing ring 10 is provided with a spring 9 with the middle plate 1 through the connecting block, the utility model discloses a connecting block makes the more firm setting of spring 9 between the second fixing ring 10 and the middle plate 1.

Please refer to fig. 1, the top of the lamp panel 3 and the bottom of the middle plate 1 are provided with a rotating shaft, and the lamp panel 3 and the middle plate 1 are connected with the stop lever 11 and the inclined plate 5 through the rotating shaft, the utility model discloses a better rotation of the lamp panel 3 and the middle plate 1 is connected with the stop lever 11 and the inclined plate 5 through the rotating shaft.

The working principle is as follows: when the device is used, the inclined plate 5 is abutted against the middle plate 1 by pulling the first fixing ring 6 and the second fixing ring 10 to be clamped with a cylinder, the stop lever 11 is abutted against the lamp plate 3, then the snap ring 2 is clamped with the cylinder, after the two groups of devices are clamped with the cylinder, the stud 13 penetrates through the connectors 12 of the two groups of snap rings 2, the nut 14 is rotated to enable the two groups of snap rings 2 to extrude the cylinder, so that the devices are fixed, the first fixing ring 6 and the second fixing ring 10 are fixed in position, the hook spring 7 and the spring 9 enable the first fixing ring 6 and the second fixing ring 10 to be clamped with the cylinder more firmly, so that the projection lamp can be installed on cylinders with different diameters by matching the two groups of devices, the use is more convenient, because the stud 13 and the nut 14 are used for fixing the middle plate 1, when the height of the device needs to be adjusted, the nut 14 is rotated to enable the two groups of middle plates 1 to be separated, and then the first fixing ring 6 and the second fixing ring 10 are pulled to be clamped with the cylinder again, fixed mounting can be carried out through double-screw bolt 13 and nut 14 again, and blend stop 11 can block the debris that fall on lamp plate 3, and debris can be in the same direction as the angle landing of blend stop 11, can not shelter from lamp plate 3, even there is little debris to pass blend stop 11 and fall on lamp plate 3, and the slope of lamp plate 3 makes debris in the same direction as logical groove 4 and falls to it is comparatively convenient to make the projecting lamp height-adjusting, and debris are difficult for falling on lamp plate 3, avoids lamp plate 3's result of use.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A ring-shaped LED flood light, comprising a middle plate (1), characterized in that: the middle plate (1) is provided with two sets of matching, and the opposite sides of the two sets of middle plates (1) are provided with In cooperation with the clasp (2), the top of the middle plate (1) on the side away from the clasp (2) is provided with a lamp plate (3), and the middle plate (1) is provided with a lamp plate (3) matched with the lamp plate (3). A through groove (4), a side of the bottom of the middle plate (1) close to the light plate (3) is rotatably connected with a sloping plate (5), and the end of the sloping plate (5) away from the middle plate (1) is provided with a first A fixing ring (6), a hook spring (7) is arranged between the bottom of the middle plate (1) and the inclined plate (5), and the top of the middle plate (1) is located between the through groove (4) and the snap ring ( 2) A spring (9) is provided between, the top of the spring (9) is provided with a second fixing ring (10), and the outer side of the second fixing ring (10) is provided with a plurality of groups and the top of the lamp board (3) The blocking rods (11) connected by rotation, the two sets of middle plates (1) are provided with connecting heads (12) at both ends, and the two sets of connecting heads (12) are threaded through threaded studs (13), The stud (13) is provided with a matching nut (14), and a plurality of groups of LED lamp beads (18) are provided on the inner side of the lamp board (3).

2 . The annular LED flood light according to claim 1 , wherein an empty slot ( 15 ) is arranged between the blocking rods ( 11 ), and a plurality of groups of groups are arranged in the through slot ( 4 ). 3 . Reinforcement bar (16).

3. A ring-shaped LED flood light according to claim 1, characterized in that: the first fixing ring (6) is provided with anti-skid teeth (8) inside, and the second fixing ring (10) is provided with anti-skid teeth (8). An anti-skid pad (17) is provided inside.

4. A ring-shaped LED flood light according to claim 1, characterized in that: the second fixing ring (10) and the middle plate (1) are provided with connecting blocks, and the second fixing ring (10) is connected to the middle plate (1). The middle plate (1) is provided with a spring (9) through the connecting block.

5. A ring-shaped LED flood light according to claim 1, characterized in that: the top of the light plate (3) and the bottom of the middle plate (1) are both provided with rotating shafts, and the light plate (3) is connected to the The middle plate (1) is rotatably connected with the blocking rod (11) and the inclined plate (5) through the rotating shaft.
