Abstract
The utility model provides an elastic floor structure of mating formation, include: the paving structure comprises a paving foundation surface, a paving matching structure cushion layer arranged on the paving foundation surface and an elastic floor paving structure in matched connection with the paving matching structure cushion layer; the elastic floor paving structure consists of an elastic floor and a plurality of groove structures, wherein the groove structures are arranged at the bottom of the elastic floor and distributed in an array; the paving matching structure cushion layer consists of a paving cushion layer and a plurality of protruding structures, and the plurality of protruding structures are arranged at the top of the paving cushion layer and distributed in an array; the convex structure is matched and connected with the groove structure, and the elastic floor paving structure is connected with the paving matching structure cushion layer; the shape of the groove structure is round, rectangular or irregular; the shape of the convex structure is round, rectangular or irregular. The utility model discloses the appearance is pleasing to the eye, and long service life has convenient installation nature, and the intensity of mating formation is high, and the range of application is extensive, and comprehensive sexual valence relative altitude.
Description
Technical Field
The utility model relates to an elastic floor especially relates to an elastic floor structure of mating formation.
Background
The elastic floor products are increasingly widely applied in the market, have the advantages of environmental protection, skid resistance, wear resistance, deformation resistance, convenient paving and the like, and are decorative products with good development prospect. Traditional resilient floor mat formation takes the hasp structural installation to need the high accuracy to mill the hasp notch, has that product processing is complicated, and the cost is on the high side, and the operation has certain inconvenience, and transportation limit portion should damage the scheduling problem, and in use has great limitation. Traditional resilient floor accessory still exists the assembly firmness not enough in the aspect of the installation, influences resilient floor's installation work efficiency, still to a great extent simultaneously influences resilient floor's performance and aesthetic property.
SUMMERY OF THE UTILITY MODEL
In view of the above-mentioned technical problems, an elastic floor paving structure is provided. The utility model discloses mainly mat formation protruding structure and the resilient floor on the supporting structure bed course of mating formation and mat formation the structural groove structure cooperation connection, realize the nimble of resilient floor mat formation. The utility model discloses a technical means as follows:
a resilient flooring construction comprising: the paving structure comprises a paving foundation surface, a paving matching structure cushion layer arranged on the paving foundation surface and an elastic floor paving structure in matched connection with the paving matching structure cushion layer;
the elastic floor paving structure consists of an elastic floor and a plurality of groove structures, and the groove structures are arranged at the bottom of the elastic floor and distributed in an array;
the pavement matching structure cushion layer consists of a pavement cushion layer and a plurality of convex structures, and the convex structures are arranged at the top of the pavement cushion layer and distributed in an array; the convex structure is matched and connected with the groove structure, the elastic floor paving structure is connected with the paving matching structure cushion layer, and flexible paving of the elastic floor is realized;
the shape of the groove structure is round, rectangular or irregular;
the shape of the convex structure is round, rectangular or irregular.
Furthermore, the arrangement of the plurality of groove structures in an array means that the plurality of groove structures are arranged in a row at intervals;
the plurality of the protruding structures are distributed in an array, namely the plurality of the protruding structures are distributed in a row at intervals.
Further, each groove structure is a continuous structure or an interval segmented structure in the length direction of the groove structure;
each of the convex structures is a continuous structure or an interval segmented structure in the length direction of the convex structure.
Further, the distance between two adjacent groove structures is 1-8 mm.
Further, when the groove structure is circular, the depth h1 is 1-7mm, and the diameter d1 is 1-8 mm.
When the groove structure is rectangular, the depth h2 is 1-7mm, the length is 1-8mm, and the width c1 is 1-8 mm;
when the groove structure is irregular, the depth h3 is 1-7mm, the width e1 of the longest outer edge is 1-10mm, and the width b1 of the shortest inner edge is 1-8 mm.
Further, the distance between two adjacent convex structures is 1-8 mm.
Further, when the shape of the convex structure is circular, the height h4 is 1-7mm, and the diameter d2 is 1-8 mm;
when the convex structure is rectangular, the height h5 is 1-7mm, the length is 1-8mm, and the width c2 is 1-8 mm;
when the shape of the convex structure is irregular, the height h6 is 1-7mm, the width e2 of the longest outer edge is 1-10mm, and the width b2 of the shortest outer edge is 1-8 mm.
Further, the total thickness of the mat layer of the pavement matching structure is 1.5-12 mm.
Further, the total thickness of the elastic floor paving structure is 3-12 mm.
Compared with the prior art, the utility model has the advantages of it is following:
1. the appearance is beautiful
The product adopting the elastic floor paving structure has beautiful appearance and strong decoration.
2. Long service life
The product adopting the elastic floor paving structure has long service life.
3. Convenient installation
By adopting the elastic floor paving structure, the locking groove at the edge of the floor is not required to be milled, the installation process is convenient and fast, and the use requirement can be better met.
4. High paving strength
By adopting the elastic floor paving structure, the groove and the bulge structure are tightly combined, the paving strength is high, and the use requirement is better met.
5. Wide application range
The elastic floor paving structure is scientific and reasonable in structure, can be applied to various elastic floor products, and provides a wider application range.
6. High comprehensive cost performance
The elastic floor paving structure has high comprehensive cost performance, is favorable for popularization or popularization, and develops the market space of elastic floor accessories.
Based on the above reason the utility model discloses can extensively promote in fields such as building, indoor floor mat formation.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the description of the embodiments or the prior art are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor.
Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural diagram of the middle circular groove structure of the present invention.

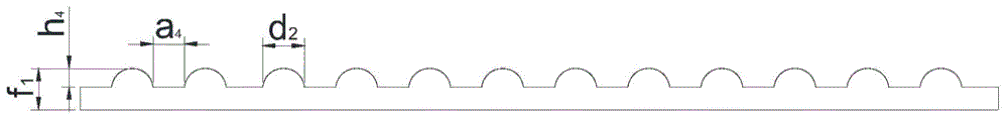

Fig. 3 is a schematic structural view of the circular protrusion structure of the present invention.
Fig. 4 is a schematic structural diagram of the rectangular groove structure of the present invention.

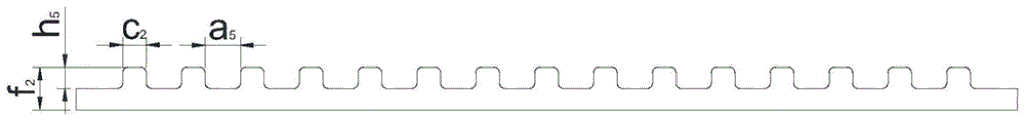

Fig. 5 is a schematic structural view of the rectangular protrusion structure of the present invention.
Fig. 6 is a schematic structural diagram of the irregular groove structure of the present invention.
Fig. 7 is a schematic structural view of the irregular protrusion structure of the present invention.
In the figure: 1. a groove structure; 2. a resilient floor; 3. paving a foundation surface; 4. paving a cushion layer; 5. and (4) a convex structure.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1, the utility model provides an elastic floor paving structure, which belongs to a building floor material, comprising: the paving structure comprises a paving foundation surface 3, a paving matching structure cushion layer arranged on the paving foundation surface 3 and an elastic floor paving structure matched and connected with the paving matching structure cushion layer.
The elastic floor paving structure is composed of an elastic floor 2 and a plurality of groove structures 1, wherein the groove structures 1 are arranged at the bottom of the elastic floor 2 and distributed in an array.
The paving matching structure cushion layer consists of a paving cushion layer 4 and a plurality of convex structures 5, wherein the plurality of convex structures 5 are arranged at the top of the paving cushion layer 4 and distributed in an array; the protruding structures 5 are matched and connected with the groove structures 1, the elastic floor paving structure is connected with the paving matching structure cushion layer, and the elastic floor 2 is flexibly paved.
The groove structure 1 is round, rectangular or irregular.
The shape of the convex structure 5 is round, rectangular or irregular.
Preferably, the arrangement of the plurality of groove structures 1 in an array means that the plurality of groove structures 1 are arranged in a row at intervals;
the plurality of the protruding structures 5 are distributed in an array, which means that the plurality of the protruding structures 5 are distributed in a row at intervals.
Preferably, each groove structure 1 is a continuous structure or an interval segmented structure in the length direction;
each of the projection structures 5 is a continuous structure or a spaced-apart segmented structure in a length direction thereof.
Preferably, the distance between two adjacent groove structures 1 is 1-8 mm.
Preferably, the groove structure 1 has a circular shape, a depth h1 of 1-7mm and a diameter d1 of 1-8 mm.
When the groove structure 1 is rectangular, the depth h2 is 1-7mm, the length is 1-8mm, and the width c1 is 1-8 mm;
when the groove structure 1 is irregular, the depth h3 is 1-7mm, the width e1 of the longest outer edge is 1-10mm, and the width b1 of the shortest inner edge is 1-8 mm.
Preferably, the distance between two adjacent convex structures 5 is 1-8 mm.
Preferably, when the shape of the convex structure 5 is circular, the height h4 is 1-7mm, and the diameter d2 is 1-8 mm;
when the convex structure 5 is rectangular, the height h5 is 1-7mm, the length is 1-8mm, and the width c2 is 1-8 mm;
when the shape of the convex structure 5 is irregular, the height h6 is 1-7mm, the width e2 of the longest outer edge is 1-10mm, and the width b2 of the shortest outer edge is 1-8 mm.
Preferably, the total thickness of the mat layer of the pavement matching structure is 1.5-12 mm.
Preferably, the total thickness of the elastic floor paving structure is 3-12 mm.
Example 1
As shown in fig. 1, 2 and 3, a resilient flooring construction comprises: the paving structure comprises a paving foundation surface 3, a paving matching structure cushion layer arranged on the paving foundation surface 3 and an elastic floor paving structure matched and connected with the paving matching structure cushion layer.
The elastic floor paving structure is composed of an elastic floor 2 and a plurality of groove structures 1, wherein the groove structures 1 are arranged at the bottom of the elastic floor 2 and distributed at intervals. The paving matching structure cushion layer consists of a paving cushion layer 4 and a plurality of convex structures 5, wherein the plurality of convex structures 5 are arranged at the top of the paving cushion layer 4 and are distributed in a row at intervals; the protruding structures 5 are matched and connected with the groove structures 1, the elastic floor paving structure is connected with the paving matching structure cushion layer, and the elastic floor 2 is flexibly paved.
In this embodiment, the distance a1 between two adjacent groove structures 1 is 3mm, and the distance a4 between two adjacent protrusion structures 5 is 3 mm. The total thickness f1 of the mat layer of the pavement matching structure is 4 mm. The total thickness f4 of the resilient floor covering is 5 mm.
The groove structures 1 and the protrusion structures 5 are both circular, wherein the depth h1 of the groove structures 1 is 1mm, the diameter d1 is 1mm, the height h4 of the protrusion structures 5 is 1mm, and the diameter d2 is 1 mm.
Each groove structure 1 is of a continuous structure in the length direction; each raised structure 5 is a continuous structure in its length direction. Namely, the groove structure 1 is arranged on the whole piece in the length direction, and the middle part is not interrupted. The raised structures 5 are arranged in a full strip in the length direction without interruption in the middle.
Example 2
As shown in fig. 4 and fig. 5, unlike embodiment 1, in this embodiment, the distance a2 between two adjacent groove structures 1 is 1mm, and the distance a5 between two adjacent protrusion structures 5 is 1 mm. The total thickness f2 of the mat layer of the pavement matching structure is 1.5 mm. The total thickness f5 of the resilient floor covering is 3 mm.
The groove structures 1 and the protrusion structures 5 are both rectangular, the depth h2 of the groove structures 1 is 7mm, the length is 8mm, the width c1 is 8mm, the height h5 of the protrusion structures 5 is 7mm, the length is 8mm, and the width c2 is 8 mm.
Each groove structure 1 is of an interval segmented structure in the length direction; each projection structure 5 is a spaced segmented structure corresponding to the groove structure 1 in its length direction. I.e. the groove structure 1 has an interruption in the length direction and may consist of a plurality of equally spaced grooves or a plurality of unequally spaced grooves. The projection structure 5 has an interruption in the length direction, and may be composed of a plurality of projections at equal intervals, or may be composed of a plurality of projections at unequal intervals.
Example 3
As shown in fig. 6 and 7, unlike embodiment 1, in this embodiment, the distance a3 between two adjacent groove structures 1 is 8mm, and the distance a6 between two adjacent protrusion structures 5 is 8 mm. The total thickness f3 of the mat layer of the pavement matching structure is 12 mm. The total thickness f6 of the resilient floor covering is 12 mm.
The groove structures 1 and the protrusion structures 5 are irregular in shape, the depth h3 of the groove structures 1 is 4mm, the width e1 of the longest outer edge is 5.5mm, and the width b1 of the shortest inner edge is 3.5 mm. The depth h6 of the raised structure 5 is 4mm, the width e2 of the longest outer edge is 5.5mm, and the width b2 of the shortest outer edge is 3 mm.
Each groove structure 1 is of a continuous structure in the length direction; each projection structure 5 is a spaced segmented structure corresponding to the groove structure 1 in its length direction.
Example 4
Unlike embodiment 1, in this embodiment, the distance between two adjacent groove structures 1 is 6mm, and the distance between two adjacent protrusion structures 5 is 6 mm. The total thickness f1 of the mat layer of the pavement matching structure is 4 mm. The total thickness f4 of the resilient floor covering is 6 mm.
Example 5
Unlike embodiment 1, in this embodiment, the distance between two adjacent groove structures 1 is 3mm, and the distance between two adjacent protrusion structures 5 is 3 mm. The total thickness f1 of the mat layer of the pavement matching structure is 8 mm. The total thickness f4 of the resilient floor covering is 8 mm.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention.
Claims (9)
1. A resilient flooring construction comprising: the paving structure comprises a paving foundation surface (3), a paving matching structure cushion layer arranged on the paving foundation surface (3) and an elastic floor paving structure in matched connection with the paving matching structure cushion layer;
the elastic floor paving structure is composed of an elastic floor (2) and a plurality of groove structures (1), wherein the groove structures (1) are arranged at the bottom of the elastic floor (2) and distributed in an array;
the paving matching structure cushion layer consists of a paving cushion layer (4) and a plurality of protruding structures (5), wherein the plurality of protruding structures (5) are arranged at the top of the paving cushion layer (4) and distributed in an array; the convex structure (5) is matched and connected with the groove structure (1), and the elastic floor paving structure is connected with the paving matching structure cushion layer, so that flexible paving of the elastic floor is realized;
the groove structure (1) is round and rectangular;
the shape of the protruding structure (5) is round or rectangular.
2. The resilient floor paving structure according to claim 1, wherein the arrangement of the plurality of groove structures (1) in an array means that the plurality of groove structures (1) are arranged in a row at intervals;
the plurality of the protruding structures (5) are distributed in an array, namely the plurality of the protruding structures (5) are distributed in a row at intervals.
3. The resilient flooring structure of claim 1 or 2, wherein each of said groove structures (1) is a continuous structure or a spaced-apart segmented structure in a length direction thereof;
each of the convex structures (5) is a continuous structure or an interval segmented structure in the length direction.
4. The resilient floor laying construction according to claim 3, wherein the distance between two adjacent groove structures (1) is 1-8 mm.
5. The resilient floor laying construction according to claim 4, wherein the groove structure (1) has a circular shape with a depth h1 of 1-7mm and a diameter d1 of 1-8 mm;
when the groove structure (1) is rectangular, the depth h2 is 1-7mm, the length is 1-8mm, and the width c1 is 1-8 mm.
6. The resilient floor laying construction according to claim 3, wherein the distance between two adjacent raised structures (5) is 1-8 mm.
7. The resilient flooring structure of claim 6, wherein the raised structure (5) has a circular shape, a height h4 of 1-7mm and a diameter d2 of 1-8 mm;
when the protruding structure (5) is rectangular, the height h5 is 1-7mm, the length is 1-8mm, and the width c2 is 1-8 mm.
8. The resilient floor covering construction of claim 1, wherein the overall thickness of the covering of the mating structure is 1.5-12 mm.
9. The resilient flooring construction of claim 1, wherein the resilient flooring structure has a total thickness of 3-12 mm.
