Abstract
本申请公开了一种磁芯自动放料装置，包括机架以及设置在机架内的输送带、放料区、放料板放置区以及放置板，所述放料板放置区、放料区以及放置板依次设置在输送带的一侧，所述机架内设有移动板，所述移动板通过平移机构与机架水平移动连接，所述移动板的下方设有分别位于放料板放置区正上方及放料区正上方的固定板和磁板，所述固定板下方设有多个吸盘，所述移动板上设有驱动固定板及磁板上下移动的升降气缸，所述放置板上设有磁块，所述机架内设有驱动磁块在输送带和放置板之间来回移动的摆动机构。该放料装置通过结构配合，实现自动化放料，提高效率，减少人工。
The application discloses an automatic magnetic core discharging device, comprising a frame, a conveyor belt arranged in the frame, a discharging area, a discharging plate placing area and a placing plate, the discharging plate placing area and the discharging area And the placing plate is arranged on one side of the conveyor belt in turn, the frame is provided with a moving plate, the moving plate is connected with the frame horizontally through a translation mechanism, and the lower part of the moving plate is provided with a discharging plate placed The fixed plate and the magnetic plate are directly above the area and the discharge area. There are a plurality of suction cups below the fixed plate. The moving plate is provided with a lifting cylinder that drives the fixed plate and the magnetic plate to move up and down. A magnetic block is arranged on the upper frame, and a swing mechanism for driving the magnetic block to move back and forth between the conveyor belt and the placing plate is arranged in the frame. The discharge device realizes automatic discharge through structural coordination, improves efficiency and reduces labor.
Description
Technical Field
The application relates to the field of magnetic cores, in particular to an automatic discharging device for magnetic cores.
Background
Among the prior art, the magnetic core is generally arranged neatly back successive layer and is separated through the flitch, and the magnetic core blowing needs the manual work to be linear with the magnetic core and places the feeding on the conveyer belt, and efficiency is lower and the cost of labor is higher.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an automatic blowing device of magnetic core to overcome not enough among the prior art.
In order to achieve the above object, the utility model provides a following technical scheme:
the embodiment of the application discloses automatic blowing device of magnetic core, its characterized in that: including frame and conveyer belt, blowing district, the blowing board of setting in the frame place the district and place the board, the blowing board is placed district, blowing district and is placed the board and set gradually one side at the conveyer belt, be equipped with the movable plate in the frame, the movable plate passes through translation mechanism and is connected with frame horizontal migration, the below of movable plate is equipped with fixed plate and magnetic sheet that is located the blowing board respectively and places the district directly over and directly over the blowing district, the fixed plate below is equipped with a plurality of sucking discs, be equipped with the lift cylinder that drive fixed plate and magnetic sheet reciprocated on the movable plate, it is equipped with the magnetic path on the board to place, be equipped with the swing mechanism that the drive magnetic path was at the conveyer belt and place round trip movement between the board in the frame.
Preferably, in the above automatic magnetic core feeding device, the swing mechanism includes a driving motor, a first swing arm, a second swing arm and a third swing arm, an output end of the driving motor penetrates through a top end of the first swing arm and is then fixedly connected to the first synchronizing wheel, a bottom end of the first swing arm is rotatably connected to a first rotating shaft, the first rotating shaft is fixedly connected to a second synchronizing wheel, the first rotating shaft is fixedly connected to a bottom end of the second swing arm, the first rotating shaft penetrates through the second swing arm and is then fixedly connected to a third synchronizing wheel, a top end of the third swing arm is rotatably connected to a third rotating shaft facing away from one side of the second swing arm, the third rotating shaft is rotatably connected to a fourth synchronizing wheel, two ends of the third swing arm are respectively fixedly connected to an end face of the fourth synchronizing wheel and a magnetic block, a first belt is wound between the first synchronizing wheel and the second synchronizing wheel, and a second belt is wound between the third synchronizing wheel and the fourth synchronizing wheel.
Preferably, in the above automatic magnetic core discharging device, the third swing arm is shaped like a letter "7".
Preferably, in the above-mentioned automatic blowing device of magnetic core, translation mechanism includes slide rail, lead screw and lead screw motor, the slide rail level sets up in the frame, the movable plate passes through the slider and is connected with the slide rail, lead screw and slide rail parallel arrangement, be equipped with the screw-nut of cooperation lead screw on the movable plate, lead screw motor drive lead screw is rotatory, the lead screw rotates with the frame to be connected, lead screw motor and frame fixed connection.
Preferably, in the above automatic magnetic core discharging device, the magnetic block is in a long strip shape.
Preferably, in the above automatic magnetic core emptying device, the placing plate is provided with a push plate and a telescopic cylinder, and the telescopic cylinder drives the push plate to move towards the conveying belt.
Compared with the prior art, the utility model has the advantages of:
this blowing device passes through the structural cooperation, realizes automatic blowing, raises the efficiency, reduces artifically.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments described in the present application, and it is obvious for those skilled in the art to obtain other drawings based on the drawings without creative efforts.

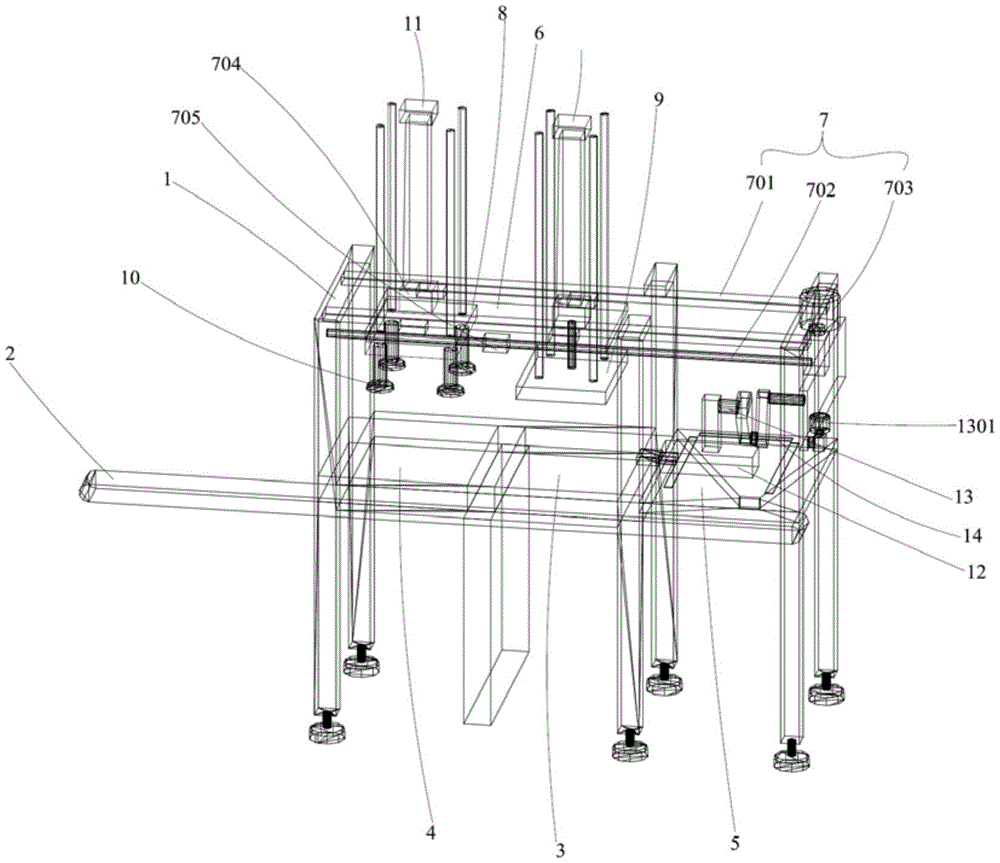

Fig. 1 is a schematic structural view of an automatic magnetic core emptying device according to an embodiment of the present invention;
fig. 2 is a schematic structural diagram of a swing mechanism according to an embodiment of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described in detail below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-2, the automatic magnetic core discharging device in this embodiment includes a frame 1 and a conveyor belt 2 disposed in the frame 1, a discharging area 3, a discharging plate placing area 4 and a placing plate 5, the discharging plate placing area 4, the discharging area 3 and the placing plate 5 are sequentially disposed on one side of the conveyor belt 2, a moving plate 6 is disposed in the frame 1, the moving plate 6 is connected with the frame 1 through a translation mechanism 7 in a horizontal moving manner, a fixed plate 8 and a magnetic plate 9 are disposed below the moving plate 6 and located directly above the discharging plate placing area 4 and directly above the discharging area 3 respectively, a plurality of suckers 10 are disposed below the fixed plate 8, a lifting cylinder 11 for driving the fixed plate 8 and the magnetic plate 9 to move up and down is disposed on the moving plate 6, a magnetic block 12 is disposed on the placing plate 5, and a swing mechanism 13 for driving the magnetic block 12 to move back and forth between the conveyor belt 2 and the placing plate 5 is disposed in the frame 1.
Further, the swing mechanism 13 includes a driving motor 1301, a first swing arm 1302, the output end of a driving motor 1301 penetrates through the top end of the first swing arm 1302 and is fixedly connected with a first synchronizing wheel 1305, the bottom end of the first swing arm 1302 is rotatably connected with a first rotating shaft 1306, the first rotating shaft 1306 is fixedly connected with a second synchronizing wheel 1307, the first rotating shaft 1306 is fixedly connected with the bottom end of the second swing arm 1303, the first rotating shaft 1306 penetrates through the back end of the second swing arm 1303 and is fixedly connected with a third synchronizing wheel 1308, the top end of the third swing arm 1304 faces the side away from the second swing arm 1303 and is rotatably connected with a third rotating shaft 1309, the third rotating shaft 1309 is rotatably connected with a fourth synchronizing wheel 1310, two ends of the third swing arm 1304 are respectively fixedly connected with the end face and the 12 of the fourth synchronizing wheel 1310, a first belt 1311 is wound between the first synchronizing wheel 1305 and the second synchronizing wheel 1307, and a second belt 1312 is wound between the third synchronizing wheel 1308 and the fourth synchronizing wheel 1310.
Further, the third swing arm 1304 is shaped like a letter "7".
Further, the translation mechanism 7 includes a slide rail 701, a lead screw 702 and a lead screw motor 703, the slide rail 701 is horizontally disposed on the rack 1, the moving plate 6 is connected to the slide rail 701 through a slider 704, the lead screw 702 is disposed in parallel with the slide rail 701, a lead screw nut 705 cooperating with the lead screw 702 is disposed on the moving plate 6, the lead screw motor 703 drives the lead screw 702 to rotate, the lead screw 702 is rotatably connected to the rack 1, and the lead screw motor 703 is fixedly connected to the rack 1.
Further, the magnetic block 12 is in a long strip shape.
Further, the placing plate 5 is provided with a pushing plate 14 and a telescopic cylinder (not shown in the figure), and the telescopic cylinder (not shown in the figure) drives the pushing plate 14 to move towards the conveying belt 2.
In this technical scheme, this blowing device passes through the structural cooperation, realizes automatic blowing, raises the efficiency, reduces the manual work.
The specific implementation principle is as follows:
placing a tray with materials in a material placing area, driving a magnetic plate to adsorb a first layer of magnetic core by a telescopic cylinder, moving the magnetic plate to the upper side of a placing plate by a translation mechanism, driving the magnetic plate to place the adsorbed magnetic core on the placing plate by the telescopic cylinder, adsorbing a partition plate for separating magnetic core layers by a fixed plate through a sucker, moving a moving plate, placing the partition plate in the material placing area by the fixed plate, and continuously adsorbing the next magnetic core by the magnetic plate; when the magnetic core is placed on placing the board, the magnetic core is placed to the conveyer belt in proper order through swing arm mechanism back and forth row by row with the magnetic core to at this in-process, the push pedal promotes gradually and pushes away the magnetic core and make things convenient for the absorption to the magnetic core below continuously, and then the magnetic core of multilayer is linear and carries on the conveyer belt.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The foregoing is merely a detailed description of the present application, and it should be noted that modifications and embellishments could be made by those skilled in the art without departing from the principle of the present application, and these should also be considered as the protection scope of the present application.
Claims (6)
1. The utility model provides an automatic blowing device of magnetic core which characterized in that: including frame and conveyer belt, blowing district, the blowing board of setting in the frame place the district and place the board, the blowing board is placed district, blowing district and is placed the board and set gradually one side at the conveyer belt, be equipped with the movable plate in the frame, the movable plate passes through translation mechanism and is connected with frame horizontal migration, the below of movable plate is equipped with fixed plate and magnetic sheet that is located the blowing board respectively and places the district directly over and directly over the blowing district, the fixed plate below is equipped with a plurality of sucking discs, be equipped with the lift cylinder that drive fixed plate and magnetic sheet reciprocated on the movable plate, it is equipped with the magnetic path on the board to place, be equipped with the swing mechanism that the drive magnetic path was at the conveyer belt and place round trip movement between the board in the frame.
2. The automatic discharging device for the magnetic cores as claimed in claim 1, wherein: the swing mechanism comprises a driving motor, a first swing arm, a second swing arm and a third swing arm, the output end of the driving motor penetrates through the top end of the first swing arm and is fixedly connected with a first synchronous wheel, the bottom end of the first swing arm is rotatably connected with a first rotating shaft, a second synchronizing wheel is fixedly connected on the first rotating shaft, the first rotating shaft is fixedly connected with the bottom end of the second swing arm, the first rotating shaft penetrates through the second swing arm and is fixedly connected with a third synchronizing wheel, the top end of the third swing arm is rotationally connected with a third rotating shaft towards one side deviating from the second swing arm, the third rotating shaft is rotationally connected with a fourth synchronizing wheel, the two ends of the third swing arm are respectively fixedly connected with the end face of the fourth synchronizing wheel and the magnetic block, a first belt is wound between the first synchronizing wheel and the second synchronizing wheel, and a second belt is wound between the third synchronizing wheel and the fourth synchronizing wheel.
3. The automatic discharging device for the magnetic cores as claimed in claim 2, wherein: the third swing arm is 7-shaped.
4. The automatic discharging device for the magnetic cores as claimed in claim 1, wherein: the translation mechanism comprises a slide rail, a screw rod and a screw rod motor, the slide rail is horizontally arranged on the rack, the movable plate is connected with the slide rail through a slide block, the screw rod is arranged in parallel with the slide rail, a screw rod nut matched with the screw rod is arranged on the movable plate, the screw rod motor drives the screw rod to rotate, the screw rod is rotatably connected with the rack, and the screw rod motor is fixedly connected with the rack.
5. The automatic discharging device for the magnetic cores as claimed in claim 1, wherein: the magnetic block is in a strip shape.
6. The automatic discharging device for the magnetic cores as claimed in claim 1, wherein: the placing plate is provided with a push plate and a telescopic cylinder, and the telescopic cylinder drives the push plate to move towards the conveying belt.
