Abstract
本实用新型涉及安神助眠技术领域，且公开了一种安神助眠的新型药敷眼罩，包括眼罩本体，所述眼罩本体一面活动连接有两个贴药板，所述贴药板之间固定连接有魔术贴，且魔术贴与眼罩本体之间活动连接，所述贴药板外侧活动连接有转轴，所述眼罩本体之间设有鼻梁覆盖布，所述鼻梁覆盖布成条形，且一端固定连接于眼罩本体。该安神助眠的新型药敷眼罩，通过眼罩本体顶部设有两个贴药板，便于将其贴药板一端通过魔术贴进行固定与打开，达到了便于更换药物的有益效果，通过鼻梁覆盖布将其眼罩覆盖在眼部时，防止因鼻梁过高或者过低导致眼罩本体无法很好的隔绝光线，而通过条形鼻梁覆盖布对其鼻梁进行贴合，达到了更好的隔绝光线的有益效果。
The utility model relates to the technical field of calming the nerves and assisting sleep, and discloses a novel medical eye mask for calming the nerves and assisting sleep. A Velcro is connected, and the Velcro is movably connected to the eye mask body, a rotating shaft is movably connected to the outside of the patch plate, a nose bridge covering cloth is arranged between the eye mask bodies, and the nose bridge covering cloth is in a strip shape, and one end It is fixedly connected to the eyecup body. The new type of medical eye mask for calming the nerves and assisting sleep is provided with two medicine sticking plates on the top of the eye mask body, so that one end of the medicine sticking plate can be fixed and opened with a Velcro, and the beneficial effect of easy drug replacement is achieved. When the eye mask is covered on the eyes, it prevents the eye mask body from being unable to isolate the light well because the bridge of the nose is too high or too low. The strip-shaped nose bridge covering cloth is used to fit the bridge of the nose to better isolate the light. Effect.
Description
Technical Field
The utility model relates to a technical field of tranquilization help sleeping, specifically a novel medicine compress eye-shade of tranquilization help sleeping.
Background
Eye shield products in the current market can protect eyes, and nutrients are easy to absorb; the eye care product is convenient to carry and use, can dredge capillary vessels of eyes, promote blood circulation of the eyes, repair damaged cells of the eyes, adjust physiological functions of the eyes and relieve fatigue of the eyes, has a certain function of protecting eyesight, but has a single function and is only limited to eye care and health care.
However, the existing medicinal eye patch for soothing the nerves and helping sleep cannot well replace the medicines. And the eyeshade can not well shield according to the size of the nose, so that the eyeshade can leak light when being worn, and the sleep-aiding effect is not good.
Disclosure of Invention
Technical problem to be solved
To the not enough of prior art, the utility model provides a novel medicine that tranquilizes and helps dormancy applies eye-shade possesses more convenient change medicine and better advantage such as sheltering from, has solved above-mentioned technical problem.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a novel medicine application eyeshade for calming nerves and helping sleep comprises an eyeshade body, wherein two medicine sticking plates are movably connected to one side of the eyeshade body, magic tapes are fixedly connected between the medicine sticking plates and movably connected with the eyeshade body, and rotating shafts are movably connected to the outer sides of the medicine sticking plates;
the nose bridge covering cloth is arranged between the eyeshade bodies, the nose bridge covering cloth is in a strip shape, and one end of the nose bridge covering cloth is fixedly connected to the eyeshade bodies.
Preferably, the two sides of the eyeshade body are movably connected with ear hanging cloth, an ear hanging opening is formed in the ear hanging cloth, a cutting opening is formed in one side of the ear hanging opening, and a second magic tape is movably connected between the ear hanging cloth and the eyeshade body.
By the technical scheme, the two sides of the eyeshade body are movably connected with the ear hanging cloth, the eyeshade body can be hung on ears conveniently by the ear hanging cloth, the eyes of the eyeshade body are covered, the eyeshade can isolate light, an atmosphere which is convenient for sleeping in a dark environment is created, the ear hanging opening is formed by the ear hanging cloth, ears of the eyeshade body can be hung on the eyeshade body conveniently by the ear hanging opening, the eyeshade body can be hung on the eyeshade body by the ear hanging opening, a cutting opening is formed in one side of the ear hanging opening, the ear hanging opening can be adjusted by the cutting opening, when the ear hanging opening is hung on the ears, the ear hanging cloth can be stretched by the cutting opening, the problems of ear pain and the like caused by over-stretching are prevented, the second magic tape is movably connected between the ear hanging cloth and the eyeshade body, the ear hanging cloth can be replaced conveniently by the second magic tape, one-side use is convenient, the problem of unnecessary resource waste and the like in the environment is solved, the ear hanging cloth and the eyeshade body are replaced by the second magic tape.
Preferably, the outer wall of one side of the eyeshade body is fixedly connected with a fitting strip, a medicine dispersing opening is formed in the fitting strip, a plurality of medicine dispersing holes are formed in the medicine dispersing opening, and the medicine dispersing opening is located on one side of the medicine applying plate.
Through the technical scheme, through eye-shade body one side outer wall fixedly connected with laminating strip, utilize the laminating strip to make the better laminating eye of eye-shade body of being convenient for when its sleep, it is not good to prevent that light from getting into the eye and leading to the sleep quality, through the inside medicine mouth that looses of having seted up of laminating strip, utilize to loose to have seted up a plurality of medicine holes that loose on the medicine mouth, and loose the medicine mouth and be located a medicine board one side, when making its medicine board of pasting place the medicine and help the dormancy, spill its dose through loosing the medicine hole, promote its sleep quality.
Preferably, subside medicine board top fixedly connected with heating thermostatic plate, heating thermostatic plate one side swing joint has the pivot, pivot bottom swing joint has the medicinal material to put into the mouth, the medicinal material is put into mouth bottom fixedly connected with ventilative cloth.
Through the technical scheme, through subsides medicine board top fixedly connected with heating thermostatic plate, utilize heating thermostatic plate to heat its medicinal material, make it distribute the medicine more easily, calm the nerves and help the sleep to its sleep, there is the pivot through heating thermostatic plate one side swing joint, it is convenient for open its heating thermostatic plate to utilize the pivot, be convenient for put its medicine into the mouth through pivot bottom swing joint medicinal material and put into, and the medicinal material is put into the mouth and is seted up inside pasting the medicine board, put into mouthful ventilative cloth of bottom fixedly connected with through the medicinal material, prevent that the medicinal material from putting into too much, make its medicinal material fall out through scattered medicine hole, make it influence the sleep quality, still can cause a certain amount of damage to its eye, utilize the heating thermostatic plate to put into the mouth and cover to close its medicinal material, make its heating thermostatic plate be convenient for heating its medicinal material.
Compared with the prior art, the utility model provides a novel medicine that tranquilizes and helps dormancy applies eye-shade possesses following beneficial effect:
1. this novel medicine that calms the nerves and help dormancy applies eye-shade is equipped with two through eye-shade body top and pastes the medicine board, is convenient for paste medicine board one end with it and paste through the magic and fix and open, makes its paste the medicine board other end and remove through the pivot, has reached the beneficial effect of being convenient for change the medicine.
2. This novel medicine that calms nerves and help dormancy covers the eye-shade through the bridge of the nose and covers cloth and cover its eye-shade when the eye, prevents to lead to the unable fine isolated light of eye-shade body because of the bridge of the nose is too high or low excessively, and laminates its bridge of the nose through bar bridge of the nose cover cloth, has reached the beneficial effect of better isolated light.
Drawings

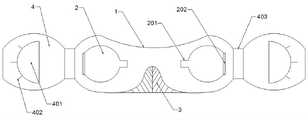

FIG. 1 is a front view of the structure of the present invention;
FIG. 2 is a schematic view of the back side of the structure of the present invention;
FIG. 3 is a schematic side view of the structure of the present invention;
fig. 4 is a schematic view of the structure of the medical patch plate of the present invention.
Wherein: 1. an eyeshade body; 2. pasting a medicine plate; 201. magic tape; 202. a rotating shaft; 3. a nose bridge covering cloth; 4. ear hanging cloth; 401. hanging the ear mouth; 402. cutting the opening; 403. a second magic tape; 5. fitting strips; 501. a medicine dispersing port; 502. medicine dispersing holes; 6. heating the thermostatic plate; 601. putting the medicinal materials into the mouth; 602. a breathable cloth.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, a novel medicine applying eyeshade for calming nerves and helping sleep comprises an eyeshade body 1, wherein one side of the eyeshade body 1 is movably connected with two medicine sticking plates 2, a magic tape 201 is fixedly connected between the medicine sticking plates 2, the magic tape 201 is movably connected with the eyeshade body 1, and the outer side of the medicine sticking plate 2 is movably connected with a rotating shaft 202;
be equipped with bridge of the nose between the eye-shade body 1 and cover cloth 3, bridge of the nose covers cloth 3 and becomes the bar, and one end fixed connection is in eye-shade body 1.
Specifically, the two sides of the eyeshade body 1 are movably connected with ear hanging cloth 4, the ear hanging cloth 4 is provided with an ear hanging opening 401, one side of the ear hanging opening 401 is provided with a cutting opening 402, a second magic tape 403 is movably connected between the ear hanging cloth 4 and the eyeshade body 1, the eyeshade has the advantages that the two sides of the eyeshade body 1 are movably connected with the ear hanging cloth 4, the eyeshade body 1 can be hung on ears by the ear hanging cloth 4 to cover the eyes, the eyeshade can isolate light rays, an atmosphere which is convenient for sleeping in a dark environment is created, the ear hanging opening 401 is arranged by the ear hanging cloth 4, ears can be hung on the eyeshade body 1 by the ear hanging opening 401, the cutting opening 402 is arranged on one side of the ear hanging opening 401, the ear hanging opening 401 can be adjusted by the cutting opening 402, when the ear hanging opening 401 is hung on ears, the ear hanging cloth 4 is stretched by the cutting opening 402, prevent to lead to the ear painful scheduling problem to appear because of tensile tension, through swing joint between hangers cloth 4 and the eye-shade body 1 second magic subsides 403, utilize second magic subsides 403 to be convenient for change its hangers cloth 4, be convenient for reduce one side nature and use, produced unnecessary wasting of resources scheduling problem to its environment, make it change its hangers cloth 4 and eye-shade body 1 through second magic subsides 403.
Specifically, 1 one side outer wall fixedly connected with of eye-shade body laminating strip 5, 5 inside medicine mouth 501 that looses has been seted up of laminating strip, a plurality of medicine holes 502 that loose have been seted up on medicine mouth 501 that looses, medicine mouth 501 that looses is located 2 one sides of medicine board, the advantage is through 1 one side outer wall fixedly connected with laminating strip 5 of eye-shade body, utilize laminating strip 5 to make the eye-shade body 1 better laminating eye of being convenient for when its sleep, it leads to the sleep quality not good to prevent that light from getting into the eye, medicine mouth 501 that looses has been seted up through 5 inside of laminating strip, utilize to loose to have seted up a plurality of medicine holes 502 on the medicine mouth 501, and medicine mouth 501 that looses is located 2 sides of medicine board, when making its medicine board 2 of pasting place the medicine help sleeping, spill its dose through medicine holes 502, promote its sleep quality.
Specifically, the top of the drug pasting plate 2 is fixedly connected with a heating thermostatic plate 6, one side of the heating thermostatic plate 6 is movably connected with a rotating shaft 202, the bottom of the rotating shaft 202 is movably connected with a drug placing opening 601, the bottom of the drug placing opening 601 is fixedly connected with a breathable cloth 602, the advantage is that the top of the drug pasting plate 2 is fixedly connected with the heating thermostatic plate 6, the drug can be heated by the heating thermostatic plate 6, so that the drug can be more easily diffused, the sleep can be calmed and assisted, the drug can be conveniently diffused by the rotating shaft 202, the rotating shaft 202 is movably connected with one side of the heating thermostatic plate 6, the heating thermostatic plate 6 can be conveniently opened by the rotating shaft 202, the drug can be conveniently placed in through the drug placing opening 601 movably connected with the bottom of the rotating shaft 202, the drug placing opening 601 is arranged inside the drug pasting plate 2, the breathable cloth 602 is fixedly connected with the bottom of the drug placing opening 601, the drug can be prevented from being excessively placed, so that the drug can fall out through the drug diffusing hole 502, make it influence the sleep quality, still can cause a certain amount of damage to its eye, utilize heating thermostatic plate 6 to put into mouth 601 to its medicinal material and close, make its heating thermostatic plate 6 be convenient for to its medicinal material heating.
When using, be equipped with through eye-shade body 1 and paste medicine board 2, utilize magic subsides 201 and pivot 202 to be convenient for change its medicine of pasting 2 inside places of medicine board, cover 3 make its eye-shade body 1 better through the bridge of the nose and isolate its light, utilize second magic subsides 403 to be convenient for change its hangers cloth 4, handle its hangers cloth 4, heat its medicinal material of putting into mouth 601 inside through heating thermostatic plate 6, block its medicinal material through ventilative cloth 602, to its medicinal material smell scatter through the medicine hole 502 that looses of seting up on medicine mouth 501, promote its sleep quality.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (4)
1. A novel medicine application eyeshade for calming nerves and helping sleep comprises an eyeshade body (1), and is characterized in that: one surface of the eyeshade body (1) is movably connected with two medicine sticking plates (2), magic tapes (201) are fixedly connected between the medicine sticking plates (2), the magic tapes (201) are movably connected with the eyeshade body (1), and the outer sides of the medicine sticking plates (2) are movably connected with a rotating shaft (202);
the nose bridge covering cloth (3) is arranged between the eye patch bodies (1), the nose bridge covering cloth (3) is in a strip shape, and one end of the nose bridge covering cloth is fixedly connected to the eye patch bodies (1).
2. The novel medicine-applied eye patch for soothing nerves and helping sleep as claimed in claim 1, wherein: eye-shade body (1) both sides swing joint has ear hanging cloth (4), ear hanging mouth (401) have been seted up in ear hanging cloth (4), cutting mouth (402) have been seted up to ear hanging mouth (401) one side, swing joint has second magic subsides (403) between ear hanging cloth (4) and eye-shade body (1).
3. The novel medicine-applied eye patch for soothing nerves and helping sleep as claimed in claim 1, wherein: the eye patch is characterized in that a laminating strip (5) is fixedly connected to the outer wall of one side of the eye patch body (1), a medicine scattering opening (501) is formed in the laminating strip (5), a plurality of medicine scattering holes (502) are formed in the medicine scattering opening (501), and the medicine scattering opening (501) is located on one side of the medicine sticking plate (2).
4. The novel medicine-applied eye patch for soothing nerves and helping sleep as claimed in claim 1, wherein: paste medicine board (2) top fixedly connected with heating thermostatic board (6), heating thermostatic board (6) one side swing joint has pivot (202), pivot (202) bottom swing joint has the medicinal material to put into mouth (601), the medicinal material is put into mouth (601) bottom fixedly connected with ventilative cloth (602).
