CN214153701U - Multifunctional integrated well site control cabinet

Info

Publication number: CN214153701U
Application number: CN202120096302.9U
Authority: CN
Inventors: 王梁
Original assignee: Xi'an Puhua Yongtong Information Technology Development Co ltd
Current assignee: Xi'an Puhua Yongtong Information Technology Development Co ltd
Priority date: 2021-01-14
Filing date: 2021-01-14
Publication date: 2021-09-07
Anticipated expiration: 2031-01-14

Abstract

The utility model discloses a multifunctional integrated well field control cabinet, which particularly relates to the technical field of control cabinets. , and the outer surface of the cabinet door is fixedly connected with a plane lock, the two sides of the inner wall of the cabinet are fixedly connected with slide rails, the interior of the slide rail is provided with an adjustment device, and the bottom of the inner wall of the cabinet is provided with a movable A slot, the interior of the movable slot is movably connected with a telescopic device. The utility model not only improves the variability and utilization rate of space, but also strengthens the control and use of the control cabinet, improves the functionality of the control cabinet, reduces the single internal fixation, effectively dissipates heat inside, improves the service life, and enhances the control The overall stability of the cabinet increases the adaptability of the control cabinet, improves the safety performance, improves the ventilation performance and dustproof performance, so as to meet the needs of use.

Description

Multifunctional integrated well site control cabinet

Technical Field

The utility model relates to a switch board technical field, more specifically say, the utility model relates to a many function integration well site switch board.

Background

The well site control cabinet is used in drilling and oil extraction field and plays an important role in production. The control cabinet is formed by assembling switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the electrical wiring requirements, and the arrangement of the control cabinet meets the requirements of normal operation of an electric power system, is convenient to overhaul and does not endanger the safety of people and surrounding equipment. In normal operation, the circuit can be switched on or off by means of a manual or automatic switch. When the fault or abnormal operation occurs, the circuit is cut off or an alarm is given by the aid of the protective electric appliance. The measuring instrument can display various parameters in operation, and can also adjust some electrical parameters to prompt or send out signals for deviation from normal working state. It is commonly used in various power generation, distribution and transformation substations.

However, in actual use, most of well site control cabinets are relatively fixed, cannot be changed in due time as required, and are adjustable, limited in increase and decrease, general in flexibility and practicability, general in stability and protection performance, incapable of being well adapted to various terrains, easy to affect the work of internal elements, poor in ventilation and heat dissipation performance, poor in heat dissipation effect, easy to dust, poor in safety performance and easy to reduce service life.

SUMMERY OF THE UTILITY MODEL

In order to overcome the above-mentioned defect of prior art, the embodiment of the utility model provides a many function integration well site switch board to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a multi-functional integrated well site switch board, includes the cabinet body, the top fixedly connected with top cap of the cabinet body, one side of the cabinet body articulates there are a plurality of cabinet doors, just the outer fixed surface of fixedly connected with lock of cabinet door, the both sides fixedly connected with slide rail of internal wall of cabinet, the inside of slide rail is equipped with adjusting device, the activity groove has been seted up to the bottom of internal wall of cabinet, the inside swing joint in activity groove has the telescoping device, the inside fixedly connected with baffle and the baffle of the cabinet body, just the top fixedly connected with heat abstractor of baffle, a plurality of landing legs of bottom fixedly connected with of the cabinet body, the back fixedly connected with fixing device of the cabinet body.

Further, adjusting device includes the slider of swing joint in the inside of slide rail, one side fixedly connected with rack that the slide rail is kept away from to the slider, just the spring of the inside both sides fixedly connected with symmetry of slide rail, the supplementary piece of opposite side fixedly connected with of spring, the opposite side swing joint of supplementary piece is in the both sides of slider, just slide rail and supplementary piece are close to the equal fixedly connected with auxiliary rod in one side of spring.

Further, the telescoping device includes swing joint at the inside U type piece of activity inslot, the inside of U type piece is rotated through the bearing and is connected with the rotation axis, rotation axis middle part fixed surface is connected with the gyro wheel, just gyro wheel swing joint is in the bottom of activity inslot wall.

Furthermore, the top fixedly connected with folding baffle of U type piece, just folding baffle's top swing joint has the kelly, the kelly joint is in the inside of baffle.

Further, heat abstractor includes the mount of fixed connection at the baffle top, one side fixedly connected with motor of mount, just the motor is located between the baffle and the cabinet body, the output fixedly connected with drive shaft of motor, the surface of drive shaft is passed through the bearing and is rotated the inside of connecting at the baffle, just the blade of the one end fixedly connected with symmetry of motor is kept away from to the drive shaft, the bottom fixedly connected with screen panel of baffle, just drive shaft and blade all are located the inside of screen panel.

Further, fixing device includes the boss of fixed connection at the cabinet body back, the inside threaded connection of boss has the threaded rod, the top fixedly connected with adjustment handle of threaded rod, just the bottom fixedly connected with adjustable fender of threaded rod, adjustable fender's the fixed awl of inside fixedly connected with.

Furthermore, a plurality of vents are formed in the back face of the cabinet body, a dust screen is fixedly connected to the surface of the cabinet body, and the dust screen is located at the corresponding position of the vents.

The utility model discloses a technological effect and advantage:

1. compared with the prior art, through setting up adjusting device, not only can change the inside space pattern of well site switch board, thereby use inner space according to actual demand, improved the variability and the utilization ratio in space, save space, can also add the etc. to the inner part, strengthened the control and the use to the well site switch board, improved the functionality of switch board, set up the telescoping device, can make appropriate adjustment according to the demand, improved the variety and the variability of switch board, it is single to reduce inside fixed.

2. Compared with the prior art, through setting up heat abstractor, effectively dispel the heat to switch board inner device, better ventilation in the switch board has been kept, the normal operating of switch board work has been guaranteed, greatly improve life, make better control the well site, the functionality of switch board has been increased, set up fixing device, the holistic stability of switch board has effectively been strengthened, the adaptability that the switch board should correspond various topography has been increased, the security performance of well site switch board has also been improved, set up vent and dust screen, the ventilation performance and the dustproof performance of well site switch board have been improved, the functionality of switch board has been increased, thereby it is required to satisfy the use.

Drawings

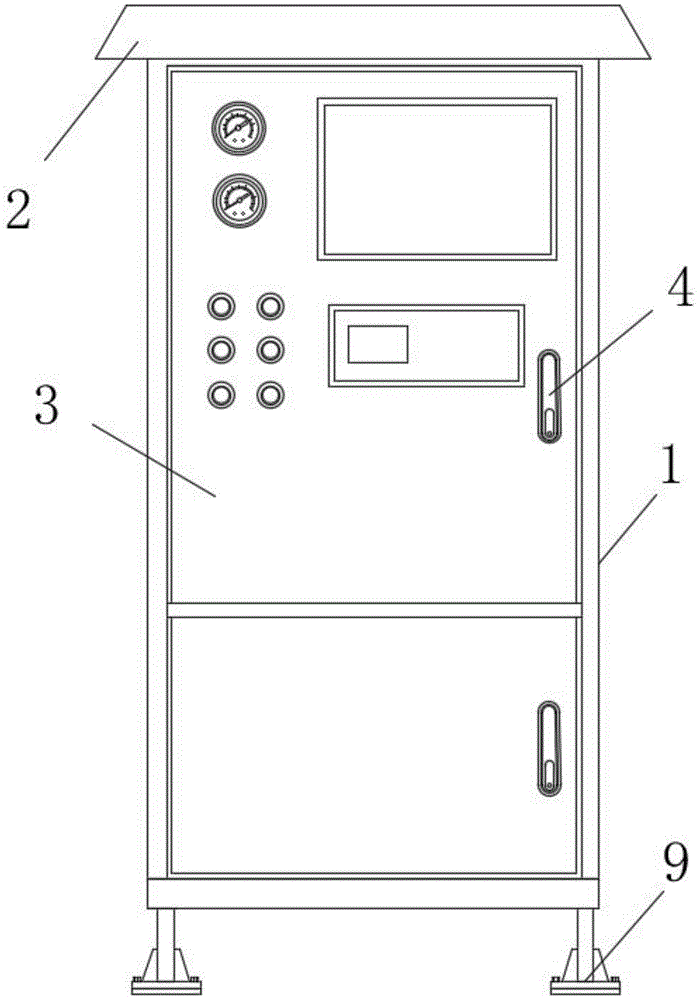

Fig. 1 is a schematic view of the overall structure of the present invention.

Fig. 2 is a schematic view of the internal structure of the present invention.

Fig. 3 is a schematic view of the back structure of the present invention.

Fig. 4 is a schematic view of the internal structure of the slide rail of the present invention.

Fig. 5 is a schematic view of the specific structure of the folding partition board of the present invention.

Fig. 6 is a schematic view of the internal structure of the movable trough of the present invention.

The reference signs are: 1. a cabinet body; 2. a top cover; 3. a cabinet door; 4. a planar lock; 5. a slide rail; 6. a movable groove; 7. a partition plate; 8. a baffle plate; 9. a support leg; 10. a slider; 11. placing a rack; 12. a spring; 13. an auxiliary block; 14. an auxiliary lever; 15. a U-shaped block; 16. a rotating shaft; 17. a roller; 18. folding the partition board; 19. a clamping rod; 20. a fixed mount; 21. a motor; 22. a drive shaft; 23. a blade; 24. a mesh enclosure; 25. a boss; 26. a threaded rod; 27. an adjusting handle; 28. a movable baffle; 29. a fixed cone; 30. a vent; 31. a dust screen.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1-6, a multi-functional integrated well site switch board, including the cabinet body 1, the top fixedly connected with top cap 2 of the cabinet body 1, one side of the cabinet body 1 articulates there is a plurality of cabinet doors 3, and the outer fixed surface of cabinet door 3 is connected with plane lock 4, the both sides fixedly connected with slide rail 5 of the internal wall of cabinet body 1, the inside of slide rail 5 is equipped with adjusting device, movable groove 6 has been seted up to the bottom of the internal wall of cabinet body 1, the inside swing joint in movable groove 6 has the telescoping device, the inside fixedly connected with baffle 7 and the baffle 8 of the cabinet body 1, and the top fixedly connected with heat abstractor of baffle 8, a plurality of landing legs 9 of bottom fixedly connected with of the cabinet body 1, the back fixedly connected with fixing device of the cabinet body 1.

In a preferred embodiment, adjusting device includes the slider 10 of swing joint inside slide rail 5, slider 10 keeps away from one side fixedly connected with rack 11 of slide rail 5, and the inside both sides fixedly connected with symmetrical spring 12 of slide rail 5, the other side fixedly connected with auxiliary block 13 of spring 12, the opposite side swing joint of auxiliary block 13 is in the both sides of slider 10, and slide rail 5 and auxiliary block 13 are close to the equal fixedly connected with auxiliary rod 14 of one side of spring 12, so that not only can change the inside space pattern of well site switch board, thereby use the inner space according to the actual demand, the variability and the utilization ratio in space have been improved, save space, can also add the etc. to inside device, strengthened the control and the use to the well site switch board, the functionality of switch board has been improved.

In a preferred embodiment, the telescopic device comprises a U-shaped block 15 movably connected inside the movable groove 6, a rotating shaft 16 is rotatably connected inside the U-shaped block 15 through a bearing, a roller 17 is fixedly connected to the surface of the middle of the rotating shaft 16, and the roller 17 is movably connected to the bottom of the inner wall of the movable groove 6, so that proper adjustment can be made according to requirements, the diversity and variability of the control cabinet are improved, and the internal fixation is reduced.

In a preferred embodiment, a folding partition plate 18 is fixedly connected to the top of the U-shaped block 15, and a clamping rod 19 is movably connected to the top of the folding partition plate 18, and the clamping rod 19 is clamped inside the partition plate 7, so that the stability of the device is improved.

In a preferred embodiment, the heat dissipation device includes a fixed frame 20 fixedly connected to the top of the baffle 8, a motor 21 is fixedly connected to one side of the fixed frame 20, the motor 21 is located between the baffle 8 and the cabinet body 1, an output end of the motor 21 is fixedly connected with a driving shaft 22, the surface of the driving shaft 22 is rotatably connected to the inside of the baffle 8 through a bearing, the driving shaft 22 is far away from a symmetrical blade 23 fixedly connected to one end of the motor 21, a mesh enclosure 24 is fixedly connected to the bottom of the baffle 8, and the driving shaft 22 and the blade 23 are both located inside the mesh enclosure 24, so as to effectively dissipate heat of devices inside the control cabinet, better ventilation in the control cabinet is maintained, normal operation of work of the control cabinet is guaranteed, service life is greatly prolonged, well-control over a well site is achieved, and functionality of the control cabinet is improved.

In a preferred embodiment, the fixing device comprises a boss 25 fixedly connected to the back of the cabinet body 1, a threaded rod 26 is connected to the inner thread of the boss 25, an adjusting handle 27 is fixedly connected to the top of the threaded rod 26, a movable baffle 28 is fixedly connected to the bottom of the threaded rod 26, and a fixed cone 29 is fixedly connected to the inner part of the movable baffle 28, so that the overall stability of the control cabinet is effectively enhanced, the adaptability of the control cabinet to various terrains is improved, and the safety performance of the well site control cabinet is also improved.

In a preferred embodiment, a plurality of ventilation openings 30 are formed in the back surface of the cabinet body 1, a dust screen 31 is fixedly connected to the surface of the cabinet body 1, and the dust screen 31 is located at a position corresponding to the ventilation openings 30, so that the ventilation performance and the dust resistance of the well site control cabinet are improved, the functionality of the control cabinet is increased, and the use requirement is met.

The utility model discloses the theory of operation: when the interior of the control cabinet needs to be adjusted, a certain force is applied to the folding partition plate 18, the driving roller 17 makes a linear reciprocating motion in the movable groove 6, so that the folding partition plate 18 moves and adjusts the interior space, the folding partition plate 18 can be fixed through the clamping rod 19, the slider 10 in the slide rail 5 is adjusted in a lifting manner by applying a certain force to the slider 10, the auxiliary block 13 and the spring 12 in the slide rail 5 also move along with the movement of the auxiliary block 13, the auxiliary rod 14 limits and fixes the spring 12, the auxiliary block 13 fixes the slider 10, when the control cabinet works and operates, the motor 21 in the control cabinet drives the driving shaft 22 and the blades 23 to rotate, and wind is generated to dissipate heat of internal devices, the vent 30 plays a role in air circulation, the dust screen 31 blocks dust in air, the threaded rod 26 can be driven through the adjusting handle 27, and drives the movable baffle 28 and the fixed cone 29 to move, so that the control cabinet is fixed according to actual conditions.

The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;

secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;

and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a multi-functional integrated well site switch board, includes the cabinet body (1), its characterized in that: the utility model discloses a cabinet, including the cabinet body, the top fixedly connected with top cap (2) of the cabinet body (1), one side of the cabinet body (1) articulates there are a plurality of cabinet doors (3), just the outer fixed surface of being connected with of cabinet door (3) locks (4), the both sides fixedly connected with slide rail (5) of the cabinet body (1) inner wall, the inside of slide rail (5) is equipped with adjusting device, movable groove (6) have been seted up to the bottom of the cabinet body (1) inner wall, the inside swing joint of movable groove (6) has the telescoping device, inside fixedly connected with baffle (7) and baffle (8) of the cabinet body (1), just the top fixedly connected with heat abstractor of baffle (8), a plurality of landing legs (9) of bottom fixedly connected with of the cabinet body (1), the back fixedly connected with fixing device of the cabinet body (1).

2. The multifunctional integrated wellsite control cabinet of claim 1, wherein: adjusting device includes inside slider (10) of swing joint at slide rail (5), one side fixedly connected with rack (11) of slide rail (5) are kept away from in slider (10), just spring (12) of the inside both sides fixedly connected with symmetry of slide rail (5), opposite side fixedly connected with auxiliary block (13) of spring (12), the opposite side swing joint of auxiliary block (13) is in the both sides of slider (10), just slide rail (5) and auxiliary block (13) are close to equal fixedly connected with auxiliary rod (14) in one side of spring (12).

3. The multifunctional integrated wellsite control cabinet of claim 2, wherein: the telescopic device comprises a U-shaped block (15) movably connected to the inside of the movable groove (6), a rotating shaft (16) is rotatably connected to the inside of the U-shaped block (15) through a bearing, a roller (17) is fixedly connected to the middle of the rotating shaft (16) in the surface, and the roller (17) is movably connected to the bottom of the inner wall of the movable groove (6).

4. The multifunctional integrated wellsite control cabinet of claim 3, wherein: the top fixedly connected with folding baffle (18) of U type piece (15), just the top swing joint of folding baffle (18) has kelly (19), kelly (19) joint is in the inside of baffle (7).

5. The multifunctional integrated wellsite control cabinet of claim 4, wherein: the heat dissipation device comprises a fixed frame (20) fixedly connected to the top of a baffle (8), a motor (21) is fixedly connected to one side of the fixed frame (20), the motor (21) is located between the baffle (8) and a cabinet body (1), a driving shaft (22) is fixedly connected to the output end of the motor (21), the surface of the driving shaft (22) is rotatably connected to the inside of the baffle (8) through a bearing, blades (23) symmetrical to one end of the motor (21) are far away from the driving shaft (22), a mesh enclosure (24) is fixedly connected to the bottom of the baffle (8), and the driving shaft (22) and the blades (23) are located inside the mesh enclosure (24).

6. The multifunctional integrated wellsite control cabinet of claim 5, wherein: the fixing device comprises a boss (25) fixedly connected to the back face of the cabinet body (1), the inner thread of the boss (25) is connected with a threaded rod (26), the top fixedly connected with adjusting handle (27) of the threaded rod (26), the bottom fixedly connected with movable baffle plate (28) of the threaded rod (26), and the inner fixedly connected with fixing cone (29) of the movable baffle plate (28).

7. The multifunctional integrated wellsite control cabinet of claim 6, wherein: a plurality of vents (30) are arranged on the back face of the cabinet body (1), a dust screen (31) is fixedly connected to the surface of the cabinet body (1), and the dust screen (31) is located at the corresponding position of the vents (30).
