CN214148663U

CN214148663U - A new energy-based garbage drying equipment

Info

Publication number: CN214148663U
Application number: CN202120108312.XU
Authority: CN
Inventors: 满毅
Original assignee: Nanjing Vocational University of Industry Technology NUIT
Current assignee: Nanjing Vocational University of Industry Technology NUIT
Priority date: 2021-01-14
Filing date: 2021-01-14
Publication date: 2021-09-07
Anticipated expiration: 2031-01-14

Abstract

The utility model discloses a garbage drying device based on new energy, comprising a drying box and a belt, a working box is fixedly connected to the bottom of the inner cavity of the drying box, and a transmission shaft is movably connected to the top of the inner cavity of the drying box through a bearing , The utility model through the setting of drying box, belt, working box, transmission shaft, driven pulley, first motor, driving pulley, feeding hole, connecting rod, chassis, second motor, stirring rod and drying mechanism, together construct a A garbage drying equipment based on new energy, in which the garbage in the working box can be fully stirred by the arrangement of the belt, the drive shaft, the driven pulley, the first motor, the driving pulley, the connecting rod, the second motor and the stirring rod. , and then through the setting of the drying mechanism, the garbage can be heated while stirring, and the garbage can be quickly dried, so that the garbage can be dried evenly, improve the work efficiency, save energy and environmental protection, save time and effort.

Description

Rubbish drying equipment based on new forms of energy

Technical Field

The utility model relates to a refuse treatment technical field specifically is a rubbish drying equipment based on new forms of energy.

Background

Garbage refers to unwanted or useless solid or fluid substances, and in densely populated cities, garbage disposal is a headache problem, and is usually collected and sent to landfill areas or incinerated by an incinerator, but both of them cause environmental protection problems, and the termination of excessive consumption can further reduce the saturation level of the landfill areas, and improper disposal of the garbage in the landfill areas can pollute underground water and give off odor, and many cities have less and less landfill areas, and incineration inevitably produces toxic gases, harms organisms, most cities are researching methods for reducing garbage generation, and encourages resource recovery.

General rubbish can be banked up, burn and smash, carry out the landfill to rubbish, can occupy a large amount of lands, burn rubbish, can produce a large amount of toxic gases and can the polluted environment, destroy the atmosphere, smash rubbish, there is also the defect, smash rubbish and only confine to fixed rubbish, if wet card machine is smashing by no means, so must dry moist rubbish, current rubbish drying equipment is inconvenient to carry out abundant stirring processing to rubbish, rubbish can not evenly heated, so moisture in the rubbish scatters and disappears slowly, make drying efficiency low, for this reason we propose a rubbish drying equipment based on new forms of energy, solve above problem that proposes.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a rubbish drying equipment based on new forms of energy possesses the advantage of even heating, has solved the inconvenient abundant stirring processing that carries out to rubbish of current rubbish drying equipment, and rubbish can not be by even heating, so moisture scatters and disappears slower in the rubbish for drying efficiency is low problem.

In order to achieve the above object, the utility model provides a following technical scheme: a garbage drying device based on new energy comprises a drying box and a belt, wherein the bottom of an inner cavity of the drying box is fixedly connected with a working box, the top of the inner cavity of the drying box is movably connected with a transmission shaft through a bearing, a driven belt pulley is sleeved on the surface of the transmission shaft, a first motor is fixedly connected to the right side of the top of the working box, an output shaft of the first motor is fixedly connected with a driving belt pulley, the driving belt pulley and the driven belt pulley are connected through the belt in a transmission manner, a charging hole is formed in the left side of the top of the inner cavity of the working box, the transmission shaft penetrates through the charging hole and extends to the inner cavity of the working box and is fixedly connected with a connecting rod, a machine box is embedded in each of two sides of the surface of the connecting rod, a second motor is fixedly connected to the inner cavity of the machine box, an output shaft of the second motor penetrates through the machine box and extends to the inner cavity of the working box and is fixedly connected with a stirring rod, drying mechanisms are embedded in two sides of the inner cavity of the drying box.

Preferably, drying mechanism includes the heating cabinet, the top and the bottom of heating cabinet inner chamber all are through support fixedly connected with fan, the inner chamber of heating cabinet and the one side that is located the work box are provided with the heating net.

Preferably, the top of the inner cavity of the working box is fixedly connected with an annular block, the inner cavity of the annular block is provided with a sliding groove, and the inner cavity of the sliding groove is in sliding connection with the connecting rod.

Preferably, hollow nets are arranged on the two sides and the bottom of the inner cavity of the working box, and the bottom of the inner cavity of the working box is communicated with a drainage funnel.

Preferably, the equal fixedly connected with universal wheel in both sides of work box bottom portion, the left side intercommunication at drying cabinet top has the filling tube, the filling tube is located the charge door directly over.

Preferably, a door is arranged on the surface of the drying box, and a handle is arranged on the surface of the door.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a drying cabinet, the belt, the work box, the transmission shaft, driven pulley, first motor, drive pulley, the charge cavity, the connecting rod, the machine case, the second motor, puddler and drying mechanism's setting, a rubbish drying equipment based on new forms of energy has been found jointly, wherein through the belt, the transmission shaft, driven pulley, first motor, drive pulley, the connecting rod, the setting of second motor and puddler, can carry out abundant stirring to the rubbish in the work box, the setting of rethread drying mechanism, can carry out stirring while heating rubbish, can be rapid carry out the drying to rubbish, make rubbish dry evenly, and high work efficiency is achieved, energy saving and environmental protection, time saving and labor saving.

2. The utility model is provided with the heating box, the fan and the heating net, the hot air generated by the heating net can be blown to the working box under the action of the fan, and the drying operation is carried out on the garbage inside through the hollow-out net;

by arranging the annular block and the chute, the first motor can conveniently drive the connecting rod to rotate in the working box, and the stirring rod can conveniently enlarge the area for stirring the garbage;

through the arrangement of the hollow net, hot air can conveniently enter the interior of the working box, and residual moisture in garbage can be conveniently discharged out of the drying box;

through setting up the chamber door, the rubbish after can conveniently drying discharges the drying cabinet.

Drawings

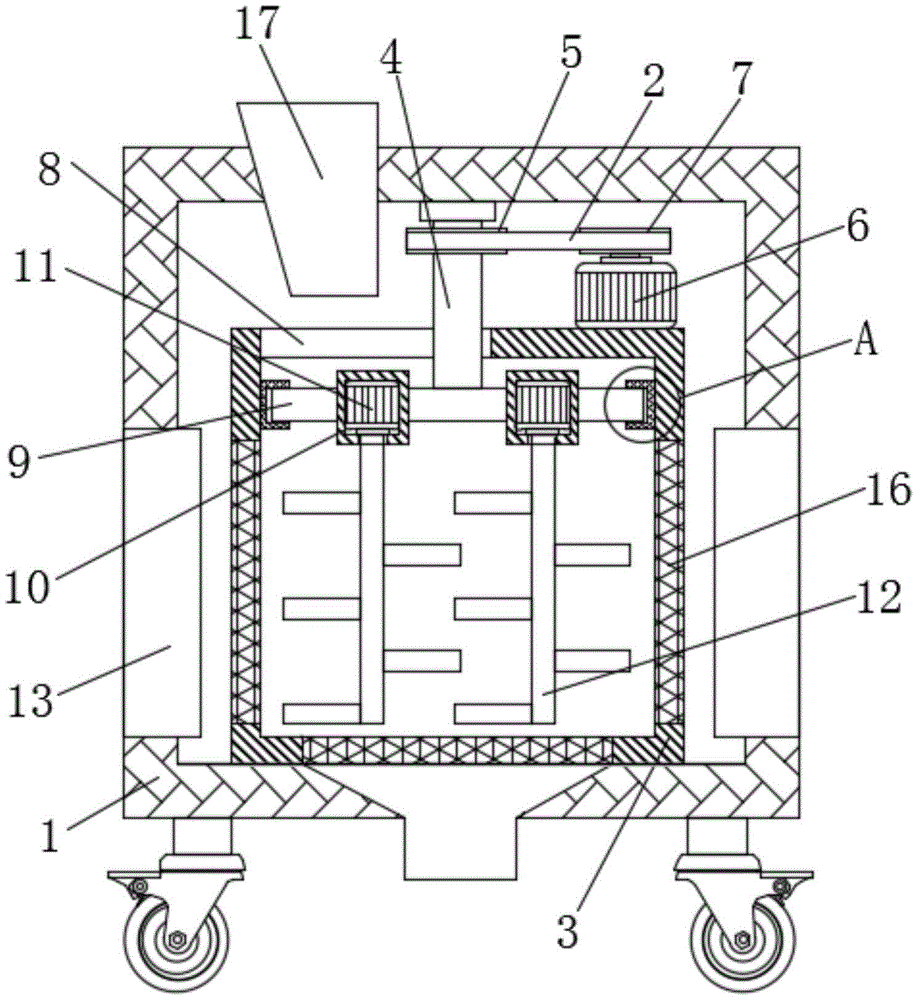

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a cross-sectional view of a drying mechanism in the structure of the present invention;

FIG. 3 is a perspective view of the drying box of the present invention;

FIG. 4 is a partial enlarged view of A in the structure of the present invention;

fig. 5 is a side sectional view of the structure of the working box of the present invention.

In the figure: 1. a drying oven; 2. a belt; 3. a work box; 4. a drive shaft; 5. a driven pulley; 6. a first motor; 7. a drive pulley; 8. a feed aperture; 9. a connecting rod; 10. a chassis; 11. A second motor; 12. a stirring rod; 13. a drying mechanism; 131. a heating box; 132. a fan; 133. Heating the net; 14. a ring block; 15. a chute; 16. hollowing out the net; 17. a feed tube; 18. and (4) a box door.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, a new energy based garbage drying device comprises a drying box 1 and a belt 2, wherein the bottom of the inner cavity of the drying box 1 is fixedly connected with a working box 3, the bottom of the working box 3 is designed in an oblique shape, the front bottom of the working box 3 is communicated with a discharge pipe, a valve is arranged at the pipe orifice of the discharge pipe, so that garbage can be conveniently discharged out of the working box 3, the top of the inner cavity of the drying box 1 is movably connected with a transmission shaft 4 through a bearing, the surface of the transmission shaft 4 is sleeved with a driven pulley 5, the right side of the top of the working box 3 is fixedly connected with a first motor 6, the output shaft of the first motor 6 is fixedly connected with a driving pulley 7, the driving pulley 7 is in transmission connection with the driven pulley 5 through the belt 2, the left side of the top of the inner cavity of the working box 3 is provided with a feeding hole 8, the transmission shaft 4 penetrates through the feeding hole 8 and extends to the inner cavity of the working box 3 and is fixedly connected with a connecting rod 9, the two sides of the surface of the connecting rod 9 are embedded with a case 10, wherein the inside of the case 10 can be additionally provided with a storage battery for supplying power, the inner cavity of the case 10 is fixedly connected with a second motor 11, the output shaft of the second motor 11 penetrates through the case 10 and extends to the inner cavity of the working box 3 and is fixedly connected with a stirring rod 12, the two sides of the inner cavity of the drying box 1 are embedded with drying mechanisms 13, a new energy-based garbage drying device is jointly constructed through the arrangement of the drying box 1, the belt 2, the working box 3, the transmission shaft 4, the driven belt pulley 5, the driving belt pulley 7, the charging hole 8, the connecting rod 9, the case 10, the second motor 11, the stirring rod 12 and the drying mechanisms 13, wherein the belt 2, the transmission shaft 4, the driven belt pulley 5, the first motor 6, the driving belt pulley 7, the connecting rod 9, the second motor 11 and the stirring rod 12 are arranged, can carry out abundant stirring to the rubbish in the work box 3, the setting of rethread drying mechanism 13 can carry out stirring while heating to rubbish, can be rapid carry out the drying to rubbish for rubbish is dry even, improves work efficiency, and is energy-concerving and environment-protective, labour saving and time saving.

Referring to fig. 2, the drying mechanism 13 includes a heating box 131, fans 132 are fixedly connected to the top and bottom of the inner cavity of the heating box 131 through brackets, a heating net 133 is disposed in the inner cavity of the heating box 131 and on one side of the working box 3, and by disposing the heating box 131, the fans 132 and the heating net 133, hot air generated by the heating net 133 can be blown to the working box 3 under the action of the fans 132, and the garbage inside can be dried through the hollow net 16.

Referring to fig. 1 and 4, the top of the inner cavity of the working box 3 is fixedly connected with the annular block 14, the inner cavity of the annular block 14 is provided with the sliding groove 15, the inner cavity of the sliding groove 15 is slidably connected with the connecting rod 9, and by arranging the annular block 14 and the sliding groove 15, the first motor 6 can conveniently drive the connecting rod 9 to rotate in the working box 3, so that the area of garbage stirring can be conveniently enlarged by the stirring rod 12.

Referring to fig. 1, the hollow nets 16 are arranged on two sides and the bottom of the inner cavity of the working box 3, the bottom of the inner cavity of the working box 3 is communicated with the drainage funnel, hot air can conveniently enter the working box 3 through the hollow nets 16, and meanwhile residual moisture in garbage can be conveniently drained out of the drying box 1.

Referring to fig. 1, universal wheels are fixedly connected to both sides of the bottom of the working box 3, a feeding pipe 17 is communicated with the left side of the top of the drying box 1, and the feeding pipe 17 is located right above the feeding hole 8.

Referring to fig. 3, a door 18 is disposed on a surface of the drying box 1, a handle is disposed on a surface of the door 18, and the dried garbage can be conveniently discharged out of the drying box 1 by disposing the door 18.

When in use, garbage is put into the working box 3 through the feeding pipe 17, then the first motor 6 is started to drive the driving belt pulley 7 to rotate, the driving belt pulley 7 can drive the driven belt pulley 5 and the transmission shaft 4 to rotate through the belt 2, the transmission shaft 4 drives the connecting rod 9 to rotate inside the working box 3, the rotating area of the stirring rod 12 driven by the second motor 11 can be enlarged, so that the garbage in the working box 3 can be fully stirred, heat generated by the heating net 133 is blown to the working box 3 through the starting fan 132, the garbage in the working box can be dried through the hollowed net 16, the garbage can be stirred and heated, and is dried rapidly, so that the garbage is dried uniformly, wherein part of the box body of the working box 3 adopts the hollowed net 16 design, and hot air can conveniently enter the working box 3, meanwhile, residual moisture in the garbage can be conveniently discharged out of the drying box 1, the working efficiency is improved, and the drying box is energy-saving, environment-friendly, time-saving and labor-saving.

The control mode of the present application is automatically controlled by a controller, the control circuit of the controller can be realized by simple programming by those skilled in the art, and the present application is common knowledge in the field, and the present application mainly protects the mechanical device, so the control mode and the circuit connection are not explained in detail in the present application.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a rubbish drying equipment based on new forms of energy, includes drying cabinet (1) and belt (2), its characterized in that: the bottom of the inner cavity of the drying box (1) is fixedly connected with a working box (3), the top of the inner cavity of the drying box (1) is movably connected with a transmission shaft (4) through a bearing, a driven pulley (5) is sleeved on the surface of the transmission shaft (4), a first motor (6) is fixedly connected to the right side of the top of the working box (3), an output shaft of the first motor (6) is fixedly connected with a driving pulley (7), the driving pulley (7) and the driven pulley (5) are in transmission connection through a belt (2), a feeding hole (8) is formed in the left side of the top of the inner cavity of the working box (3), the transmission shaft (4) penetrates through the feeding hole (8) and extends to the inner cavity of the working box (3) and is fixedly connected with a connecting rod (9), both sides of the surface of the connecting rod (9) are embedded with a case (10), and the inner cavity of the case (10) is fixedly connected with a second motor (11), an output shaft of the second motor (11) penetrates through the case (10) and extends to an inner cavity of the working box (3) and is fixedly connected with a stirring rod (12), and drying mechanisms (13) are embedded in two sides of the inner cavity of the drying box (1).

2. The new energy based waste drying apparatus of claim 1, wherein: drying mechanism (13) are including heating cabinet (131), all through support fixedly connected with fan (132) in the top and the bottom of heating cabinet (131) inner chamber, the inner chamber of heating cabinet (131) and the one side that is located work box (3) are provided with heating wire netting (133).

3. The new energy based waste drying apparatus of claim 1, wherein: the top fixedly connected with annular piece (14) of work box (3) inner chamber, spout (15) have been seted up to the inner chamber of annular piece (14), the inner chamber and connecting rod (9) sliding connection of spout (15).

4. The new energy based waste drying apparatus of claim 1, wherein: the two sides and the bottom of the inner cavity of the working box (3) are provided with hollow nets (16), and the bottom of the inner cavity of the working box (3) is communicated with a drainage funnel.

5. The new energy based waste drying apparatus of claim 1, wherein: the equal fixedly connected with universal wheel in both sides of work box (3) bottom, the left side intercommunication at drying cabinet (1) top has filling tube (17), filling tube (17) are located charge door (8) directly over.

6. The new energy based waste drying apparatus of claim 1, wherein: the surface of the drying box (1) is provided with a box door (18), and the surface of the box door (18) is provided with a handle.
