CN214144786U

CN214144786U - Rebar binding aids for construction sites

Info

Publication number: CN214144786U
Application number: CN202022524523.XU
Authority: CN
Inventors: 王泽栋; 孔祥镇; 毕春成; 姜�硕; 聂祥维; 路江伟; 柯红
Original assignee: China 22MCC Group Corp Ltd
Current assignee: China 22MCC Group Corp Ltd
Priority date: 2020-11-05
Filing date: 2020-11-05
Publication date: 2021-09-07
Anticipated expiration: 2030-11-05

Abstract

The utility model discloses an auxiliary device for tying steel bars used on construction sites, which comprises a door-shaped bracket, a cross arm capable of lifting and lowering is connected to the door-shaped bracket through a lifting mechanism, and a hook for hoisting beam reinforcement bars is slidably installed on the cross arm. . The utility model adjusts the position of the cross arm through the lifting or lowering of the lifting mechanism, thereby assisting the binding of steel bars, optimizing the construction process of the beam plate part of the existing reinforced concrete structure, improving the safety of operators on site, and improving the binding process of steel bars. .

Description

A reinforcement auxiliary device for job site

Technical Field

The utility model relates to a reinforcement technique particularly, relates to a reinforcement auxiliary device for job site for reduce the job site reinforcement degree of difficulty, optimize the work progress, improve reinforcing bar preparation installation quality, thereby improve job site entity quality.

Background

The application range of the reinforced concrete structure in civil engineering is very wide, and various engineering structures can be built by reinforced concrete. At present, the general construction process of the beam slab part of the reinforced concrete structure is as follows: the method comprises the steps of plate template support → beam bottom template support → beam reinforcement → beam side template support → plate reinforcement → concrete pouring, and relates to cross-matching operation of multiple kinds of workers such as carpenters, steel bar workers, scaffold workers and the like, and the method is relatively complex in process and relatively high in field management strength.

SUMMERY OF THE UTILITY MODEL

The utility model provides a reinforcement auxiliary device and application method for job site aims at reducing the phenomenon of different work types cross operation on the same working face, reduces management intensity.

The utility model adopts the following technical scheme:

the utility model provides a reinforcement auxiliary device for job site, includes door-shaped support, is connected with the cross arm that can go up and down through elevating system on the door-shaped support, and slidable mounting has the lifting hook that is used for hoisting the beam reinforcement on the cross arm.

Compared with the prior art, the utility model discloses a measuring method's advantage lies in:

the position of the cross arm is adjusted by the ascending or descending of the lifting mechanism, so that the reinforcement binding is assisted, the construction process of the beam plate part of the existing reinforced concrete structure is optimized, and the existing process is optimized into the support of the beam and the plate template → the binding of the beam reinforcement → the descending of the beam reinforcement → the binding of the plate reinforcement → the pouring of concrete; the requirement of cross operation of the template worker and the reinforcement worker on the same working face is reduced, the management intensity is reduced, the field safety of operators is improved, and the reinforcement binding process is improved.

Preferably, the technical solution of the present invention is as follows:

the lifting mechanism consists of a screw rod and a nut, the nut is clamped between two cross beams connected with the upright stanchions of the portal bracket, through holes for the screw rod to pass through are respectively arranged on the cross beams, the screw rod passes through the through holes and is connected with the nut through a threaded structure, and the lower end of the screw rod is fixedly connected with the cross arm; the structure is simple and easy to operate.

The two upright posts of the portal bracket are provided with slide rails, and the two ends of the cross arm are provided with slide grooves matched with the slide rails, so that a lead screw for limiting the lifting mechanism moves in the vertical direction, and the lead screw is prevented from rotating along with a nut.

The cross arm bottom is equipped with the slide, and the lifting hook upper end is equipped with the slider with slide complex for through adjusting make the lifting hook be located the upper portion muscle that will hoist and mount directly over.

The lower end of the door-shaped support is connected with the triangular base, so that the gravity center of the door-shaped support is reduced, and the stability of the device is enhanced.

Drawings

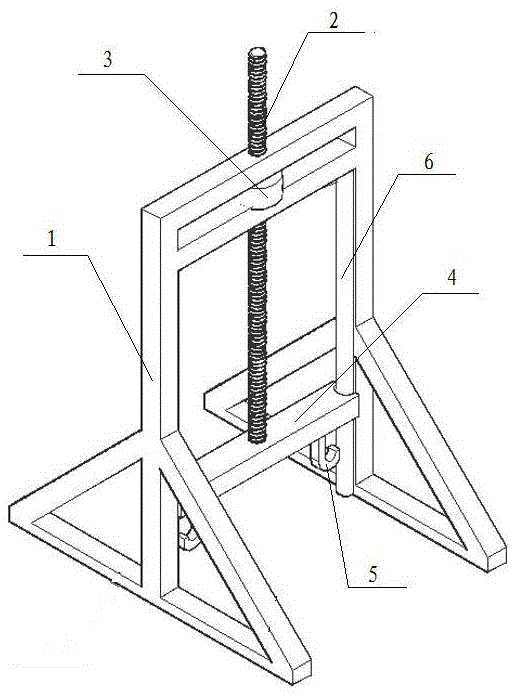

FIG. 1 is a front view of the auxiliary device for binding reinforcing bars of the present invention;

FIG. 2 is a side view of the reinforcement bar binding assisting device of the present invention;

FIG. 3 is a side view of the cross arm of the reinforcement assist assembly in connection with the hook;

description of reference numerals:

a portal frame 1; a lead screw 2; a nut 3; a cross arm 4; a hook 5; a slide rail 6; a slider 7; a triangular base 8.

Detailed Description

The invention will be further described with reference to the accompanying drawings and specific embodiments. It is to be understood that the following description is only for purposes of clearly illustrating the present invention and is not to be taken in a limiting sense.

Referring to fig. 1 to 3, a reinforcement auxiliary device for a construction site is shown, which is composed of a portal bracket 1, a lead screw 2, cross arms 4, a hook 5 and the like, wherein two vertical rods forming the portal bracket 1 are connected through two cross beams, the distance between the cross beams is equal to the thickness of a nut 3, through holes for the lead screw 2 to pass through are arranged at corresponding positions on the two cross beams, and the nut 3 is arranged at the through holes, so that the nut 3 is clamped between the two cross beams; the screw rod 2 penetrates through the through hole to be connected with the nut 3 through threads, and then is connected with the door-shaped support 1, and the nut 3 is limited in position, so that when the nut 3 is rotated, the screw rod 2 is lifted through movement of thread transmission between the screw rod and the nut.

The two upright posts of the portal bracket 1 are provided with slide rails 6, and the two ends of the cross arm 4 are respectively provided with slide grooves matched with the slide rails 6, so that the movement of the screw rod 2 is limited in the vertical direction and is prevented from rotating along with the nut 3; or, the sliding grooves are arranged on the inner sides of the two vertical rods of the door-shaped support 1, and the two ends of the cross arm are embedded into the sliding grooves, so that the same effect can be achieved.

The bottom of cross arm 4 is equipped with a pair of slide, and 5 upper ends of lifting hook are equipped with slide complex slider 7, and slider 7 can slide on the slide, adjusts the interval between lifting hook 5 through slip lifting hook 5 to the interval between the adaptation upper portion muscle makes the lifting hook be located directly over the upper portion muscle.

The lower end of the vertical rod of the door-shaped support 1 is respectively connected with a triangular base 8, and the triangular bases 8 are arranged by taking the vertical rod as a symmetrical central line. The base 6 is provided at the lower portion of the both-side vertical frame to lower the center of the portal frame 1, thereby enhancing the stability of the entire structure.

The use method of the reinforcement bar binding auxiliary device for the construction site comprises the following steps:

firstly, placing a portal bracket 1 above a supported beam template, rotating a nut 3 for adjusting a lead screw 2 to lift the lead screw 2, and lifting a cross arm 4 to a proper position; sliding a pair of lifting hooks 5 on the cross arm 4, wherein the lifting hooks 5 slide to positions right above upper ribs on two sides of the beam, and after the upper ribs are lifted by the lifting hooks 5, beam reinforcing steel bars are bound; after the beam reinforcing steel bars are bound, the nuts 3 are rotated to enable the screw rods 2 to descend, the beam reinforcing steel bars are put down into the erected beam formwork, and the hanging of the lifting hooks 5 on the upper beam is removed.

The utility model discloses a reinforced bar ligature auxiliary device has optimized the construction process of current reinforced concrete structure beam slab part, has reduced the demand of template worker and the operation of reinforcement worker cross operation on same working face, has eliminated the alternative construction phenomenon of reinforcement worker and template worker on same working face, has reduced the management intensity, has improved operation workman's site safety degree, has improved the reinforced bar ligature process.

The above description is only the preferred embodiment of the present invention. Various modifications and equivalent changes may be made by those skilled in the art without departing from the spirit and scope of the present invention, and such modifications and changes are intended to be included within the scope of the present invention.

Claims

1. an auxiliary device for tying steel bars for a construction site, comprising a portal support, characterized in that: the portal support is connected with a cross arm that can be lifted and lowered by a lifting mechanism, and the cross arm is slidably installed with a hoist for hoisting cross beam steel bars. hook.

2. The reinforcing bar binding device for construction site according to claim 1, characterized in that: the lifting mechanism is composed of a lead screw and a nut, and the nut is clamped between two beams connecting the door-type support uprights, on the beam A through hole for the lead screw to pass through is respectively provided, the lead screw passes through the through hole and is connected with the nut through a threaded structure, and the lower end of the lead screw is fixedly connected with the cross arm.

3 . The auxiliary device for tying steel bars for construction sites according to claim 1 , wherein slide rails are provided on the two uprights of the gate-shaped support, and slide grooves are provided at both ends of the cross arm to cooperate with the slide rails. 4 .

4. The auxiliary device for tying steel bars for construction sites according to any one of claims 1 or 3, characterized in that: the bottom of the cross arm is provided with a slideway, and the upper end of the hook is provided with a slider matched with the slideway.

5 . The auxiliary device for tying steel bars for construction sites according to claim 1 , wherein the lower end of the gate-shaped bracket is connected to a triangular base. 6 .
