Abstract
本实用新型公开了一种用于浇筑柱脚的模板夹具,包括钢模板框架、定位调节装置、U形夹具和限位机构；钢模板框架与定位调节装置和U形夹具，限位机构与定位调节装置均为活动连接；定位调节装置包括调距机构、横向支撑板、斜向支撑板、竖向支撑板、翻转轴承和固定耳板；竖向支撑板设置在一对连接耳板中间，U形夹具锁紧连接耳板和竖向支撑板；横向支撑板一端两侧设置有一对固定耳板，固定耳板套接在竖向支撑板顶部，翻转轴承穿过一对固定耳板和竖向支撑板，螺母锁紧翻转轴承；斜向支撑板设置在横向支撑板下端面与竖向支撑板内端面之间；调距机构套设在横向支撑板上；本实用新型操作简单，拆装方便，实现了模板夹具的周转使用。
The utility model discloses a formwork fixture for pouring a column foot, comprising a steel formwork frame, a positioning adjustment device, a U-shaped clamp and a limit mechanism; a steel formwork frame, a positioning adjustment device and a U-shaped clamp, a limit mechanism and a positioning mechanism The adjustment devices are all movable connections; the positioning adjustment device includes a distance adjustment mechanism, a lateral support plate, an oblique support plate, a vertical support plate, a flip bearing and a fixed lug plate; the vertical support plate is arranged in the middle of a pair of connecting lugs, U A pair of fixed lugs are arranged on both sides of one end of the horizontal support plate, the fixed lugs are sleeved on the top of the vertical support plate, and the overturn bearing passes through the pair of fixed lugs and the vertical support plate. The support plate, the nut locks the overturned bearing; the oblique support plate is arranged between the lower end face of the lateral support plate and the inner end face of the vertical support plate; the distance adjustment mechanism is sleeved on the lateral support plate; the utility model is simple to operate and easy to disassemble and assemble , to realize the turnover use of template fixtures.
Description
Technical Field
The utility model relates to a concrete placement technical field, especially a template anchor clamps for pouring column base.
Background
With the rapid development of national economy, the construction technology of building engineering is continuously developed, the quality level of the building engineering is improved, but in the current construction, different types of workers such as carpenters and pipe erectors are generally required to be matched with a template clamp, the existing bamboo-wood template (plywood) scheme uses wood (bamboo) plywood as a panel, uses wood squares or wood I-beams as reinforcing ribs and back, combines pull screws and step tightening as reinforcing parts, needs to be cut and assembled according to the field construction condition, needs to be reassembled for different sizes, one set of mold can only be suitable for one size and shape, and once the size error of the mold is too large, the unstable pouring position is easily caused.
The column base is the most important part in the foundation structure, the pouring quality of the column base is crucial, but the conventional wood formwork construction method is adopted, so that the foundation is unstable, potential safety hazards are brought, related quality defects such as missing edges and falling angles of the column base are caused, the bearing capacity is too small, and the accuracy of the column base is poor; secondly, building materials can be accumulated due to repeated assembly of the wood templates, so that excessive waste materials pollute the environment; and because the wooden templates need to be reassembled for box columns with different sizes, the construction process is slowed down, the construction cost is increased, and the like, a portable template clamp which can be used in a circulating manner is needed to improve the construction efficiency.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a template clamp for casting a column base, which solves the technical problems of how to realize the turnover use of the column base template clamp and meet the casting requirements of components with different sizes; the labor intensity in building construction is reduced, the requirement on the skill of workers is reduced, and the construction efficiency is improved; how to upgrade the building template from a building template to a standardized construction template clamp reduces the construction waste and is beneficial to environmental protection.
In order to achieve the purpose, the utility model provides a template clamp for pouring column base, which comprises a steel template frame, a positioning and adjusting device, a U-shaped clamp and a limiting mechanism; the steel template frame is movably connected with the positioning and adjusting device and the U-shaped clamp, and the limiting mechanism is movably connected with the positioning and adjusting device; the steel formwork frame comprises a first clamping plate, a second clamping plate, two pairs of connecting lug plates and a pair of corner stiffening ribs, wherein the first clamping plate and the second clamping plate are both L-shaped, the two end parts of the first clamping plate and the second clamping plate are both provided with the connecting lug plates, the connecting lug plates are vertically arranged, and the corner point positions of the outer end surfaces of the first clamping plate and the second clamping plate are both provided with the corner stiffening ribs with C-shaped cross sections; the positioning and adjusting devices are a pair and comprise distance adjusting mechanisms, transverse supporting plates, oblique supporting plates, vertical supporting plates, overturning bearings and fixing lug plates; the U-shaped clamps are a pair and respectively lock two pairs of adjacent connecting lug plates and vertical supporting plates, so that the first clamping plate and the second clamping plate are enclosed into a rectangular steel formwork frame; the transverse supporting plate is concave, a pair of fixed lug plates are vertically connected to two sides of one end, close to the vertical supporting plate, of the transverse supporting plate, the fixed lug plates are sleeved on the top of the vertical supporting plate, the overturning bearing penetrates through the pair of fixed lug plates and the vertical supporting plate, and the nut locks the overturning bearing; the inclined supporting plate is arranged between the lower end face of the transverse supporting plate and the inner end face of the vertical supporting plate; the distance adjusting mechanism is sleeved on the transverse supporting plate; the transverse supporting plate comprises a second positioning hole and a guide groove, and the second positioning hole is an internal threaded hole penetrating through the transverse supporting plate; the distance adjusting mechanism comprises a sliding block, a protrusion, an adjusting hole, a first positioning hole and a clamping chamfer, the protrusion is arranged on the back surface of the sliding block and matched with the guide groove of the transverse supporting plate, the adjusting hole and the first positioning hole penetrate through the sliding block, the adjusting hole and the first positioning hole correspond to each other and are the same in size, and the first positioning hole is an internal threaded hole; the number of the adjusting holes is at least 4, and the circle centers of the adjusting holes are collinear; one end of the sliding block, which is far away from the vertical supporting plate, is provided with a 90-degree clamping chamfer; the limiting mechanism comprises a positioning plug-in, a first spring, a second spring, a limiting plug-in and a rope retractor, wherein the positioning plug-in is sleeved with the first spring, one end of the first spring is connected with the positioning plug-in, the limiting plug-in is sleeved with the second spring, one end of the second spring is connected with the limiting plug-in, the rope retractor is circular, a rope is arranged in the rope retractor, and the first spring and the second spring are connected through the rope in the rope retractor; the positioning plug-in is in threaded connection with the first positioning hole of the sliding block, and the limiting plug-in sequentially penetrates through the adjusting hole and the second positioning hole and is in threaded connection with the second positioning hole.
Further, still include the gasket, the gasket sets up at otic placode inner wall.
Further, the gasket may be made of rubber.
Furthermore, a clamping bolt is further arranged on the U-shaped clamp and penetrates through two sides of the U-shaped clamp, wherein the two sides are symmetrically arranged.
Further, the device also comprises a push handle, and the push handle is welded on the upward surface of the distance adjusting mechanism.
Further, the first clamping plate and the second clamping plate are formed by welding steel plates.
Further, the spacing between the adjusting holes is designed according to the width and length difference of the box-type column, and the common box-type column has the dimensions of 500 × 500 × 16mm, 600 × 600 × 20mm, 700 × 700 × 22mm and 800 × 800 × 25 mm.
Furthermore, location plug-in components and spacing plug-in components all are the T shape, are formed by the perpendicular welding of horizontal pole and the screw rod of vertical setting.
Further, the chamfers of the first clamping plate and the second clamping plate are both 90 degrees.
Further, the width of the distance adjusting mechanism is 5mm larger than that of the transverse supporting plate.
The beneficial effects of the utility model are embodied in.
1, the utility model provides a pair of a template anchor clamps for pouring column base, spacing between steel form frame and the box post is adjusted in positioning adjustment device and stop gear's cooperation, and then makes template anchor clamps adjustable and can have enough to meet the need the use, has saved the input of manpower, material resources to a certain extent, saves construction cost, reduces building rubbish, is favorable to advantages such as environmental protection.
2, the utility model provides a pair of a template anchor clamps for pouring column base, steel form frame and positioning control device and U-shaped clamp, stop gear and positioning control device are swing joint the utility model discloses a need not weld the operation in the installation, make things convenient for the field assembly, adjust the position according to actual need, and then be convenient for the utility model discloses a turnover use, improve the utilization ratio of resource, practiced thrift manpower and material resources.
3, the utility model provides a pair of a template anchor clamps for pouring column base, the upset bearing of horizontal backup pad accessible among the positioning control device centers on the upset of vertical support board, makes things convenient for the position of the tight box post angle point of the chucking chamfer of slider among the size adjustment positioning control device of box post to make template anchor clamps more stable when pouring, the skew position of pouring not.
4, the utility model provides a pair of a template anchor clamps for pouring column base, the construction flow has been simplified in the equipment of on-the-spot instrument formula, reduces workman's on-the-spot operating time, and the time limit for a project reduces the labour cost that can reduce constructor, managers and mechanical equipment's working costs etc. and economic benefits and social are obvious.
5, the utility model provides a pair of a template anchor clamps for pouring column base has replaced current wooden template anchor clamps, has reduced constructor's operation flow, impels the process of green building, green construction.
Additional features and advantages of the invention will be set forth in the description which follows, and in part will be obvious from the description, or may be learned by the practice of the invention. The primary objects and other advantages of the invention may be realized and attained by the structure particularly pointed out in the written description.
Drawings
The present invention will be described in further detail with reference to the accompanying drawings.

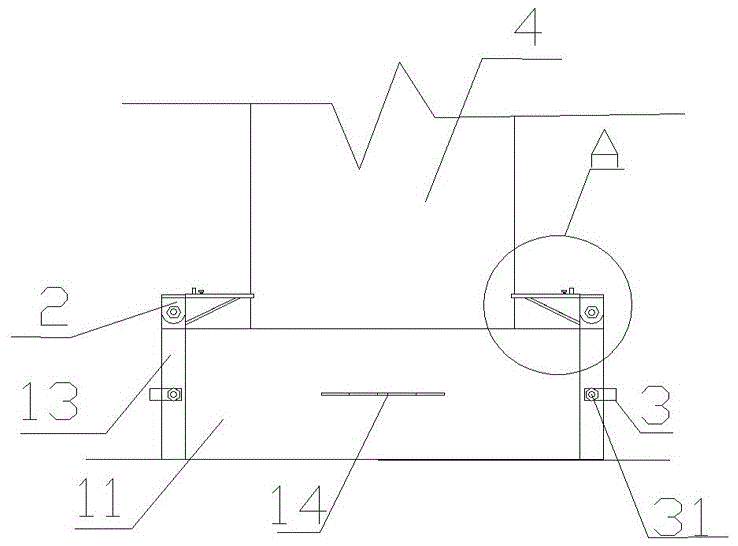

Fig. 1 is a front view schematically illustrating the present invention.
Fig. 2 is a schematic side view of the present invention.
Fig. 3 is a schematic top view of the present invention.
Fig. 4 is a partially enlarged schematic view at a in fig. 1.
Fig. 5 is a schematic front view of the positioning adjustment device of the present invention.
Fig. 6 is a schematic front view of the distance adjusting mechanism of the present invention.
Fig. 7 is a partially enlarged schematic view at B in fig. 6.
Fig. 8 is a front view schematically illustrating a lateral support plate according to the present invention.
Reference numerals: 1-steel template frame, 11-first clamping plate, 12-second clamping plate, 13-connecting lug plate, 14-corner stiffening rib, 2-positioning adjusting device, 21-distance adjusting mechanism, 211-sliding block, 212-protrusion, 213-pushing handle, 214-adjusting hole, 215-positioning hole I, 216-clamping chamfer, 22-transverse supporting plate, 221-positioning hole II, 222-guide groove, 23-oblique supporting plate, 24-vertical supporting plate, 25-overturning bearing, 26-fixing lug plate, 3-U-shaped clamp, 31-clamping bolt, 4-box column, 5-gasket, 6-limiting mechanism, 61-positioning plug-in, 62-first spring, 63-second spring, 64-limiting plug-in, 65-rope shrinker, 651-rope, 7-concrete.
Detailed Description
The technical solutions of the present invention are described in detail below by way of examples, which are only exemplary and can be used only for explaining and explaining the technical solutions of the present invention, but not for explaining the limitations of the technical solutions of the present invention.
As shown in fig. 1 to 8, the utility model provides a template clamp for casting a column base, which comprises a steel template frame 1, a positioning and adjusting device 2, a U-shaped clamp 3 and a limiting mechanism 6; steel form frame 1 and positioning control device 2 and U-shaped clamp 3, stop gear 6 is swing joint with positioning control device 2 the utility model discloses a need not carry out welding operation in the installation, make things convenient for the field assembly, adjust the position according to actual need, and then be convenient for the utility model discloses a turnover is used, improves the utilization ratio of resource.
The steel formwork frame 1 comprises a first clamping plate 11, a second clamping plate 12, two pairs of connecting lug plates 13 and a pair of corner stiffening ribs 14, wherein the first clamping plate 11 and the second clamping plate 12 are both L-shaped, and the first clamping plate 11 and the second clamping plate 12 are both formed by welding steel plates; the chamfers of the first clamping plate 11 and the second clamping plate 12 are both 90 degrees; two tip of first grip block 11 and second grip block 12 all are provided with and connect otic placode 13, connect the vertical setting of otic placode 13, the angular point position of the outer terminal surface of first grip block 11 and second grip block 12 all is provided with transversal bight stiffening rib 14 of personally submitting C shape, can carry the stability and the antitorque performance of steel template frame 1.
As shown in fig. 4 to 8, the positioning adjustment devices 2 are a pair, and include a distance adjustment mechanism 21, a horizontal support plate 22, an oblique support plate 23, a vertical support plate 24, a turning bearing 25, a pushing handle 213 and a fixing ear plate 26; the vertical support plate 24 is arranged between the pair of connecting lug plates 13, the U-shaped clamp is a pair and respectively locks the two pairs of adjacent connecting lug plates 13 and the vertical support plate 24, the U-shaped clamp is also provided with a clamping bolt 31, and the clamping bolt 31 is a hexagon bolt of M20; the clamping bolt 31 penetrates through two symmetrically arranged sides of the U-shaped clamp, and the clamping bolt 31 is locked through a nut, so that the first clamping plate 11 and the second clamping plate 12 are enclosed into a rectangular steel formwork frame 1; preferably, the ear plate further comprises a gasket 5, the gasket 5 is arranged on the inner wall of the ear plate, the gasket 5 is fixed on the inner wall of the ear plate by adhesion or screws, the gasket 5 can be made of elastic materials such as rubber, and the thickness of the gasket 5 is 3 mm.
The transverse supporting plate 22 is concave, a pair of fixing lug plates 26 are vertically connected to two sides of one end, close to the vertical supporting plate 24, of the transverse supporting plate, the fixing lug plates 26 are 6mm thick steel plates, the fixing lug plates 26 are sleeved on the top of the vertical supporting plate 24, the overturning bearing 25 penetrates through the pair of fixing lug plates 26 and the vertical supporting plate 24, and the overturning bearing 25 is locked by nuts; the transverse supporting plate 22 in the positioning and adjusting device 2 can turn around the vertical supporting plate 24 through the turning bearing 25, so that a constructor can conveniently adjust the position, close to the corner point of the box column 4, of the clamping chamfer 216 of the sliding block 211 in the positioning and adjusting device 2 according to the size of the box column 4, and a template clamp is more stable during pouring and does not deviate from a pouring position; the push handle 213 is welded on the upward surface of the distance adjusting mechanism 21; the inclined support plate 23 is arranged between the lower end face of the transverse support plate 22 and the inner end face of the vertical support plate 24; the distance adjusting mechanism 21 is sleeved on the transverse supporting plate 22; the transverse support plate 22 comprises a second positioning hole 221 and a guide groove 222, and the second positioning hole 221 is an internal threaded hole penetrating through the transverse support plate 22.
The distance adjusting mechanism 21 comprises a sliding block 211, a protrusion 212, an adjusting hole 214, a first positioning hole 215 and a clamping chamfer 216, the protrusion 212 is arranged on the back surface of the sliding block 211, the protrusion 212 is matched with a guide groove 222 of the transverse support plate 22, and the width of the distance adjusting mechanism 21 is 3mm larger than that of the transverse support plate 22, so that the protrusion 212 in the sliding block 211 can slide smoothly in the guide groove 222; the adjusting holes 214 and the first positioning holes 215 penetrate through the sliding block 211, the number of the adjusting holes 214 is 4, the circle centers of the adjusting holes 214 are collinear, the distance between the adjusting holes 214 is designed according to the width and length difference of the box-type column 4, and the size of the commonly used box-type column 4 is 500 multiplied by 16mm, 600 multiplied by 20mm, 700 multiplied by 22mm and 800 multiplied by 25 mm; the adjusting hole 214 corresponds to the second positioning hole 221, and has the same size, and the first positioning hole 215 is an internal threaded hole; one end of the sliding block 211, which is far away from the vertical supporting plate 24, is provided with a 90-degree clamping chamfer 216.
The limiting mechanism 6 comprises a positioning plug-in 61, a first spring 62, a second spring 63, a limiting plug-in 64 and a rope 651 retractor 65, wherein the positioning plug-in 61 is sleeved with the first spring 62, one end of the first spring 62 is connected with the positioning plug-in 61, the limiting plug-in 64 is sleeved with the second spring 63, one end of the second spring 63 is connected with the limiting plug-in 64, the rope 651 retractor 65 is circular, a rope 651 is arranged in the rope 651, and the first spring 62 and the second spring 63 are connected through the rope 651 in the rope 651 retractor 65; the positioning plug-in unit 61 and the limiting plug-in unit 64 are both T-shaped and are formed by vertically welding a transverse rod and a vertically arranged screw rod; the positioning insert 61 is in threaded connection with the first positioning hole 215 of the slider 211, and the limiting insert 64 sequentially passes through the adjusting hole 214 and the second positioning hole 221 and is in threaded connection with the second positioning hole 221.
Spacing between steel form frame 1 and box post 4 is adjusted in the cooperation of positioning adjustment device 2 and stop gear 6, and then makes the adjustable and turnover use of template anchor clamps, has saved the input of manpower, material resources to a certain extent, saves construction cost, reduces building rubbish, is favorable to advantages such as environmental protection.
The utility model realizes the on-site tool type assembly of the template clamp, simplifies the construction process, reduces the on-site operation time of workers, reduces the labor cost of constructors and managers, the operation cost of mechanical equipment and the like during the construction period, and has obvious economic and social benefits; the existing wood formwork clamp is replaced, the duration time of the working procedure is shortened, and the operation flow of constructors is reduced.
Furthermore, the utility model also provides a use method for pouring the template anchor clamps of column base, the step is as follows.
The method comprises the following steps: placing the steel formwork frame 1 according to the site construction requirement; a first clamping plate 11 and a second clamping plate 12 are placed outside the box column 4.
Step two: the steel template frame 1 and the vertical supporting plate 24 are fixed outside the box-type column 4, and the U-shaped clamp 3 is used for locking a pair of connecting lug plates 13 and the vertical supporting plate 24, which are adjacent to the end parts of the first clamping plate 11 and the second clamping plate 12.
Step three: installing a positioning adjusting device 2; the transverse support plate 22 and the oblique support plate 23 are installed, the transverse support plate 22 is fixed by the turnover shaft, the turnover shaft is locked by the nut, and the protrusion 212 on the sliding block 211 of the distance adjusting mechanism 21 is clamped in the guide groove 222 of the transverse support plate 22.
Step four: adjusting the position of the distance adjusting mechanism 21; and adjusting the distance between the position of the clamping chamfer 216 of the distance adjusting mechanism 21 and the angular point of the box column 4 until the clamping chamfer 216 of the distance adjusting mechanism 21 is tightly attached to the angular point of the box column 4.
Step five: fixing and positioning the adjusting device 2; the positioning adjusting device 2 with the adjusted position is fixed through a limiting mechanism 6; and locking the positioning plug-in 61, adjusting the distance between the positioning plug-in 61 and the limiting plug-in 64 by using a rope 651 in the retractor 65, and enabling the limiting plug-in 64 to pass through the adjusting hole 214 and be in threaded connection with the second positioning hole 221 so as to lock the limiting plug-in 64.
Step six: pouring concrete 7; concrete 7 is poured between the steel formwork frame 1 and the box type column 4.
Step seven: and after the concrete 7 is initially set, removing the adjustable template clamp for pouring the column base of the box column 4.
And furthermore, after the adjustable template clamp for pouring the 4 column feet of the box column is dismantled, the box column is continuously circulated for use.
Therefore, compared with the prior art, the steel formwork fixture has the advantages that the wood formwork is changed into the steel formwork fixture, the assembling and disassembling time of the formwork is simplified, the sizes of the sliding blocks 211 and the column bases are freely adjusted by the positioning adjusting devices 2, and the column bases poured by the whole formwork meet the using requirements. The forming quality and the construction efficiency of the concrete 7 column base are ensured, the construction time of the template of each column base is reduced to 5 minutes per column base from 20 minutes per column base constructed in a common wood template mode, the working hours are effectively reduced, and the construction cost is greatly reduced.
The utility model discloses a 4 column base steel form clamps of box post simple structure, to the box post 4 of various specifications, strong adaptability. The method is used for manufacturing the concrete 7 column base, the construction efficiency is high, and the manufactured column base is good in quality and not easy to damage. The whole die is convenient to disassemble and assemble; meanwhile, the whole steel formwork fixture is used for promoting the progress of green building and green construction.
The above description is only for the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any changes or substitutions that can be considered by those skilled in the art within the technical scope of the present invention should be covered by the protection scope of the present invention.
