CN214144350U

CN214144350U - A kind of mineral wool board ceiling structure system

Info

Publication number: CN214144350U
Application number: CN202023239845.6U
Authority: CN
Inventors: 王汉民; 钱永生; 姚德弟
Original assignee: Shanghai Dujiang Construction Engineering Co ltd
Current assignee: Shanghai Dujiang Construction Engineering Co ltd
Priority date: 2020-12-29
Filing date: 2020-12-29
Publication date: 2021-09-07
Anticipated expiration: 2030-12-29

Abstract

The utility model belongs to the technical field of suspended ceilings, in particular to a mineral wool board suspended ceiling structure system, which comprises: a hanging rod pendant, a main keel, a pipe clip, a water and electricity pipeline, a secondary keel, a clip, a panel and a clip edge. The bottom of the pendant is connected to the main keel, the top of the main keel is provided with a pipe clip, the water and electricity pipelines are arranged in the pipe clip, the bottom of the main keel is provided with a plurality of secondary keels, and the bottom of the main keel is provided with a plurality of clips matched with the secondary keels The bottom of the secondary keel is equipped with a panel, and a card edge matched with the clip is arranged between the panels. The clip and the card edge are used to limit the panel, which can improve the installation stability of the ceiling, prevent the panel from falling off, and improve the safety. Effective, easy to install, improve construction efficiency, shorten the construction period.

Description

Mineral wool board ceiling construction system

Technical Field

The utility model relates to a furred ceiling technical field specifically is a mineral wool board furred ceiling structural system.

Background

The suspended ceiling is a decoration for decorating the top of the residential environment of a house. In short, it refers to the decoration of ceiling, which is one of the important parts of interior decoration.

The suspended ceiling has the functions of heat preservation, heat insulation, sound insulation and sound absorption, and is also a hidden layer for projects such as electric, ventilation air-conditioning, communication and fire prevention, alarm pipeline equipment and the like.

Home decoration suspended ceilings are a common link in home decoration. The suspended ceiling is classified differently according to the material of the decorative plate. The ceiling decoration material is the main basis of distinguishing the ceiling name, and mainly has: light steel keel gypsum board suspended ceiling, mineral wool board suspended ceiling, splint suspended ceiling, special-shaped long aluminum pinch plate suspended ceiling, square paint-coated aluminum pinch plate suspended ceiling, painted glass suspended ceiling, aluminum honeycomb perforated acoustic panel suspended ceiling, full-house duplex suspended ceiling and the like. The decorative board takes a very important position in the whole decoration of a room, and the top surface of the room is properly decorated, so that the indoor environment can be beautified, and a colorful indoor space artistic image can be created. When the ceiling decoration material and the design scheme are selected, the principle of material saving, firmness, safety, beauty and practicability is followed.

The existing suspended ceiling structure system is poor in stability, a panel is easily caused to fall off to injure a user by crashing, the installation is inconvenient, and the construction period is long.

SUMMERY OF THE UTILITY MODEL

This section is for the purpose of summarizing some aspects of embodiments of the invention and to briefly introduce some preferred embodiments. Some simplifications or omissions may be made in this section and in the abstract of the specification and the title of the application to avoid obscuring the purpose of this section, the abstract of the specification and the title of the application, and such simplifications or omissions are not intended to limit the scope of the invention.

The present invention has been made in view of the above and/or other problems associated with existing ceiling construction systems.

Therefore, the utility model aims at providing a mineral wool board furred ceiling construction system can improve furred ceiling installation stability, avoids the panel to drop, improves safe effect, and easy to assemble improves the efficiency of construction, shortens construction cycle.

For solving the technical problem, according to the utility model discloses an aspect, the utility model provides a following technical scheme:

a mineral wool panel ceiling construction system comprising: jib pendant, main joist, pipe clamp, water and electricity pipeline, secondary joist, clamping, panel and card limit, the main joist is connected to jib pendant bottom, the main joist top sets up the pipe clamp, set up the water and electricity pipeline in the pipe clamp, the main joist bottom sets up a plurality of secondary joist, the main joist bottom sets up a plurality of clamping that set up with the secondary joist cooperation, the secondary joist bottom all sets up the panel, set up between the panel with clamping complex card limit.

As a preferred aspect of the mineral wool board ceiling construction system of the present invention, wherein: the pipe clamp is locked at the top of the main keel through a screw, and a cushion pad is arranged on the inner wall of the pipe clamp.

As a preferred aspect of the mineral wool board ceiling construction system of the present invention, wherein: the suspender pendant is evenly distributed on the top of the main keel, and the secondary keels are evenly distributed on the bottom of the main keel.

As a preferred aspect of the mineral wool board ceiling construction system of the present invention, wherein: and the contact position of the clamping edge and the panel is provided with an anti-slip pad.

Compared with the prior art: the utility model discloses utilize clamping and card limit to carry on spacingly to the panel, can improve furred ceiling installation stability, avoid the panel to drop, improve safe effect, easy to assemble improves the efficiency of construction, shortens construction cycle.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the present invention will be described in detail with reference to the accompanying drawings and detailed embodiments, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor. Wherein:

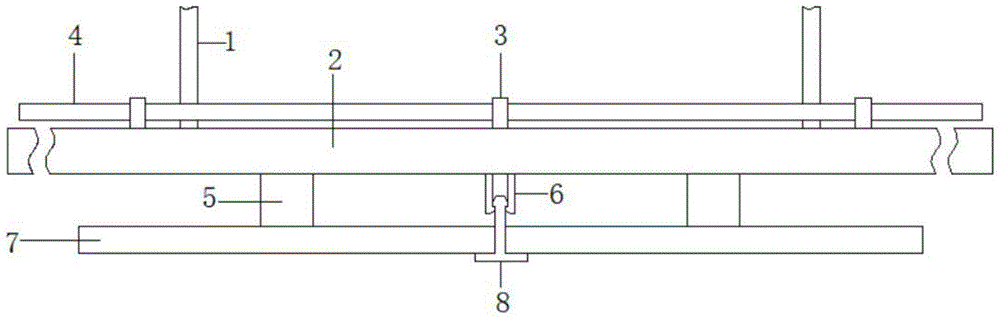

FIG. 1 is a schematic view of the hoisting structure of the utility model;

fig. 2 is a schematic view of the connection structure of the clamping clip and the clamping edge of the present invention.

In the figure: 1 suspender pendant, 2 main joist, 3 pipe clamps, 4 water and electricity pipelines, 5 secondary joist, 6 clamping, 7 panels, 8 card limits.

Detailed Description

In order to make the above objects, features and advantages of the present invention more comprehensible, embodiments of the present invention are described in detail below with reference to the accompanying drawings.

In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, but the present invention may be implemented in other ways than those specifically described herein, and one skilled in the art may similarly generalize the present invention without departing from the spirit of the present invention, and therefore the present invention is not limited to the specific embodiments disclosed below.

Next, the present invention will be described in detail with reference to the schematic drawings, and in the detailed description of the embodiments of the present invention, for convenience of explanation, the sectional view showing the device structure will not be enlarged partially according to the general scale, and the schematic drawings are only examples, and should not limit the scope of the present invention. In addition, the three-dimensional dimensions of length, width and depth should be included in the actual fabrication.

In order to make the objects, technical solutions and advantages of the present invention clearer, embodiments of the present invention will be described in further detail below with reference to the accompanying drawings.

The utility model provides a mineral wool board furred ceiling tectonic system can improve furred ceiling installation stability, avoids the panel to drop, improves the safety effect, and is easy to assemble, improves the efficiency of construction, shortens construction cycle, please refer to figure 1 and figure 2, include: the hanging device comprises a hanger rod hanging piece 1, a main keel 2, a pipe clamp 3, a water and electricity pipeline 4, a secondary keel 5, a clamp 6, a panel 7 and a clamping edge 8;

wherein, main joist 2 is connected to 1 bottom of jib pendant, and 2 tops of main joist set up pipe clamp 3, set up water and electricity pipeline 4 in the pipe clamp 3, and 2 bottoms of main joist set up secondary joist 5, and 2 bottoms of main joist set up a plurality of clamping 6 that set up with the cooperation of

secondary joist

5, and 5 bottoms of secondary joist all set up panel 7, set up between the panel 7 with 6 complex card limit 8 of clamping.

The system flow comprises the following steps: the method comprises the steps of marking a high-elasticity horizontal line on a ceiling → dividing a keel grading line → installing a water and electricity pipeline → installing a main keel → installing a secondary keel → installing a lighting panel → installing a pressing strip.

Specifically, the method comprises the following steps:

(1) elastic thread

A leveling instrument is used for making horizontal points on each wall (column) corner in a room (if the wall body is longer, a plurality of points are properly made in the middle), a leveling line (the leveling line is generally 500mm according to the ground), 12mm (the thickness of a white bone plate) is added from the leveling line to the designed height of the suspended ceiling, and a chalk line is used for popping the leveling line along the wall (column), namely the lower leather line of the suspended ceiling secondary keel.

(2) Fixed suspender hanging part 1

The suspender hanger 1 is fixed by adopting an expansion bolt. The length of the suspender is less than 1000mm but not on the suspended ceiling of people, a suspender with the diameter of 6 can be adopted, and if the length of the suspender is more than 1000mm, a suspender with the diameter of 8 should be adopted. If it is more than 1500mm, a reverse support should be provided.

(3) A hanging rod hanger 1 is arranged on the beam

1) The boom pendant 1 should be straight and have sufficient load bearing capacity. When the pre-embedded rod pieces need to be lengthened, the pre-embedded rod pieces need to be lap-welded firmly, and welding seams need to be uniform and full.

2) The distance between the suspender and the end part of the main keel is not more than 300mm, otherwise, the suspender is added.

3) Additional suspension rods should be arranged at the ceiling lamp, the air opening, the access hole and the like.

(4) Mounting main keel 2

1) The main keel 2 should be hung on the hanger rod. The distance between the main keels is 900-1200 mm.

2) A suspended ceiling with the span larger than 15m is provided with a large keel every 15m on the main keel 2, and the suspended ceiling is firmly welded perpendicular to the main keel.

3) If a large modeling ceiling exists, the modeling part is welded into a frame by using angle steel or flat steel and is firmly connected with a floor slab.

(5) Mounting the secondary joist 5

The secondary keel 5 is divided into a clear keel and a hidden keel. Hidden keel ceiling: namely, the secondary joist 5 is closed in the shed when the cover panel is installed, and the secondary joist 5 is not visible on the ceiling surface. And (3) hanging the exposed keel: the secondary keel is exposed under the cover panel when the cover panel is installed, the secondary keel 5 can be seen on the surface of a ceiling, and a specific installation mode is selected according to user requirements.

(6) Mounting of the panel 7

The common plates of the ceiling panel 7 include a sound absorption mineral wool plate, a calcium silicate plate, a plastic plate, a grid, various pinch plates and the like

1) Installation of mineral wool decorative acoustic board

The specification is generally divided into three types of specifications of 300mm multiplied by 600mm, 600mm multiplied by 600mm and 600mm multiplied by 1200 mm; 300mm 600 mm's is used for the hidden keel furred ceiling of inserting, inserts the panel on the secondary keel. 600mm and 600mm L200mm are typically used for open-mount studs, with the panels resting directly on the studs.

2) Installation of calcium silicate board and plastic board

The specification is generally 600mmX600mm, generally used for surface-mounted keel, and the panel is directly placed on the keel.

3) Grid mounting

The specification is generally 100mm × l00 mm; 150mm × l50 mm; 200mm, etc., and the veneer board is generally clamped on the keel by using a clamp.

While the invention has been described above with reference to an embodiment, various modifications may be made and equivalents may be substituted for elements thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features of the disclosed embodiments of the present invention can be used in any combination with each other, and the non-exhaustive description of these combinations in this specification is merely for the sake of brevity and resource conservation. Therefore, it is intended that the invention not be limited to the particular embodiments disclosed, but that the invention will include all embodiments falling within the scope of the appended claims.

Claims

1. A mineral wool board ceiling structure system, characterized in that, comprising: a boom pendant (1), a main keel (2), a pipe clip (3), a water and electricity pipeline (4), a secondary keel (5), a clip (6), the panel (7) and the clamping edge (8), the bottom of the boom hanger (1) is connected to the main keel (2), the top of the main keel (2) is provided with a pipe clip (3), the pipe clip (3) Water and electricity pipelines (4) are arranged inside, a plurality of secondary keels (5) are arranged at the bottom of the main keel (2), and a plurality of clips matched with the secondary keels (5) are arranged at the bottom of the main keel (2). (6), a panel (7) is arranged at the bottom of the secondary keel (5), and a clamping edge (8) matched with the clamp (6) is arranged between the panels (7).

2. A mineral wool board ceiling structure system according to claim 1, characterized in that, the pipe clamp (3) is locked on the top of the main keel (2) by screws, and the inner wall of the pipe clamp (3) is provided with Cushion.

3. A mineral wool board ceiling structure system according to claim 1, characterized in that, the hanging rod pendant (1) is evenly distributed on the top of the main keel (2), and the secondary keel (5) is on the main keel (2) The bottom is evenly distributed.

4. A mineral wool board ceiling structure system according to claim 1, characterized in that a non-slip pad is provided at the contact position of the card edge (8) and the panel (7).
