Abstract
本实用新型提供了一种光学柱面镜的光学定心磨边装置，属于光学镜片生产技术领域。该光学柱面镜的光学定心磨边装置包括打磨机构和定位机构。所述打磨机构包括支座、支撑组件、移动组件、第一液压缸、挡板、第一电机和磨盘，所述支撑组件连接于所述支座一侧，所述移动组件、所述第一液压缸和所述第一电机安装于所述支撑组件一侧。本实用新型通过模具、第二液压缸、第一液压缸、挡板、第二电机、螺纹杆、滑板、支杆、第二托板、箭头、刻度条、第三液压缸、真空吸盘和真空泵的作用，从而达到了便于对光学镜片进行定心的目的，光学镜片在磨边过程中便于对准圆心，在进行打磨的过程中不易出现磨偏的现象，提高光学镜片的质量。
The utility model provides an optical centering and edging device for an optical cylindrical mirror, which belongs to the technical field of optical lens production. The optical centering and edging device of the optical cylindrical mirror includes a grinding mechanism and a positioning mechanism. The grinding mechanism includes a support, a support assembly, a moving assembly, a first hydraulic cylinder, a baffle plate, a first motor and a grinding disc, the support assembly is connected to one side of the support, the moving assembly, the first A hydraulic cylinder and the first motor are mounted on one side of the support assembly. The utility model adopts a mold, a second hydraulic cylinder, a first hydraulic cylinder, a baffle plate, a second motor, a threaded rod, a slide plate, a support rod, a second support plate, an arrow, a scale bar, a third hydraulic cylinder, a vacuum suction cup and a vacuum pump Therefore, the purpose of facilitating the centering of the optical lens is achieved. The optical lens is easy to align with the center of the circle during the edging process, and the phenomenon of grinding deviation is not easy to occur during the grinding process, and the quality of the optical lens is improved.
Description
Technical Field
The utility model relates to an optical lens piece production field particularly, relates to an optics centering edging device of optics cylindrical mirror.
Background
The optical glass can change the propagation direction of light and change the relative spectral distribution of ultraviolet, visible light or infrared light, and when the optical glass is processed into a wafer-shaped or cylindrical lens, the edge grinding treatment needs to be carried out through an optical centering edge grinding device, while the existing optical centering edge grinding device is not convenient for centering the optical lens, if the center of a circle is not aligned in the edge grinding process of the optical lens, the edge grinding is not uniform when the edge grinding is carried out, and particularly when the round optical lens is ground, the phenomenon of grinding deviation can occur in the grinding process, so that the quality of the optical lens is influenced.
Accordingly, one skilled in the art provides an optical centering edge grinding device for an optical cylindrical lens to solve the above problems in the background art.
SUMMERY OF THE UTILITY MODEL
In order to compensate the above deficiency, the utility model provides an optics centering edging device of optics cylindrical mirror aims at improving the problem that is not convenient for carry out the centering to optical lens.
The utility model discloses a realize like this:
the utility model provides an optics centering edging device of optical cylindrical mirror, including grinding machanism and positioning mechanism.
The grinding mechanism comprises a support, a support component, a moving component, a first hydraulic cylinder, a baffle, a first motor and a grinding disc, the support component is connected to one side of the support, the moving component, the first hydraulic cylinder and the first motor are installed on one side of the support component, the grinding disc is connected to an output shaft of the first motor, the baffle is installed on an output shaft of the first hydraulic cylinder, the positioning mechanism comprises a second motor, a threaded rod, a clamping component, a supporting rod, a second supporting plate and an arrow head, the second motor is connected to one side of the support component, the threaded rod is installed on an output shaft of the second motor, the threaded rod penetrates through the clamping component in a threaded manner, the supporting rod is connected to one side of the clamping component, the second supporting plate is installed at one end of the supporting rod, and the arrow head is connected to one side of the second supporting plate, the arrow is attached to one side of the supporting component.
The utility model discloses an in the embodiment of an optical centering edging device of optical cylindrical mirror, the supporting component includes first backup pad, second backup pad, first layer board and scale bar, first backup pad with the second backup pad all connect in support one side, first layer board install in first backup pad with second backup pad one end, first pneumatic cylinder with first motor connect in second backup pad one side, the scale bar install in first layer board one side, the arrow point with the scale bar is laminated mutually.
In the embodiment of the present invention, the first supporting plate has an inner surface formed with a limiting hole, and the supporting rod is slidably inserted into the limiting hole.
The utility model discloses an in the embodiment of an optical centering edging device of optical cylindrical mirror, the removal subassembly includes second pneumatic cylinder, mould and first slide rail, the second pneumatic cylinder install in first backup pad one side, the mould connect in the output shaft of second pneumatic cylinder, first slide rail install in mould one side, the recess has been seted up to mould one side, the recess is laminated with the optical cylindrical mirror mutually.
The utility model discloses an in the embodiment of an optics centering edging device of optics cylindrical mirror, the spout has been seted up to support one side, first slide rail is the arc structure, first slide rail sliding connection in the spout.
The utility model discloses an in the embodiment of an optical centering edging device of optical cylindrical mirror, the centre gripping subassembly includes slide, third pneumatic cylinder, vacuum chuck, vacuum pump and vacuum tube, the second motor install in second backup pad one side, the threaded rod rotate connect in first backup pad one side, slide internal surface set up threaded hole, the threaded rod screw thread run through in the screw hole, branch install in slide one side, the third pneumatic cylinder connect in the slide opposite side, vacuum chuck install in the output shaft of third pneumatic cylinder, vacuum pump connect in first backup pad one side, the input of vacuum pump passes through the vacuum tube with the vacuum chuck intercommunication, the vacuum tube is flexible pipe.
In an embodiment of the present invention, the second through hole is opened on the inner surface of the second supporting plate, and the threaded rod can rotate in the second through hole.
The utility model discloses an in the embodiment of an optical centering edging device of optical cylindrical mirror, still include dust removal mechanism, dust removal mechanism includes connecting rod, tray, conveying pipe, dust collection box, filter screen and fan, the connecting rod connect in second backup pad one side, the tray install in connecting rod one end, dust collection box connect in second backup pad opposite side, the filter screen install in dust collection box inner wall, the dust collecting opening has been seted up to tray one side, the dust collecting opening passes through the conveying pipe with dust collection box intercommunication, the fan connect in support one side, the air inlet end of fan with dust collection box intercommunication, the dust collecting opening is located the mill below.
The utility model discloses an in the embodiment of an optics centering edging device of optics cylindrical mirror, the dirt mouth has been seted up to dust collection box one side, it has the striker plate to peg graft to go out dirt mouth internal surface, first through-hole has been seted up to second backup pad internal surface, first through-hole with conveying pipe clearance fit.
The utility model discloses an in the embodiment of an optics centering edging device of optics cylindrical mirror, grinding machanism still includes the supporting leg, the supporting leg connect in support one side, the supporting leg sets up to three at least.
The utility model has the advantages that: the utility model discloses an optical centering edging device of optical cylindrical mirror that obtains through above-mentioned design, when using, people put the optical lens piece in the recess on the mould at first, then according to the size of optical lens piece, control second pneumatic cylinder and first pneumatic cylinder flexible, first pneumatic cylinder can drive the baffle and move about, second pneumatic cylinder can drive the mould and move about, make the right side of mould and the left side contact of baffle, then open the second motor, the second motor can drive the threaded rod and rotate, the threaded rod can drive the slide through the screw hole and move about, the slide can drive the arrow head through branch and second layer board and move about, through the number indicating of arrow head directional scale bar, thereby judge the centre of a circle of optical lens piece, make the third pneumatic cylinder move directly over the optical lens piece centre of a circle, the third pneumatic cylinder can control vacuum chuck and move down simultaneously, make vacuum chuck and optical lens piece contact, the vacuum pump is started, the vacuum pump enables the vacuum chuck to generate suction through the vacuum tube, the vacuum chuck is enabled to suck the optical lens, the optical lens is clamped, the circle center of the vacuum chuck coincides with the circle center of the optical lens at the moment, the circle center of the optical lens is aligned, the vacuum chuck clamps the optical lens, the vacuum chuck is driven to move upwards through the third hydraulic cylinder, the vacuum chuck is driven to move rightwards through the second motor and the threaded rod, the optical lens is attached to the grinding disc, the optical lens is subjected to edge grinding, the purpose of centering the optical lens is achieved, the circle center of the optical lens is convenient to align in the edge grinding process, the phenomenon of deviation grinding is not prone to occurring in the grinding process, and the quality of the optical lens is improved.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

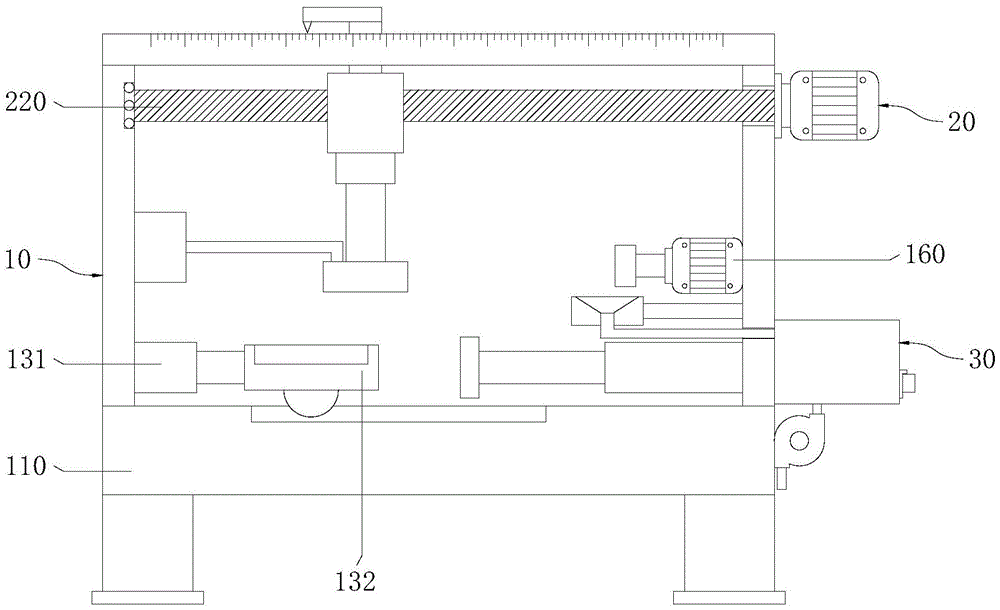

Fig. 1 is a schematic structural diagram of an optical centering edge grinding device of an optical cylindrical mirror according to an embodiment of the present invention;
fig. 2 is a schematic structural view of a polishing mechanism provided in an embodiment of the present invention;
fig. 3 is a schematic view of a first perspective structure of a support assembly according to an embodiment of the present invention;
fig. 4 is a schematic structural view of a second viewing angle of the supporting assembly according to the embodiment of the present invention;
fig. 5 is a schematic structural diagram of a moving assembly according to an embodiment of the present invention;
fig. 6 is a schematic structural view of a positioning mechanism according to an embodiment of the present invention;
fig. 7 is a schematic structural view of a clamping assembly according to an embodiment of the present invention;
fig. 8 is a schematic structural view of a dust removing mechanism provided in the embodiment of the present invention.
In the figure: 10. a polishing mechanism; 110. a support; 120. a support assembly; 121. a first support plate; 122. a second support plate; 123. a first pallet; 124. a scale bar; 125. a first through hole; 126. a second through hole; 127. a limiting hole; 130. a moving assembly; 131. a second hydraulic cylinder; 132. a mold; 133. a first slide rail; 134. a groove; 140. a first hydraulic cylinder; 150. a baffle plate; 160. a first motor; 170. a grinding disc; 180. supporting legs; 190. a chute; 20. a positioning mechanism; 210. a second motor; 220. a threaded rod; 230. a clamping assembly; 231. a slide plate; 232. a third hydraulic cylinder; 233. a vacuum chuck; 234. a vacuum pump; 235. a vacuum tube; 236. a threaded hole; 240. a strut; 250. a second pallet; 260. an arrow; 30. a dust removal mechanism; 310. a connecting rod; 320. a tray; 330. a transport pipe; 340. a dust collection box; 350. a filter screen; 360. a fan; 370. a dust outlet; 380. a dust collecting port.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In the present disclosure, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact between the first and second features, or may comprise contact between the first and second features not directly. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
Examples
Referring to fig. 1, the present invention provides an optical centering edge grinding device for an optical cylindrical mirror, which includes a polishing mechanism 10, a positioning mechanism 20 and a dust removing mechanism 30.
Wherein, the grinding mechanism 10, the positioning mechanism 20 and the dust removal mechanism 30 are respectively arranged on the grinding mechanism 10, the positioning mechanism 20 and the dust removal mechanism 30.
Referring to fig. 1 and 2, the polishing mechanism 10 includes a support 110, a support assembly 120, a moving assembly 130, a first hydraulic cylinder 140, a baffle 150, a first motor 160 and a grinding disc 170, the support assembly 120 is connected to one side of the support 110, the moving assembly 130, the first hydraulic cylinder 140 and the first motor 160 are installed at one side of the support assembly 120, specifically, the first hydraulic cylinder 140 and the first motor 160 are fixedly installed at one side of the support assembly 120 through screws, the grinding disc 170 is connected to an output shaft of the first motor 160, specifically, the grinding disc 170 is fixedly connected to an output shaft of the first motor 160 through welding, the baffle 150 is installed at an output shaft of the first hydraulic cylinder 140, specifically, the baffle 150 is fixedly installed at an output shaft of the first hydraulic cylinder 140 through welding, the first hydraulic cylinder 140 is used for driving the baffle 150 to move left and right, so as to adjust a position of a center of a circle of an optical lens, the first motor 160 is used for driving the grinding disc 170 to rotate, the grinding disc 170 grinds the optical lens.
In some embodiments, the grinding mechanism 10 further includes support legs 180, the support legs 180 are connected to one side of the support 110, specifically, the support legs 180 are fixedly connected to one side of the support 110 by welding, and at least three support legs 180 are provided.
Referring to fig. 2, 3, 4 and 5, the supporting assembly 120 includes a first supporting plate 121, a second supporting plate 122, a first supporting plate 123 and a scale bar 124, the first supporting plate 121 and the second supporting plate 122 are both connected to one side of the support 110, specifically, the first supporting plate 121 and the second supporting plate 122 are both connected to one side of the support 110 by welding, the first supporting plate 123 is installed at one end of the first supporting plate 121 and one end of the second supporting plate 122, specifically, the first supporting plate 123 is installed at one end of the first supporting plate 121 and one end of the second supporting plate 122 by welding, the first hydraulic cylinder 140 and the first motor 160 are connected to one side of the second supporting plate 122, specifically, the first hydraulic cylinder 140 and the first motor 160 are fixedly connected to one side of the second supporting plate 122 by screws, the scale bar 124 is installed at one side of the first supporting plate 123, an arrow 260 is attached to the scale bar 124, a limiting hole 127 is formed on an inner surface of the first supporting plate 123, the rod 240 slidably penetrates the limiting hole 127.
In some specific embodiments, the moving assembly 130 includes a second hydraulic cylinder 131, a mold 132 and a first sliding rail 133, the second hydraulic cylinder 131 is installed on one side of the first supporting plate 121, specifically, the second hydraulic cylinder 131 is installed on one side of the first supporting plate 121 by a screw, the mold 132 is connected to an output shaft of the second hydraulic cylinder 131, specifically, the mold 132 is connected to an output shaft of the second hydraulic cylinder 131 by a welding, the first sliding rail 133 is installed on one side of the mold 132, specifically, the first sliding rail 133 is installed on one side of the mold 132 by a welding, a groove 134 is formed on one side of the mold 132, the groove 134 is attached to the optical cylindrical mirror, a sliding groove 190 is formed on one side of the support 110, the first sliding rail 133 is an arc-shaped structure, the first sliding rail 133 is slidably connected to the sliding groove 190, the second hydraulic cylinder 131 is used for driving the mold 132 to move left and right, thereby driving the optical lens to move and adjust the center of the optical lens, the first slide rail 133 and the slide groove 190 serve to improve stability when the mold 132 moves.
Referring to fig. 1, 2 and 6, the positioning mechanism 20 includes a second motor 210, a threaded rod 220, a clamping assembly 230, a supporting rod 240, a second supporting plate 250 and an arrow 260, the second motor 210 is connected to one side of the supporting assembly 120, the threaded rod 220 is installed as an output shaft of the second motor 210, specifically, the threaded rod 220 is installed as an output shaft of the second motor 210 by welding, the threaded rod 220 is threaded through the clamping assembly 230, the supporting rod 240 is connected to one side of the clamping assembly 230, the second supporting plate 250 is installed at one end of the supporting rod 240, specifically, the second supporting plate 250 is installed at one end of the supporting rod 240 by welding, the arrow 260 is connected to one side of the second supporting plate 250, specifically, the arrow 260 is fixedly connected to one side of the second supporting plate 250 by welding, and the arrow 260 is attached to one side of the supporting assembly 120.
Referring to fig. 3, 4, 6 and 7, the clamping assembly 230 includes a sliding plate 231, a third hydraulic cylinder 232, a vacuum chuck 233, a vacuum pump 234 and a vacuum tube 235, the second motor 210 is mounted on one side of the second supporting plate 122, specifically, the second motor 210 is fixedly mounted on one side of the second supporting plate 122 by screws, the threaded rod 220 is rotatably connected to one side of the first supporting plate 121, specifically, the threaded rod 220 is rotatably connected to one side of the first supporting plate 121 by bearings, a threaded hole 236 is formed in an inner surface of the sliding plate 231, the threaded rod 220 is threaded through the threaded hole 236, the support rod 240 is mounted on one side of the sliding plate 231, the third hydraulic cylinder 232 is connected to the other side of the sliding plate 231, the vacuum chuck 233 is mounted on an output shaft of the third hydraulic cylinder 232, specifically, the vacuum chuck 233 is fixedly mounted on an output shaft of the third hydraulic cylinder 232 by welding, the vacuum pump 234 is connected to one side of the first supporting plate 121, vacuum pump 234 passes through screw fixed connection in first backup pad 121 one side, vacuum pump 234's input passes through vacuum tube 235 and vacuum chuck 233 intercommunication, vacuum tube 235 is flexible pipe, second motor 210 is used for driving threaded rod 220 to rotate, threaded rod 220 passes through screw hole 236 and drives about slide plate 231, slide plate 231 passes through branch 240 and second layer board 250 and drives about arrow 260, thereby be convenient for judge the centre of a circle of optical lens, make the centre of a circle of vacuum chuck 233 be located directly over the optical lens centre of a circle, third pneumatic cylinder 232 is used for driving vacuum chuck 233 and reciprocates, vacuum pump 234 and vacuum tube 235 are used for making vacuum chuck 233 be in vacuum state, can hold optical lens, fix optical lens, drive optical lens and remove.
In some embodiments, the second support plate 122 defines a second through hole 126 on an inner surface thereof, and the threaded rod 220 is capable of rotating within the second through hole 126.
Referring to fig. 4 and 8, the dust removing device 30 further includes a dust removing mechanism 30, the dust removing mechanism 30 includes a connecting rod 310, a tray 320, a conveying pipe 330, a dust collecting box 340, a filter screen 350 and a fan 360, the connecting rod 310 is connected to one side of the second supporting plate 122, specifically, the connecting rod 310 is fixedly connected to one side of the second supporting plate 122 by welding, the tray 320 is installed at one end of the connecting rod 310, specifically, the tray 320 is fixedly installed at one end of the connecting rod 310 by welding, the dust collecting box 340 is connected to the other side of the second supporting plate 122, specifically, the dust collecting box 340 is fixedly connected to the other side of the second supporting plate 122 by welding, the filter screen 350 is installed on the inner wall of the dust collecting box 340 by welding, a dust collecting port 380 is opened at one side of the tray 320, the dust collecting port 380 is communicated with the dust collecting box 340 by the conveying pipe 330, the fan 360 is connected to one side of the support 110, an air inlet end of the fan 360 is communicated with the dust collecting box 340, dust collection port 380 is located mill 170 below, and fan 360 is used for making the interior negative pressure that produces of dust collection box 340, inhales the filter screen 350 in the dust collection box 340 with the piece that the optical lens edging in-process produced through tray 320 and conveying pipe 330, collects the piece, and difficult polluted environment is difficult for influencing workman's healthy.
In some embodiments, a dust outlet 370 is formed at one side of the dust box 340, a material baffle plate is inserted into an inner surface of the dust outlet 370, a first through hole 125 is formed in an inner surface of the second supporting plate 122, and the first through hole 125 is in clearance fit with the conveying pipe 330.
The working principle of the optical centering edge grinding device of the optical cylindrical mirror is as follows: when the device is used, a user firstly puts an optical lens in the groove 134 on the mold 132, then controls the second hydraulic cylinder 131 and the first hydraulic cylinder 140 to extend and contract according to the size of the optical lens, the first hydraulic cylinder 140 can drive the baffle 150 to move left and right, the second hydraulic cylinder 131 can drive the mold 132 to move left and right, so that the right side of the mold 132 is contacted with the left side of the baffle 150, then the second motor 210 is started, the second motor 210 can drive the threaded rod 220 to rotate, the threaded rod 220 can drive the sliding plate 231 to move left and right through the threaded hole 236, the sliding plate 231 can drive the arrow 260 to move left and right through the supporting rod 240 and the second supporting plate 250, the arrow 260 points to the indicating number of the scale bar 124, so that the center of the optical lens is judged, the third hydraulic cylinder 232 moves right above the center of the optical lens, and meanwhile, the third hydraulic cylinder 232 can control the vacuum chuck 233 to move downwards, so that the vacuum chuck 233 is contacted with the optical lens, the vacuum pump 234 is turned on, the vacuum pump 234 enables the vacuum chuck 233 to generate suction through the vacuum tube 235, the vacuum chuck 233 is enabled to suck the optical lens, the optical lens is clamped, at the moment, the circle center of the vacuum chuck 233 coincides with the circle center of the optical lens, the circle center of the optical lens is aligned, after the optical lens is clamped by the vacuum chuck 233, the vacuum chuck 233 is driven to move upwards through the third hydraulic cylinder 232, the vacuum chuck 233 is driven to move rightwards through the second motor 210 and the threaded rod 220, the optical lens is attached to the grinding disc 170, the optical lens is ground, the purpose of centering the optical lens is achieved, the optical lens is convenient to align the circle center in the grinding process, the phenomenon of grinding deviation is not prone to occurring in the grinding process, and the quality of the optical lens is improved.
It should be noted that the specific model specifications of the second hydraulic cylinder 131, the first hydraulic cylinder 140, the first motor 160, the second motor 210, the third hydraulic cylinder 232, the vacuum pump 234 and the fan 360 need to be determined by type selection according to the actual specification of the device, and the specific type selection calculation method adopts the prior art in the field, so detailed description is omitted.
The power supply of the second hydraulic cylinder 131, the first hydraulic cylinder 140, the first motor 160, the second motor 210, the third hydraulic cylinder 232, the vacuum pump 234 and the fan 360 and the principle thereof will be apparent to those skilled in the art and will not be described in detail herein.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
