Abstract
本实用新型涉及医疗器械技术领域，特别涉及一种心肺复苏急救架。该装置的支架包括支架桌面，支架桌面下端连接有支腿；支架桌面上开有调节窗口，该调节窗口前后端侧壁上分别开有左右方向的导轨Ⅰ，在上述前后端的两个导轨Ⅰ之间安装有两个支撑导杆，两个支撑导杆前后端的导块能够沿所述导轨Ⅰ进行左右移动，两个支撑导杆之间设置有心脏按压装置，所述心脏按压装置能够沿两个支撑导杆进行前后移动并固定。本实用新型实现了能够自动对休克病人进行心脏按压，大大减轻医护人员的工作量，能够使休克病人呼吸通道打开，并促进肺部的呼吸运动，增加了抢救成功的几率，装置体积小，方便携带，操作方便，造价成本低。
The utility model relates to the technical field of medical devices, in particular to a cardiopulmonary resuscitation first aid frame. The bracket of the device comprises a bracket table top, the lower end of the bracket table top is connected with outriggers; an adjustment window is opened on the bracket table top, the front and rear side walls of the adjustment window are respectively provided with guide rails I in the left and right directions, between the two rails I at the front and rear ends. Two support guide rods are installed between the two support guide rods, the guide blocks at the front and rear ends of the two support guide rods can move left and right along the guide rail I, and a heart pressing device is arranged between the two support guide rods, and the heart pressing device can move along the two support guide rods. The support guide rod is moved back and forth and fixed. The utility model can automatically perform cardiac compression on shock patients, greatly reduce the workload of medical staff, can open the breathing passages of shock patients, promote the breathing movement of the lungs, and increase the probability of successful rescue. The device is small and convenient. Portable, easy to operate and low cost.
Description
The technical field is as follows:
the utility model relates to the technical field of medical equipment, in particular to cardiopulmonary resuscitation first aid frame.
Background art:
cardiac compression is a first aid procedure that is required if the patient is in shock and coma. At present when the needs first aid condition appears, mostly be medical personnel and carry out manual pressing, intensity of labour is very big, and a doctor is difficult to accomplish, and current automatic pressing device of heart is often bulky, and the portability is poor, and the cost is with high costs, is difficult to popularize and apply.
The utility model has the following contents:
the to-be-solved technical problem of the utility model is to provide a cardiopulmonary resuscitation first aid frame, the device have realized can carrying out the heart automatically to shock patient and press, alleviate medical personnel's work load greatly, can make shock patient breathe the passageway and open to promote the respiratory motion of lung, increased the probability of rescuing success, the device is small, conveniently carries, convenient operation, the cost is with low costs. Overcomes the defects of large labor intensity, large volume, poor portability and high cost of the existing cardiac compression emergency device.
The utility model adopts the technical proposal that: a cardiopulmonary resuscitation first aid rack, comprising a bracket; the support comprises a support desktop, and the lower end of the support desktop is connected with a supporting leg; an adjusting window is formed in the desktop of the bracket, left and right guide rails I are respectively formed in the side walls of the front end and the rear end of the adjusting window, two supporting guide rods are installed between the two guide rails I at the front end and the rear end, guide blocks at the front end and the rear end of the two supporting guide rods can move left and right along the guide rails I, a heart pressing device is arranged between the two supporting guide rods and can move back and forth along the two supporting guide rods and be fixed;
the heart pressing device adopts a pneumatic telescopic device, the pneumatic telescopic device comprises a cylinder body, the air inlet end of the cylinder body is connected with the inflating device, a telescopic rod is inserted at the lower end of the cylinder body, the telescopic rod is hollow, the upper end of the telescopic rod is communicated with the cylinder body, the outer wall of the telescopic rod is in sliding seal with the cylinder body, the upper end of the telescopic rod is provided with a limiting end I, the upper end of the cylinder body is connected with an auxiliary cylinder body, a piston is hollow, the lower end of the piston is communicated with the cylinder body, the piston is inserted into the auxiliary cylinder body from the cylinder body, the outer wall of the piston is in sliding seal with the inner wall of the auxiliary cylinder body, the side wall of the piston is provided with a communicating pore passage, the side wall of the auxiliary cylinder body is provided with an exhaust port, the piston can move to enable the communicating pore passage to correspond to the exhaust port, the upper end of the auxiliary cylinder body is connected with an adjusting handle, the lower end of the adjusting screw is connected with an adjusting plate, and the lower end of the adjusting spring is connected with the adjusting spring, the lower end of the adjusting spring is propped against the piston.
The cardiopulmonary resuscitation first-aid rack further comprises a breathing mask, an air inlet and an air outlet are connected to the breathing mask, a tooth cushion ring is designed on the inner side of the breathing mask, and the air inlet is connected with an air pump.
The supporting guide rod is provided with a guide rail II, and the heart pressing device is provided with a guide block matched with the guide rail II, and the guide block can move back and forth along the guide rail II.
The heart pressing device is bound on the supporting guide rod through a binding band.
The inflating device is an air pump.
The surface of the bottom end of the telescopic rod is connected with an elastic pad.
The lower end of the piston is provided with a limiting end II, and the lower end of the piston is limited in the cylinder body of the air cylinder by the limiting end II.
Two connecting side plates are symmetrically connected to two sides of the lower end of the support desktop, communicating holes in the connecting side plates penetrate through adjusting rods, the inner ends of the adjusting rods are connected with arc-shaped fixing plates, and the adjusting rods can move along the communicating holes in the connecting side plates and are fixed through bolts.
The utility model has the advantages that: the utility model discloses a can carry out the heart to shock patient automatically and press, alleviate medical personnel's work load greatly, can make shock patient breathing passageway open to promote the respiratory motion of lung, increased the probability of rescuing successfully, the device is small, conveniently carries, convenient operation, the cost is with low costs.
Description of the drawings:
the present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.

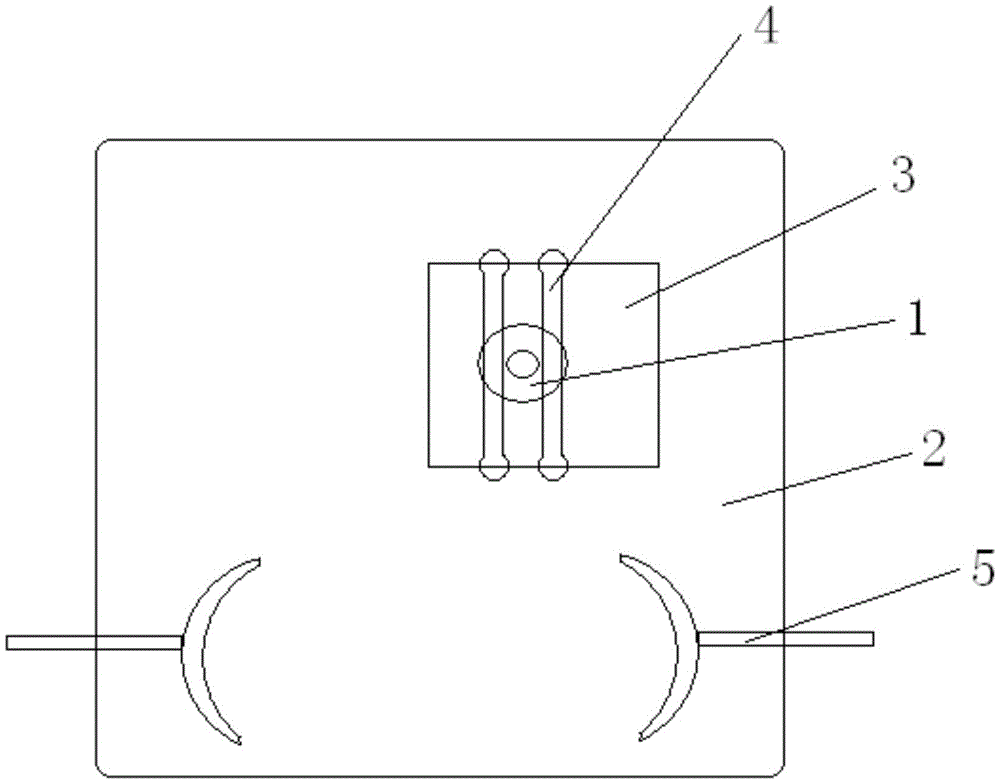

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a side view of the present invention.
Fig. 3 is a schematic structural view of the pneumatic telescopic device.
Fig. 4 is a schematic view of the structure of the breathing mask.
Fig. 5 is a side view of a respiratory mask.
The specific implementation mode is as follows:
as shown in fig. 1 and 2, a cardiopulmonary resuscitation first aid rack comprises a bracket; the support comprises a support desktop 2, and the lower end of the support desktop 2 is connected with a supporting leg 7; an adjusting window 3 is arranged on the bracket desktop 2, the side walls of the front end and the rear end of the adjusting window 3 are respectively provided with a left-right guide rail I, two supporting guide rods 4 are arranged between the two guide rails I at the front end and the rear end, guide blocks at the front end and the rear end of the two supporting guide rods 4 can move left and right along the guide rails I, a heart pressing device is arranged between the two supporting guide rods 4, and the heart pressing device can move back and forth and is fixed along the two supporting guide rods 4;
as shown in fig. 3, the heart pressing device adopts a pneumatic telescopic device 1, the pneumatic telescopic device 1 comprises a cylinder body 8, an air inlet end 18 of the cylinder body 8 is connected with an inflating device, a telescopic rod 9 is inserted into the lower end of the cylinder body 8, the telescopic rod 9 is hollow, the upper end of the telescopic rod 9 is communicated with the cylinder body 8, the outer wall of the telescopic rod 9 is in sliding seal with the cylinder body 8, a limit end i 19 is arranged at the upper end of the telescopic rod 9, an auxiliary cylinder body 10 is connected with the upper end of the cylinder body 8, a piston 15 is hollow, the lower end of the piston 15 is communicated with the cylinder body 8, the piston 15 is inserted into the auxiliary cylinder body 10 from the cylinder body 8, the outer wall of the piston 15 is in sliding seal with the inner wall of the auxiliary cylinder body 10, a communicating duct 16 is arranged on the side wall of the piston 15, an exhaust port 17 is arranged on the side wall of the auxiliary cylinder body 10, the piston 15 can move to enable the communicating duct 16 to correspond to the exhaust port 17, and an adjusting screw 12 is in threaded connection with the auxiliary cylinder body 10, the upper end of the adjusting screw 12 is connected with an adjusting handle 11, the lower end of the adjusting screw 12 is connected with an adjusting plate 13, the lower end of the adjusting plate 13 is connected with an adjusting spring 14, and the lower end of the adjusting spring 14 abuts against a piston 15.
As shown in fig. 4 and 5, the cardiopulmonary resuscitation first-aid rack further comprises a breathing mask 21, an air inlet 22 and an air outlet 23 are connected to the breathing mask 21, a tooth cushion ring 24 is designed on the inner side of the breathing mask 21, and the air inlet 22 is connected with an air pump.
The support guide rod 4 is provided with a guide rail II, and the heart pressing device is provided with a guide block matched with the guide rail II, and the guide block can move back and forth along the guide rail II.
The heart pressing device is bound on the supporting guide rod 4 through a binding band.
The inflating device is an air pump.
The surface of the bottom end of the telescopic rod 9 is connected with an elastic pad.
The lower end of the piston 15 is provided with a limiting end II 20, and the limiting end II 20 limits the lower end of the piston 15 in the cylinder body 8.
Two connecting side plates are symmetrically connected to two sides of the lower end of the support desktop 2, communicating holes in the connecting side plates penetrate into adjusting rods 5, the inner ends of the adjusting rods 5 are connected with arc-shaped fixing plates 6, and the adjusting rods 5 can move along the communicating holes in the connecting side plates and are fixed through bolts.
When in use, the utility model is arranged above the body of a patient, the adjusting rod 5 enables the two arc-shaped fixing plates 6 to fix the body of the patient, the position of the heart pressing device can be adjusted by moving the two supporting guide rods 4 left and right and moving the heart pressing device back and forth, the heart pressing device is arranged above the proper position of the body of the patient, when the heart pressing device adopts the pneumatic expansion device 1, the air is pumped by the air pump, the air is admitted to push the expansion link 9 to go down, the piston 15 is pushed to go up, the expansion link 9 goes down to press the heart position of the patient, the piston 15 goes up to the communicating pore passage 16 corresponding to the exhaust port 17 at the moment, and then the air is exhausted, the lower end of the expansion link 9 rebounds up after contacting the body of the patient after the air pressure is reduced, the piston 15 goes down under the action of the spring force of the adjusting spring 14, the air pump is pumped again at the moment, the expansion link 9 presses the heart position of the patient again, the function of automatically pressing the heart of the patient is achieved through the circulation, the elastic pad is connected to the surface of the bottom end of the telescopic rod 9, and the injury to the patient can be reduced while the heart position of the patient is pressed. The length of the auxiliary cylinder body 10 is screwed in by adjusting the adjusting screw 12, so that the up-and-down movement amplitude of the telescopic rod 9 is adjusted, and the force for pressing the heart position of the patient is adjusted.
When the utility model is used, after the position is set, a person sits on the support desktop 2 preferably to counteract the reaction force of oppressing the heart and stabilize the support desktop 2.
When the heart pressing device is used for pressing the heart position of a patient, the patient is in a coma state, teeth and lips are always in a tight closing state, at the moment, the breathing mask 21 is covered at the mouth and nose of the patient, the tooth cushion ring 24 is cushioned between the upper row of teeth and the lower row of teeth of the patient, the air inlet 22 is inflated through the air pump, the breathing channel of the patient is opened, and the breathing motion of the lung of the patient is promoted.
It should be understood that the above detailed description of the present invention is only for illustrating the present invention and is not limited by the technical solutions described in the embodiments of the present invention, and those skilled in the art should understand that the present invention can still be modified or equivalently replaced to achieve the same technical effects; as long as the use requirement is satisfied, the utility model is within the protection scope.
Claims (8)
1. A cardiopulmonary resuscitation first aid rack, comprising a bracket; the method is characterized in that: the support comprises a support desktop (2), and the lower end of the support desktop (2) is connected with a supporting leg (7); an adjusting window (3) is arranged on the bracket desktop (2), the side walls of the front end and the rear end of the adjusting window (3) are respectively provided with a left-right guide rail I, two supporting guide rods (4) are arranged between the two guide rails I at the front end and the rear end, guide blocks at the front end and the rear end of the two supporting guide rods (4) can move left and right along the guide rails I, a heart pressing device is arranged between the two supporting guide rods (4), and the heart pressing device can move back and forth along the two supporting guide rods (4) and is fixed;
the heart pressing device adopts a pneumatic type telescopic device (1), the pneumatic type telescopic device (1) comprises a cylinder body (8), an air inlet end (18) of the cylinder body (8) is connected with an inflating device, a telescopic rod (9) is inserted at the lower end of the cylinder body (8), the telescopic rod (9) is hollow, the upper end of the telescopic rod is communicated with the cylinder body (8), the outer wall of the telescopic rod (9) is in sliding seal with the cylinder body (8), a limiting end I (19) is arranged at the upper end of the telescopic rod (9), an auxiliary cylinder body (10) is connected at the upper end of the cylinder body (8), a piston (15) is hollow, the lower end of the piston (15) is communicated with the cylinder body (8), the piston (15) is inserted into the auxiliary cylinder body (10) from the cylinder body (8), the outer wall of the piston (15) is in sliding seal with the inner wall of the auxiliary cylinder body (10), a communicating pore passage (16) is formed in the side wall of the piston (15), an exhaust port (17) is formed in the side wall of the auxiliary cylinder body (10), the piston (15) can move to enable the communicating pore passage (16) to correspond to the exhaust port (17), the auxiliary cylinder body (10) is connected with an adjusting screw rod (12) in a threaded mode, the upper end of the adjusting screw rod (12) is connected with an adjusting handle (11), the lower end of the adjusting screw rod (12) is connected with an adjusting plate (13), the lower end of the adjusting plate (13) is connected with an adjusting spring (14), and the lower end of the adjusting spring (14) abuts against the piston (15).
2. The cardiopulmonary resuscitation first aid rack according to claim 1, wherein: the cardiopulmonary resuscitation first-aid rack further comprises a breathing mask (21), wherein the breathing mask (21) is connected with an air inlet (22) and an air outlet (23), a tooth cushion ring (24) is designed on the inner side of the breathing mask (21), and the air inlet (22) is connected with an air pump.
3. The cardiopulmonary resuscitation first aid rack according to claim 1, wherein: the supporting guide rod (4) is provided with a guide rail II, the heart pressing device is provided with a guide block matched with the guide rail II, and the guide block can move back and forth along the guide rail II.
4. The cardiopulmonary resuscitation first aid rack according to claim 1, wherein: the heart pressing device is bound on the supporting guide rod (4) through a binding band.
5. The cardiopulmonary resuscitation first aid rack according to claim 1, wherein: the inflating device is an air pump.
6. The cardiopulmonary resuscitation first aid rack according to claim 1, wherein: the bottom end surface of the telescopic rod (9) is connected with an elastic pad.
7. The cardiopulmonary resuscitation first aid rack according to claim 1, wherein: the lower end of the piston (15) is provided with a limiting end II (20), and the lower end of the piston (15) is limited in the cylinder body (8) by the limiting end II (20).
8. The cardiopulmonary resuscitation first aid rack according to claim 1, wherein: two connecting side plates are symmetrically connected to two sides of the lower end of the support desktop (2), communicating holes in the connecting side plates penetrate into adjusting rods (5), the inner ends of the adjusting rods (5) are connected with arc-shaped fixing plates (6), and the adjusting rods (5) can move along the communicating holes in the connecting side plates and are fixed through bolts.
