Abstract
The utility model relates to a stainless steel rod processing technology field especially relates to a stainless steel rod processing safety subassembly. The utility model adopts the technical proposal that: including main part assembly stable connection base, both sides connect the inclined plane for keeping away the cooperation in the front and back of main part assembly stable connection base, the central point that the upper end of main part assembly stable connection base is located left right direction puts the main part that is equipped with integrated into one piece and consolidates stable cooperation connecting seat, the position that the upper end of main part reinforcement stable cooperation connecting seat leaned on the front side is equipped with the cylindrical main part assembly stable cooperation connecting hole that runs through terminal surface under the part, the upper end left and right sides that the main part was consolidated stable cooperation connecting seat is equipped with the opening of symmetry respectively and keeps away a locking spread groove to the right-hand U-shaped assembly connection in the outside left. The utility model has the advantages that: the efficiency when the guarantee be assembled between/be connected is higher, and whole stability in the use is better, and the life-span in the use is longer, has also ensured simultaneously that the processingquality of stainless steel rod is more reliable.
Description
Technical Field
The utility model relates to a stainless steel rod processing technology field especially relates to a stainless steel rod processing safety subassembly.
Background
The installation cooperation precision requirement to each device subassembly is higher when the stainless steel rod is processed in production, accomplishes the erection joint through the fastening cooperation of difference between the subassembly when installing the cooperation, and efficiency ratio during the assembly is lower, also can influence the precision of cooperation hookup location along with the increase of live time in the use to product quality when influencing stainless steel rod production.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a stainless steel rod processing safety subassembly, it adopts brand-new structural design, whole mode production processing that adopts integrated into one piece forms, can carry out accurate cooperation with the mounted position when using and be connected, its main part position is through setting up a plurality of cooperation structures, the guarantee can carry out inseparable cooperation with different cooperation subassemblies when the assembly, the security in the use is better, structurally through setting up the main part locating hole, can carry out accurate connection with the stable post when being connected with the left and right sides cooperation, the mounted position can produce certain deformation space in carrying out the assembly process, efficiency when guaranteeing assembly connection is higher, whole stability in the use is better, life-span in the use is longer, the processingquality that has also ensured stainless steel rod simultaneously is more reliable.
The technical scheme of the utility model as follows:
the utility model provides a stainless steel rod processing safety subassembly which characterized in that: the connecting device comprises a main body assembly stable connecting base, wherein the front side and the rear side of the main body assembly stable connecting base are provided with avoiding position matching connecting inclined planes, the central position of the upper end of the main body assembly stable connecting base in the left and right directions is provided with an integrally formed main body reinforcing stable matching connecting seat, the position of the upper end of the main body reinforcing stable matching connecting seat close to the front side is provided with a cylindrical main body assembly stable matching connecting hole penetrating through the lower end surface of a part, the left side and the right side of the upper end of the main body reinforcing stable matching connecting seat are respectively provided with a symmetrical U-shaped assembly connecting avoiding position locking connecting groove with an opening facing outwards left and right, the lower end surface of the assembly connecting avoiding position locking connecting groove is provided with a cylindrical main body assembly locking fixing connecting hole penetrating through the lower end surface of the part, and the rear side position of the main body assembly stable connecting base is provided with a circular arc-shaped main body mounting positioning stable connecting groove, the lower extreme of main part assembly stable connection base leans on the rear side position to be equipped with consolidates the cooperation assembly spread groove, the upper end left and right sides of main part assembly stable connection base is equipped with a cylindrical main part cooperation location connecting hole respectively, the rear side of main part cooperation location connecting hole be equipped with the rectangle location installation cooperation deformation spread groove that the rear end face of main part assembly stable connection base runs through completely.
Furthermore, the left side and the right side of the upper end of the main body reinforcing and stably matching with the connecting seat are respectively provided with a symmetrical matching convenient inclined plane structure.
Furthermore, the lower end of the main body assembly stable connection base is positioned at the lower end of the main body assembly stable matching connection hole, and a U-shaped main body installation stable matching connection groove with an opening towards the front end is formed in the lower end of the main body assembly stable matching connection hole.
Furthermore, the lower end face of the assembly connection avoiding position locking connection groove and the upper end face of the main body assembly stable connection base are on the same plane.
Furthermore, the main body mounting, positioning and stabilizing connecting groove is positioned at the center of the main body assembling and stabilizing connecting base in the left-right direction.
The utility model has the advantages that:
the utility model discloses a brand-new structural design, the mode production that wholly adopts integrated into one piece is processed and is formed, can carry out accurate cooperation with the mounted position when using and be connected, its main part position is through setting up a plurality of cooperation structures, the guarantee can carry out inseparable cooperation with different cooperation subassemblies when assembling, the security in the use is better, its main part is structural through setting up the main part locating hole, can carry out accurate connection with the stable post when being connected with the left and right sides cooperation, the mounted position can produce certain deformation space in carrying out the assembling process, efficiency when guaranteeing the erection joint is higher, wholly stability in the use is better, life-span in the use is longer, the processingquality that has also ensured the stainless steel rod simultaneously is more reliable.
Drawings
Fig. 1 is a schematic perspective view of the present invention;

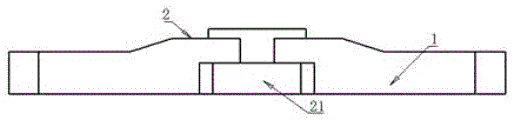

fig. 2 is a schematic front view of the present invention;

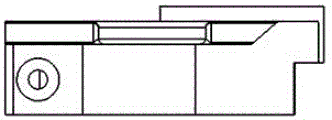

fig. 3 is a left side schematic view of the present invention;
fig. 4 is a right side schematic view of the present invention;
fig. 5 is a schematic top view of the present invention;
fig. 6 is a schematic bottom view of the present invention;
fig. 7 is a schematic perspective view of the second direction of the present invention;
in the figure: 1. connect the base steadily in main part assembly, 2, the cooperation connecting seat is stabilized in the main part reinforcement, 3, the cooperation connecting hole is stabilized in the main part assembly, 4, the position locking spread groove is kept away to assembly joint, 5, main part assembly locking fixed connection hole, 6, the spread groove is stabilized in main part installation location, 7, reinforcement cooperation assembly spread groove, 8, main part cooperation location connecting hole, 9, location installation cooperation deformation spread groove, 21, the cooperation spread groove is stabilized in the main part installation.
Detailed Description
As shown in fig. 1 to 7, a stainless steel rod processing safety subassembly, it adopts brand-new structural design, whole adoption integrated into one piece's mode production and processing forms, can carry out accurate cooperation with the mounted position when using and be connected, its main part position is through setting up a plurality of cooperation structures, the guarantee can carry out inseparable cooperation with the cooperation subassembly of difference when the assembly, the security in the use is better, through setting up the main part locating hole on its main part structure, can carry out accurate connection with the stable post when the left and right sides cooperation is connected, the mounted position can produce certain deformation space in carrying out the mounting process, efficiency when guaranteeing the erection joint is higher, whole stability in the use is better, the life-span in the use is longer, the processingquality that has also ensured stainless steel rod simultaneously is more reliable. It includes that main part assembly stably connects base 1, inclined plane is connected for keeping away the position cooperation to both sides around main part assembly stably connects base 1, has effectively prevented that front end position from producing the assembly with the subassembly of the left and right sides and interfering when assembling, can go on smoothly during the guarantee assembly. The central point that the upper end of main part assembly stable connection base 1 is located left right direction puts and is equipped with integrated into one piece's main part and consolidates stable cooperation connecting seat 2, can effectively improve the intensity of major structure to can make the upper end position can play the supporting role when assembling, carry out stable cooperation with the cooperation structure of intermediate position and be connected. The position that the upper end of stable cooperation connecting seat 2 is consolidated to the main part is leaned on the front side is equipped with the stable cooperation connecting hole 3 of cylindrical main part assembly that runs through terminal surface under the part, the upper end left and right sides that the stable cooperation connecting seat 2 was consolidated to the main part is equipped with the opening of a symmetry respectively and keeps away a locking spread groove 4 to the right-hand outside U-shaped assembly connection left side, assembly connection keeps away and is equipped with cylindrical main part assembly locking fixed connection hole 5 that runs through terminal surface under the part on the lower terminal surface of a locking spread groove 4, and it is fixed to carry out the locking of main part through it. The rear side position of main part assembly stable connection base 1 is equipped with convex main part installation location and stabilizes spread groove 6, the lower extreme of main part assembly stable connection base 1 is equipped with reinforcement cooperation assembly spread groove 7 by rear side position, and the cooperation steadiness of guarantee major structure is more secure, and whole durability in the use is stronger, and holistic life is longer. The upper end left and right sides of main part assembly stable connection base 1 is equipped with a cylindrical main part cooperation location connecting hole 8 respectively, the rear side of main part cooperation location connecting hole 8 is equipped with will the rectangle location installation cooperation deformation spread groove 9 that the rear end face of main part assembly stable connection base 1 runs through completely can carry out accurate and convenient assembly with the cooperation coupling assembling of the left and right sides when using, and efficiency when the guarantee assembly is higher, and the whole security of later stage in the use is better, can effectively ensure the whole quality of stainless steel rod when production is man-hour in the use.
Preferably, the left side and the right side of the upper end of the main body reinforcing and stably matching with the connecting seat 2 are respectively provided with a symmetrical matching convenient inclined plane structure, so that the space for fixing the upper end position is larger, and the operation during assembly is more convenient.
Preferably, the lower end of the main body assembly stable connection base 1 is provided with a U-shaped main body installation stable matching connection groove 21 with an opening towards the front end at the lower end of the main body assembly stable matching connection hole 3, so that the lower end has better fastening performance during matching and better overall stability in the later use process.
Preferably, the lower end face of the assembly connection avoiding locking connection groove 4 and the upper end face of the main body assembly stable connection base 1 are on the same plane, so that the flatness of the main body structure is better, the production and the processing are more convenient, and the structural strength of the main body position can be further improved.
Preferably, the main body mounting, positioning and stabilizing connecting groove 6 is located at the center of the main body assembling and stabilizing connecting base 1 in the left-right direction, so that the matching stability of the main body is guaranteed to be more reliable.
The foregoing is a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications or replacements can be made without departing from the principle of the present invention, and these modifications or replacements should also be considered as the protection scope of the present invention.
Claims (5)
1. The utility model provides a stainless steel rod processing safety subassembly which characterized in that: comprises a main body assembly stable connection base (1), wherein the front side and the rear side of the main body assembly stable connection base (1) are provided with a avoiding position matching connection inclined plane, the central position of the upper end of the main body assembly stable connection base (1) in the left and right directions is provided with an integrally formed main body reinforcing stable matching connection seat (2), the upper end of the main body reinforcing stable matching connection seat (2) close to the front side is provided with a cylindrical main body assembly stable matching connection hole (3) penetrating through the lower end surface of the part, the left and right sides of the upper end of the main body reinforcing stable matching connection seat (2) are respectively provided with a symmetrical U-shaped assembly connection avoiding position locking connection groove (4) with an opening facing outwards from left and right, the lower end surface of the assembly connection avoiding position locking connection groove (4) is provided with a cylindrical main body assembly locking fixed connection hole (5) penetrating through the lower end surface of the part, the rear side position of main part assembly stable connection base (1) is equipped with stable spread groove (6) of convex main part installation location, the lower extreme of main part assembly stable connection base (1) is equipped with reinforcement cooperation assembly spread groove (7) by the rear side position, the upper end left and right sides of main part assembly stable connection base (1) is equipped with a cylindrical main part cooperation location connecting hole (8) respectively, the rear side of main part cooperation location connecting hole (8) be equipped with rectangle location installation cooperation deformation spread groove (9) that the rear end face of main part assembly stable connection base (1) runs through completely.
2. The stainless steel bar processing safety assembly of claim 1, wherein: the left side and the right side of the upper end of the main body reinforcing stable matching connecting seat (2) are respectively provided with a symmetrical matching convenient inclined plane structure.
3. The stainless steel bar processing safety assembly of claim 1, wherein: the lower end of the main body assembly stable connection base (1) is located at the lower end of the main body assembly stable matching connection hole (3), and a U-shaped main body installation stable matching connection groove (21) with an opening towards the front end is arranged at the lower end of the main body assembly stable matching connection hole.
4. The stainless steel bar processing safety assembly of claim 1, wherein: the lower end face of the assembly connection avoiding position locking connection groove (4) and the upper end face of the main body assembly stable connection base (1) are on the same plane.
5. The stainless steel bar processing safety assembly of claim 1, wherein: the main body mounting, positioning and stabilizing connecting groove (6) is positioned at the center of the left and right directions of the main body assembling and stabilizing connecting base (1).
