Abstract
The utility model relates to a floor technical field especially relates to a stable form composite floor. The utility model adopts the technical proposal that: including main part combination connecting plate, main part combination connecting plate's upper end rear side is convex structural plane, main part combination connecting plate's front is equipped with the opening and supports the spread groove to positive cylindrical installation cooperation, main part combination connecting plate's rear side lower extreme position is equipped with laminating assembly connection reference surface, main part combination connecting plate's the left and right sides leans on the upper end position to be equipped with the assembly stable connection reinforcement post of a symmetry respectively, main part combination connecting plate's front is vertical decurrent planar structure. The utility model has the advantages that: adopt brand-new structural design, can carry out the built-up connection with being close to wall or some special concatenation positions when using, can make its cooperation of fastening with the floor main part be connected when using, the range of application when using is wider.
Description
Technical Field
The utility model relates to a floor technical field especially relates to a stable form composite floor.
Background
The floor is to being close to wall or combination concatenation position department not standard structure usually when installing to general wall position still need cooperate the installation of independent fillet line in the later stage, and the function when installing is more single, and need carry out solitary post processing to the laminating structure of marginal position usually, results in the combination efficiency during installation to be relatively low.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a stable form composite floor, it adopts brand-new structural design, can carry out the built-up connection with being close to wall or some special concatenation positions when using, can make its cooperation of fastening with the floor main part carry out when using and be connected, and it can carry out inseparable cooperation with the wall position after the assembly and link together, also can replace traditional material of welt line to cooperate, can splice the combination with it and floor, it can form a combination whole with the floor to make it, the life-span in the later stage use is longer, whole efficiency when installing the combination is higher.
The technical scheme of the utility model as follows:
a stable form composite floor, its characterized in that: including main part combination connecting plate, main part combination connecting plate's upper end rear side is convex structural plane, main part combination connecting plate's front is equipped with the opening and supports the spread groove to positive cylindrical installation cooperation, main part combination connecting plate's rear side lower extreme position is equipped with laminating assembly connection reference surface, the left and right sides of main part combination connecting plate leans on the upper end position to be equipped with the assembly stabilizing connection reinforced column of a symmetry respectively, main part combination connecting plate's front is vertical decurrent planar structure, main part combination connecting plate's front leans on lower extreme right side position to be equipped with the opening and stabilizes the spread groove to the first combination of U-shaped on right side, main part combination connecting plate's front upper end position is equipped with the locking spread groove of rectangle second combination.
Furthermore, the rear side position of the assembly stable connection reinforcing column and the rear side surface of the main body combination connecting plate are on the same plane.
Further, the assembly stabilizing connecting reinforcing column is located at a connecting position between the rear side circular arc and the rear side surface.
Furthermore, the lower end of the second combined anti-loosening connecting groove is communicated with the installation matching supporting connecting groove.
The utility model has the advantages that:
the utility model discloses a brand-new structural design, can carry out the built-up connection with being close to wall or some special concatenation positions when using, can make its cooperation of fastening with the floor main part be connected when using, and it can carry out inseparable cooperation with the wall position after the assembly and link together, also can replace traditional material of welt line to cooperate, can splice the combination with its and floor, it can form a combination whole with the floor to make it, life-span in the later stage use is longer, whole efficiency when installing the combination is higher.
Drawings

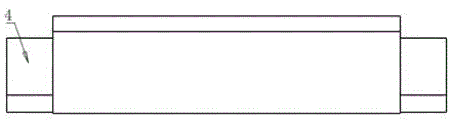

Fig. 1 is a schematic perspective view of the present invention;
fig. 2 is a schematic front view of the present invention;
fig. 3 is a left side schematic view of the present invention;
fig. 4 is a right side schematic view of the present invention;
fig. 5 is a schematic top view of the present invention;
fig. 6 is a schematic bottom view of the present invention;
fig. 7 is a schematic perspective view of the second direction of the present invention;
in the figure: 1. main part built-up connection board, 2, installation cooperation support connection groove, 3, laminating assembly connection reference surface, 4, the stable joint reinforcement post of assembly, 5, the stable connection groove of first combination, 6, the locking connection groove of second combination.
Detailed Description
As shown in fig. 1 to 7, a stable type composite floor adopts a completely new structure design, can be combined and connected with a position close to a wall or some special splicing positions when in use, can be tightly matched and connected with a floor main body when in use, can be tightly matched and connected with the wall position after being assembled, can also be matched with a material for replacing a traditional welt line, can be spliced and combined with the floor, can form a combined whole with the floor, has longer service life in the later use process, and has higher efficiency when being assembled and combined. The novel combined connecting plate comprises a main body combined connecting plate 1, wherein the rear side of the upper end of the main body combined connecting plate 1 is a circular arc-shaped structural surface, and the novel combined connecting plate can be used as an appearance surface. The front of the main body combined connecting plate 1 is provided with a cylindrical mounting and matching support connecting groove 2 with an opening facing the front, and the cylindrical mounting and matching support connecting groove can be closely matched and connected with a support positioning shaft at the mounting position of the floor. The rear side lower extreme position of main part built-up connection board 1 is equipped with laminating assembly connection reference surface 3, can splice the laminating as installation cooperation reference binding face, makes holistic connection compactness better. The left and right sides of the main body combined connecting plate 1 are respectively provided with a symmetrical assembly stabilizing and connecting reinforcing column 4 by the upper end position, the front of the main body combined connecting plate 1 is of a vertical downward plane structure, the front of the main body combined connecting plate 1 is provided with a U-shaped first combined stabilizing connecting groove 5 with an opening facing the right side by the lower end right position, and the U-shaped first combined stabilizing connecting groove can be stably matched and connected with a stable combined structure on a combined floor. The front upper end position of main part combination connecting plate 1 is equipped with rectangle second combination locking connection groove 6, and this position can cooperate solitary fastening connection accessory to make up the assembly as required, can ensure that holistic cooperation fastness is more reliable.
Preferably, the rear side position of the assembly stable connection reinforcing column 4 and the rear side surface of the main body combination connecting plate 1 are on the same plane, so that the structural flatness of the whole is better, and the structural strength of the whole can be further improved.
Preferably, the assembly stabilizing connecting reinforcing column 4 is located at the connecting position between the rear side circular arc and the rear side, so that the overall structure has better matching stability and stronger overall durability in use.
Preferably, the lower end of the second combination anti-loose connecting groove 6 is communicated with the installation and matching supporting and connecting groove 2, so that the position can be matched with a single accessory to carry out integral reinforcement combination, and the integral matching firmness can be further improved.
The foregoing is a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications or replacements can be made without departing from the principle of the present invention, and these modifications or replacements should also be considered as the protection scope of the present invention.
Claims (4)
1. A stable form composite floor, its characterized in that: comprises a main body combined connecting plate (1), the rear side of the upper end of the main body combined connecting plate (1) is a circular arc-shaped structural surface, the front surface of the main body combined connecting plate (1) is provided with a cylindrical mounting and matching supporting connecting groove (2) with an opening towards the front surface, the lower end of the rear side of the main body combined connecting plate (1) is provided with a joint assembly connecting datum plane (3), the left and right sides of the main body combined connecting plate (1) near the upper end are respectively provided with a symmetrical assembly stable connecting reinforcing column (4), the front surface of the main body combined connecting plate (1) is of a vertical downward plane structure, a U-shaped first combined stable connecting groove (5) with an opening towards the right side is arranged at the position of the front surface of the main body combined connecting plate (1) close to the right side of the lower end, and a rectangular second combined anti-loosening connecting groove (6) is arranged at the upper end of the front surface of the main body combined connecting plate (1).
2. A stabilized composite floor according to claim 1, wherein: the rear side position of the assembling stable connection reinforcing column (4) and the rear side surface of the main body combination connecting plate (1) are on the same plane.
3. A stabilized composite floor according to claim 1, wherein: the assembly stable connection reinforcing column (4) is positioned at the connecting position between the circular arc shape of the rear side and the rear side surface.
4. A stabilized composite floor according to claim 1, wherein: the lower end of the second combined anti-loosening connecting groove (6) is communicated with the installation matching supporting connecting groove (2).
