本实用新型公开了一种模具加工用夹持装置，包括底座，底座的下侧固定安装有支撑腿，底座的上侧固定安装有固定壳，固定壳的上侧固定安装有顶板，固定壳的内部滑动连接有支撑板，底座的内部转动连接有螺纹杆，螺纹杆与支撑板螺纹连接，螺纹杆的上端与顶板转动连接，支撑板的四周均固定安装有第一连接座。本实用新型通过螺纹杆带动其外侧螺纹连接的支撑板向下移动，支撑板通过第一连接座带动第一连接杆向下移动，第一连接杆带动其上端铰接的第二连接杆转动，第二连接杆带动其另一端铰接的夹块沿顶板滑动，四个夹块将模具进行夹持固定，反向转动把手从而使夹块远离模具，方便对模具进行快速固定或分离，提高了该夹持装置的实用性。
The utility model discloses a clamping device for mold processing, which comprises a base, a support leg is fixedly installed on the lower side of the base, a fixed shell is fixedly installed on the upper side of the base, a top plate is fixedly installed on the upper side of the fixed shell, and a top plate is fixedly installed on the upper side of the fixed shell. A support plate is slidably connected inside, a threaded rod is rotatably connected inside the base, the threaded rod is threadedly connected with the support plate, the upper end of the threaded rod is rotatably connected with the top plate, and a first connection seat is fixedly installed around the support plate. The utility model uses the threaded rod to drive the support plate which is threaded on the outer side to move downward, the support plate drives the first connecting rod to move downward through the first connecting seat, the first connecting rod drives the second connecting rod hinged at the upper end thereof to rotate, and the first connecting rod rotates. The two connecting rods drive the other end of the hinged clamping block to slide along the top plate, the four clamping blocks clamp and fix the mold, and the handle is reversely rotated to keep the clamping block away from the mold, which is convenient for fast fixing or separation of the mold, and improves the clamping force. usability of the device.
Description
Technical Field
The utility model relates to a mould field specifically is a clamping device is used in mould processing.
Background
The die is various dies and tools for obtaining required products by injection molding, blow molding, extrusion, die casting or forging forming, smelting, stamping and other methods in industrial production. In short, a mold is a tool used to shape an article, the tool being made up of various parts, and different molds being made up of different parts. The method realizes the processing of the appearance of the article mainly by changing the physical state of the formed material, and the article is called as 'industrial mother'.
Use going to and need processing to the mould at the mould, the mould adds the man-hour and need press from both sides tightly it, but at present to the clamp of mould adopt a plurality of locking parts to fix mostly, waste time and energy, the suitability is poor.
SUMMERY OF THE UTILITY MODEL
The utility model mainly solves the technical problem existing in the prior art and provides a clamping device for die machining.
In order to achieve the above object, the utility model provides a following technical scheme: a clamping device for mold processing comprises a base, wherein supporting legs are fixedly mounted on the lower side of the base, a fixed shell is fixedly mounted on the upper side of the base, a top plate is fixedly mounted on the upper side of the fixed shell, a supporting plate is slidably connected to the inside of the fixed shell, a threaded rod is rotatably connected to the inside of the base and is in threaded connection with the supporting plate, the upper end of the threaded rod is rotatably connected with the top plate, first connecting seats are fixedly mounted on the periphery of the supporting plate, a sliding groove is formed in the outer side of the fixed shell, the first connecting seats are slidably connected with the sliding groove, a first connecting rod is hinged to the inside of each first connecting seat, a second connecting seat is fixedly mounted at the other end of each first connecting rod, a second connecting rod is hinged to the inside of each second connecting seat, and a third connecting seat is hinged to the other end of each second connecting rod, and one side of the third connecting seat is fixedly connected with a clamping block, and the clamping block is connected with the top plate in a sliding manner.
Preferably, a fixed cylinder is fixedly installed inside the top plate, and the fixed cylinder is connected with the first connecting rod in a sliding manner.
Preferably, the upper side of the clamping block is fixedly provided with a baffle plate, and an inclined supporting block is fixedly connected between the baffle plate and the clamping block.
Preferably, a limiting rod is fixedly installed between the top plate and the base, and the supporting plate is connected with the limiting rod in a sliding mode.
Preferably, the lower end of the threaded rod is fixedly provided with a first bevel gear, the surface of the first bevel gear is engaged with a second bevel gear, one side of the second bevel gear is fixedly provided with a connecting shaft, and the other end of the connecting shaft is fixedly provided with a handle.
Preferably, the lower side of the base is fixedly provided with a fixed block, and the fixed block is rotatably connected with the connecting shaft.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a rotation handle drives connecting axle and second bevel gear and rotates, second bevel gear drives the threaded rod through its surface engagement's first bevel gear and rotates, the threaded rod drives the backup pad downstream of its outside threaded connection, the backup pad drives head rod downstream through first connecting seat, the head rod drives its upper end articulated second connecting rod and rotates, the second connecting rod drives its other end articulated clamp splice and slides along the roof, four clamp splices carry out the centre gripping with the mould fixed, thereby the mould is kept away from to the contra-rotation handle messenger clamp splice, the convenience carries out quick fixation or separation to the mould, this clamping device's practicality has been improved.
2. The utility model discloses an at the upside fixed connection baffle of clamp splice, the setting of cooperation bracing piece has improved the stability of mould centre gripping, through the fixed section of thick bamboo of inside fixed mounting at the roof, improves the stability of head rod when sliding from top to bottom.
Drawings

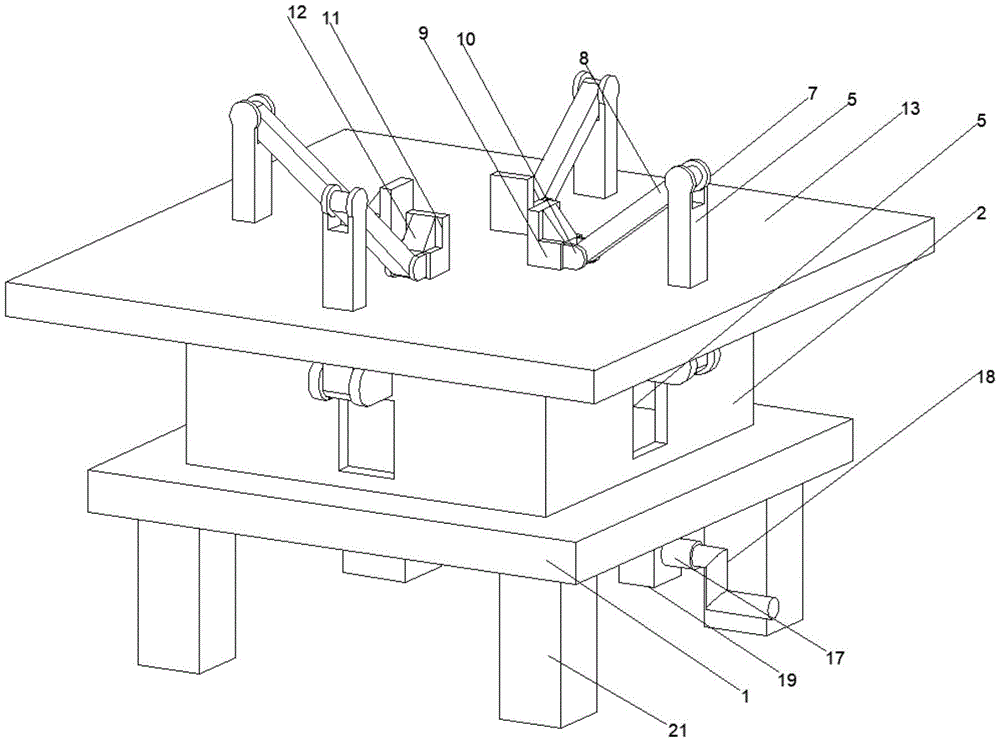

Fig. 1 is a schematic view of a first three-dimensional structure of the present invention;
fig. 2 is a schematic view of a second three-dimensional structure of the present invention;
fig. 3 is a schematic structural view of the cross section of the present invention.
In the figure: the device comprises a base 1, a fixed shell 2, a supporting plate 3, a first connecting seat 4, a sliding chute 5, a first connecting rod 6, a second connecting seat 7, a second connecting rod 8, a clamping block 9, a third connecting seat 10, a baffle 11, a diagonal bracing block 12, a top plate 13, a threaded rod 14, a first bevel gear 15, a second bevel gear 16, a connecting shaft 17, a handle 18, a fixed block 19, a limiting rod 20, a supporting leg 21 and a fixed cylinder 22.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, a clamping device for mold processing comprises a base 1, supporting legs 21 are fixedly installed on the lower side of the base 1, a fixed shell 2 is fixedly installed on the upper side of the base 1, a top plate 13 is fixedly installed on the upper side of the fixed shell 2, a supporting plate 3 is slidably connected inside the fixed shell 2, a threaded rod 14 is rotatably connected inside the base 1, the threaded rod 14 is in threaded connection with the supporting plate 3, the upper end of the threaded rod 14 is rotatably connected with the top plate 13, a first bevel gear 15 is fixedly installed at the lower end of the threaded rod 14, a second bevel gear 16 is meshed on the surface of the first bevel gear 15, a connecting shaft 17 is fixedly installed on one side of the second bevel gear 16, a handle 18 is fixedly installed at the other end of the connecting shaft 17, a fixed block 19 is fixedly installed on the lower side of the base 1, the fixed block 19 is rotatably connected with the connecting shaft 17, and the fixed block 19 improves the stability of the connecting shaft 17 when rotating, the periphery of the supporting plate 3 is fixedly provided with a first connecting seat 4, the outer side of the fixed shell 2 is provided with a sliding groove 5, the first connecting seat 4 is in sliding connection with the sliding groove 5, the inside of the first connecting seat 4 is hinged with a first connecting rod 6, the other end of the first connecting rod 6 is fixedly provided with a second connecting seat 7, the inside of the second connecting seat 7 is hinged with a second connecting rod 8, the other end of the second connecting rod 8 is hinged with a third connecting seat 10, one side of the third connecting seat 10 is fixedly connected with a clamping block 9, the clamping block 9 is in sliding connection with a top plate 13, a connecting shaft 17 and a second bevel gear 16 are driven to rotate by rotating a handle 18, the second bevel gear 16 drives a threaded rod 14 to rotate by a first bevel gear 15 which is meshed with the surface of the second bevel gear 16, the threaded rod 14 drives the supporting plate 3 which is in threaded connection with the outer side of the supporting plate to move downwards, the supporting plate 3 drives the first connecting rod 6 to move downwards by the first connecting seat 4, the first connecting rod 6 drives the second connecting rod 8 with the hinged upper end to rotate, the second connecting rod 8 drives the clamping block 9 with the hinged other end to slide along the top plate 13, the four clamping blocks 9 clamp and fix the mold, the handle 18 rotates reversely, so that the clamping block 9 is far away from the mold, the mold is conveniently and quickly fixed or separated, and the practicability of the clamping device is improved.
Referring to fig. 3, a limiting rod 20 is fixedly installed between the top plate 13 and the base 1, the supporting plate 3 is slidably connected with the limiting rod 20, and the stability of the supporting plate 3 during up-and-down movement is improved by the arrangement of the limiting rod 20.
Referring to fig. 1-3, a fixed cylinder 22 is fixedly installed inside the top plate 13, the fixed cylinder 22 is slidably connected to the first connecting rod 6, the fixed cylinder 22 is fixedly installed inside the top plate 13 to improve the stability of the first connecting rod 6 when sliding up and down, a baffle 11 is fixedly installed on the upper side of the clamping block 9, an inclined supporting block 12 is fixedly connected between the baffle 11 and the clamping block 9, and the baffle 11 is fixedly connected to the upper side of the clamping block 9 to match the inclined supporting block 12, so that the stability of mold clamping is improved.
In summary, the following steps: the clamping device for processing the die drives the connecting shaft 17 and the second bevel gear 16 to rotate by rotating the handle 18, the second bevel gear 16 drives the threaded rod 14 to rotate by the first bevel gear 15 meshed with the surface of the second bevel gear, the threaded rod 14 drives the supporting plate 3 in threaded connection with the outer side of the threaded rod to move downwards, the supporting plate 3 drives the first connecting rod 6 to move downwards by the first connecting seat 4, the first connecting rod 6 drives the second connecting rod 8 hinged with the upper end of the first connecting rod to rotate, the second connecting rod 8 drives the clamping block 9 hinged with the other end of the second connecting rod to slide along the top plate 13, the die is clamped and fixed by the four clamping blocks 9, the handle 18 is rotated reversely so that the clamping block 9 is far away from the die, the die is conveniently and quickly fixed or separated, the practicability of the clamping device is improved, the stability of the first connecting rod 6 during the up-down sliding is improved by fixedly installing the fixing cylinder 22 in the top plate 13, through the upper side fixed connection baffle 11 at clamp splice 9, the setting of cooperation bracing piece 12 has improved the stability of mould centre gripping.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a clamping device is used in mould processing, includes base (1), its characterized in that: the supporting legs (21) are fixedly mounted on the lower side of the base (1), the fixing shell (2) is fixedly mounted on the upper side of the base (1), the top plate (13) is fixedly mounted on the upper side of the fixing shell (2), the supporting plate (3) is connected to the inside of the fixing shell (2) in a sliding mode, the threaded rod (14) is connected to the supporting plate (3) in a rotating mode, the upper end of the threaded rod (14) is connected to the top plate (13) in a rotating mode, the first connecting seats (4) are fixedly mounted on the periphery of the supporting plate (3), the sliding grooves (5) are formed in the outer side of the fixing shell (2), the first connecting seats (4) are connected to the sliding grooves (5) in a sliding mode, the first connecting rods (6) are hinged to the inside of the first connecting seats (4), and the second connecting seats (7) are fixedly mounted at the other ends of the first connecting rods (6), the inside of second connecting seat (7) articulates there is second connecting rod (8), the other end of second connecting rod (8) articulates there is third connecting seat (10), one side fixedly connected with clamp splice (9) of third connecting seat (10), clamp splice (9) and roof (13) sliding connection.
2. The clamping device for mold processing according to claim 1, wherein: the inside fixed mounting of roof (13) has a fixed section of thick bamboo (22), a fixed section of thick bamboo (22) and head rod (6) sliding connection.
3. The clamping device for mold processing according to claim 1, wherein: the upper side of the clamping block (9) is fixedly provided with a baffle (11), and an inclined supporting block (12) is fixedly connected between the baffle (11) and the clamping block (9).
4. The clamping device for mold processing according to claim 1, wherein: a limiting rod (20) is fixedly mounted between the top plate (13) and the base (1), and the supporting plate (3) is connected with the limiting rod (20) in a sliding mode.
5. The clamping device for mold processing according to claim 1, wherein: the lower extreme fixed mounting of threaded rod (14) has first bevel gear (15), the surface meshing of first bevel gear (15) has second bevel gear (16), one side fixed mounting of second bevel gear (16) has connecting axle (17), the other end fixed mounting of connecting axle (17) has handle (18).
6. The clamping device for mold processing according to claim 5, wherein: the lower side fixed mounting of base (1) has fixed block (19), fixed block (19) rotate with connecting axle (17) and are connected.
