Abstract
本实用新型公开了一种钻井液用有机土的磨粉机，涉及有机土技术领域，包括壳体，所述壳体的上表面固定连接有旋转电机，旋转电机的输出转轴固定连接有转动杆，转动杆的底端贯穿壳体并延伸至壳体的内部，转动杆的外表面固定连接有齿轮一，壳体的内部设有两个旋转杆，每个旋转杆的外表面均固定连接有齿轮二，两个齿轮二均与齿轮一相啮合，壳体的内壁固定连接有齿环，两个齿轮二均与齿环相啮合，每个旋转杆的外表面均固定连接有粉碎杆，壳体的内壁固定连接有与壳体相适配的滤板一和滤板二，转动杆的底端贯穿滤板一并延伸至滤板一的下部。该钻井液用有机土的磨粉机，整体能够有效的对有机土进行磨粉作业，且整体磨粉效果较高。
The utility model discloses a pulverizer for organic soil for drilling fluid, which relates to the technical field of organic soil. , the bottom end of the rotating rod penetrates the casing and extends to the inside of the casing, the outer surface of the rotating rod is fixedly connected with a gear 1, and the interior of the casing is provided with two rotating rods, and the outer surface of each rotating rod is fixedly connected with a The second gear, the two gears are meshed with the first gear, the inner wall of the casing is fixedly connected with a gear ring, the two gears are meshed with the gear ring, the outer surface of each rotating rod is fixedly connected with a crushing rod, and the casing The inner wall of the body is fixedly connected with a filter plate 1 and a filter plate 2 which are matched with the shell, and the bottom end of the rotating rod penetrates the filter plate and extends to the lower part of the filter plate 1. The organic soil pulverizer for drilling fluid can effectively grind the organic soil as a whole, and the overall pulverizing effect is high.
Description
Technical Field
The utility model relates to an organic soil technical field specifically is a milling machine of organic soil for drilling fluid.
Background
The organic soil is soil which is rich in organic matters and is equivalent to organic water soil in soil classification under the conditions of surface water accumulation or long-term soil water saturation and aquatic plant growth, and is distributed in low-lying areas of the world.
The milling operation to organic soil uses the milling machine to operate more, but current organic soil milling machine adopts the crocus structure to carry out the crocus operation usually, and the crocus effect is relatively poor, and for this reason, we provide a milling machine of organic soil for drilling fluid and solve this problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a pair of milling machine of organic soil for drilling fluid to solve the problem that proposes among the above-mentioned background art.
The utility model discloses a solve above-mentioned technical problem, provide following technical scheme: the utility model provides a milling machine of organic soil for drilling fluid, which comprises a housin, the last fixed surface of casing is connected with the rotating electrical machines, the output pivot fixedly connected with dwang of rotating electrical machines, the bottom of dwang runs through the casing and extends to the inside of casing, the external fixed surface of dwang is connected with gear one, the inside of casing is equipped with two rotary rods, the equal fixedly connected with gear two of surface of every rotary rod, two gear two all mesh with gear one mutually, the inner wall fixedly connected with ring gear of casing, two gear two all mesh with the ring gear mutually, the equal fixedly connected with crushing pole of surface of every rotary rod.
The inner wall fixedly connected with of casing and the filter plate of casing looks adaptation first and filter plate two, the bottom of dwang runs through the filter plate and extends to the lower part of filter plate one in the lump, and the outer fixed surface of dwang is connected with two symmetrical movable rods, the equal fixed connection connecting rod in bottom surface of every movable rod, the equal fixed connection in bottom surface of every connecting rod scrapes the pole.
The bottom of dwang runs through second filter plate and extends to the lower part of second filter plate, and the fixed surface of dwang is connected with two bracing pieces, and the lower part of every bracing piece surface all rotates and is connected with the diagonal mill wheel, and the bottom surface of dwang rotates and is connected with presses the pinch roller.
Furthermore, the bottom surface of the shell is fixedly connected with a fixed seat, and the size of the upper surface of the fixed seat is larger than that of the bottom surface of the shell.
Through adopting above-mentioned technical scheme, can effectual increase the holistic stability of casing, avoid leading to the milling machine to take place to rock because of external force.
Furthermore, the lower part of the outer surface of the shell is fixedly communicated with a material discharging pipe, and a valve is sleeved on the outer surface of the material discharging pipe.
Through adopting above-mentioned technical scheme, the discharge of the completion organic soil of crocus is convenient for accomplish inside the casing, is convenient for arrange the material.
Further, the annular chute has been seted up to the interior roof of casing, the top of every rotary rod all with annular chute sliding connection.
Through adopting above-mentioned technical scheme, can effectual increase rotary rod in the stability of rotation in-process, avoid the rotary rod to take place the skew, lead to gear two to deviate from the ring gear.
Further, the outer fixed surface of rotating electrical machines is connected with solid fixed ring, and solid fixed ring's outer fixed surface is connected with two symmetrical stabilizer bars, and the one end that solid fixed ring was kept away from to every stabilizer bar all is connected with the upper surface fixed of casing.
Through adopting above-mentioned technical scheme, can effectual increase the stability of rotating electrical machines in the use, avoid the rotating electrical machines to take place to rock.
Further, the upper surface of casing is fixed and is linked with the inlet pipe, and the front fixedly connected with operation indicator board of casing.
By adopting the technical scheme, the operating personnel can be effectively reminded to operate according to the correct operation method, and the damage to the flour mill caused by improper operation is avoided.
Compared with the prior art, this milling machine of organic soil for drilling fluid possesses following beneficial effect:
1. the utility model discloses a rotating electrical machines, the dwang, gear one, gear two, the ring gear, the rotary rod, the crushing pole, the movable rod, the connecting rod, scrape the pole, the bracing piece, the diagonal grinding wheel sets up with the cooperation of pressing between the wheel, rotating electrical machines drives the dwang and rotates, the dwang drives gear one and rotates, gear drive gear two rotates, gear two has enough to meet the need under the effect of ring gear, the in-process that makes gear two drive the rotary rod rotation has enough to meet the need, the rotary rod drives the crushing pole and rotates, utilize rotation and week to revolve, promote to smash organic soil, the organic soil that has smashed afterwards falls down from the filtration pore of filter plate one, the organic soil that the granule is big continues to smash, the dwang drives the movable rod this moment and rotates, the movable rod drives the connecting rod and scrapes the pole and rotates, grind organic soil, the organic soil that grinds the completion falls down from the filtration pore of filter plate two, last dwang, the movable rod, Oblique grinding wheel rotates with the pressure wheel, carries out the fine grinding to organic soil, makes its whole can be effectual carry out the crocus operation to organic soil, and whole crocus effect is higher.
2. The utility model discloses a setting of fixing base, can effectually increase the holistic stability of casing, avoid leading to the milling machine to take place to rock because of external force, through arranging the setting of material pipe, the inside discharge of the organic soil of the completion crocus of casing of being convenient for, the row of being convenient for expects, through the setting of annular spout, can effectual increase rotary rod in the stability of rotation in-process, avoid the rotary rod to take place the incline, lead to two gears to deviate from the ring gear.
Drawings

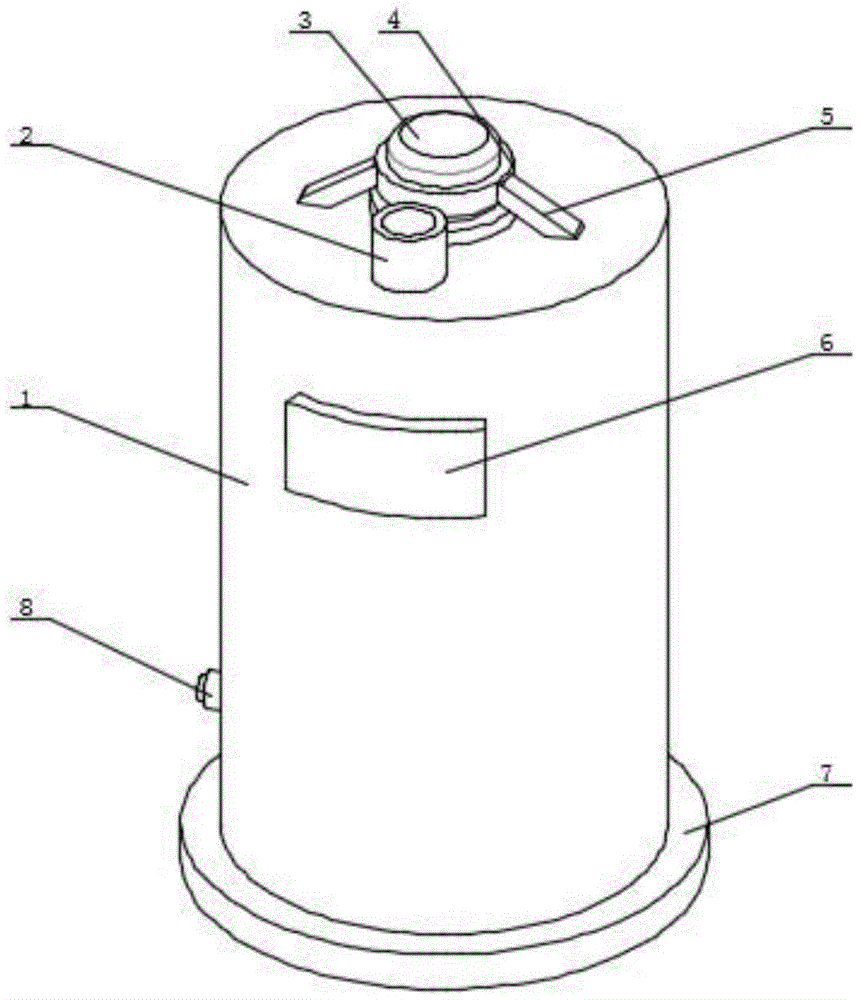

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic front sectional view of the present invention;
fig. 3 is a schematic view of the bottom cross-sectional structure of the present invention.
In the figure: 1. a housing; 2. a feed pipe; 3. a rotating electric machine; 4. a fixing ring; 5. a stabilizer bar; 6. operating an indicator panel; 7. a fixed seat; 8. a discharge pipe; 9. a toothed ring; 10. rotating the rod; 11. a first filter plate; 12. a second filter plate; 13. a connecting rod; 14. pressing the wheel; 15. an oblique grinding wheel; 16. a support bar; 17. a scraping rod; 18. rotating the rod; 19. crushing the stems; 20. a second gear; 21. a movable rod; 22. an annular chute; 23. and a first gear.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a pulverizer for organic soil for drilling fluid comprises a shell 1, wherein a fixed seat 7 is fixedly connected to the bottom surface of the shell 1, the size of the upper surface of the fixed seat 7 is larger than that of the bottom surface of the shell 1, the integral stability of the shell 1 can be effectively improved, the pulverizer is prevented from shaking due to external force, a discharge pipe 8 is fixedly communicated with the lower part of the outer surface of the shell 1, a valve is sleeved on the outer surface of the discharge pipe 8, the pulverized organic soil is conveniently discharged after pulverized coal is finished in the shell 1, discharging is convenient, a feed pipe 2 is fixedly communicated with the upper surface of the shell 1, an operation indicator plate 6 is fixedly connected to the front surface of the shell 1, a worker can be effectively reminded of operating the pulverizer according to a correct operation method, the damage of the pulverizer due to improper operation is avoided, a rotating motor 3 is fixedly connected to the upper surface of the shell 1, and a fixed ring 4 is fixedly connected to the outer surface of the rotating motor 3, the outer surface of the fixing ring 4 is fixedly connected with two symmetrical stabilizer bars 5, one end of each stabilizer bar 5, which is far away from the fixing ring 4, is fixedly connected with the upper surface of the shell 1, the stability of the rotating motor 3 in the using process can be effectively improved, the rotating motor 3 is prevented from shaking, the output rotating shaft of the rotating motor 3 is fixedly connected with a rotating rod 10, the bottom end of the rotating rod 10 penetrates through the shell 1 and extends into the shell 1, the outer surface of the rotating rod 10 is fixedly connected with a first gear 23, two rotating rods 18 are arranged in the shell 1, the inner top wall of the shell 1 is provided with an annular chute 22, the top end of each rotating rod 18 is slidably connected with the annular chute 22, the stability of the rotating rod 18 in the rotating process can be effectively improved, the rotating rod 18 is prevented from deflecting, the second gear 20 is prevented from the toothed ring 9, and the outer surface of each rotating rod 18 is fixedly connected with a second gear 20, two gears 20 are all meshed with the first gear 23, the inner wall of the shell 1 is fixedly connected with a toothed ring 9, the two gears 20 are all meshed with the toothed ring 9, and the outer surface of each rotating rod 18 is fixedly connected with a crushing rod 19.
The inner wall of the shell 1 is fixedly connected with a first filter plate 11 and a second filter plate 12 which are matched with the shell 1, the bottom end of the rotating rod 10 penetrates through the first filter plate 11 and extends to the lower portion of the first filter plate 11, the outer surface of the rotating rod 10 is fixedly connected with two symmetrical movable rods 21, the bottom surface of each movable rod 21 is fixedly connected with a connecting rod 13, and the bottom surface of each connecting rod 13 is fixedly connected with a scraping rod 17.
The bottom end of the rotating rod 10 penetrates through the second filter plate 12 and extends to the lower part of the second filter plate 12, two support rods 16 are fixedly connected to the outer surface of the rotating rod 10, an inclined grinding wheel 15 is rotatably connected to the lower part of the outer surface of each support rod 16, and a pressing wheel 14 is rotatably connected to the bottom surface of the rotating rod 10.
When the organic soil pulverizer is used, firstly, the rotating motor 3 is communicated with a municipal power supply, organic soil is injected into the shell 1 from the feeding pipe 2, the rotating motor 3 drives the rotating rod 10 to rotate, the rotating rod 10 drives the first gear 23 to rotate, the first gear 23 drives the second gear 20 to rotate, the second gear 20 rotates under the action of the toothed ring 9, the second gear 20 drives the rotating rod 18 to rotate, the rotating rod 18 drives the pulverizing rod 19 to rotate, the organic soil is pushed and pulverized by utilizing the rotation and the rotation, then the pulverized organic soil falls from the filtering holes of the first filter plate 11, the organic soil with large particles continues to be pulverized, at the moment, the rotating rod 10 drives the movable rod 21 to rotate, the movable rod 21 drives the connecting rod 13 and the scraping rod 17 to rotate, the organic soil is ground, the ground organic soil falls from the filtering holes of the second filter plate 12, and finally, the rotating rod 10, the inclined grinding wheel 15 and the pressing wheel 14 rotate, carry out the fine grinding to organic soil, make its whole can be effectual carry out the crocus operation to organic soil, and whole crocus effect is higher.
Claims (6)
1. The utility model provides a milling machine of organic soil for drilling fluid, includes casing (1), its characterized in that: the upper surface of the shell (1) is fixedly connected with a rotating motor (3), an output rotating shaft of the rotating motor (3) is fixedly connected with a rotating rod (10), the bottom end of the rotating rod (10) penetrates through the shell (1) and extends into the shell (1), a first gear (23) is fixedly connected to the outer surface of the rotating rod (10), two rotating rods (18) are arranged in the shell (1), a second gear (20) is fixedly connected to the outer surface of each rotating rod (18), the two second gears (20) are both meshed with the first gear (23), a toothed ring (9) is fixedly connected to the inner wall of the shell (1), the two second gears (20) are both meshed with the toothed ring (9), and a crushing rod (19) is fixedly connected to the outer surface of each rotating rod (18);
the inner wall of the shell (1) is fixedly connected with a first filter plate (11) and a second filter plate (12) which are matched with the shell (1), the bottom end of the rotating rod (10) penetrates through the first filter plate (11) and extends to the lower part of the first filter plate (11), the outer surface of the rotating rod (10) is fixedly connected with two symmetrical movable rods (21), the bottom surface of each movable rod (21) is fixedly connected with a connecting rod (13), and the bottom surface of each connecting rod (13) is fixedly connected with a scraping rod (17);
the bottom of dwang (10) runs through second (12) of filter plate and extends to the lower part of second (12) of filter plate, and the fixed surface of dwang (10) is connected with two bracing pieces (16), and the lower part of every bracing piece (16) surface all is rotated and is connected with oblique grinding wheel (15), and the bottom surface of dwang (10) is rotated and is connected with and presses pinch roller (14).
2. The pulverizer of organic soil for drilling fluid according to claim 1, wherein: the bottom surface of casing (1) fixedly connected with fixing base (7), the size of fixing base (7) upper surface is greater than the size of casing (1) bottom surface.
3. The pulverizer of organic soil for drilling fluid according to claim 1, wherein: the lower part of the outer surface of the shell (1) is fixedly communicated with a material discharging pipe (8), and a valve is sleeved on the outer surface of the material discharging pipe (8).
4. The pulverizer of organic soil for drilling fluid according to claim 1, wherein: annular sliding grooves (22) are formed in the inner top wall of the shell (1), and the top end of each rotating rod (18) is connected with the annular sliding grooves (22) in a sliding mode.
5. The pulverizer of organic soil for drilling fluid according to claim 1, wherein: the outer fixed surface of rotating electrical machines (3) is connected with solid fixed ring (4), and the outer fixed surface of solid fixed ring (4) is connected with two symmetrical stabilizer bars (5), and the one end that solid fixed ring (4) was kept away from in every stabilizer bar (5) all is connected with the last fixed surface of casing (1).
6. The pulverizer of organic soil for drilling fluid according to claim 1, wherein: the upper surface of casing (1) is fixed and is communicated with inlet pipe (2), and the front fixedly connected with operation indicator board (6) of casing (1).
