Abstract
本实用新型公开了一种康复锻炼用腰部拉伸装置，包括底座、脚座和腰部拉伸机构，述腰部拉伸机构包括两侧的调节架和设置在调节架上的腰部支撑辊，所述调节架包括调节套、调节杆、微调座、滑杆、弹簧和固定座；所述调节套沿竖向固定在底座上，调节套上沿竖向开有多个调节孔；所述微调座套装在调节杆的上部，所述弹簧设置在微调座与调节杆之间；所述调节杆的上部开有贯穿的扁孔，微调座上开有滑孔，所述滑杆套装在滑孔和扁孔内，且可沿扁孔上下滑动；所述微调座的中部固定有固定座，所述腰部支撑辊设置在固定座上；本实用新型中腰部支撑辊能够进行弹性微调和大调，使腰部始终贴合腰部支撑辊，确保了腰部拉伸训练的安全性和舒服度。
The utility model discloses a waist stretching device for rehabilitation exercise, which comprises a base, a foot seat and a waist stretching mechanism. The adjustment frame includes an adjustment sleeve, an adjustment rod, a fine adjustment seat, a sliding rod, a spring and a fixed seat; the adjustment sleeve is vertically fixed on the base, and the adjustment sleeve is provided with a plurality of adjustment holes in the vertical direction; the fine adjustment seat is set On the upper part of the adjustment rod, the spring is arranged between the fine adjustment seat and the adjustment rod; the upper part of the adjustment rod is provided with a through flat hole, the fine adjustment seat is provided with a sliding hole, and the sliding rod is sleeved on the sliding hole and the flat hole The middle part of the fine adjustment seat is fixed with a fixed seat, and the waist support roller is arranged on the fixed seat; the waist support roller in the utility model can perform elastic fine adjustment and large adjustment, so that the waist support roller can be adjusted elastically. Always fit the lumbar support roller to ensure the safety and comfort of lumbar stretching training.
Description
Technical Field
The utility model belongs to the technical field of the medical treatment, concretely relates to waist stretching device is used in recovered exercise.
Background
The waist is a part which is easy to be injured, people who take exercise for a long time often have waist pain or sprain during strenuous exercise, and long-time sitting or poor sitting posture also easily causes lumbar muscle strain, lumbar disc herniation and the like, the injury of the waist is easier and more serious the longer the age is, and the best way for taking exercise is stretching.
People usually do exercises without an apparatus and stretch the waist by certain actions, but the exercise efficiency is low, and deep stretching of the muscle group of the waist is difficult. The waist stretching is realized through sports fitness equipment, the most common is a bicycle fitness machine, the bicycle fitness machine is aerobic sports equipment capable of simulating outdoor sports, balance is achieved between riding sports and waist sports, cardiovascular sports are promoted through sports with proper strength, metabolism is accelerated, the functions of the heart and the lung are enhanced, and therefore the physique of a human body is improved. However, such exercise equipment is generally bulky and not suitable for the elderly, and is not suitable for persons suffering from isosceles symptoms of lumbar muscle strain.
Disclosure of Invention
Defect and problem to existing equipment existence, the utility model provides a recovered waist stretching device for taking exercise, the effectual regulation simple structure who exists of having solved among the existing equipment, the function singleness can't be according to the automatic user waist of laminating of user's action in the use, the poor problem of comfort level.
The utility model provides a scheme that its technical problem adopted is: a waist stretching device for rehabilitation exercise comprises a base, foot seats and a waist stretching mechanism, wherein the foot seats and the waist stretching mechanism are arranged on two sides of the base at intervals, the waist stretching mechanism comprises adjusting frames on two sides and a waist supporting roller arranged on the adjusting frames, and the adjusting frames comprise adjusting sleeves, adjusting rods, fine adjusting seats, sliding rods, springs and fixing seats; the adjusting sleeve is vertically fixed on the base, a plurality of adjusting holes are vertically formed in the adjusting sleeve, corresponding through holes are formed in the bottom of the adjusting rod, the adjusting rod is sleeved in the adjusting sleeve in a matching mode, and the adjusting rod is fixed on the adjusting sleeve through the adjusting holes and the through holes; the fine adjustment seat is sleeved on the upper part of the adjusting rod, and the spring is arranged between the fine adjustment seat and the adjusting rod; the upper part of the adjusting rod is provided with a through flat hole, the fine adjustment seat is provided with a sliding hole, and the sliding rod is sleeved in the sliding hole and the flat hole and can slide up and down along the flat hole; the middle part of fine setting seat is fixed with the fixing base, waist backing roll sets up on the fixing base.
Further, the inboard of alignment jig is provided with the support, the support includes horizontal segment and segmental arc, the segmental arc is close to the alignment jig.
Furthermore, the foot base comprises a pedal, a stop lever, a slide rail, a slide block and a fixed shaft; the utility model discloses a slide rail, including pedal, slide rail, fixed axle threaded connection, pedal upper portion is provided with curved shelves pole, and pedal both sides are provided with the slider, the slide rail sets up on the base, the slider has the screw that runs through along vertical opening, fixed axle threaded connection can push up and touch on the track in the screw.
Furthermore, the outer surface of the waist supporting roller is provided with a convex-concave soft cushion.
Furthermore, the adjusting rod is of a cylindrical structure, a spring seat is sleeved on the upper portion of the adjusting rod, the fine adjustment seat is of a sleeve structure and is fixed to the bottom of the fixed seat, and the spring is arranged between the spring seat and the fixed seat.
The utility model has the advantages that: the utility model is provided with an adjusting bracket, a waist supporting roller, a foot seat and a support; the adjusting frame is used for adjusting the height of the waist supporting roller in different ranges, the large-range adjustment is realized through the adjusting rod and the adjusting sleeve, and the fine adjustment is realized through arranging a spring between the fine adjustment seat and the adjusting rod, wherein the large-range adjustment can ensure that the utility model is suitable for users with different heights, and the practicability and the application range of the device are improved; the fine adjustment is suitable for the height of the waist supporting roller to be adjusted in a small amplitude in the using process, so that the waist supporting roller can be always attached to the waist of a user according to the action of the user, the comfort level of the waist supporting roller is improved, a certain auxiliary function is realized, the waist of the user is prevented from being emptied, and the safety is improved.
Meanwhile, the space between the middle foot seat and the waist supporting roller of the utility model is adjustable, and the middle foot seat is matched with the adjusting sleeve and the adjusting rod in direction for use, thus being suitable for the requirements of different users; meanwhile, the utility model is also provided with a support, when the user gets off from the waist supporting roller, the support can provide support for the buttocks of the user, and the danger to the user caused by overlarge waist-down action is avoided; the user can rely on the waist backing roll to support patient's waist, carries out the tensile training of waist.
From this the utility model discloses novel structure, application scope is wide, and the function is various, and the cost of manufacture is low, provides special waist stretching apparatus for waist rehabilitation training, and the effectual regulation simple structure who exists among the existing equipment of having solved, the function singleness can't be according to the automatic user's waist of laminating of user action in the use, and the security and the comfort of waist stretching training have been ensured to the poor problem of comfort level.
Drawings

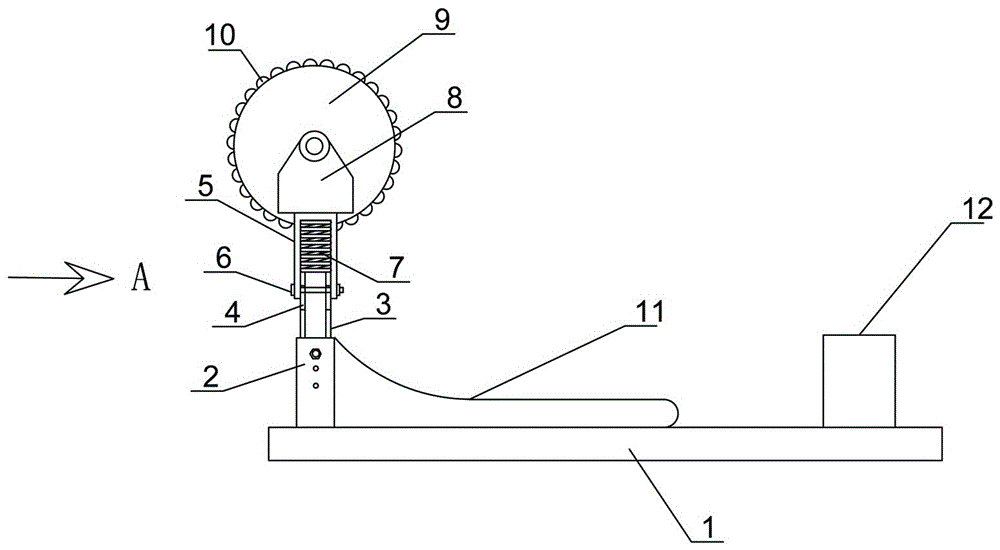

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is another schematic structural diagram of the present invention.
Fig. 3 is a schematic structural diagram of the foot seat.
Fig. 4 is a view taken along direction a of fig. 1.
Detailed Description
The present invention will be further explained with reference to the drawings and examples.
Example 1: as shown in figure 1, the device comprises a base 1, a foot seat 12 and a waist stretching mechanism, wherein the base 1 is a flat supporting structure, a foam soft layer can be arranged on the upper part of the base 1, the foot seat 12 and the waist stretching mechanism are arranged on two sides of the base 1 at intervals, a user barbs feet in the foot seat 2, and the waist is attached to the waist stretching mechanism to perform waist stretching training.
The waist stretching mechanism comprises adjusting frames on two sides and a waist supporting roller 9 arranged on the adjusting frames, and the adjusting frames comprise adjusting sleeves 2, adjusting rods 3, fine adjusting seats 5, sliding rods 6, springs 7 and fixing seats 8; the adjusting sleeve 2 is vertically fixed on the base 1, a plurality of adjusting holes are vertically formed in the adjusting sleeve 2, scale marks are arranged on the outer sides of the adjusting holes, heights are marked on the scale marks, corresponding through holes are formed in the bottom of the adjusting rod 3, the adjusting rod 3 is sleeved in the adjusting sleeve in a matching mode and fixed on the adjusting sleeve 2 through a fixing rod penetrating through the adjusting holes and the through holes, and a nut is connected to the end portion of the fixing rod through threads; through adjusting pole 3 and adjusting collar 2 can highly carry out the regulation of different amplitude to the waist backing roll, and the amplitude of regulation is big, makes the utility model is suitable for a user of different heights.
The fine adjustment seat 5 is sleeved on the upper part of the adjusting rod 3, and the spring 7 is arranged between the fine adjustment seat 5 and the adjusting rod 3; the upper part of the adjusting rod 3 is provided with a flat hole 4 which penetrates through the adjusting rod, the fine adjustment seat 5 is provided with a sliding hole, and the sliding rod 6 is sleeved in the sliding hole and the flat hole 4 and can slide up and down along the flat hole 4; the middle part of fine setting seat 5 is fixed with fixing base 8, waist backing roll 9 sets up on fixing base 8, the surface of waist backing roll 9 is provided with convex-concave cushion 10.
Realize elasticity fine setting through setting up spring 7 between fine setting seat 5 and regulation pole 3, the fine setting then is applicable to highly carrying out small amplitude adjustment to the waist backing roll in the use, make the waist backing roll laminate the waist at recovered person's waist action very first time of taking exercise, along with going on of waist action down, can slowly fall, and the spring has certain support intensity, make the waist backing roll can laminate user's waist all the time according to user's action, the comfort level of waist backing roll has been improved, certain auxiliary function has, avoid user's waist to vacate, high safety.
Therefore, in the embodiment, the height of the waist supporting roller can be adjusted by a large margin according to the height of a user before use, elastic fine adjustment can be performed according to the action of the user in the use process, the waist supporting roller can be attached to the waist of the user all the time, the safety and the comfort of the user in the waist stretching training process are ensured, the safety coefficient is high, the cost is low, and the popularization and the use are convenient.
Example 2: this example is substantially the same as example 1, except that: the present embodiment provides a support 11.
The inboard of alignment jig is provided with support 11, support 11 includes horizontal segment and segmental arc, the segmental arc is close to the alignment jig, and the horizontal segment extends to the foot stool.
In the embodiment, the support is arranged between the adjusting frame and the foot seat, so that when a user goes down from the waist supporting roller, the hip of the user can be located on the support, the action range is reduced, the use is safe, and the comfort level is improved.
Example 3: this example is substantially the same as example 1, except that: the present embodiment further defines the structure of the foot seat 12.
The foot base 12 comprises a pedal 14, a stop lever 15, a slide rail 18, a slide block 16 and a fixed shaft 17; the upper portion of pedal 14 is provided with curved shelves pole 15, and the both sides of pedal 14 are provided with slider 16, slide rail 18 sets up on base 1, slider 16 has the screw that runs through along vertical opening, fixed axle threaded connection is in the screw, and can push up and touch on the medial surface of slide rail, keeps the position of slider.
The footstand can move relative to the waist supporting roll in the embodiment, so that the distance between the footstand and the waist supporting roll is adjustable, the use is convenient, the user can carry out adaptability adjustment according to the self body condition, the feet and the waist can be adjusted, trainers with different body types can be used, the application range is greatly improved, the action range can be customized according to the user condition, and the application range is more friendly to beginners.
Example 4: this example is substantially the same as example 1, except that: this embodiment provides another structure of the adjusting bracket.
The adjusting rod is of a cylindrical structure, a spring seat 13 is sleeved on the upper portion of the adjusting rod, the fine adjustment seat 5 is of a sleeve structure and is fixed at the bottom of the fixed seat, and the spring is arranged between the spring seat and the fixed seat.
Simple structure in this embodiment, the preparation is convenient, and the equipment of being convenient for, fine setting seat and regulation pole are the rod structure, and fine setting seat suit is sealed the upper end of fine setting seat through the fixing base in adjusting the pole, and the upper end that will adjust the pole through the spring holder is sealed to with the spring setting between spring holder and fixing base, rational in infrastructure, the assembly is simple.
Claims (5)
1. The utility model provides a recovered waist stretching device for taking exercise, includes base, footstand and waist stretching mechanism interval set up the both sides at the base, its characterized in that: the waist stretching mechanism comprises adjusting frames on two sides and a waist supporting roller arranged on the adjusting frames, and the adjusting frames comprise adjusting sleeves, adjusting rods, fine adjusting seats, sliding rods, springs and fixing seats; the adjusting sleeve is vertically fixed on the base, a plurality of adjusting holes are vertically formed in the adjusting sleeve, corresponding through holes are formed in the bottom of the adjusting rod, the adjusting rod is sleeved in the adjusting sleeve in a matching mode, and the adjusting rod is fixed on the adjusting sleeve through the adjusting holes and the through holes; the fine adjustment seat is sleeved on the upper part of the adjusting rod, and the spring is arranged between the fine adjustment seat and the adjusting rod; the upper part of the adjusting rod is provided with a through flat hole, the fine adjustment seat is provided with a sliding hole, and the sliding rod is sleeved in the sliding hole and the flat hole and can slide up and down along the flat hole; the middle part of fine setting seat is fixed with the fixing base, waist backing roll sets up on the fixing base.
2. The lumbar stretching device for rehabilitation exercise according to claim 1, characterized in that: the inboard of alignment jig is provided with the support, the support includes horizontal segment and segmental arc, the segmental arc is close to the alignment jig.
3. The lumbar stretching device for rehabilitation exercise according to claim 1, characterized in that: the foot seat comprises a pedal, a stop lever, a slide rail, a slide block and a fixed shaft; the utility model discloses a slide rail, including pedal, slide rail, fixed axle threaded connection, pedal upper portion is provided with curved shelves pole, and pedal both sides are provided with the slider, the slide rail sets up on the base, the slider has the screw that runs through along vertical opening, fixed axle threaded connection can push up and touch on the track in the screw.
4. The lumbar stretching device for rehabilitation exercise according to claim 1, characterized in that: the outer surface of the waist supporting roller is provided with a convex-concave soft cushion.
5. The lumbar stretching device for rehabilitation exercise according to claim 1, characterized in that: the adjusting rod is of a cylindrical structure, a spring seat is sleeved on the upper portion of the adjusting rod, the fine adjustment seat is of a sleeve structure and is fixed to the bottom of the fixed seat, and the spring is arranged between the spring seat and the fixed seat.
