CN214102011U

CN214102011U - An artificial intelligence edge computing box

Info

Publication number: CN214102011U
Application number: CN202023222231.7U
Authority: CN
Inventors: 丁剑飞; 丁坤; 徐浩天
Original assignee: Suzhou Yiwei New Energy Technology Co ltd
Current assignee: Suzhou Yiwei New Energy Technology Co ltd
Priority date: 2020-12-28
Filing date: 2020-12-28
Publication date: 2021-08-31
Anticipated expiration: 2030-12-28

Abstract

The utility model provides an artificial intelligence edge computing box, which comprises a box body, a main board and a backplane arranged in the box body for installing components, the box body comprises a bottom box and a cover box fixedly installed on the upper end of the bottom box, the bottom box and The cover box is sealed and fixedly connected, the main board is suspended on the bottom box through a shock absorbing mechanism, and the back plate is fixed on the inner end of the bottom box through a guide column. The fan assembly exhausts the hot air inside the box body through the exhaust fan, and the filter assembly filters the incoming cold air. The fan assembly and the filter assembly are respectively arranged at both ends of the box body to facilitate the air circulation inside the box body, cover the upper end of the box The heat dissipation fins absorb and dissipate the heat inside the box through the heat conduction plate. The two ends of the cover box are provided with ventilation seats to accelerate air circulation corresponding to the heat dissipation fins. The fins blow away the hot air, and the horizontal arrangement of the radiating fins facilitates the circulation of wind between the radiating fins and improves the heat exchange efficiency.

Description

Artificial intelligence edge calculation box

Technical Field

The utility model relates to an edge computing equipment technical field specifically is an artificial intelligence edge computing box.

Background

Edge computing is an open platform that merges network, computing, storage, and application core capabilities at the edge of a network near the source of an object or data. The edge computing and the cloud computing are cooperated with each other to assist the digital transformation of various industries. The intelligent interconnection service is provided recently, and the key requirements of the industry on service real-time, service intelligence, data aggregation and interoperation, safety, privacy protection and the like in the digital revolution process are met.

The existing artificial intelligence edge computing box generates high heat when processing a large amount of data, so that the working state of a communication management machine is unstable after a long time, and the internal elements of the edge computing box are high in precision and easy to damage due to external impact, so that the service life is short; thus, the existing requirements are not satisfied.

SUMMERY OF THE UTILITY MODEL

The utility model provides a technical problem provide an artificial intelligence edge calculation box to solve the problem of proposing among the above-mentioned background art.

The utility model provides a technical problem adopt following technical scheme to realize: an artificial intelligence edge calculation box comprises a box body, a main board and a back board, wherein the main board and the back board are arranged in the box body and used for mounting components, the box body comprises a bottom box and a cover box fixedly mounted at the upper end of the bottom box, the bottom box and the cover box are fixedly connected in a sealing mode, the main board is arranged on the bottom box in a hanging mode through a damping mechanism, the back board is fixed at the inner side end of the bottom box through a guide post, the placement directions of the back board and the main board are mutually perpendicular, a circuit board and various accessories are mounted on the main board, a circuit board and a plug port are mounted on the back board, the front side of the bottom box is provided with corresponding openings corresponding to the plug port on the back board, and the accessories on the main board and the accessories on the back board are electrically connected through cables;

the air filter comprises a bottom box and is characterized in that two side ends of the bottom box are respectively provided with a fan assembly and a filter assembly, the fan assembly comprises a plurality of groups of exhaust fans which are arranged in parallel, the bottom box is provided with corresponding meshes corresponding to the fan assembly, the filter assembly is an air filter box, and the air inlet end of the air filter box is communicated with the corresponding meshes on the bottom box;

the cover box is provided with a heat dissipation groove for heat dissipation, a plurality of groups of heat dissipation fins are transversely arranged in the heat dissipation groove and arranged at intervals, and a heat conduction plate connected with the heat dissipation fins is arranged at the upper end of the cover box and used for absorbing the temperature inside the box body and dissipating the temperature through the heat dissipation fins.

As the utility model discloses a further scheme does: the damping mechanism comprises bottom posts distributed on the periphery of the bottom box, guide rods arranged on the bottom posts and sleeves sleeved on the guide rods, the sleeves are respectively provided with four groups and fixedly arranged at four corner ends of the main board, the lower ends of the guide rods are provided with dead-locked positioning sleeves, the upper ends of the guide rods are correspondingly sleeved with screw rods, and the positioning sleeves are provided with screw holes; the positioning sleeve is sleeved on the screw rod of the guide rod and is fixedly connected with the screw rod through threads; the two ends of the sleeve are respectively provided with a first spring and a second spring which are sleeved on the guide rod, the lower end of the first spring is abutted against the upper end of the bottom column, the upper end of the second spring is abutted against the lower end of the positioning sleeve, and the sleeve is elastically clamped on the guide rod by the first spring and the second spring.

As the utility model discloses a further scheme does: the both ends that the lid box is located the radiating groove are equipped with the ventilation seat, and the one end that the ventilation seat is close to the radiating groove is equipped with the blowing groove, and the inboard intercommunication that the blowing groove is located the ventilation seat has the wind channel pipe, the inner chamber of ventilation seat and the inner chamber of box body do not communicate, and the outside end of ventilation seat is equipped with the air intake, is equipped with miniature turbofan in the ventilation seat, miniature turbofan's play tuber pipe and wind channel pipe intercommunication.

As the utility model discloses a further scheme does: the air exhauster passes through the fixed pedestal that sets up on the end box corresponds of mount, and the air exhauster is the cylinder structure, and the both ends of air exhauster are the opening, and the one end opening of air exhauster communicates with the mesh that the end box corresponds, and the other end opening communicates through the hole that the mount corresponds and end box inner chamber.

As the utility model discloses a further scheme does: the exhaust fans are arranged in three groups side by side, and the three groups of exhaust fans are respectively and fixedly arranged at corresponding positions of the fixing frame.

As the utility model discloses a further scheme does: the inner side of the air filter box is distributed with a plurality of groups of filter membranes, and the filter membranes are arranged in the air filter box.

As the utility model discloses a further scheme does: the lower extreme inboard of lid box is equipped with annular joint board, and the lid box passes through the joint board and inserts in the inner chamber of end box, and the corresponding position of end box and joint board is equipped with the hole that runs through, and the inboard outer end that is located the hole of joint board is equipped with the nut, the nut is fixed to be set up in the inboard of joint board, and end box passes through in the screw inserts the hole and with nut threaded connection, makes lid box and end box fixed connection.

As the utility model discloses a further scheme does: the interface on the backplate includes audio frequency interface, net twine interface, OTG interface, shows interface, USB interface, relay interface and power source, audio frequency interface, net twine interface, OTG interface, display interface, USB interface, relay interface and power source inlay establish in the hole that the end box corresponds and with end box fixed connection.

As the utility model discloses a further scheme does: the network cable interface and the USB interface are respectively provided with two groups, the two groups of network cable interfaces are transversely arranged in parallel, and the two groups of USB interfaces are vertically arranged in parallel.

As the utility model discloses a further scheme does: and the back plate is provided with a built-in wifi antenna.

Compared with the prior art, the beneficial effects of the utility model are that: the device improves the impact resistance of the main board for placing the main accessories through the damping mechanism, when the box body is collided, the main board slides through the guide rod and is elastically buffered through the first spring and the second spring, and hard damage to the main board caused by impact inertia vibration is avoided; be equipped with fan subassembly and filtering component on the end box, the fan subassembly passes through the air exhauster and discharges the inside hot-air of box body, filtering component filters the cold air that gets into, fan subassembly and filtering component set up respectively at the both ends of box body, the inside circulation of gas of box body of being convenient for, the upper end radiating fin of lid box, radiating fin absorbs the inside heat of box body and distributes away through the heat-conducting plate, the both ends of lid box correspond radiating fin and are equipped with the ventilation seat of circulation of air with higher speed, miniature turbo fan blows cold wind to radiating fin through the blowing groove, blow away hot-air, radiating fin transversely sets up the circulation of being convenient for wind between radiating fin, improve heat exchange efficiency.

Drawings

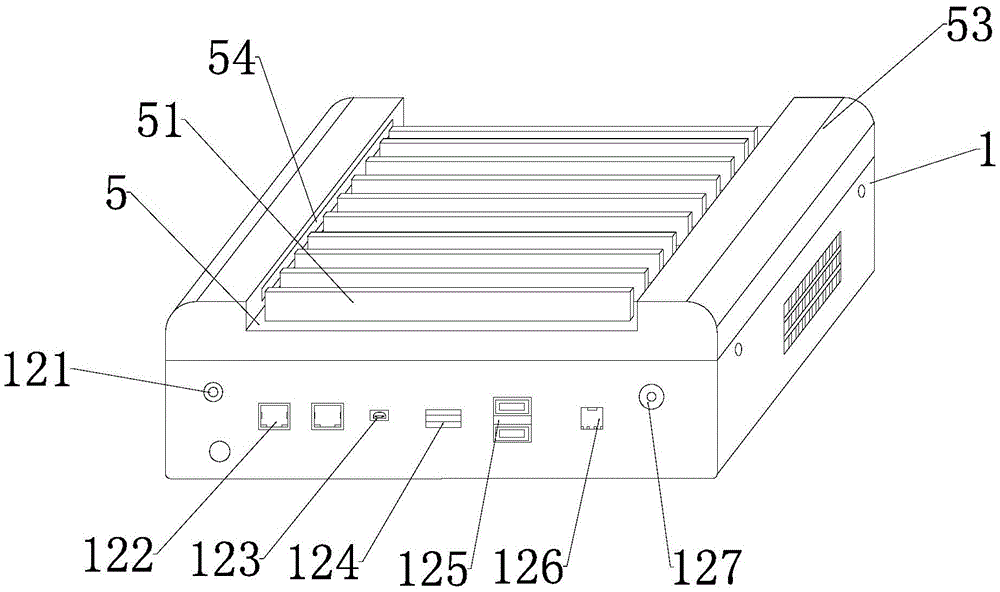

Fig. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic top view of the bottom case of the present invention;

FIG. 3 is a schematic view of the internal structure of the case body of the present invention;

FIG. 4 is an enlarged view of the structure at A in FIG. 3;

fig. 5 is an enlarged schematic view of B in fig. 3.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the specific drawings.

As shown in FIGS. 1-5,

the embodiment provides an artificial intelligence edge calculation box, which comprises a box body 1, and a main board 11 and a back board 12 which are arranged in the box body 1 and used for mounting components, wherein the box body 1 comprises a bottom box 13 and a cover box 14 fixedly mounted at the upper end of the bottom box 13, the bottom box 13 is fixedly connected with the cover box 14 in a sealing manner, the main board 11 is arranged on the bottom box 13 in a hanging manner through a damping mechanism 2, the back board 12 is fixed at the inner side end of the bottom box 13 through a guide post, the placement directions of the back board 12 and the main board 11 are mutually vertical, a circuit board and various accessories are mounted on the main board 11, a circuit board and a plug port are mounted on the back board 12, a corresponding opening is arranged on the front surface of the bottom box 13 corresponding to the plug port on the back board 12, and the accessories on the main board 11 and the back board 12 are electrically connected through cables;

the two side ends of the bottom box 13 are respectively provided with a fan component 3 and a filter component, the fan component 3 comprises a plurality of groups of exhaust fans 31 which are arranged in parallel, the bottom box 13 is provided with corresponding meshes corresponding to the fan component 3, the filter component is an air filter box 4, and the air inlet end of the air filter box 4 is communicated with the corresponding meshes on the bottom box 13;

be equipped with on the lid box 14 and be used for radiating groove 5, transverse arrangement is equipped with a plurality of groups radiating fin 51 in the radiating groove 5, and radiating fin 51 interval sets up, and the upper end of lid box 14 is equipped with the heat-conducting plate 52 of being connected with radiating fin 51 for absorb the inside temperature of box body 1, and distribute away through radiating fin 51.

In this embodiment, the damping mechanism 2 includes bottom pillars 21 distributed around the bottom case 13, guide rods 22 installed on the bottom pillars 21, and sleeves 23 sleeved on the guide rods 22, the sleeves 23 are respectively provided with four groups and fixedly disposed at four corner ends of the main board 11, the lower end of the guide rod 22 is provided with a positioning sleeve 24 locked, the upper end of the guide rod 22 is provided with a screw corresponding to the positioning sleeve 24, and the positioning sleeve 24 is provided with a screw hole; the positioning sleeve 24 is sleeved on the screw rod of the guide rod 22 and fixedly connected with the screw rod through threads; the two ends of the sleeve 23 are respectively provided with a first spring 25 and a second spring 26 which are sleeved on the guide rod 22, the lower end of the first spring 25 is propped against the upper end of the bottom column 21, the upper end of the second spring 26 is propped against the lower end of the positioning sleeve 24, and the sleeve 23 is elastically clamped on the guide rod 22 by the first spring 25 and the second spring 26. Specifically, mainboard 11 passes through sleeve 23 and slides and fixes on guide bar 22 to through first spring 25 and second spring 26 elasticity centre gripping sleeve 23, meet the gravity collision back at mainboard 11, mainboard 11 carries out elastic buffer through first spring 25 and second spring 26, avoids the hard damage of the component accessory on mainboard 11, improves the ability that mainboard 11 is shock-resistant.

In this embodiment, the both ends that lid box 14 is located radiating groove 5 are equipped with ventilation seat 53, and the one end that ventilation seat 53 is close to radiating groove 5 is equipped with blowing groove 54, and blowing groove 54 is located the inboard intercommunication of ventilation seat 53 has wind channel pipe 55, the inner chamber of ventilation seat 53 does not communicate with the inner chamber of box body 1, and the outside end of ventilation seat 53 is equipped with the air intake, is equipped with miniature turbofan 56 in the ventilation seat 53, miniature turbofan 56's play tuber pipe and wind channel pipe 55 intercommunication. Specifically, the micro turbo fan 56 blows cold air into the air duct pipe 55, and the cold air blows the heat dissipation groove 5 through the air blowing groove 54, so that the air flow on the heat dissipation fins 51 is accelerated, and the heat dissipation efficiency is improved. The air exhauster 31 is fixedly arranged on the seat body corresponding to the bottom box 13 through a fixing frame, the air exhauster 31 is of a cylinder structure, two ends of the air exhauster 31 are open, one end opening of the air exhauster 31 is communicated with the meshes corresponding to the bottom box 13, and the other end opening is communicated with the inner cavity of the bottom box 13 through holes corresponding to the fixing frame, so that the air exchange efficiency is improved, and meanwhile, the dust is prevented from entering. The three groups of exhaust fans 31 are arranged side by side, and the three groups of exhaust fans 31 are respectively and fixedly arranged at corresponding positions of the fixing frame.

In this embodiment, a plurality of groups of filtering membranes 41 are distributed on the inner side of the air filter box 4, and the filtering membranes 41 are arranged in the air filter box 4 for filtering dust and water vapor. The air filter box 4 and the fan component 3 are respectively and correspondingly arranged at two ends of the bottom box 13 and used for driving the whole inside of the box body 1 to ventilate, so that hot air can be conveniently discharged through the fan component 3, and cold air enters from the air filter box 4.

In this embodiment, the lower extreme inboard of lid box 14 is equipped with annular joint board 16, and lid box 14 inserts the inner chamber of end box 13 through joint board 16, and end box 13 is equipped with the hole that runs through with joint board 16's relevant position, and the inboard outer end that is located the hole of joint board 16 is equipped with nut 17, nut 17 is fixed to be set up in the inboard of joint board 16, and end box 13 inserts in the hole and with nut 17 threaded connection through the screw, makes lid box 14 and end box 13 fixed connection.

In this embodiment, the plug interface on the back plate 12 includes an audio interface 121, a network cable interface 122, an OTG interface 123, a display interface 124, a USB interface 125, a relay interface 126 and a power interface 127, and the audio interface 121, the network cable interface 122, the OTG interface 123, the display interface 124, the USB interface 125, the relay interface 126 and the power interface 127 are embedded in corresponding holes of the bottom case 13 and are fixedly connected with the bottom case 13. The network cable interfaces 122 and the USB interfaces 125 are respectively provided with two sets, the two sets of network cable interfaces 122 are horizontally arranged in parallel, and the two sets of USB interfaces 125 are vertically arranged in parallel. And a built-in wifi antenna is installed on the back plate 12.

The utility model discloses a theory of operation does: the device improves the impact resistance of the main board 11 for placing main accessories through the damping mechanism 2, when the box body 1 is collided, the main board 11 slides through the guide rod 22 and is elastically buffered through the first spring 25 and the second spring 26, and hard damage to the main board 11 caused by impact inertia vibration is avoided; be equipped with fan subassembly 3 and filtering component on end box 13, fan subassembly 3 discharges the inside hot-air of box body 1 through air exhauster 31, filtering component filters the cold air that gets into, fan subassembly 3 and filtering component set up respectively at the both ends of box body 1, the inside circulation of gas of box body 1 of being convenient for, the upper end radiating fin 51 of lid box 14, radiating fin 51 absorbs the inside heat of box body 1 and distributes away through heat-conducting plate 52, the both ends of lid box 14 correspond radiating fin 51 and are equipped with the ventilation seat 53 of circulation of air with higher speed, miniature turbine fan 56 blows cold wind to radiating fin 51 through blowing groove 54, blow away hot-air, radiating fin 51 transversely sets up the circulation of wind of being convenient for between radiating fin 51, improve heat exchange efficiency.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. an artificial intelligence edge computing box, comprising a box body and a mainboard and a backplane that are arranged in the box body for installing components, it is characterized in that: the box body comprises a bottom box and a cover box that is fixedly installed on the upper end of the bottom box, and the bottom The box is sealed and fixedly connected with the cover box, the main board is suspended on the bottom box through the shock absorbing mechanism, the back board is fixed on the inner end of the bottom box through the guide column, the placement direction of the back board and the main board is perpendicular to each other, and the circuit board is installed on the main board and accessories, a circuit board and a plug-in interface are installed on the back panel, the front of the bottom box is provided with a corresponding opening corresponding to the plug-in port on the back panel, and the accessories on the main board and the accessories on the back panel are electrically connected by cables;

The two sides of the bottom box are respectively provided with a fan assembly and a filter assembly, the fan assembly includes several groups of exhaust fans arranged in parallel, the bottom box is provided with corresponding mesh holes corresponding to the fan assembly, and the filter assembly is an air filter box , the air intake end of the air filter box is communicated with the corresponding mesh on the bottom box;

The cover box is provided with a heat dissipation groove for heat dissipation, a number of sets of heat dissipation fins are arranged horizontally in the heat dissipation groove, and the heat dissipation fins are arranged at intervals. The temperature inside the box is dissipated through the cooling fins.

2 . The artificial intelligence edge computing box according to claim 1 , wherein the damping mechanism comprises a bottom column distributed around the bottom box, a guide rod installed on the bottom column, a guide rod sleeved on the guide The sleeves on the rods, the sleeves are respectively provided with four groups and are fixedly arranged on the four corner ends of the main board, the lower end of the guide rod is provided with a locked positioning sleeve, the upper end of the guide rod is provided with a screw corresponding to the positioning sleeve, and the positioning The sleeve is provided with screw holes; the positioning sleeve is sleeved on the screw rod of the guide rod and is threadedly connected; the two ends of the sleeve are respectively provided with a first spring and a second spring sleeved on the guide rod, the first spring The lower end of the second spring is pressed against the upper end of the bottom column, the upper end of the second spring is pressed against the lower end of the positioning sleeve, and the first spring and the second spring elastically clamp the sleeve on the guide rod.

3. An artificial intelligence edge computing box according to claim 1, characterized in that: the cover box is provided with a ventilation seat at both ends of the heat dissipation slot, and an end of the ventilation seat close to the heat dissipation slot is provided with a blower slot, and the blower slot is provided with a blower slot. An air duct pipe is connected to the inner side of the ventilation seat, the inner cavity of the ventilation seat is not communicated with the inner cavity of the box body, the outer end of the ventilation seat is provided with an air inlet, and the ventilation seat is provided with a micro turbine fan. The air outlet pipe of the fan is communicated with the air duct pipe.

4. An artificial intelligence edge computing box according to claim 3, characterized in that: the exhaust fan is fixedly arranged on the base body corresponding to the bottom box through a fixing frame, the exhaust fan is a cylindrical structure, and two parts of the exhaust fan are arranged on the base corresponding to the bottom box. The end is an opening, the opening of one end of the exhaust fan is communicated with the mesh hole corresponding to the bottom box, and the opening of the other end is communicated with the inner cavity of the bottom box through the hole corresponding to the fixing frame.

5 . The artificial intelligence edge computing box according to claim 4 , wherein three groups of the exhaust fans are arranged side by side, and the three groups of exhaust fans are respectively fixed at corresponding positions of the fixing frame. 6 .

6 . The artificial intelligence edge computing box according to claim 1 , wherein several groups of filter membranes are distributed on the inside of the air filter box, and the filter membranes are arranged in the air filter box. 7 .

7 . The artificial intelligence edge computing box according to claim 5 , wherein an annular snap plate is provided on the inner side of the lower end of the cover box, and the cover box is inserted into the inner cavity of the bottom box through the snap plate, The corresponding position of the bottom box and the clamping plate is provided with a through hole, the inner side of the clamping plate is located at the outer end of the hole with a nut, the nut is fixedly arranged on the inner side of the clamping plate, and the bottom box is inserted into the hole through a screw and is connected with the hole. The nut is screwed to make the cover box and the bottom box fixedly connected.

8. An artificial intelligence edge computing box according to claim 1, characterized in that: the plug-in interface on the backplane comprises an audio interface, a network cable interface, an OTG interface, a display interface, a USB interface, a relay interface and a power supply interface The audio interface, network cable interface, OTG interface, display interface, USB interface, relay interface and power interface are embedded in the corresponding holes of the bottom box and are fixedly connected with the bottom box.

9. An artificial intelligence edge computing box according to claim 8, characterized in that: the network cable interface and the USB interface are respectively provided with two groups, the two groups of network cable interfaces are arranged horizontally side by side, and the two groups of USB interfaces are arranged vertically side by side .

10 . The artificial intelligence edge computing box according to claim 8 , wherein a built-in wifi antenna is installed on the backplane. 11 .
