The utility model discloses a waste water treatment device, comprising a cylinder body, a cylinder cover is arranged at the top of the cylinder body, a motor, a reagent tube and a filter box are fixedly installed on the top of the cylinder cover, the shaft end of the motor penetrates the cylinder cover, and the shaft end of the motor is fixed A first gear is installed, the bottom end of the first gear is fixedly connected with a rotating rod, the bottom end of the rotating rod is fixedly connected with a receiving rod, the receiving rod is provided with a scraper, the bottom end of the cylinder head is rotatably connected with a second gear, the first The second gear meshes with the first gear, the bottom end of the second gear is provided with a column, and a stirring rod is fixedly installed on the column and the rotating rod. By being provided with a rotating rod, a vertical column and a stirring rod, it is convenient to fully stir the waste water added with reagents, which is conducive to the neutralization reaction of the waste water. surroundings.

Description

Waste water treatment device

Technical Field

The utility model belongs to the technical field of waste water treatment, specifically be a waste water treatment device.

Background

The wastewater treatment is to treat the wastewater by physical, chemical and biological methods, so that the wastewater is purified, the pollution is reduced, the wastewater is recycled and reused, and water resources are fully utilized.

At present, in acid-base wastewater treatment, a neutralizing reagent needs to be added into wastewater to enable the wastewater to reach the discharge standard, but the internal stirring of the conventional wastewater treatment device is not uniform enough, so that the neutralization reaction is slow, and the treatment efficiency is low.

And contain harmful gas in waste water, and current processing apparatus, harmful gas filters the absorption effect unsatisfactory, leads to harmful gas to spill over easily, influences staff's healthy.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a waste water treatment dress to it is low to solve current acid-base waste water treatment efficiency, and gives off harmful gas's problem.

In order to achieve the above object, the utility model provides a following technical scheme: a wastewater treatment device comprises a cylinder body, wherein a cylinder cover is arranged at the top end of the cylinder body, a motor, a reagent pipe and a filter box are fixedly arranged at the top end of the cylinder cover, the model of the motor is TCB 8024B 3, the purpose of driving the first gear to rotate is achieved by arranging the motor, the shaft end of the motor penetrates through the cylinder cover, a first gear is fixedly arranged at the end of the motor shaft, a rotating rod is fixedly connected at the bottom end of the first gear, the bottom end of the rotating rod is fixedly connected with a bearing rod, the bearing rod is U-shaped, a scraper is arranged on the bearing rod, the scraper is U-shaped, the bottom end of the cylinder cover is rotatably connected with a second gear which is meshed with the first gear, through being provided with first gear and second gear, be convenient for drive the stand on the puddler rotate, the bottom of second gear is equipped with the stand, equal fixed mounting has the puddler on stand and the bull stick.

Preferably, the inner wall of rose box is equipped with ceramic filter, active carbon filter screen and HEPA filter screen, through setting up ceramic filter, active carbon filter screen and HEPA filter screen, is convenient for filter harmful gas.

Preferably, the bottom fixed mounting of cylinder body has the support leg, the number of support leg is four, through being provided with the support leg, is convenient for accept the cylinder body.

Preferably, the bottom of cylinder body is equipped with the exit tube, be equipped with the valve on the exit tube, the inner wall of exit tube is equipped with the filtration basket, has the exit tube of filtration basket through the setting, is convenient for filter the impurity in the waste water.

Preferably, the side fixed mounting of cylinder body has into the pipe, advance a tub intercommunication cylinder body, advance the pipe through being provided with, be convenient for put in waste water in to the cylinder body.

Preferably, the cylinder cap is run through to the bottom of reagent pipe, be equipped with the scale on the reagent pipe, be equipped with the valve on the reagent pipe, the setting of reagent pipe does benefit to the reagent of adding corresponding volume in to waste water.

Preferably, a fan is fixedly installed inside the cylinder cover, the fan air outlet pipe is communicated with the filter box, the fan air inlet pipe penetrates through the cylinder cover, the model of the fan is PF-100, the fan has an air blowing function, and harmful gas is conveniently brought into the filter box to be filtered by the fan.

Compared with the prior art, the beneficial effects of the utility model are that: through being provided with bull stick, stand and puddler, be convenient for carry out intensive mixing to the waste water of adding the reagent, do benefit to waste water and carry out neutralization reaction, through being provided with the rose box, play and filter absorptive purpose to the harmful gas that waste water gived off, do benefit to the protection surrounding environment.

Drawings

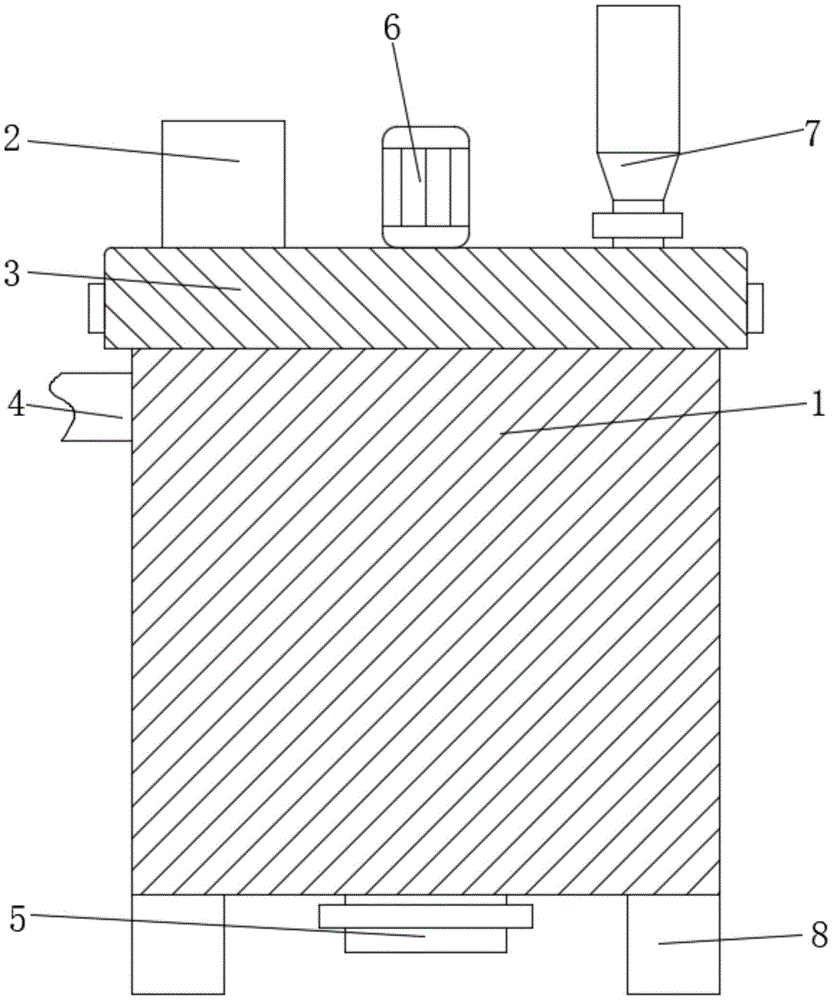

Fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a sectional view of the overall structure of the present invention.

In the figure: 1. a cylinder body; 2. a filter box; 3. a cylinder cover; 4. feeding a pipe; 5. discharging a pipe; 6. a motor; 7. a reagent tube; 8. a support leg; 9. an active carbon filter screen; 10. a first gear; 11. a second gear; 12. a ceramic filter plate; 13. a HEPA filter screen; 14. a stirring rod; 15. a column; 16. a filter basket; 17. a rotating rod; 18. a bearing rod; 19. a squeegee; 20. a fan.

Detailed Description

Referring to fig. 1 and 2, a wastewater treatment device comprises a cylinder body 1, a cylinder cover 3 is arranged at the top end of the cylinder body 1, a motor 6, a reagent tube 7 and a filter box 2 are fixedly arranged at the top end of the cylinder cover 3, the model of the motor 6 is TCB 8024B 3, the purpose of driving a first gear 10 to rotate is achieved by arranging the motor 6, the shaft end of the motor 6 penetrates through the cylinder cover 3, a first gear 10 is fixedly arranged at the shaft end of the motor 6, a rotating rod 17 is fixedly connected at the bottom end of the first gear 10, a carrying rod 18 is fixedly connected at the bottom end of the rotating rod 17, the carrying rod 18 is in a U shape, a scraper 19 is arranged on the carrying rod 18, the scraper 19 is in a U shape, impurities attached to the cylinder body 1 can be cleaned by arranging the scraper 19, a second gear 11 is rotatably connected at the bottom end of the cylinder cover 3, the second gear 11 is meshed with the first gear 10, and by arranging the first gear 10 and the second gear 11, be convenient for drive puddler 14 on stand 15 and rotate, the bottom of second gear 11 is equipped with stand 15, and equal fixed mounting has puddler 14 on stand 15 and the bull stick 17.

Referring to fig. 1 and 2, the inner wall of the filter box 2 is provided with a ceramic filter plate 12, an activated carbon filter screen 9 and a HEPA filter screen 13, and the ceramic filter plate 12, the activated carbon filter screen 9 and the HEPA filter screen 13 are provided to facilitate the filtration of harmful gas.

Referring to fig. 1 and 2, the bottom end of the cylinder body 1 is fixedly provided with four support legs 8, and the support legs 8 are arranged to facilitate the carrying of the cylinder body 1.

Referring to fig. 1 and 2, an outlet pipe 5 is disposed at the bottom end of the tank body 1, a valve is disposed on the outlet pipe 5, a filter basket 16 is disposed on the inner wall of the outlet pipe 5, and the outlet pipe 5 with the filter basket 16 is disposed to facilitate filtering of impurities in the wastewater.

Referring to fig. 1 and 2, an inlet pipe 4 is fixedly installed on a side surface of the cylinder body 1, the inlet pipe 4 is communicated with the cylinder body 1, and the inlet pipe 4 is arranged to facilitate the feeding of wastewater into the cylinder body 1.

Referring to fig. 1 and 2, the bottom end of the reagent tube 7 penetrates through the cylinder cover 3, scales are arranged on the reagent tube 7, a valve is arranged on the reagent tube 7, and the reagent tube 7 is arranged to facilitate adding a corresponding amount of reagents into the wastewater.

Referring to fig. 2, a fan 20 is fixedly installed inside the cylinder cover 3, an air outlet pipe of the fan 20 is communicated with the filter box 2, an air inlet pipe of the fan 20 penetrates through the cylinder cover 3, the fan 20 is PF-100, the fan 20 has a blowing function, and harmful gas is conveniently brought into the filter box 2 for filtering by the fan 20.

The working principle of the scheme is as follows: when the wastewater treatment device is used, wastewater is added into the cylinder body 1 through the inlet pipe 4, then the fan 20 and the motor 6 are started, the fan 20 guides harmful gas emitted by the wastewater into the filter box 2, the filter box 2 is internally provided with the ceramic filter plate 12, the activated carbon filter screen 9 and the HEPA filter screen 13, so that the harmful gas can be conveniently filtered and absorbed, simultaneously when the gas is filtered, the valve at the reagent pipe 7 is opened according to the amount of the wastewater in the cylinder body 1, a proper reagent is added into the wastewater according to the scale on the reagent pipe 7, meanwhile, the motor 6 drives the stirring rod 14 on the rotating rod 17 to clockwise rotate through the first gear 10, the first gear 10 drives the stirring rod 14 on the upright post 15 to anticlockwise rotate through the second gear 11, so that the wastewater is fully stirred, the reaction between the wastewater and the reagent is accelerated, after the reaction is finished, the valve at the outlet pipe 5 is opened, the wastewater is discharged, the scraper 19 is driven by the rotating rod 17, will clear up the inner wall of cylinder body 1, prevent that impurity from attaching.

Claims

1. A waste water treatment device comprises a cylinder body (1), and is characterized in that: the top of cylinder body (1) is equipped with cylinder cap (3), the top fixed mounting of cylinder cap (3) has motor (6), reagent pipe (7) and rose box (2), cylinder cap (3) is run through to motor (6) axle head, motor (6) axle head fixed mounting has first gear (10), the bottom fixedly connected with bull stick (17) of first gear (10), the bottom fixedly connected with accept rod (18) of bull stick (17), be equipped with scraper blade (19) on accept rod (18), the bottom of cylinder cap (3) is rotated and is connected with second gear (11), second gear (11) mesh with first gear (10) mutually, the bottom of second gear (11) is equipped with stand (15), equal fixed mounting has puddler (14) on stand (15) and bull stick (17).

2. A wastewater treatment plant according to claim 1, characterized in that: the inner wall of the filter box (2) is provided with a ceramic filter plate (12), an active carbon filter screen (9) and a HEPA filter screen (13).

3. A wastewater treatment plant according to claim 1, characterized in that: the bottom fixed mounting of cylinder body (1) has support leg (8), the number of support leg (8) is four.

4. A wastewater treatment plant according to claim 1, characterized in that: the bottom of cylinder body (1) is equipped with exit tube (5), be equipped with the valve on exit tube (5), the inner wall of exit tube (5) is equipped with filter screen (16).

5. A wastewater treatment plant according to claim 1, characterized in that: the side face of the cylinder body (1) is fixedly provided with an inlet pipe (4), and the inlet pipe (4) is communicated with the cylinder body (1).

6. A wastewater treatment plant according to claim 1, characterized in that: the bottom of reagent pipe (7) runs through cylinder cap (3), be equipped with the scale on reagent pipe (7), be equipped with the valve on reagent pipe (7).

7. A wastewater treatment plant according to claim 1, characterized in that: the inside fixed mounting of cylinder cap (3) has fan (20), fan (20) go out tuber pipe intercommunication rose box (2), fan (20) air-supply line runs through cylinder cap (3).
