Abstract
本实用新型涉及生产技术领域，且公开了一种柠檬酸二氢胆碱浓缩换位装置，包括支撑柱，所述支撑柱上端部设置有连接板，所述支撑柱中端处固定连接有转盘，所述支撑柱下端部转动连接有连接筒，所述连接筒底部固定安装有若干个支撑腿。该种柠檬酸二氢胆碱浓缩换位装置，通过设置的连接筒，可以直接将支撑柱插入其内部，再转动转盘带动支撑柱进行转动，进而使连接板可以实现换位移动，整体分成三个结构，便于操作，且成本较低，进一步提高了工作效率。
The utility model relates to the technical field of production, and discloses a dihydrocholine citrate concentration and transposition device, which comprises a support column, the upper end of the support column is provided with a connecting plate, and the middle end of the support column is fixedly connected with a turntable The lower end of the support column is rotatably connected with a connecting cylinder, and a plurality of supporting legs are fixedly installed at the bottom of the connecting cylinder. This kind of choline dihydrogen citrate concentration and transposition device can directly insert the support column into its interior through the provided connecting cylinder, and then rotate the turntable to drive the support column to rotate, so that the connecting plate can realize the transposition movement, and the whole is divided into three parts. The structure is easy to operate, and the cost is low, which further improves the work efficiency.
Description
Technical Field
The utility model relates to the technical field of production, specifically be a concentrated transposition device of choline dihydrogen citrate.
Background
The choline dihydrogen citrate is the hydrogen citrate salt of choline (the content of the choline is 35 percent), belongs to B vitamins, can promote fat metabolism and eliminate fat accumulated in blood vessels and livers, and is a novel nutritional supplement and a raw material medicine.
The current choline dihydrogen citrate enrichment facility is fixed knot structure mostly, and the cost of device is higher, and the cost that consumes during the use is great, consequently, when carrying out small batch production, the wasting of resources is great, and the most structure as an organic whole of device, when damage or need wash appear in the device, is not convenient for dismantle.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The not enough to prior art, the utility model provides a concentrated transposition device of choline dihydrogen citrate possesses energy-conservation and is convenient for wash the advantage such as, has solved the problem that the background art provided.
(II) technical scheme
For realize above-mentioned energy-conserving and be convenient for abluent purpose, the utility model provides a following technical scheme: the utility model provides a concentrated transposition device of choline dihydrogen citrate, includes the support column, the support column upper end is provided with the connecting plate, support column middle part fixedly connected with carousel, tip rotates under the support column and is connected with the connecting cylinder, connecting cylinder bottom fixed mounting has a plurality of supporting leg.
Preferably, a plurality of threaded holes are formed in the upper end of the supporting column, a plurality of unthreaded holes are formed in the position of the edge of the other side of the connecting plate, bolts are arranged inside the unthreaded holes and penetrate through the unthreaded holes to be in threaded connection with the inner portions of the threaded holes.
Preferably, the fixed position of connecting plate one side edge installs and places a section of thick bamboo, it has the cover to place a section of thick bamboo upper end movable mounting, the circular slot has been seted up to the cover inside, the inside fixed mounting in circular slot has the transparent plate, the fixed position at transparent plate upper end center installs the pull ring.
(III) advantageous effects
Compared with the prior art, the utility model discloses possess following beneficial effect:
1. this kind of concentrated transposition device of choline dihydrogen citrate, through the connecting cylinder that sets up, can directly insert inside the support column, rotate the carousel again and drive the support column and rotate, and then make the connecting plate can realize transposition removal, wholly fall into three structure, the operation of being convenient for, and the cost is lower, has further improved work efficiency.
2. This kind of concentrated transposition device of choline dihydrogen citrate through the bolt that sets up, can make support column and connecting plate threaded connection structure as an organic whole, if damage appears in the device or when needing to wash, dismantles the bolt, and then can open two structure splits, is convenient for wash appointed structure.
Drawings

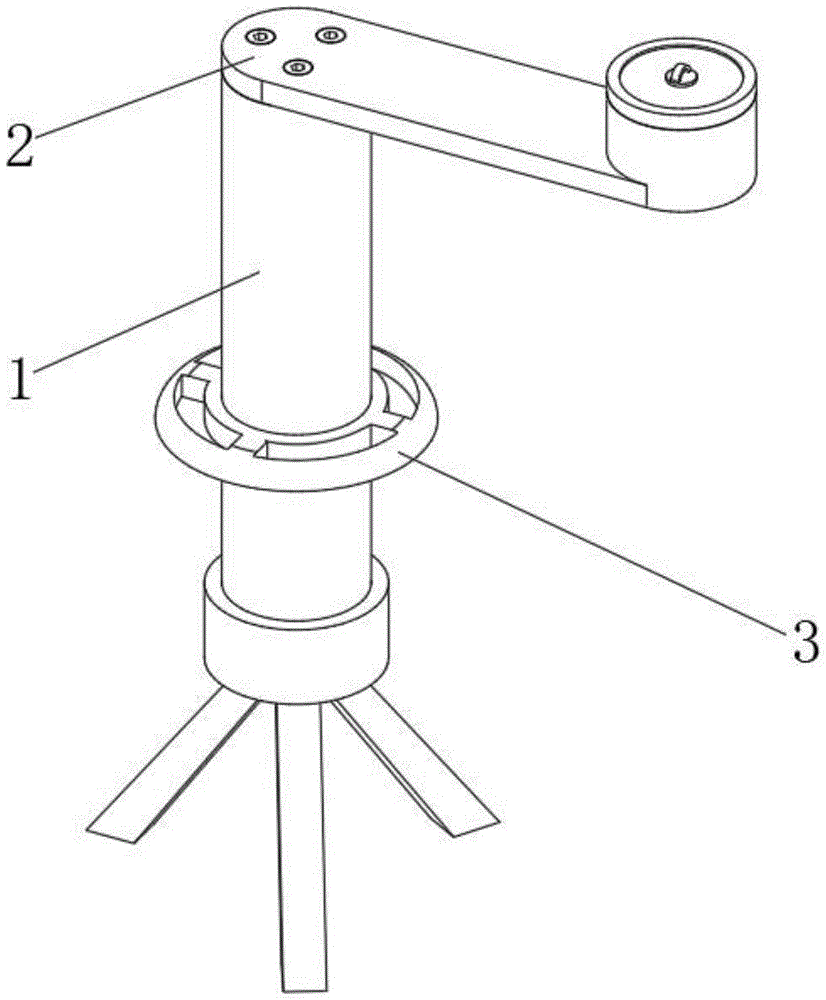

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the partial explosion structure of FIG. 1 according to the present invention;
fig. 3 is a schematic view of the bottom explosion structure of fig. 1 according to the present invention.
In the figure: 1. a support pillar; 2. a connecting plate; 3. a turntable; 4. placing the cylinder; 5. a cylinder cover; 6. a transparent plate; 7. a pull ring; 8. a connecting cylinder; 9. supporting legs; 10. a light hole; 11. a threaded hole; 12. and (4) bolts.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example one
Referring to fig. 1-3, a choline dihydrogen citrate concentration transposition device comprises a support column 1, wherein a connecting plate 2 is arranged at the upper end of the support column 1, a rotary disc 3 is fixedly connected at the middle end of the support column 1, a connecting cylinder 8 is rotatably connected at the lower end of the support column 1, and a plurality of support legs 9 are fixedly arranged at the bottom of the connecting cylinder 8;
furthermore, a placing cylinder 4 is fixedly arranged at the position of one side edge of the connecting plate 2, a cylinder cover 5 is movably arranged at the upper end part of the placing cylinder 4, a circular groove is formed in the cylinder cover 5, a transparent plate 6 is fixedly arranged in the circular groove, and a pull ring 7 is fixedly arranged at the position of the center of the upper end part of the transparent plate 6;
further, 8 bottom fixed mounting of connecting cylinder have a plurality of supporting legs 9, and during the use of the device, inside the operator inserted 8 connecting cylinders with support column 1 earlier, later put into the material and place a section of thick bamboo 4 inside, rotate carousel 3 again, and then the rotation of carousel 3 drives connecting plate 2 and does the transposition removal, when damage appears in the device or needs wash, dismantles bolt 12 get off, and then can take off connecting plate 2 and do further work.
Example two
Based on the first embodiment, as shown in fig. 1-3, the upper end of the supporting column 1 is provided with a plurality of threaded holes 11, the other side edge of the connecting plate 2 is provided with a plurality of unthreaded holes 10, and the bolts 12 penetrate through the unthreaded holes 10 and are in threaded connection with the threaded holes 11.
The working principle is as follows: when the device is used, an operator firstly inserts the support column 1 into the connecting cylinder 8, then puts the material into the placing cylinder 4, then rotates the turntable 3, and further the rotation of the turntable 3 drives the connecting plate 2 to do transposition movement;
according to the arrangement, the supporting column 1 can be directly inserted into the connecting cylinder 8, and then the rotating disc 3 is rotated to drive the supporting column 1 to rotate, so that the connecting plate 2 can realize transposition movement, the whole structure is divided into three structures, the operation is convenient, the cost is low, and the working efficiency is further improved;
when the device is damaged or needs to be cleaned, the bolt 12 is disassembled, and the connecting plate 2 can be taken down for further work;
this kind of setting through the bolt 12 that sets up, can make support column 1 and 2 threaded connection structures as an organic whole of connecting plate, if damage appears in the device or when needing to wash, dismantles bolt 12, and then can come two structure splits, is convenient for wash appointed structure.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
