Abstract
本实用新型公开了一种新型JP柜，包括JP柜体，JP柜体的底部固定设置有垫高防潮基座，垫高防潮基座的内部开设有防潮空腔，JP柜体内壁一侧的两端均开设有调距安装滑槽，两个调距安装滑槽的一侧分别与多个安装板的两端滑动连接，多个安装板的正面均开设有若干个安装螺孔，本实用新型一种新型JP柜，该JP柜的内部具备灵活可变的安装结构，使用者能够根据实际情况，灵活的调整内部元件的安装位置，使用方便快捷，具备优良的散热能力，长时间使用后能够，能够自动快速对柜内元件进行降温，保障其工作性能的温度，在发生火灾时，能够及时对外界进行报警提示，并做出相应的灭火处理，安全性能较高，同时还具备防潮性能。
The utility model discloses a new type of JP cabinet, comprising a JP cabinet body, the bottom of the JP cabinet body is fixedly provided with a raised moisture-proof base, the interior of the raised moisture-proof base is provided with a moisture-proof cavity, and the inner wall of the JP cabinet is provided with a moisture-proof cavity. Both ends are provided with distance-adjustable installation chutes, one side of the two distance-adjusted installation chutes are respectively slidably connected to both ends of a plurality of installation plates, and a number of installation screw holes are opened on the front of the plurality of installation plates. A new type of JP cabinet, the interior of the JP cabinet has a flexible and variable installation structure, the user can flexibly adjust the installation position of the internal components according to the actual situation, the use is convenient and fast, and it has excellent heat dissipation capacity. It can automatically and quickly cool down the components in the cabinet to ensure the temperature of its working performance. In the event of a fire, it can promptly alert the outside world and make corresponding fire extinguishing treatments, with high safety performance and moisture-proof performance. .
Description
Technical Field
The utility model relates to a JP cabinet technical field specifically is a novel JP cabinet.
Background
The JP cabinet is called a distribution transformer comprehensive power distribution cabinet, the JP cabinet is only short for short, and along with continuous transformation and deepening of rural power grid transformation, most of the JP cabinets are used in rural power lines and distribution station areas. The JP cabinet is designed for standardizing, miniaturizing and adapting outdoor low-voltage distribution equipment in rural areas, and integrates metering, distribution, protection (short circuit, overload, snow protection and electric leakage), capacitance compensation and the like. The main functions of the JP cabinet are generally suitable for factories, industrial and mining enterprises, chemical enterprises, large steel plants, transformer substations, cells, large power plants, petroleum, high-rise building power centers, reactive compensation, metering, electric energy distribution and other occasions, and the JP cabinet also has the protection functions of circuit breakers, metering, lightning protection, overload, short circuit, phase failure, electric leakage and the like, and is safe and wide.
The inside component mounting means tradition of current JP cabinet is fixed, can not carry out nimble adjustment according to actual installation condition, and after long-time the use, the radiating effect is not good, and it is serious to generate heat, and the security performance is not high, when the conflagration appearing, can not in time put out a fire fast to incasement component, and does not have humidity resistance, and life is lower relatively.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel JP cabinet to the inside component mounting means tradition of the current JP cabinet that proposes in solving above-mentioned background art is fixed, can not carry out nimble adjustment according to the actual installation condition, uses the back for a long time, and the radiating effect is not good, and it is serious to generate heat, and the security performance is not high, when the conflagration appears, can not in time put out a fire fast to incasement component, and does not possess humidity resistance, the relatively lower problem of life.
In order to achieve the above object, the utility model provides a following technical scheme: a novel JP cabinet comprises a JP cabinet body, wherein a heightening moisture-proof base is fixedly arranged at the bottom of the JP cabinet body, a moisture-proof cavity is formed in the heightening moisture-proof base, distance-adjusting mounting sliding grooves are respectively formed in two ends of one side of the inner wall of the JP cabinet body, one side of each of the two distance-adjusting mounting sliding grooves is respectively connected with two ends of a plurality of mounting plates in a sliding manner, a plurality of mounting screw holes are respectively formed in the front surfaces of the mounting plates, a controller is fixedly arranged on one side of one mounting screw hole, a temperature sensor is fixedly arranged on one side of the controller, a fire smoke alarm is fixedly arranged at the center of one side of the inner wall of the JP cabinet body, a heat-radiating fan is fixedly arranged at the bottom of one side of the inner wall of the JP cabinet body, a JP cabinet door is hinged to one side of the front surface of the JP cabinet body, an observation window is fixedly arranged at the top of one side of the JP cabinet door, and a plurality of heat-radiating through holes are formed in the bottom of one side of the JP cabinet door, the utility model discloses a JP cabinet body, including JP cabinet body, fixed one side at JP cabinet body inner wall top is provided with the fire extinguisher, the fixed extrusion switch-on handle that is provided with in top of fire extinguisher one end, the opposite side fixed mounting at JP cabinet body inner wall top has electric telescopic handle, electric telescopic handle's bottom and the top fixed connection of extrusion switch-on handle, the fixed reducing shower nozzle that is provided with in bottom of fire extinguisher one end.
As an optimal technical scheme of the utility model, the communicating moisture absorption through-hole of a plurality of and dampproofing cavity is seted up to the bottom of the internal wall of JP cabinet, just the inside packing of dampproofing cavity has solid dampproof agent.
As an optimal technical scheme of the utility model, it is a plurality of the top of mounting panel is all fixed and is provided with a plurality of heat dissipation sheet metal.
As an optimal technical scheme of the utility model, a plurality of the equal threaded connection in both ends of mounting panel has locking bolt.
As an optimal technical scheme of the utility model, fire hazard smoke detection alarm, electric telescopic handle, temperature sensor and radiator fan all with controller electric connection, the controller is through external switch and power electric connection.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the JP cabinet is internally provided with a flexible and variable mounting structure, a user can flexibly adjust the mounting position of an internal element according to actual conditions, the JP cabinet is convenient and rapid to use and has excellent heat dissipation capacity, and after the JP cabinet is used for a long time, the temperature of the internal element in the cabinet can be automatically and rapidly reduced, so that the temperature of the working performance of the JP cabinet is guaranteed;
2. when a fire disaster happens, the fire extinguishing device can give an alarm to the outside in time and perform corresponding fire extinguishing treatment, has higher safety performance, and simultaneously has moisture resistance, and the service life of internal elements of the fire extinguishing device is prolonged to a certain degree.
Drawings

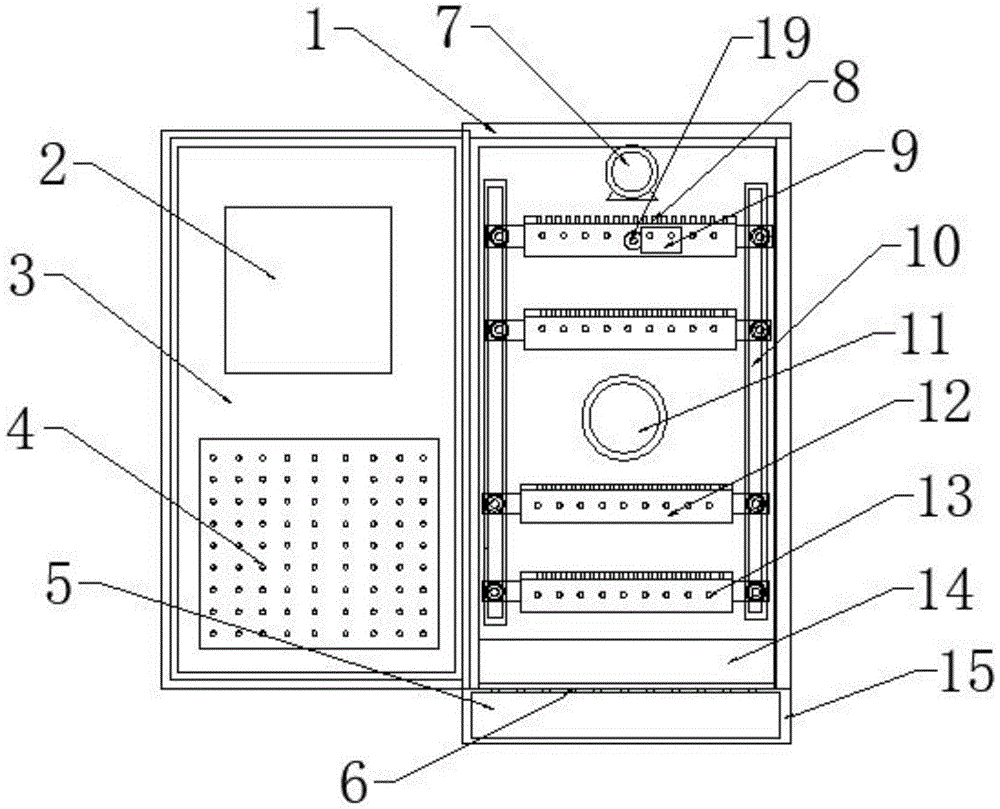

FIG. 1 is a schematic structural view of a main body of the present invention in front view;
FIG. 2 is a schematic structural view of a main body side view cross section of the present invention;
fig. 3 is a schematic view of the appearance structure of the mounting plate of the present invention;
fig. 4 is an enlarged schematic structural view of part a of the present invention.
In the figure: 1. a JP cabinet body; 2. an observation window; 3. a JP cabinet door; 4. a heat dissipating through hole; 5. a moisture-proof cavity; 6. moisture absorption through holes; 7. a fire extinguisher; 8. a heat-dissipating sheet; 9. a controller; 10. adjusting distance and installing a sliding chute; 11. a fire smoke alarm; 12. mounting a plate; 13. mounting a screw hole; 14. a heat radiation fan; 15. heightening the damp-proof base; 16. a variable diameter nozzle; 17. an electric telescopic rod; 18. locking the bolt; 19. a temperature sensor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the utility model provides a novel JP cabinet, which comprises a JP cabinet body 1, wherein the bottom of the JP cabinet body 1 is fixedly provided with a heightening moisture-proof base 15, the interior of the heightening moisture-proof base 15 is provided with a moisture-proof cavity 5, both ends of one side of the inner wall of the JP cabinet body 1 are respectively provided with distance-adjusting mounting chutes 10, one side of the two distance-adjusting mounting chutes 10 is respectively connected with both ends of a plurality of mounting plates 12 in a sliding manner, the front sides of the mounting plates 12 are respectively provided with a plurality of mounting screws 13, one side of one mounting screw 13 is fixedly provided with a controller 9, one side of the controller 9 is fixedly provided with a temperature sensor 19, the center of one side of the inner wall of the JP cabinet body 1 is fixedly provided with a fire smoke sensing alarm 11, the bottom of one side of the inner wall of the JP cabinet body 1 is fixedly provided with a cooling fan 14, one side of the front of the JP cabinet body 1 is hinged with a JP cabinet door 3, the top of one side of the JP cabinet door 3 is fixedly provided with an observation window 2, a plurality of heat dissipation through-hole 4 has been seted up to the bottom of JP cabinet door 3 one side, the fixed fire extinguisher 7 that is provided with in one side at JP cabinet body 1 inner wall top, the fixed extrusion switch-on handle that is provided with in top of fire extinguisher 7 one end, the opposite side fixed mounting at JP cabinet body 1 inner wall top has electric telescopic handle 17, the bottom of electric telescopic handle 17 and the top fixed connection of extrusion switch-on handle, the fixed reducing shower nozzle 16 that is provided with in bottom of fire extinguisher 7 one end.
Preferably, the bottom of the inner wall of the JP cabinet body 1 is provided with a plurality of moisture absorption through holes 6 communicated with the moisture-proof cavity 5, and the solid moisture-proof agent is filled in the moisture-proof cavity 5, so that the JP cabinet body 1 has moisture-proof performance, and the service life of the internal elements of the JP cabinet body is prolonged to a certain extent.
Preferably, the top of a plurality of mounting panel 12 all is fixed and is provided with a plurality of heat dissipation sheet metal 8, increases the heat-sinking capability of the JP cabinet body, can cool down the interior component of cabinet automatically fast after using for a long time, ensures its working property's temperature.
Preferably, both ends of the plurality of mounting plates 12 are in threaded connection with locking bolts 18, so that a user can flexibly adjust the mounting positions of internal elements according to actual conditions, and the use is convenient and quick.
Preferably, the fire smoke detection alarm 11, the electric telescopic rod 17, the temperature sensor 19 and the cooling fan 14 are all electrically connected with the controller 9, the controller 9 is electrically connected with a power supply through an external switch, the controller 9 is DKC-1A in model, the temperature sensor 19 is PT100 in model, the fire smoke detection alarm 11 is OWY-GD-868 in model, the structure is simple and reasonable, when a fire disaster occurs, the alarm prompt can be timely given to the outside, corresponding fire extinguishing treatment is carried out, and the safety performance is high.
When the novel JP cabinet is used, firstly, the JP cabinet body 1 is placed stably, then the locking bolts 18 can be sequentially unscrewed, the distance between the mounting plates 12 can be flexibly adjusted according to actual mounting conditions, after the adjustment is finished, the locking bolts 18 are sequentially screwed down to fix the mounting plates 12, then, a worker can install the normal mounting mode of the elements in the JP cabinet to install the elements, the heightening moisture-proof base 15 increases the ground clearance of the JP cabinet body 1, reduces moisture, the solid moisture-proof agent in the moisture-proof cavity 5 can increase the moisture-proof performance of the JP cabinet body 1, prolongs the service life of the elements in the JP cabinet body to a certain degree, after long-time use, when the temperature is higher, the temperature sensor 19 can sense action, the heat radiation fan 14 is electrified to work through the controller 9 to accelerate heat radiation, when a fire disaster occurs, the fire smoke detector 11 can be right, and can timely give an alarm to the outside, meanwhile, the controller 9 is used for electrifying the electric telescopic rod 17 to work, extruding and extruding to connect the handle, so that the fire extinguisher 7 is used for extinguishing fire through the reducing nozzle 16, and the safety performance is higher, and the practical value is very high.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (5)
1. The utility model provides a novel JP cabinet, includes the JP cabinet body (1), its characterized in that: the improved fire hazard prevention and treatment device is characterized in that a heightening damp-proof base (15) is fixedly arranged at the bottom of the JP cabinet body (1), a damp-proof cavity (5) is formed in the heightening damp-proof base (15), distance adjusting mounting sliding grooves (10) are formed in two ends of one side of the inner wall of the JP cabinet body (1), one sides of the two distance adjusting mounting sliding grooves (10) are respectively in sliding connection with two ends of a plurality of mounting plates (12), a plurality of mounting screw holes (13) are formed in the front of the mounting plates (12), a controller (9) is fixedly mounted on one side of each mounting screw hole (13), a temperature sensor (19) is fixedly mounted on one side of the controller (9), a fire hazard smoke sensing alarm (11) is fixedly mounted at the center of one side of the inner wall of the JP cabinet body (1), a cooling fan (14) is fixedly mounted at the bottom of one side of the inner wall of the JP cabinet body (1), and a JP cabinet door (3) is hinged to one side of the front of the JP cabinet body (1), the fixed observation window (2) that is provided with in top of JP cabinet door (3) one side, a plurality of heat dissipation through-hole (4) have been seted up to the bottom of JP cabinet door (3) one side, the fixed fire extinguisher (7) that is provided with in one side at JP cabinet body (1) inner wall top, the fixed extrusion switch-on handle that is provided with in top of fire extinguisher (7) one end, the opposite side fixed mounting at JP cabinet body (1) inner wall top has electric telescopic handle (17), the bottom and the top fixed connection of extrusion switch-on handle of electric telescopic handle (17), the fixed reducing shower nozzle (16) that is provided with in bottom of fire extinguisher (7) one end.
2. A novel JP cabinet according to claim 1, wherein: the bottom of the inner wall of the JP cabinet body (1) is provided with a plurality of moisture absorption through holes (6) communicated with the moisture-proof cavity (5), and the moisture-proof cavity (5) is filled with a solid moisture-proof agent.
3. A novel JP cabinet according to claim 1, wherein: the top of the mounting plates (12) is fixedly provided with a plurality of heat dissipation thin plates (8).
4. A novel JP cabinet according to claim 1, wherein: the two ends of the mounting plates (12) are in threaded connection with locking bolts (18).
5. A novel JP cabinet according to claim 1, wherein: fire smoke detects alarm (11), electric telescopic handle (17), temperature sensor (19) and radiator fan (14) all with controller (9) electric connection, controller (9) are through external switch and power electric connection.
