CN214069138U

CN214069138U - Chemical plant workshop is with good switch board group of leakproofness

Info

Publication number: CN214069138U
Application number: CN202022285867.XU
Authority: CN
Inventors: 纪晓峰
Original assignee: Wuhan Zhengdingyuan Electrical Automation Co ltd
Current assignee: Wuhan Zhengdingyuan Electrical Automation Co ltd
Priority date: 2020-10-14
Filing date: 2020-10-14
Publication date: 2021-08-27
Anticipated expiration: 2030-10-14

Abstract

The utility model relates to the technical field of control cabinets, and specifically discloses a control cabinet group with good sealing performance for a chemical plant workshop, which comprises a cabinet body, and a sealing frame is fixedly connected to the right side of the back of the cabinet body through hinges, and the sealing The inner wall of the frame is provided with a U-shaped fitting groove on the side, the inner wall of the fitting groove is fitted with a fitting plate, and the upper end of the fitting plate is fixedly connected with an L-shaped plate; the utility model adopts the transmission mechanism in the device, The matching connecting rod is threadedly connected with the transmission mechanism and penetrates the L-shaped plate, so that the L-shaped plate can be vertically raised under the operation of the transmission mechanism, and then the roller is attached to the upper right corner of the cabinet and fitted with the L-shaped plate, thereby The L-shaped plate can be raised and rotated to achieve the effect of opening the door of the control cabinet, and the fitting groove opened on the sealing frame in the device can fit the fitting plate connected by the L-shaped plate, so that the control The cabinet will not shift after long-term use.

Description

Chemical plant workshop is with good switch board group of leakproofness

Technical Field

The utility model relates to a switch board technical field specifically is a good switch board group of leakproofness for chemical plant workshop.

Background

The control cabinet is formed by assembling switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the electrical wiring requirements, and the arrangement of the control cabinet meets the requirements of normal operation of an electric power system, is convenient to overhaul and does not endanger the safety of people and surrounding equipment. The existing control cabinet is basically a cabinet door which is opened in a single-opening or double-opening mode, the cabinet door of the control cabinet is easy to deviate in the opening mode under long-time use, and therefore the sealing performance of the control cabinet is reduced, and the requirement that the control cabinet with the reduced sealing performance cannot meet the use requirement in some chemical engineering workshops is met.

SUMMERY OF THE UTILITY MODEL

The utility model provides a not enough to prior art, the utility model provides a chemical plant is good switch board group of leakproofness for workshop possesses the advantage such as that the skew appears in the long-time use of avoiding the switch board, has solved the problem that the skew appears easily in the cabinet door of switch board.

The utility model discloses a chemical plant workshop is with control cabinet group that leakproofness is good, including the cabinet body, the right side at the cabinet body back is through hinge fixedly connected with seal frame, seal frame right side fixedly connected with openly is curved guide plate, the inner wall of seal frame is seted up the side and is regarded as the groove that agrees with of U-shaped, the inner wall laminating of agreeing with the groove has agreeing with the board, agree with the upper end fixedly connected with L shaped plate of board, the surface that the cabinet body openly is close to the right side installs drive mechanism through the pivot is vertical, drive mechanism's carousel central authorities fixedly connected with motor, drive mechanism's conveyer belt is made for rubber, the surface of conveyer belt is equipped with the fixed block, and the surface screw thread of this fixed block has the connecting rod, the right-hand member of connecting rod runs through L shaped plate and outwards extends, the upper right corner of the cabinet body is connected with the cylinder with the horizontal direction rotation, the surface of cylinder is laminated with the inboard of L shaped plate mutually, through drive mechanism among the device, cooperation connecting rod and drive mechanism threaded connection run through the L shaped plate, reached and to have made the L shaped plate vertically rise under drive mechanism's operation, cooperate the cylinder again in the upper right corner of the cabinet body and laminate mutually with the L shaped plate, thereby can make the L shaped plate rise the back and rotate, thereby reach the effect of opening the switch board cabinet door, and the groove of agreeing with of seting with on the sealing frame among the device, the board of agreeing with that can make the L shaped plate connect agrees with, thereby so that this switch board is after long-time use, the skew can not appear, thereby make this switch board more can be applicable to the place that needs the seal such as some chemical plants.

The utility model discloses a chemical plant workshop is with control cabinet group that leakproofness is good, wherein the horizontal fixedly connected with closing plate of left end of L shaped plate, the laminating groove has been seted up on the surface that cabinet body top is close to the right side, the inner wall fixedly connected with in laminating groove is sealed fills up, sealed upper surface of filling up is laminated with the bottom surface of closing plate mutually, has played the better effect of the sealed of messenger L shaped plate and the cabinet body.

The utility model discloses a chemical plant workshop is with good switch board group of leakproofness, wherein the right-hand member threaded connection of connecting rod has the handle, the right side that the handle is close to top and bottom runs through there is adjusting screw, the screw hole with adjusting screw looks adaptation is seted up on the surface of L shaped plate, adjusting screw and the inner wall threaded connection of screw hole have played the effect that can make the L shaped plate break away from drive mechanism control.

The utility model discloses a chemical plant is good control cabinet group of leakproofness for workshop, wherein the vertical fixedly connected with protective housing in the positive upper right corner of the cabinet body, drive mechanism is located the inside of protective housing, the protective housing is close to the motor box of positive fixedly connected with of bottom, the motor is located the inside of motor box, has played the effect of protecting motor and drive mechanism.

The utility model discloses a chemical plant workshop is with good switch board group of leakproofness, wherein the border fixedly connected with hasp on cabinet body right side, the positive fixedly connected with of sealed frame and the buckle of hasp looks adaptation have played the effect of fixed sealed frame position on the cabinet body.

The utility model discloses a chemical plant is good switch board group of leakproofness for workshop, wherein the carousel that is located the top among the drive mechanism is through pivot fixed connection in the upper right corner of the cabinet body, has reached and can make the L shaped plate carry out rotatory effect through the cooperation cylinder.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a drive mechanism among the device, cooperation connecting rod and drive mechanism threaded connection run through the L shaped plate, reached and to have made the L shaped plate vertically rise under drive mechanism's operation, the cylinder of deuterogamying is in the upper right corner of the cabinet body and laminate mutually with the L shaped plate, thereby can make the L shaped plate rise the back and rotate, thereby reach the effect of opening the switch board cabinet door, and the groove of agreeing with of seting up on the sealed frame among the device, the board of agreeing with that can make the L shaped plate connect agrees with, thereby so that this switch board is after long-time use, the skew can not appear, thereby make this switch board more can be applicable to the place that needs the seal such as some chemical plants.

2. The utility model discloses well seal frame makes through hinge and cabinet body coupling, and the setting of cooperation hasp, can make seal frame open with the mode that the list opened the door, the rethread connecting rod is fixed on hand and is agreed with drive mechanism behind running through the L shaped plate, the screw hole threaded connection that the cooperation handle passes through adjusting screw and L shaped plate, thereby can reach when adjusting screw adjusts the back, make handle and L shaped plate keep away from, can drive the effect that the connecting rod breaks away from drive mechanism promptly, the device has remain the mode that the list opened the door and opened, thereby can avoid drive mechanism to break down the condition emergence that influences the interior maintenance of switch board after taking place.

Drawings

The accompanying drawings, which are included to provide a further understanding of the application and are incorporated in and constitute a part of this application, illustrate embodiment(s) of the application and together with the description serve to explain the application and not to limit the application. In the drawings:

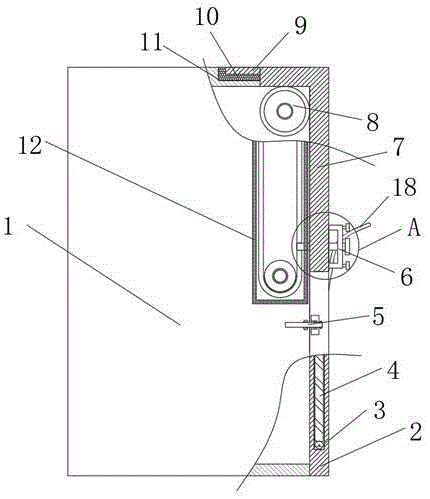

FIG. 1 is a front half-sectional view of the present invention;

FIG. 2 is a schematic side view of the present invention;

fig. 3 is an enlarged schematic view of a portion a in fig. 1.

In the figure: 1. a cabinet body; 2. a sealing frame; 3. a fitting groove; 4. a wedging plate; 5. locking; 6. a handle; 7. an L-shaped plate; 8. a drum; 9. a sealing plate; 10. a gasket; 11. a fitting groove; 12. a protective shell; 13. a transmission mechanism; 14. a connecting rod; 15. adjusting the screw rod; 16. a motor; 17. a motor box; 18. A guide plate.

Detailed Description

In the following description, numerous implementation details are set forth in order to provide a more thorough understanding of the present invention. It should be understood, however, that these implementation details should not be used to limit the invention. That is, in some embodiments of the invention, details of these implementations are not necessary. In addition, some conventional structures and components are shown in simplified schematic form in the drawings.

In addition, the descriptions related to "first", "second", etc. in the present invention are only for description purposes, not specifically referring to the order or sequence, and are not intended to limit the present invention, but only to distinguish the components or operations described in the same technical terms, and are not to be construed as indicating or implying any relative importance or implicit indication of the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, the technical solutions in the embodiments may be combined with each other, but it must be based on the realization of those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should not be considered to exist, and is not within the protection scope of the present invention.

Referring to fig. 1-3, the utility model discloses a control cabinet set with good sealing performance for chemical plant workshop, which comprises a cabinet body 1, the right side of the back of the cabinet body 1 is fixedly connected with a sealing frame 2 through a hinge, the right side of the sealing frame 2 is fixedly connected with a guide plate 18 with an arc front, the inner wall of the sealing frame 2 is provided with a conjunction groove 3 with a U-shaped side, the inner wall of the conjunction groove 3 is jointed with a conjunction plate 4, the upper end of the conjunction plate 4 is fixedly connected with an L-shaped plate 7, the surface of the cabinet body 1 near the right side is vertically provided with a transmission mechanism 13 through a rotating shaft, the center of a rotating disc of the transmission mechanism 13 is fixedly connected with a motor 16, the conveying belt of the transmission mechanism 13 is made of rubber, the surface of the conveying belt is provided with a fixed block, the surface thread of the fixed block is provided with a connecting rod 14, the right end of the connecting rod 14 penetrates through the L-shaped plate 7 and extends outwards, the upper right corner of the cabinet body 1 is rotatably connected with a roller 8 in the horizontal direction, the surface of the roller 8 is attached to the inner side of the L-shaped plate 7, through the transmission mechanism 13 in the device, the connecting rod 14 is matched with the transmission mechanism 13 in a threaded connection mode and penetrates through the L-shaped plate 7, the purpose that the L-shaped plate 7 can vertically ascend under the operation of the transmission mechanism 13 is achieved, the roller 8 is matched with the right upper corner of the cabinet body 1 and is attached to the L-shaped plate 7, the L-shaped plate 7 can ascend and rotate, the effect of opening a cabinet door of the control cabinet is achieved, the engagement groove 3 formed in the sealing frame 2 in the device can enable the engagement plate 4 connected with the L-shaped plate 7 to be engaged, the control cabinet can be used for a long time, deviation cannot occur, and the control cabinet can be suitable for places needing tightness, such as chemical plants.

The horizontal fixedly connected with closing plate 9 of left end of L shaped plate 7, the laminating groove 11 has been seted up on the surface that the cabinet body 1 top is close to the right side, and the sealed pad 10 of inner wall fixedly connected with in laminating groove 11, the upper surface of sealed pad 10 and the bottom surface of closing plate 9 laminate mutually, have played the better effect of the sealed of messenger L shaped plate 7 and the cabinet body 1.

The right-hand member threaded connection of connecting rod 14 has handle 6, and handle 6 runs through adjusting screw 15 near the right side of top and bottom, and the screw hole with adjusting screw 15 looks adaptation is seted up on the surface of L shaped plate 7, and adjusting screw 15 and the inner wall threaded connection of screw hole have played the effect that can make L shaped plate 7 break away from drive mechanism 13 control.

The vertical fixedly connected with protective housing 12 in the upper right corner of cabinet body 1 front, drive mechanism 13 are located the inside of protective housing 12, and protective housing 12 is close to the bottom in front fixedly connected with motor box 17, and motor 16 is located the inside of motor box 17, has played the effect of protecting motor 16 and drive mechanism 13.

The border fixedly connected with hasp 5 on the cabinet body 1 right side, the positive fixedly connected with of sealed frame 2 and the buckle of 5 looks adaptations of hasp have played the effect of fixed sealed frame 2 position on the cabinet body 1.

The turntable above the transmission mechanism 13 is fixedly connected to the upper right corner of the cabinet body 1 through a rotating shaft, so that the L-shaped plate 7 can rotate through the matching roller 8.

When using the utility model discloses the time: if the cabinet door of the control cabinet needs to be opened, the motor 16 needs to be started, so that the motor 16 drives the transmission mechanism 13 to rotate, the transmission mechanism 13 can penetrate through the L-shaped plate 7 through the connecting rod 14 and is matched with the transmission mechanism 13 to drive the L-shaped plate 7 to ascend, the ascending of the L-shaped plate 7 can drive the matching plate 4 to be separated from the sealing frame 2, and the L-shaped plate ascends along the motion track of the transmission mechanism 13, so that the effect of opening the control cabinet can be achieved; when the device's drive mechanism 13 became invalid, the staff can be through rotatory adjusting screw 15 and connecting rod 14 to make adjusting screw 15 rotatory in the screw hole of L shaped plate 7, can make handle 6 drive connecting rod 14 and drive mechanism 13 break away from mutually, thereby make connecting rod 14 and drive mechanism 13 break away from, then open the hasp 5 of restriction seal frame 2, thereby can make this switch board open the cabinet door with the mode of flat-open.

The above description is only an embodiment of the present invention, and is not intended to limit the present invention. For those skilled in the art, the present invention is equally applicable to other alternatives, modifications, and the like, which are also intended to be included within the scope of the appended claims.

Claims

1. The utility model provides a chemical plant workshop is with good switch board group of leakproofness, includes the cabinet body (1), its characterized in that: the cabinet is characterized in that a sealing frame (2) is fixedly connected to the right side of the back face of the cabinet body (1) through a hinge, a guide plate (18) which is arc-shaped is fixedly connected to the right side face of the sealing frame (2), a conjunction groove (3) which is U-shaped in side view is formed in the inner wall of the sealing frame (2), a conjunction plate (4) is attached to the inner wall of the conjunction groove (3), an L-shaped plate (7) is fixedly connected to the upper end of the conjunction plate (4), a transmission mechanism (13) is vertically installed on the surface of the front side of the cabinet body (1) through a rotating shaft, a motor (16) is fixedly connected to the center of a rotating disc of the transmission mechanism (13), a conveying belt of the transmission mechanism (13) is made of rubber, a fixed block is arranged on the surface of the conveying belt, a connecting rod (14) is arranged on the surface of the fixed block, the upper right corner of the cabinet body (1) is connected with a roller (8) in a rotating mode in the horizontal direction, and the surface of the roller (8) is attached to the inner side of the L-shaped plate (7).

2. The control cabinet group with good sealing performance for the chemical plant workshop as claimed in claim 1, wherein: the left end horizontal fixedly connected with closing plate (9) of L shaped plate (7), laminating groove (11) have been seted up on the surface that the cabinet body (1) top is close to the right side, the sealed pad (10) of inner wall fixedly connected with of laminating groove (11), the upper surface of sealed pad (10) is laminated with the bottom surface of closing plate (9) mutually.

3. The control cabinet group with good sealing performance for the chemical plant workshop as claimed in claim 1, wherein: the right-hand member threaded connection of connecting rod (14) has handle (6), adjusting screw (15) have been run through on handle (6) near the right side of top and bottom, the screw hole with adjusting screw (15) looks adaptation is seted up on the surface of L shaped plate (7), adjusting screw (15) and the inner wall threaded connection of screw hole.

4. The control cabinet group with good sealing performance for the chemical plant workshop as claimed in claim 1, wherein: the cabinet body (1) is the vertical fixedly connected with protective housing (12) in the upper right corner of front, drive mechanism (13) are located the inside of protective housing (12), protective housing (12) are close to the bottom at front fixedly connected with motor box (17), motor (16) are located the inside of motor box (17).

5. The control cabinet group with good sealing performance for the chemical plant workshop as claimed in claim 1, wherein: the edge fixedly connected with hasp (5) on the cabinet body (1) right side, the positive fixedly connected with of sealed frame (2) and the buckle of hasp (5) looks adaptation.

6. The control cabinet group with good sealing performance for the chemical plant workshop as claimed in claim 1, wherein: the turntable positioned above the transmission mechanism (13) is fixedly connected to the upper right corner of the cabinet body (1) through a rotating shaft.
