Abstract
本实用新型公开了一种多功能锅炉灶装置，属于锅炉灶技术领域。它包括灶台面、灶台箱体、底座、清灰抽屉、风机、水介质热交换器和接口箱，灶台面为方形板体，其中心处开有锅体盛放口；灶台面下方固定连接有灶台箱体，灶台箱体的下方固定连接有底座，底座内部连接着方形槽体的清灰抽屉；在底座的侧方固定连接有风机，风机通过连接管道与灶台箱体的内部空间相通；在灶台箱体内部空间中的两侧和前方位置均布置连接有弧形的水介质热交换器，弧形的水介质热交换器下方布置连接着水平放置的水介质热交换器，水介质热交换器为普通的寸管结构；在灶台箱体的一侧连接着接口箱，接口箱再连接着热炕取暖连接管。本实用新型方便实用，功能多样，节能环保。
The utility model discloses a multifunctional pot stove device, which belongs to the technical field of pot stoves. It includes a cooktop, a cooktop box, a base, a ash-cleaning drawer, a fan, a water medium heat exchanger and an interface box. There is a cooktop box, the bottom of the cooktop box is fixedly connected with a base, and the inside of the base is connected with a ash cleaning drawer of a square tank body; a fan is fixedly connected to the side of the base, and the fan is connected to the interior of the cooktop box through a connecting pipe The spaces are connected; the arc-shaped water medium heat exchangers are arranged and connected to the two sides and the front of the interior space of the cooktop box, and the horizontally placed water medium heat exchangers are arranged below the arc-shaped water medium heat exchangers. , the water medium heat exchanger is a common inch tube structure; an interface box is connected to one side of the cooktop box, and the interface box is connected to a heating kang heating connection pipe. The utility model is convenient and practical, has various functions, and is energy-saving and environment-friendly.
Description
Technical Field
The utility model relates to a multifunctional boiler stove device belongs to boiler stove technical field.
Background
In the rural areas in the north in winter, the weather is colder, most square families choose to use the heated brick bed to get warm, the heated brick bed is connected with the hearth usually, just heat the heated brick bed when using the firewood to generate heat and cook, but the heating area of heated brick bed is limited, it is far away not enough near the heated brick bed, and the speed that the firewood intensifies temperature is also not fast, it is not convenient enough to use, waste time and energy, and the environmental protection effect is also not ideal enough, also not clean and sanitary enough, the security is not high, the function is single, its burning is also not abundant, combustion efficiency is low, influence the indoor environment, indirectly influenced people's healthy, and can't reach the requirement of using biomass fuel.
SUMMERY OF THE UTILITY MODEL
In order to overcome the not enough of prior art, the utility model provides a multifunctional boiler stove device, the device are applicable to and use in the chilly rural family in the north winter, convenient and practical, and the function is various, and is energy-concerving and environment-protective, satisfies the needs of heating installation heating, hot kang heating, diet and biomass fuel's operation requirement.
The utility model provides a technical scheme that its technical problem adopted is: a multifunctional boiler stove device comprises a stove table top, a stove box body, a base, an ash removal drawer, a fan, an aqueous medium heat exchanger and a connector box.
The kitchen range top is a square plate body, and a round pot body containing opening is formed in the center of the kitchen range top; a funnel-shaped hearth box body is fixedly connected below the hearth surface, a base is fixedly connected below the hearth box body, and an ash removal drawer of a square groove body is connected inside the base; a fan is fixedly connected to the side of the base and is communicated with the inner space of the hearth box body through a connecting pipeline; arc-shaped water medium heat exchangers are uniformly arranged and connected at the two sides and the front position in the internal space of the hearth box body, the horizontally arranged water medium heat exchangers are arranged and connected below the arc-shaped water medium heat exchangers, and the water medium heat exchangers are of a common small-diameter pipe structure; one side of the hearth box body is connected with a square interface box, and the interface box is connected with a round heated kang heating connecting pipe.
The upper surface of the interface box is provided with a circular flue port which can be opened and closed, and a heating air heating water inlet and a heating air heating water outlet which are connected with the aqueous medium heat exchanger are arranged in the interface box.
The fuel used by the multifunctional boiler stove device is straw briquettes, the straw briquettes belong to biomass fuel, crop straws in farmlands are made into briquettes, then the straw briquettes are placed in a stove box body and are placed above a horizontal water medium heat exchanger, water medium enters from a heating water inlet of a heating system and flows out from a heating water outlet of the heating system to enter household heating system, and water circulation is formed; after the straw briquettes are ignited, the water medium heat exchanger is heated by heat generated by combustion of the straw briquettes, and the temperature of a cold water medium in the water medium heat exchanger is increased, so that the heat is transferred from a hot fluid to a cold fluid, and the heat is replaced by the water medium heat exchanger, and the requirement of heating of a house in the daytime is met.
The hot kang heating connecting pipe connected with the interface box is communicated with a flue of the hot kang, hot air flow generated by the combustion of the straw pressing block gives off heat to adobes when passing through the flue of the hot kang, the adobes are poor conductors of heat, so the temperature of the hot kang can be kept for a long time after being heated, and generated smoke is finally discharged out of a room from a smoke outlet of the hot kang through a chimney; the heating installation heating all is provided with change over switch with the heating of hot heatable brick bed, can not close simultaneously, but can open simultaneously or open one and close, comes the autonomic switching according to the user's demand.
The pot body containing port on the stove table surface is used for containing a pot body for cooking, the straw pressing block burnt in the stove table box body provides heat for the straw pressing block, the arc-shaped water medium heat exchanger avoids interference with the arc bottom of the pot body, the horizontal water medium heat exchanger also plays a role of a grate, and ash after the straw pressing block is burnt can directly fall into the ash cleaning drawer through gaps between the straw pressing block and the ash cleaning drawer, so that the straw pressing block is convenient to clean; the flue opening can be connected with a chimney and can also be closed, the flue opening can be closed in winter, so that the generated hot air flow directly enters the flue of the earthen bed, the flue opening can be directly connected with the chimney in summer, the heating of the heating system and the heated bed is closed, and the flue gas generated during cooking is directly discharged; the biomass straw briquettes are used for combustion, namely the ash removal drawer can be opened to enable the ash removal drawer to be independently combusted, and a fan can be used for supplying air and supplementing oxygen for combustion; when heating or cooking, the temperature is required to be raised in a short time, and the fan can be used for promoting the vigorous combustion of flame; when power is off or the room temperature is high, the fan can be turned off to adopt autonomous combustion.
The utility model has the advantages that: the utility model has the advantages of simple structure and reasonable design, convenient operation, safe practical according to daily life custom, can satisfy the heating of house hot kang, satisfies the heating of house heating installation in the daytime, satisfies the needs that big pot and stove of three meals a day were cooked, satisfies biomass fuel's operation requirement, and the function is various, and it is fast to heat up, and is energy-concerving and environment-protective, sanitation and hygiene, and simple to operate.
Drawings
The present invention will be further described with reference to the accompanying drawings and the following detailed description.

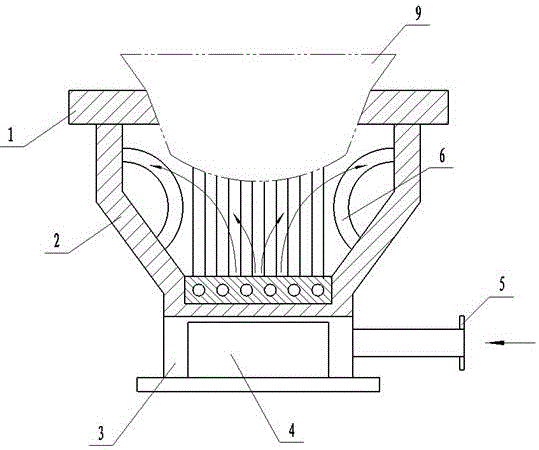

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic top view of the present invention.
Reference numbers in the figures:
1. the heating device comprises a cooking stove table top, 101 a pot body containing opening, 2 a cooking stove box body, 3 a base, 4 an ash removal drawer, 5 a fan, 6 an aqueous medium heat exchanger, 7 an interface box, 701 a flue port, 702 a heating water inlet, 703 a heating water outlet, 8 a heating connection pipe of a heated kang, 9 a pot body.
Detailed Description
As shown in fig. 1-2, a multifunctional boiler stove device comprises a stove top 1, a stove box body 2, a base 3, an ash removal drawer 4, a fan 5, an aqueous medium heat exchanger 6 and a connector box 7, wherein the stove top 1 is a square plate body, and a round pot body accommodating opening 101 is formed in the center of the stove top; a funnel-shaped hearth box body 2 is fixedly connected below the hearth surface 1, a base 3 is fixedly connected below the hearth box body 2, and an ash removal drawer 4 of a square groove body is connected inside the base 3; a fan 5 is fixedly connected to the side of the base 3, and the fan 5 is communicated with the inner space of the hearth box 2 through a connecting pipeline; arc-shaped water medium heat exchangers 6 are uniformly arranged and connected at two sides and the front position in the inner space of the hearth box body 2, the horizontally arranged water medium heat exchangers 6 are arranged and connected below the arc-shaped water medium heat exchangers 6, and the water medium heat exchangers 6 are of a common small-diameter pipe structure; one side of the hearth box body 2 is connected with a square interface box 7, and the interface box 7 is connected with a round heated kang heating connecting pipe 8.
The upper surface of the interface box 7 is provided with a round flue port 701 which can be opened and closed, and a heating air inlet 702 and a heating air outlet 703 which are connected with the aqueous medium heat exchanger 6 are arranged inside the interface box 7.
The fuel used by the multifunctional boiler stove device is straw briquettes, the straw briquettes belong to biomass fuel, crop straws in farmlands are made into briquettes, then the straw briquettes are placed in the stove box body 2 and are placed above the horizontal water medium heat exchanger 6, water medium enters from a heating water inlet 702 of a heating system and flows out from a heating water outlet 703 to enter household heating, and water circulation is formed; after the straw briquettes are ignited, the water medium heat exchanger 6 is heated by heat generated by combustion of the straw briquettes, and the temperature of a cold water medium in the water medium heat exchanger 6 is increased, so that the heat is transferred from a hot fluid to a cold fluid, and the heat is replaced by the water medium heat exchanger 6, and the requirement of heating of a house in the daytime is met.
A hot kang heating connecting pipe 8 connected with the interface box 7 is communicated with a flue of a hot kang, hot air flow generated by the combustion of the straw briquettes gives off heat to adobes when passing through the flue of the hot kang, the adobes are poor conductors of heat, so the temperature of the hot kang can be kept for a long time after being heated, and generated smoke is finally discharged out of a room from a smoke outlet of the hot kang through a chimney; the heating installation heating all is provided with change over switch with the heating of hot heatable brick bed, can not close simultaneously, but can open simultaneously or open one and close, comes the autonomic switching according to the user's demand.
The pot body containing opening 101 on the stove table board 1 is used for containing a pot body 9 for cooking, the straw pressing block burnt in the stove table box body 2 provides heat for the pot body, the arc-shaped water medium heat exchanger 6 avoids interference with the arc-shaped bottom of the pot body 9, the horizontal water medium heat exchanger 6 also plays a role of a grate, and ash after the straw pressing block is burnt can directly fall into the ash cleaning drawer 4 through gaps between the straw pressing block and the ash cleaning drawer, so that the cleaning is convenient; the flue port 701 can be connected with a chimney and can also be closed, the flue port 701 can be closed in winter, so that the generated hot air flow directly enters the flue of the earthen bed, the flue can be directly connected with the chimney in summer, the heating of a heating system and the heated bed is closed, and the flue gas generated during cooking is directly discharged; the biomass straw briquettes are used for combustion, namely the ash removal drawer 4 can be opened to be independently combusted, and the fan 5 can be used for supplying air and supplementing oxygen for combustion; when heating or cooking, the temperature is required to be raised in a short time, and the fan 5 can be used for promoting the vigorous combustion of flame; when power is off or the room temperature is high, the fan 5 can be turned off to adopt autonomous combustion.
Claims (2)
1. The utility model provides a multi-functional boiler kitchen device, includes kitchen range face (1), kitchen range box (2), base (3), deashing drawer (4), fan (5), aqueous medium heat exchanger (6) and interface box (7), its characterized in that: the stove top (1) is a square plate body, and the center of the stove top is provided with a round pot body containing opening (101); a funnel-shaped hearth box body (2) is fixedly connected below the hearth surface (1), a base (3) is fixedly connected below the hearth box body (2), and an ash removal drawer (4) with a square groove body is connected inside the base (3); a fan (5) is fixedly connected to the side of the base (3), and the fan (5) is communicated with the inner space of the hearth box body (2) through a connecting pipeline; arc-shaped water medium heat exchangers (6) are uniformly arranged and connected at two sides and the front position in the inner space of the hearth box body (2), the horizontally arranged water medium heat exchangers (6) are arranged and connected below the arc-shaped water medium heat exchangers (6), and the water medium heat exchangers (6) are of a common small-diameter pipe structure; one side of the hearth box body (2) is connected with a square interface box (7), and the interface box (7) is connected with a round heated kang heating connecting pipe (8).
2. The multifunctional boiler range device according to claim 1, wherein: the upper surface of the interface box (7) is provided with a round flue port (701) which can be opened and closed, and a heating air heating water inlet (702) and a heating air heating water outlet (703) which are connected with the aqueous medium heat exchanger (6) are arranged in the interface box (7).
