Abstract
本实用新型公开了一种钣金件加工用修边装置,包括盛放板，所述盛放板的表面固定连接有一对第一模组，所述第一模组的表面设置第一移动块，一对所述第一移动块的表面固定连接有第二模组，所述第二模组的表面设置有第二移动块，所述第二移动块的表面固定连接有调节箱，所述调节箱的内部通过轴承设置有第一支撑杆，所述第一支撑杆的顶部固定连接有第一固定板，所述第一固定板的表面开设有螺纹孔，所述螺纹孔的内部设置有螺纹杆，所述螺纹杆的底部通过轴承设置有挤压板，所述挤压板的侧壁固定连接有限位块，所述盛放板的表面且位于第一模组的一侧通过第一电动推杆固定连接有安装框。本实用新型，方便进行全面修边，适用性强，方便移动，减震效果好。
The utility model discloses a trimming device for sheet metal parts processing, comprising a holding plate, a pair of first die sets are fixedly connected on the surface of the holding plate, and a first moving block is arranged on the surface of the first die set , a second module is fixedly connected to the surface of a pair of the first moving blocks, the surface of the second module is provided with a second moving block, and the surface of the second moving block is fixedly connected with an adjustment box, the The inside of the adjustment box is provided with a first support rod through a bearing, the top of the first support rod is fixedly connected with a first fixing plate, the surface of the first fixing plate is provided with threaded holes, and the inside of the threaded holes is provided with A threaded rod, the bottom of the threaded rod is provided with a pressing plate through a bearing, the side wall of the pressing plate is fixedly connected with a limit block, and the surface of the holding plate is located on the side of the first module and passes through the first The electric push rod is fixedly connected with a mounting frame. The utility model is convenient for comprehensive trimming, has strong applicability, is convenient to move, and has good shock absorption effect.
Description
Technical Field
The utility model relates to a deburring equipment field especially relates to a deburring device is used in sheet metal component processing.
Background
After the sheet metal part is produced, the sheet metal part needs to be trimmed due to imperfect cutting, and the sheet metal part is troublesome to trim due to the fact that the structure of the sheet metal part is irregular sometimes.
The sheet metal part with irregular shape is trimmed by manual operation generally, the working efficiency is low, and the trimming device is designed for improving the trimming efficiency.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a trimming device for sheet metal part processing.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a trimming device for sheet metal part machining comprises a containing plate, wherein a pair of first modules is fixedly connected to the surface of the containing plate, a first moving block is arranged on the surface of each first module, a second module is fixedly connected to the surface of each first moving block, a second moving block is arranged on the surface of each second module, an adjusting box is fixedly connected to the surface of each second moving block, a first supporting rod is arranged inside the adjusting box through a bearing, a first fixing plate is fixedly connected to the top of each first supporting rod, a threaded hole is formed in the surface of each first fixing plate, a threaded rod is arranged inside each threaded hole, an extrusion plate is arranged at the bottom of each threaded rod through a bearing, and a limiting block is fixedly connected to the side wall of each extrusion plate;
the surface of holding the board and being located one side of first module is through first electric putter fixedly connected with installing frame, a pair of first side mounting panel of two pairs of connecting rod fixedly connected with is passed through at the interior top of installing frame, be provided with first emery wheel of polishing between the first side mounting panel, the interior top of installing frame and be located a pair of second electric putter of one side fixedly connected with of connecting rod, second electric putter's bottom fixedly connected with second side mounting panel, be provided with the second emery wheel of polishing between the second side mounting panel.
As a further description of the above technical solution:
the lower surface of the containing plate is fixedly connected with a plurality of second supporting rods.
As a further description of the above technical solution:
the bottom fixedly connected with second fixed plate of second bracing piece, the lower surface of second fixed plate passes through telescopic link fixedly connected with universal wheel, the surface of telescopic link is provided with the spring.
As a further description of the above technical solution:
the lateral wall fixedly connected with third driving motor of regulating box, the inside wall of regulating box is provided with the worm through the bearing.
As a further description of the above technical solution:
the surface of the first supporting rod is fixedly connected with a gear, and the gear is meshed with the worm.
As a further description of the above technical solution:
the top fixedly connected with carousel of threaded rod, the lateral wall of stopper is provided with linear bearing.
As a further description of the above technical solution:
the lateral wall fixedly connected with first driving motor of first side mounting panel, the lateral wall fixedly connected with second driving motor of second side mounting panel.
As a further description of the above technical solution:
the lower surface of the first fixing plate is fixedly connected with a first rubber pad, and the surface of the extrusion plate is fixedly connected with a second rubber pad.
The utility model discloses following beneficial effect has:
1. compared with the prior art, the trimming device for sheet metal part machining drives the workpiece to move by controlling the first module and the second module to work, controls the third driving motor to work, drives the workpiece to rotate, conveniently performs comprehensive trimming on the workpiece, and conveniently performs comprehensive trimming.
2. Compared with the prior art, the trimming device for sheet metal part machining adjusts the heights of the first polishing wheel and the second polishing wheel by controlling the first electric push rod and the second electric push rod to stretch, realizes trimming of workpieces with different thicknesses, and is high in applicability.
3. Compared with the prior art, this deburring device is used in sheet metal component processing, the device is provided with the universal wheel, conveniently removes, is provided with the spring shock attenuation, and the device conveniently removes, and the shock attenuation is effectual.
Drawings

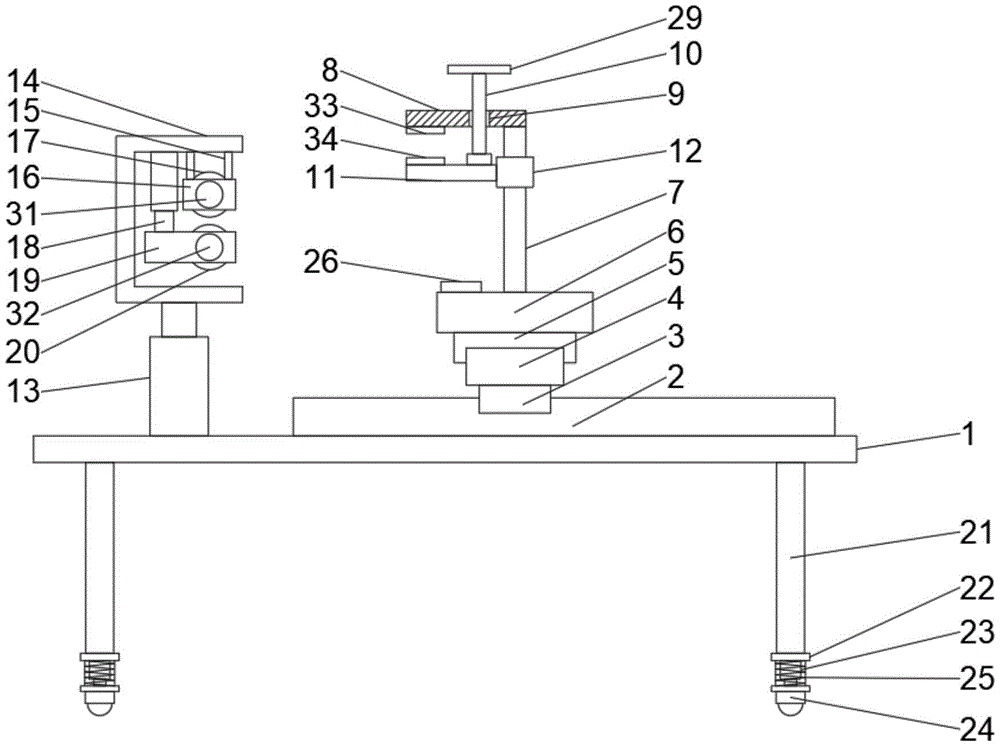

Fig. 1 is a front view of an edge trimming device for sheet metal part processing according to the present invention;
fig. 2 is a top view of a containing plate of the trimming device for sheet metal part processing provided by the present invention;
FIG. 3 is a front view of the internal structure of the adjusting box of the trimming device for sheet metal part processing according to the present invention;
fig. 4 is the utility model provides a stopper structural schematic of deburring device for sheet metal component processing.
Illustration of the drawings:
1. a holding plate; 2. a first module; 3. a first moving block; 4. a second module; 5. a second moving block; 6. an adjusting box; 7. a first support bar; 8. a first fixing plate; 9. a threaded hole; 10. a threaded rod; 11. a pressing plate; 12. a limiting block; 13. a first electric push rod; 14. installing a frame; 15. a connecting rod; 16. a first side mounting plate; 17. a first grinding wheel; 18. a second electric push rod; 19. a second side mounting plate; 20. a second grinding wheel; 21. a second support bar; 22. a second fixing plate; 23. a telescopic rod; 24. a universal wheel; 25. a spring; 26. a third drive motor; 27. a worm; 28. a gear; 29. a turntable; 30. a linear bearing; 31. a first drive motor; 32. a second drive motor; 33. a first rubber pad; 34. and a second rubber pad.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-4, the utility model provides a pair of trimming device is used in sheet metal component processing: comprises a holding plate 1, a pair of first modules 2 is fixedly connected to the surface of the holding plate 1, a first moving block 3 is arranged on the surface of the first module 2, a second module 4 is fixedly connected to the surface of the first moving block 3, a second moving block 5 is arranged on the surface of the second module 4, an adjusting box 6 is fixedly connected to the surface of the second moving block 5, a first supporting rod 7 is arranged in the adjusting box 6 through a bearing, a first fixing plate 8 is fixedly connected to the top of the first supporting rod 7, a threaded hole 9 is formed in the surface of the first fixing plate 8, a threaded rod 10 is arranged in the threaded hole 9, a squeezing plate 11 is arranged at the bottom of the threaded rod 10 through a bearing, a limiting block 12 is fixedly connected to the side wall of the squeezing plate 11, a third driving motor 26 is fixedly connected to the side wall of the adjusting box 6, a worm 27 is arranged on the inner side wall of the adjusting box 6 through a bearing, a gear 28 is fixedly connected to the surface of the first supporting rod 7, the gear 28 is meshed with the worm 27, and drives the workpiece to rotate by controlling the third driving motor 26 to work;
the surface of holding board 1 and the one side that is located first module 2 are through first electric putter 13 fixedly connected with installing frame 14, a pair of first side mounting panel 16 of 15 fixedly connected with through two pairs of connecting rods is passed through at the interior top of installing frame 14, be provided with first wheel 17 of polishing between the first side mounting panel 16, a pair of second electric putter 18 of one side fixedly connected with at the interior top of installing frame 14 and be located connecting rod 15, the bottom fixedly connected with second side mounting panel 19 of second electric putter 18, be provided with second wheel 20 of polishing between the second side mounting panel 19.
Hold a plurality of second bracing pieces 21 of lower fixed surface of board 1, the bottom fixedly connected with second fixed plate 22 of second bracing piece 21, the lower surface of second fixed plate 22 passes through telescopic link 23 fixedly connected with universal wheel 24, the surface of telescopic link 23 is provided with spring 25, the top fixedly connected with carousel 29 of threaded rod 10, the lateral wall of stopper 12 is provided with linear bearing 30, the first driving motor 31 of lateral wall fixedly connected with of first side mounting panel 16, the lateral wall fixedly connected with second driving motor 32 of second side mounting panel 19, the first rubber pad 33 of lower fixed surface fixedly connected with of first fixed plate 8, the fixed surface of stripper plate 11 is connected with second rubber pad 34.
The working principle is as follows: the workpiece is placed between the first fixing plate 8 and the extrusion plate 11, the rotary table 29 is rotated, the threaded rod 10 moves up and down in the threaded hole 9 to drive the extrusion plate 11 to move, the workpiece is extruded and fixed, the first electric push rod 13 is controlled to stretch and contract, the height of the first polishing wheel 17 is adjusted, the height of the upper surface of the workpiece is matched, the second electric push rod 18 is controlled to stretch and contract, the height of the second polishing wheel 20 is adjusted, the height of the lower surface of the workpiece is matched, the first driving motor 31 and the second driving motor 32 are controlled to work, the first polishing wheel 17 and the second polishing wheel 20 rotate to trim the workpiece, the first module 2 and the second module 4 are controlled to work, the workpiece is driven to move, the position is adjusted, the third driving motor 26 is controlled to work, the worm 27 is driven to rotate, the gear 28 rotates, the first support rod 7 rotates, the workpiece rotates, and the workpiece is fully trimmed.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
