Abstract
The utility model belongs to the engineering design field specifically is a supplementary drawing device for engineering design, including adjustment mechanism, placement machine structure, adjustment mechanism includes bottom plate, universal wheel, fixed sleeve, waste paper collecting vessel, threaded rod, the bottom plate bottom is equipped with the universal wheel, the bottom plate top is equipped with the fixed sleeve, the inboard swing joint of fixed sleeve has the waste paper collecting vessel, rotate in the middle of the bottom plate top and be connected with the threaded rod, just be close to the bottom on the threaded rod and be equipped with the rotation handle, there is the threaded sleeve threaded rod outside through threaded connection, the threaded rod both sides just are located the bottom plate top is fixed with the slide bar, slide bar outside sliding connection has the sliding sleeve. The utility model discloses an adjustment mechanism to can make things convenient for the height of elevating platform, the angle of conveniently adjusting the workstation, and then convenient to use.
Description
Technical Field
The utility model belongs to the engineering design field specifically is a relate to an auxiliary drawing device for engineering design.
Background
Engineering design is the activity of comprehensively analyzing and demonstrating the technical, economic, resource, environmental and other conditions required by construction engineering according to the requirements of the engineering and compiling construction engineering design files. Engineering design is the process of creating engineering product concepts and plans in a targeted manner by people using scientific and technological knowledge and methods, and almost relates to all fields of human activities.
The height of the inconvenient elevating platform of the supplementary drawing device of current engineering design also does not make things convenient for the angle of adjusting the workstation yet, leads to inconvenient to use.
SUMMERY OF THE UTILITY MODEL
For solving the problem that exists among the prior art, the utility model discloses an adjustment mechanism to can make things convenient for the height of elevating platform, conveniently adjust the angle of workstation, and then convenient to use.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
an auxiliary drawing device for engineering design comprises an adjusting mechanism and a placing mechanism, wherein the adjusting mechanism comprises a bottom plate, universal wheels, a fixing sleeve, a waste paper collecting barrel and a threaded rod, the universal wheels are arranged at the bottom of the bottom plate, the fixing sleeve is arranged at the top of the bottom plate, the waste paper collecting barrel is movably connected to the inner side of the fixing sleeve, the threaded rod is rotatably connected to the middle of the top of the bottom plate, a rotating handle is arranged on the threaded rod and close to the bottom end, a threaded sleeve is connected to the outer side of the threaded rod through threads, a sliding rod is fixedly arranged on the two sides of the threaded rod and positioned at the top end of the bottom plate, a sliding sleeve is slidably connected to the outer side of the sliding rod, a supporting plate is fixedly arranged on the top ends of the sliding sleeve and the threaded sleeve, supporting blocks are fixedly arranged on the two sides of the top end of the supporting plate, connecting blocks are rotatably connected to the supporting blocks, a workbench is arranged at the top end of the connecting blocks, one end of the connecting block, which is far away from the workbench, is connected with a fixing bolt through threads, and positioning holes which are distributed annularly and can be inserted into the fixing bolt are formed in the supporting block.
On the basis of the technical scheme, the placing mechanism comprises a drawing placing barrel I, the top end of the bottom plate is located, the threaded rod is far away from one side of the waste paper collecting barrel, and the drawing placing barrel I is arranged on one side of the threaded rod.
On the basis of the technical scheme, the placing mechanism comprises a drawing placing barrel II, the top end of the bottom plate is located, the threaded rod is far away from one side of the waste paper collecting barrel, and the drawing placing barrel II is arranged on one side of the threaded rod.
On the basis of the technical scheme, the threaded rod, the threaded sleeve, the sliding rod and the sliding sleeve are all vertically arranged, the threaded rod and the threaded sleeve are matched to drive the supporting plate to vertically lift, and the sliding rod and the sliding sleeve are matched to stretch along with the lifting of the supporting plate.
On the basis of the technical scheme, the placing mechanism is fixedly connected with the bottom plate, and the placing mechanism is fixedly fixed on the bottom plate.
On the basis of the technical scheme, the fixing bolt penetrates through the connecting block and is inserted into the inner side of the positioning hole, and the fixing bolt can be inserted into the inner side of the positioning hole and then fixes the connecting block.
Compared with the prior art, the beneficial effects of the utility model are that:
utilize to rotate the handle and drive the threaded rod and rotate, the threaded rod drives the threaded sleeve through the screw thread after rotating and goes up and down, and then adjusts the height of workstation, rotates fixing bolt and makes fixing bolt stretch out and draw back on the connecting block through the screw thread, then inserts or takes out from the locating hole inboard, just so can the angle of fixed connection piece and workstation, through the rotation of supporting shoe supporting connection piece, just also can support the workstation and rotate angle regulation, therefore convenient to use.
Additional features and advantages of the invention will be set forth in the description which follows, and in part will be obvious from the description, or may be learned by practice of the invention.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention. In the drawings:
fig. 1 is a first isometric view of an embodiment 1 of an auxiliary mapping apparatus for engineering design according to the present invention;
fig. 2 is a second perspective view of an embodiment 1 of an auxiliary drawing device for engineering design according to the present invention;

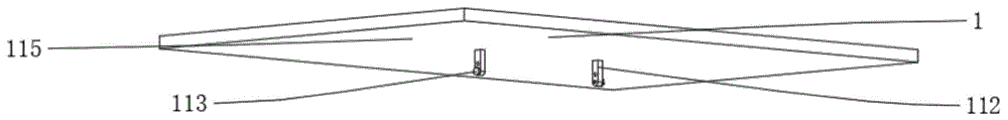

fig. 3 is a schematic structural diagram of a connection block of an embodiment 1 of an auxiliary drawing device for engineering design according to the present invention;
fig. 4 is a schematic structural diagram of a supporting block of an embodiment 1 of an auxiliary drawing device for engineering design according to the present invention;
fig. 5 is an isometric view of embodiment 2 of an auxiliary mapping device for engineering design according to the present invention.
The reference numerals are explained below:
1. an adjustment mechanism; 101. a base plate; 102. a universal wheel; 103. fixing the sleeve; 104. a waste paper collecting bucket; 105. a threaded rod; 106. rotating the handle; 107. a threaded sleeve; 108. a slide bar; 109. a sliding sleeve; 110. a support plate; 111. a support block; 112. connecting blocks; 113. fixing the bolt; 114. positioning holes; 115. a work table; 2. a placement mechanism; 201. a drawing placing barrel I; 202. and a second drawing placing barrel.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Example 1
Referring to fig. 1-4, the present invention provides a technical solution: an auxiliary drawing device for engineering design comprises an adjusting mechanism 1 and a placing mechanism 2, wherein the adjusting mechanism 1 comprises a bottom plate 101, a universal wheel 102, a fixed sleeve 103, a waste paper collecting barrel 104 and a threaded rod 105, the bottom of the bottom plate 101 is provided with the universal wheel 102, the top of the bottom plate 101 is provided with the fixed sleeve 103, the inner side of the fixed sleeve 103 is movably connected with the waste paper collecting barrel 104, the middle of the top of the bottom plate 101 is rotatably connected with the threaded rod 105, the threaded rod 105 is provided with a rotating handle 106 close to the bottom end, the outer side of the threaded rod 105 is connected with a threaded sleeve 107 through threads, two sides of the threaded rod 105 are fixedly provided with a sliding rod 108 on the top end of the bottom plate 101, the outer side of the sliding rod 108 is slidably connected with a sliding sleeve 109, a support plate 110 is fixedly arranged at the top ends of the sliding sleeve 109 and the threaded sleeve 107, the threaded rod 105, the threaded sleeve 107, the sliding rod 108 and the sliding sleeve 109 are vertically arranged, the threaded rod 105 and the threaded sleeve 107 are matched to drive the support plate 110 to vertically lift, the sliding rod 108 and the sliding sleeve 109 are matched to lift and retract along with the supporting plate 110, supporting blocks 111 are fixed on the top end of the supporting plate 110 close to two sides, connecting blocks 112 are connected on the supporting blocks 111 in a rotating mode, a workbench 115 is arranged on the top end of each connecting block 112, one end, far away from the workbench 115, of each connecting block 112 is connected with a fixing bolt 113 through threads, the fixing bolts 113 penetrate through the connecting blocks 112 and are inserted into the positioning holes 114, the fixing bolts 113 can be inserted into the positioning holes 114 and then fix the connecting blocks 112, and the positioning holes 114 which are distributed in an annular mode and can be inserted into the fixing bolts 113 are formed in the supporting blocks 111.
On the basis of the above-described embodiment: placing mechanism 2 includes that the drawing places bucket one 201, and bottom plate 101 top just is located one side that threaded rod 105 kept away from waste paper collecting vessel 104 and is equipped with the drawing and places bucket one 201, placing mechanism 2 and bottom plate 101 fixed connection, and placing mechanism 2 is fixed on bottom plate 101 admittedly.
The utility model discloses a theory of operation and use flow: utilize to rotate handle 106 and drive threaded rod 105 and rotate, threaded rod 105 rotates the back and drives threaded sleeve 107 through the screw thread and go up and down, and then adjust the height of workstation 115, it makes fixing bolt 113 stretch out and draw back on connecting block 112 through the screw thread to rotate fixing bolt 113, then insert or take out from the locating hole 114 inboard, just so can fixed connection block 112 and workstation 115's angle, support the rotation of connecting block 112 through supporting shoe 111, just also can support workstation 115 rotation angle regulation, therefore convenient to use.
Example 2
Referring to fig. 5, the difference between the embodiment 2 and the embodiment 1 is that the placing mechanism 2 includes a second drawing placing barrel 202, the second drawing placing barrel 202 is disposed on the top end of the bottom plate 101 and on the side of the threaded rod 105 away from the waste paper collecting barrel 104, the placing mechanism 2 is fixedly connected to the bottom plate 101, the threaded rod 105 is driven to rotate by the rotating handle 106, the threaded sleeve 107 is driven to lift by the threads after the threaded rod 105 rotates, and the height of the workbench 115 is further adjusted, the fixing bolt 113 is driven to extend and retract on the connecting block 112 by the threads by rotating the fixing bolt 113, and then the fixing bolt is inserted into or pulled out from the inner side of the positioning hole 114, so that the angles of the connecting block 112 and the workbench 115 can be fixed, the supporting block 112 is supported to rotate by the supporting block 111, and the workbench 115 can be supported to rotate for adjusting the angle, so that the use is convenient.
Although some specific embodiments of the present invention have been described in detail by way of illustration, it should be understood by those skilled in the art that the above illustration is only for purposes of illustration and is not intended to limit the scope of the invention. It will be appreciated by those skilled in the art that modifications may be made to the above embodiments without departing from the scope and spirit of the invention. The scope of the invention is defined by the appended claims.
Claims (6)
1. An auxiliary drawing device for engineering design is characterized in that: comprises an adjusting mechanism (1) and a placing mechanism (2), wherein the adjusting mechanism (1) comprises a bottom plate (101), a universal wheel (102), a fixed sleeve (103), a waste paper collecting barrel (104) and a threaded rod (105), the bottom plate (101) is provided with the universal wheel (102), the top of the bottom plate (101) is provided with the fixed sleeve (103), the inner side of the fixed sleeve (103) is movably connected with the waste paper collecting barrel (104), the threaded rod (105) is rotatably connected in the middle of the top of the bottom plate (101), a rotating handle (106) is arranged on the threaded rod (105) and close to the bottom end, the outer side of the threaded rod (105) is connected with a threaded sleeve (107) through threads, slide rods (108) are fixed at the top end of the bottom plate (101) on two sides of the threaded rod (105), and a sliding sleeve (109) is slidably connected with the outer side of the slide rods (108), the supporting plate (110) is fixed sliding sleeve (109) with threaded sleeve (107) top, supporting plate (110) top is close to both sides and is fixed with supporting shoe (111), it is connected with connecting block (112) to rotate on supporting shoe (111), connecting block (112) top is equipped with workstation (115), connecting block (112) are kept away from the one end of workstation (115) has fixing bolt (113) through threaded connection, the shaping has annular distribution on supporting shoe (111) can insert fixing bolt (113) locating hole (114).
2. The auxiliary drawing device for engineering design according to claim 1, wherein: placing mechanism (2) include that the drawing places bucket (201), bottom plate (101) top just is located one side that threaded rod (105) kept away from waste paper collecting vessel (104) is equipped with bucket (201) is placed to the drawing.
3. The auxiliary drawing device for engineering design according to claim 1, wherein: the placing mechanism (2) comprises a drawing placing barrel II (202), the top end of the bottom plate (101) is located on one side, away from the waste paper collecting barrel (104), of the threaded rod (105), and the drawing placing barrel II (202) is arranged.
4. The auxiliary drawing device for engineering design according to claim 1, wherein: the threaded rod (105), the threaded sleeve (107), the sliding rod (108) and the sliding sleeve (109) are all vertically arranged.
5. An auxiliary drawing device for engineering design according to claim 2 or 3, wherein: the placing mechanism (2) is fixedly connected with the bottom plate (101).
6. The auxiliary drawing device for engineering design according to claim 1, wherein: the fixing bolt (113) penetrates through the connecting block (112) and is inserted into the positioning hole (114).
