Abstract

The utility model relates to the technical field of linear lamp structures, and discloses a classroom linear lamp, comprising a linear lamp body, the top of the linear lamp body is fixedly connected with two installation adjusting rods, the two installation adjusting rods are An adjustment outer casing is sleeved on the outside of the adjustment outer casing, and a lock hole is opened on the outer wall of the adjustment outer casing. The outside of the limit spring is movably connected to the limit pin, the top of the adjusting outer casing is fixedly connected with a lock plate, and the bottom of the linear light body is fixedly connected with a lampshade plate. The classroom line light has a simple overall structure and is easy to adjust the installation height. At the same time, it has good stability after adjustment, and is very convenient and reliable during adjustment, which effectively solves the problem that the height of the LED line light cannot be adjusted, which will affect the cleaning and irradiation range. The problem.

Description

Classroom line lamp

Technical Field

The utility model relates to a line lamp technical field specifically is a classroom line lamp.

Background

The LED line lamp series is a high-end flexible decorative lamp, and is characterized by low power consumption, long service life, high brightness, easy bending and free maintenance, etc., and is specially suitable for indoor and outdoor recreation places, building outline drawing and billboard production, etc., and according to different requirements said product has 12V and 24V, etc., and its length is 30CM, 60CM, 90CM and 120CM, etc..

The LED line lamps are widely applied at present, the LED line lamps are widely distributed in classrooms, the height of the LED line lamps installed in the classrooms is difficult to adjust, the LED line lamps can be touched carelessly when cleaning is needed, and the illumination range is difficult to change due to the fact that the height cannot be adjusted, so that the social requirements are difficult to meet, and the classroom line lamps are provided to solve the problems.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a classroom line lamp possesses advantages such as the height-adjusting of being convenient for, has solved LED line lamp and can influence the problem that the health cleaned and irradiation range because of highly unable regulation.

(II) technical scheme

For the purpose of realizing the height-adjusting of being convenient for, the utility model provides a following technical scheme: the utility model provides a classroom line lamp, includes the line lamp body, the installation regulation pole that the top fixedly connected with quantity of line lamp body is two, two the outside of installation regulation pole has all cup jointed the regulation overcoat body, the lockhole has been seted up on the outer wall of regulation overcoat body, the inboard swing joint of installation regulation pole has the regulating block, the inboard swing joint of regulating block has spacing spring, spacing spring's outside swing joint has spacing bolt, adjust the top fixedly connected with jam plate of overcoat body, the bottom fixedly connected with lamp cover plate of line lamp body.

Preferably, the shape of the linear lamp body is long, and the two installation adjusting rods are respectively positioned at the left side and the right side of the top of the linear lamp body.

Preferably, the mounting adjusting rod is a rectangular rod body, the adjusting outer sleeve body is an inner hollow sleeve body with a cuboid appearance, and an adjusting opening is formed in the outer wall of the adjusting outer sleeve body.

Preferably, the lockholes are rectangular holes, the number of the lockholes in the outer wall of each lockhole is not less than five, the lockholes are longitudinally distributed at equal intervals, and the diameter of each lockhole is smaller than the adjusting opening.

Preferably, the installation adjusting rod is internally provided with an adjusting groove, the adjusting groove is cylindrical, the transverse section of the adjusting groove is T-shaped, and the adjusting block is positioned on the inner side of the adjusting groove.

Preferably, the shape of the limiting bolt is trapezoidal, the other end of the limiting bolt, which is far away from the limiting spring, extends to the inner side of the lock hole, and the inner side of the lock plate is provided with the positioning hole.

(III) advantageous effects

Compared with the prior art, the utility model provides a classroom line lamp possesses following beneficial effect:

1. this classroom line lamp, through being laminated with the installation roof by jam plate department, and fix a position the installation at the locating hole department construction bolt, adjust the inside rotation of pole with the regulating block in the installation when needs are adjusted downwards, can adjust the installation regulation pole pulling downwards after the inclined plane of rotatory to spacing bolt faces down, the regulation pole is installed to upset one hundred eighty degrees then pull-up when the pulling is inside to the regulation mouth that spacing bolt is located the below, make spacing bolt go into under spacing spring's elastic action after finishing pulling on it the lockhole location can, thereby the mounting height of lamp body has been increased, the effect of the height-adjusting of being convenient for has been reached.

2. This classroom line lamp, adjust the pole through the installation and upwards stimulate to make spacing bolt card go into the regulation mouth inboard at top after can adjusting spacing bolt horizontal rotation once more, can make this lamp body simple stable when adjusting, adjust the pole and adjust the inside of outer cover through the installation and can open a hole and walk the line, and the regulating block can be avoided to the circuit of walking, can effectively avoid this lamp body to appear the inconvenient condition of use, retrench and be convenient for adjust the length distance through its overall structure, adjust the back reliable and stable simultaneously, can effectively strengthen its suitability, thereby the effectual LED line lamp of having solved can influence the problem that the health cleaned and irradiation range because of highly unable regulation.

Drawings

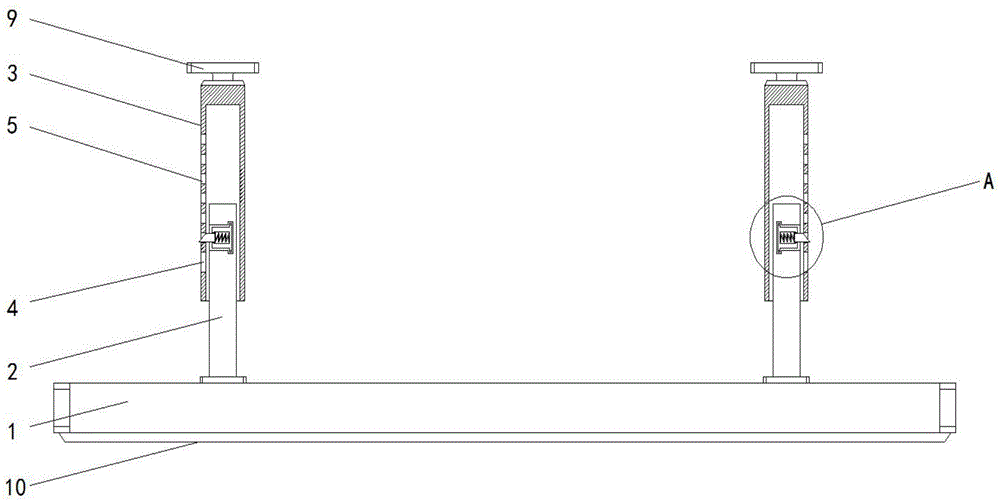

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is an enlarged schematic structural diagram of a shown in fig. 1 according to the present invention.

In the figure: the lamp comprises a line lamp body 1, an installation adjusting rod 2, an adjusting outer sleeve 3, an adjusting opening 4, a locking hole 5, an adjusting block 6, a limiting spring 7, a limiting bolt 8, a locking plate 9 and a lamp cover plate 10.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, a classroom line lamp comprises a line lamp body 1, wherein two installation adjusting rods 2 are fixedly connected to the top of the line lamp body 1, an adjusting outer sleeve 3 is sleeved outside the two installation adjusting rods 2, the line lamp body 1 is in a strip shape, the two installation adjusting rods 2 are respectively positioned on the left side and the right side of the top of the line lamp body 1, the installation adjusting rods 2 are rectangular rod bodies, the adjusting outer sleeve 3 is an inner hollow sleeve body in a cuboid shape, an adjusting opening 4 is formed in the outer wall of the adjusting outer sleeve body 3, a locking hole 5 is formed in the outer wall of the adjusting outer sleeve body 3, the locking holes 5 are rectangular holes, the number of the locking holes 5 in the outer wall of each locking hole 5 is not less than five, the locking holes are longitudinally distributed at equal intervals, the diameter of the locking hole 5 is smaller than the adjusting opening 4, and an adjusting block 6 is movably connected to the inner side of the installation adjusting rod 2, the installation adjusting rod 2 is internally provided with an adjusting groove which is cylindrical in shape and has a T-shaped transverse section, the adjusting block 6 is positioned at the inner side of the adjusting groove, the inner side of the adjusting block 6 is movably connected with a limiting spring 7, the outer part of the limiting spring 7 is movably connected with a limiting bolt 8, the top of the adjusting outer sleeve 3 is fixedly connected with a locking plate 9, the limiting bolt 8 is trapezoidal in shape, the other end of the limiting bolt 8, which is far away from the limiting spring 7, extends to the inner side of the locking hole 5, the inner side of the locking plate 9 is provided with a positioning hole, the bottom of the line lamp body 1 is fixedly connected with a lamp cover plate 10, the limiting bolt 8 can be transversely rotated again to adjust after the limiting bolt 8 is clamped into the inner side of the adjusting hole 4 at the top by pulling the installation adjusting rod 2 upwards, the lamp body can be adjusted simply and stably, holes can be formed by the installation adjusting rod 2 and the internal wiring of the adjusting outer sleeve 3, and the circuit of walking can avoid regulating block 6, can effectively avoid using inconvenient condition to appear in this lamp body, retrench and be convenient for adjust the length distance through its overall structure, adjust back reliable and stable simultaneously, can effectively strengthen its suitability to the effectual LED line lamp of having solved can influence the problem that the health cleaned and irradiation range because of highly unable regulation.

To sum up, this classroom line lamp, through by 9 departments of jam plate and the laminating of installation roof, and fix a position the installation at the locating hole department construction bolt, adjust the inside rotation of pole 2 with regulating block 6 in the installation when needs down regulation, can adjust the downward pulling of pole 2 with the installation after rotatory to the slope of spacing bolt 8 face down, the installation pole 2 of installing is adjusted to the upset one hundred eighty degrees then pull up when pulling to the regulation mouth 4 inside of spacing bolt 8 below is located, make spacing bolt 8 block into lockhole 5 under spacing spring 7's elasticity effect after finishing pulling on it and fix a position can, thereby increased the mounting height of lamp body, reached the effect of the height-adjusting of being convenient for.

And, this classroom line lamp, adjust pole 2 upwards to stimulate through the installation and make 8 card of spacing bolt go into can adjust spacing bolt 8 horizontal rotation once more after the regulation mouth 4 inboards at top is gone into, can make this lamp body simple stable when adjusting, adjust pole 2 and adjust the inside of outer cover 3 through the installation and can trompil the line, and the circuit of walking can avoid regulating block 6, can effectively avoid this lamp body to appear using inconvenient circumstances, retrench and be convenient for adjust length distance through its overall structure, it is reliable and stable after adjusting simultaneously, can effectively strengthen its suitability, thereby the effectual LED line lamp of having solved can influence the problem that the health cleaned and irradiation range because of highly unable regulation.

It is to be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a classroom line lamp, includes line lamp body (1), its characterized in that: the utility model discloses a line lamp, including line lamp body (1), installation regulation pole (2), two top fixedly connected with quantity of line lamp body (1) is two installation regulation pole (2), two the outside of installation regulation pole (2) has all been cup jointed and has been adjusted outer cover (3), lockhole (5) have been seted up on the outer wall of adjusting outer cover (3), the inboard swing joint of installation regulation pole (2) has regulating block (6), the inboard swing joint of regulating block (6) has spacing spring (7), the outside swing joint of spacing spring (7) has spacing bolt (8), adjust top fixedly connected with jam plate (9) of outer cover (3), the bottom fixedly connected with lamp cover plate (10) of line lamp body (1).

2. A classroom line light as defined in claim 1, wherein: the appearance of line lamp body (1) is rectangular form, two installation regulation pole (2) are located the left and right sides at line lamp body (1) top respectively.

3. A classroom line light as defined in claim 1, wherein: the mounting adjusting rod (2) is a rectangular rod body, the adjusting outer sleeve body (3) is an inner hollow sleeve body with a cuboid shape, and an adjusting opening (4) is formed in the outer wall of the adjusting outer sleeve body (3).

4. A classroom line light as defined in claim 3, wherein: the lockholes (5) are rectangular holes, the number of the lockholes (5) on the outer wall of each lockhole (5) is not less than five, the lockholes are longitudinally distributed at equal intervals, and the diameter of each lockhole (5) is smaller than the adjusting opening (4).

5. A classroom line light as defined in claim 1, wherein: the adjusting groove is formed in the mounting adjusting rod (2), the adjusting groove is cylindrical, the transverse section of the adjusting groove is T-shaped, and the adjusting block (6) is located on the inner side of the adjusting groove.

6. A classroom line light as defined in claim 1, wherein: the appearance of spacing bolt (8) is trapezoidal, and its other end of keeping away from spacing spring (7) extends to the inboard of lockhole (5), the locating hole has been seted up to the inboard of jam plate (9).
