CN214038038U

CN214038038U - A heat dissipation structure for a flood light

Info

Publication number: CN214038038U
Application number: CN202120043708.0U
Authority: CN
Inventors: 孙斌
Original assignee: Jiangmen Mingchuang Photoelectric Equipment Co ltd
Current assignee: Jiangmen Mingchuang Photoelectric Equipment Co ltd
Priority date: 2021-01-07
Filing date: 2021-01-07
Publication date: 2021-08-24
Anticipated expiration: 2031-01-07

Abstract

A heat dissipation structure for a floodlight includes a middle cover, and a partition plate is arranged in the middle cover to divide its inner cavity into a light source cavity and a power supply cavity, the light source cavity is installed with an LED light source, and the power supply cavity is installed with a driving power module. The opening of the light source cavity is covered with a front cover, the opening of the power supply cavity is covered with a rear cover, the driving power module is installed on the partition in the power supply cavity through the support feet, and the driving power module and There is a gap between the partitions, and a fan with an air outlet direction toward the rear cover is installed on the drive power module. The utility model has a gap between the driving power supply and the partition wall, and a fan is installed on the driving power supply module. The fan blows the heat generated by the driving power supply module to the rear cover, and mainly dissipates the heat to the outside of the lamp through the rear cover, thereby dissipating heat. The effect is better, the LED light source is less heated, which can reduce the product size and delay the aging of the LED light source.

Description

Heat radiation structure of projecting lamp

Technical Field

The utility model relates to a lamps and lanterns especially relate to a heat radiation structure of projecting lamp.

Background

The structure of the existing high-power LED spot light refers to FIG. 5. The LED lamp comprises a middle cover 01, wherein the inner cavity of the middle cover 01 is divided into a light source cavity 01A and a power supply cavity 01B by a partition plate 011. The LED light source module is characterized in that an LED light source A is installed on a partition plate 011 in the light source cavity 01A, and a driving power supply module B is installed on a partition plate 01 in the power supply cavity 01B. The opening of the light source cavity 01A is sealed and provided with a glass panel S, the glass panel S is fixed on the middle cover 01 through a front cover 02, and the opening of the power supply cavity 01B is provided with a rear cover 03. The heat that drive power module B work produced at first conducts to well cover heat dissipation, mainly dispels the heat through well cover, though cover 01 size can increase the radiating effect in the increase, but when LED light source power was more than 200 watts, cover 01 size was disproportionated to promoting the radiating effect in the increase. In addition, because LED light source A and drive power module B install respectively in baffle 011 both sides, the heat direct conduction that drive power module B produced is to LED light source A, and LED light source A temperature is higher, leads to it to be changeed ageing and luminous colour drift. Therefore, the existing high-power projection lamp has the defects of poor heat dissipation effect, large volume, easy aging of an LED light source and the like.

Disclosure of Invention

In order to overcome the defects of the prior art, the utility model provides a radiating structure of a projecting lamp which has good radiating effect, small product volume and difficult aging of a LED light source.

The utility model provides a technical means that its technical problem adopted is: the utility model provides a heat radiation structure of projecting lamp, includes well cover, is provided with the baffle in the well cover and cuts apart into light source chamber and power chamber with its inner chamber, and light source intracavity installation LED light source, the drive power module is installed to the power intracavity, the closing cap has the front shroud on the light source chamber opening, the closing cap has the back shroud on the power chamber opening, the drive power module passes through the stabilizer blade installation on the baffle of power intracavity, the clearance has between drive power module and the baffle, install the air-out direction orientation on the drive power module the fan of back shroud.

The utility model has the advantages that: the utility model discloses because the clearance has between drive power supply module and the next door, the heat that drive power supply module produced can not direct conduction to well cover to install the fan on drive power supply module, blow the heat of power intracavity to the back shroud, mainly dispel the heat through the back shroud, the LED light source is heated still less, and the radiating effect is better, can reduce the product volume and delay the LED light source ageing.

Drawings

Fig. 1 is the assembly structure schematic diagram of the front cover and the middle cover of the present invention.

Fig. 2 is one of the assembly structural diagrams of the rear cover and the middle cover of the present invention.

Fig. 3 is a second schematic view of the assembly structure of the rear cover and the middle cover of the present invention.

Fig. 4 is a schematic sectional view of the present invention.

Fig. 5 is a schematic cross-sectional view of a prior art.

Detailed Description

The present invention will be described in further detail with reference to the following drawings and examples.

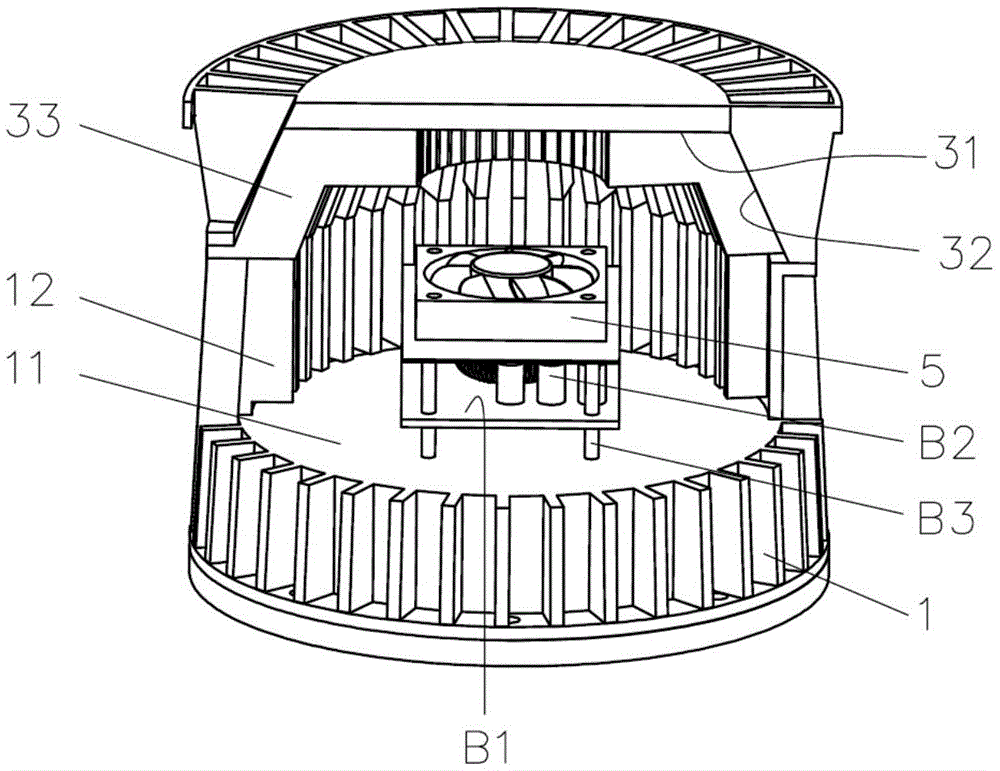

Refer to fig. 1 to 4. A heat radiation structure of a project lamp comprises a cylindrical middle cover 1, wherein a partition board 11 is arranged in the middle cover 1 to divide an inner cavity of the middle cover into a light source cavity 1A and a power supply cavity 1B. And an LED light source A is arranged on the partition plate 11 in the light source cavity 1A. The opening of the light source cavity 1A is covered with a glass panel S and a front cover 2, and the front cover 2 fixes the glass panel S on the opening of the light source cavity 1A. A driving power supply module B is installed in the power supply cavity 1B, a rear cover 3 is installed on an opening of the power supply cavity 1B, and a middle cover heat dissipation fin 12 perpendicular to the partition plate 11 is arranged on the side wall of the power supply cavity 1B. The rear cover 3 comprises a circular bottom wall 31 and an annular side wall 32, and the bottom wall 31 and the side wall 32 enclose a horn-shaped inner cavity. The bottom wall 31 of the rear cover 3 is provided with bottom wall heat dissipation fins 33 extending to the side walls 32, and the bottom wall heat dissipation fins 33 are aligned with the gaps of the middle cover heat dissipation fins 12. The driving power module B comprises a circuit board B1, an electronic component B2 mounted on one side of the circuit board B1 and a support leg B3 mounted on the other side of the circuit board B1. The driving power module B is fixed on the partition board 11 in the power cavity 1B through the support leg B3, and a gap is formed between the driving power module B and the partition board 11. A bracket 4 is mounted on one side of the circuit board B1 where the electronic element B2 is mounted, a fan 5 is mounted on the bracket, and the air outlet direction of the fan 5 faces the bottom wall 31 of the rear cover 3.

The utility model has the advantages that the gap is arranged between the driving power supply module and the partition wall, the heat generated by the driving power supply module can not be directly conducted to the middle cover, the fan is arranged on the driving power supply module, the heat in the power supply cavity is blown to the rear cover, the heat is mainly radiated through the rear cover, the LED light source is heated less, the heat radiation effect is better, the product volume can be reduced, and the aging of the LED light source can be delayed; the rear cover radiating fins are arranged on the inner wall of the rear cover and the middle cover radiating fins are arranged on the side wall of the power supply cavity of the middle cover, so that the heat conduction area can be further increased, and the radiating effect is improved; the gaps between the rear cover radiating fins and the middle cover radiating fins are aligned, so that the air circulation resistance can be reduced, and the radiating effect is further improved; and because the bottom wall and the side wall of the rear cover surround a horn-shaped inner cavity, the air circulation resistance can be further reduced, and the heat dissipation effect is further improved.

The above description of the specific embodiments is only the preferred embodiments of the present invention, and does not represent the limitation of the protection contents of the present invention, and any technical solutions that can be obtained by normal reasoning of the ordinary technicians in the spirit of the present invention are the protection scope of the present invention.

Claims

1. The utility model provides a heat radiation structure of projecting lamp, includes well cover, is provided with the baffle in the well cover and cuts apart into light source chamber and power chamber with its inner chamber, and institute's light source intracavity installation LED light source, the drive power module is installed to the power intracavity, the closing cap has the front shroud on the light source chamber opening, the closing cap has rear cover, its characterized in that on the power chamber opening: the driving power supply module is installed on the partition plate in the power supply cavity through the support legs, a gap is formed between the driving power supply module and the partition plate, and the fan with the air outlet direction facing the rear cover is installed on the driving power supply module.

2. The heat dissipation structure of a light projector according to claim 1, wherein: the air outlet direction of the fan faces the bottom wall of the rear cover.

3. The heat dissipation structure of a light projector according to claim 2, wherein: and rear cover radiating fins extending from the bottom wall to the side wall of the rear cover are arranged in the rear cover.

4. The heat dissipation structure of a light projector according to claim 3, wherein: and the side wall of the power supply cavity is provided with a middle cover radiating fin vertical to the partition plate.

5. The heat dissipation structure of a light projector according to claim 4, wherein: the gaps between the rear cover heat dissipation fins and the middle cover heat dissipation fins are aligned.

6. The heat dissipation structure of a light projector according to claim 1, wherein: the bottom wall and the side wall of the rear cover enclose a horn-shaped inner cavity.
