Abstract
本实用新型公开一种方便维修的环保用电气仪表，涉及电气仪表领域。该方便维修的环保用电气仪表，包括安装板，安装板连接在墙面上，安装板连接有承接板，安装板连接有固定板，安装板滑动卡接有夹紧板，固定板和夹紧板的下表面均与承接板的上表面相接触，夹紧板与固定板相背的侧壁上固定连接有两组伸缩杆，安装板与墙面相背的侧壁上固定连接有连接板，两组伸缩杆远离夹紧板的一端均穿过连接板的侧壁并延伸，两组伸缩杆的侧壁均活动套接有抵紧弹簧。该方便维修的环保用电气仪表，防止了电气仪表与墙面连接不稳定，可能从墙体上摔落的情况，保证了电气仪表的使用安全，降低了使用者对电器仪表的安装或者拆卸难度。
The utility model discloses an environmental protection electrical instrument which is convenient for maintenance, and relates to the field of electrical instruments. The environmentally friendly electrical instrument for easy maintenance includes a mounting plate, the mounting plate is connected to the wall, the mounting plate is connected with a receiving plate, the mounting plate is connected with a fixing plate, the mounting plate is slidably connected with a clamping plate, the fixing plate and the clamping plate The lower surface of the plate is in contact with the upper surface of the receiving plate, two sets of telescopic rods are fixedly connected on the side wall of the clamping plate opposite the fixing plate, and the connecting plate is fixedly connected on the side wall opposite the mounting plate and the wall. The ends of the two sets of telescopic rods away from the clamping plate pass through the side walls of the connecting plate and extend, and the side walls of the two sets of telescopic rods are movably sleeved with abutting springs. The easy-to-maintain environmentally friendly electrical instrument prevents the unstable connection between the electrical instrument and the wall and may fall from the wall, ensures the safety of the electrical instrument, and reduces the difficulty of installing or disassembling the electrical instrument for users. .
Description
Technical Field
The utility model relates to an electric instrument technical field specifically is an environmental protection of convenient maintenance uses electric instrument.
Background
The electric meter provides a solution for electric parameter measurement, electric energy quality monitoring and analysis and electric equipment control.
The general bolt fixed mounting of domestic electric instrument is on the wall today, electronic component in the electric instrument is when damaging the needs maintenance, maintenance person generally dismantles electric instrument from the wall, when maintenance person unscrews the bolt from the wall, make the screw hole of wall cause the damage very easily, thereby use the electric instrument of having maintained to install when the wall original position, the bolt can't mesh with damaged wall screw hole is fine, thereby make electric instrument install at the wall unstability, electric instrument has the risk of falling the damage from the wall, and simultaneously, utilize the mounting means at the wall with electric instrument nowadays, the later stage is also strengthened the dismantlement degree of difficulty to electric instrument, for this reason, we design the environmental protection of a convenient maintenance and use electric instrument to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model discloses an electric instrument is used in environmental protection of convenient maintenance to solve the problem that proposes in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides an electric instrument is used in environmental protection of convenient maintenance, includes the mounting panel, mounting panel fixed connection is on the wall, the mounting panel is accepted the board with one side fixedly connected with that the wall carried on the back mutually, one side fixedly connected with fixed plate that mounting panel and wall carried on the back mutually, one side slip joint that mounting panel and wall carried on the back mutually has the pinch-off blades, the lower surface of fixed plate and pinch-off blades all contacts with the upper surface of accepting the board, two sets of telescopic links of fixedly connected with on the lateral wall that pinch-off blades and fixed plate carried on the back mutually, fixedly connected with connecting plate on the lateral wall that mounting panel and wall carried on the back mutually is two sets of the lateral wall that the pinch-off blades was all passed the connecting plate to the one end of telescopic link extends, and is two sets of the equal activity of lateral wall of telescopic link has cup jointed and has supported tight spring.
Preferably, two sets of spouts have been seted up to one side that mounting panel and wall carried on the back mutually, the equal fixedly connected with slider of the relative department of pinch-off plate and two sets of spouts, the slider is established to "T" shape, and is two sets of slider adaptation sliding clamping respectively connects in the inslot of two sets of spouts.
Preferably, the four corners of one side of the mounting plate opposite to the wall surface are fixedly connected with fixing rods, and the four groups of fixing rods are fixedly inserted in the wall body.
Preferably, the through-hole has all been seted up with two sets of telescopic links department relatively to the connecting plate, and is two sets of the one end that the pinch-off blades was kept away from to the telescopic link passes two sets of through-holes respectively and extends, and is two sets of the equal fixedly connected with limiting plate of extension end of telescopic link, the limiting plate is established to circular, the diameter of limiting plate is greater than the aperture of through-hole.
Preferably, the side wall of the telescopic rod is movably sleeved with a limiting ring, the diameter of the limiting ring is larger than the aperture of the through hole, one end of the abutting spring abuts against the clamping plate, the other end of the abutting spring abuts against the limiting ring, and the diameter of the abutting spring is smaller than that of the limiting ring.
Preferably, the upper surface of the clamping plate is provided with a top plate, the upper surface of the top plate is provided with a rectangular through groove, the upper surfaces of the clamping plate and the fixing plate are both provided with threaded grooves, and the top plate is fixedly connected with the fixing plate and the clamping plate through bolts.
The utility model discloses an electric instrument is used in environmental protection of convenient maintenance, its beneficial effect who possesses as follows:
1. this electric instrument is used in environmental protection of convenient maintenance, through the mounting panel, accept the board, the fixed plate, the pinch-off blades, the telescopic link, the connecting plate and the setting of supporting the tight spring, the mounting panel is on the wall through four dead lever fixed mounting of group, the stable centre gripping of electric instrument is accepting the board, between fixed plate and the pinch-off blades, when electronic component in the electric instrument damages, the user can be fast from accepting the board, the electric instrument of taking off maintains between fixed plate and the pinch-off blades, when the electric instrument maintenance finishes, equally can install electric instrument on the mounting panel fast, thereby prevented that electric instrument and wall are connected unstably, the condition that probably falls down from the wall body, the effectual safety in utilization who guarantees electric instrument, and simultaneously, the installation or the dismantlement degree of difficulty of user to electric instrument has been reduced, user's demand is satisfied.
2. This convenient environmental protection electric instrument of maintenance, through the setting of roof, when the pinch-off blades is accepting the board with electric instrument chucking, when fixed plate and pinch-off blades between, the roof passes through the upper surface fixed connection of bolt and fixed plate and pinch-off blades to prevented that the pinch-off blades from probably passing through the condition of slider along the spout motion, make stable being located of electric instrument accept the board, fixed plate, between pinch-off blades and the roof, increased the stability of device, satisfy user's demand.
Drawings

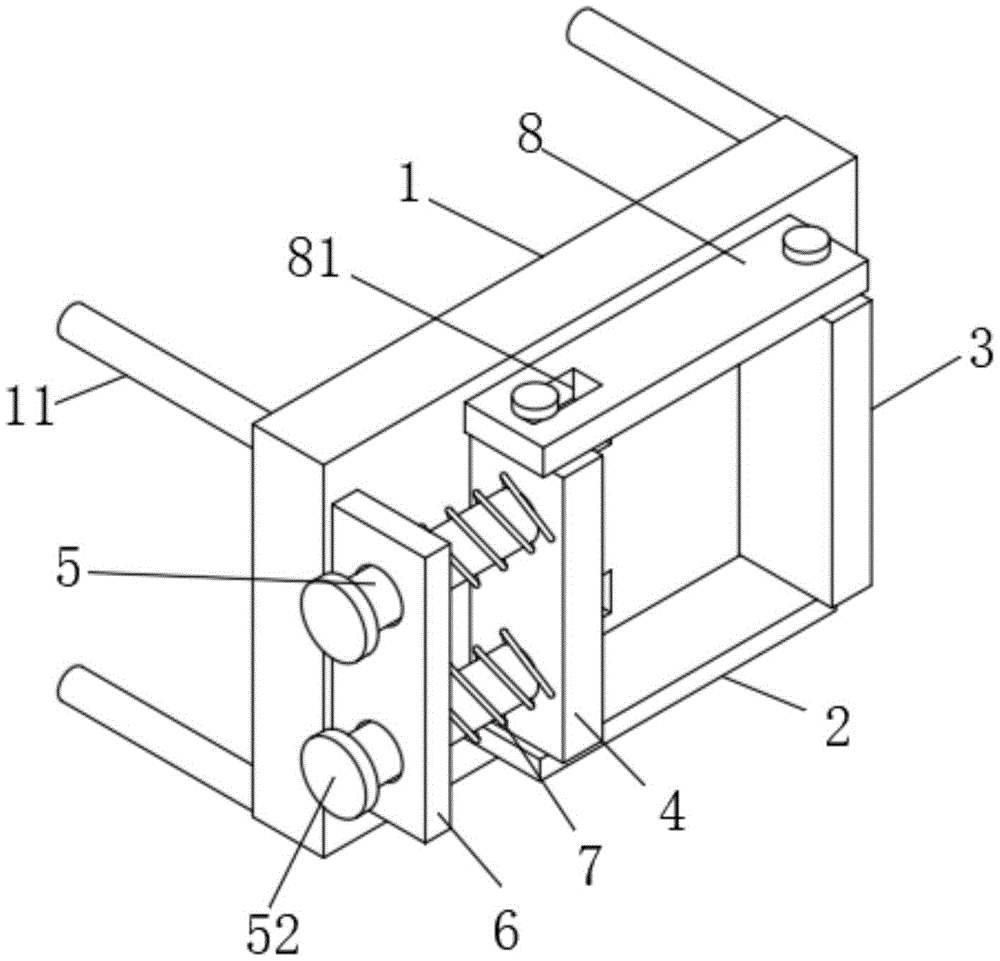

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic diagram of the structure of the mounting plate of the present invention;
FIG. 3 is a cross-sectional view of the connection between the clamping plate and the connecting plate of the present invention;
fig. 4 is a schematic diagram of the structure of the clamping plate of the present invention.
In the figure: 1. mounting a plate; 11. fixing the rod; 12. a chute; 2. a bearing plate; 3. a fixing plate; 4. a clamping plate; 41. a slider; 42. a threaded groove; 5. a telescopic rod; 51. a limiting ring; 52. a limiting plate; 6. a connecting plate; 61. a through hole; 7. the spring is tightly propped; 8. a top plate; 81. a rectangular through groove.
Detailed Description
The embodiment of the utility model discloses convenient maintenance's electric instrument for environmental protection, as shown in fig. 1-4, including mounting panel 1, mounting panel 1 fixed connection is on the wall, mounting panel 1 accepts board 2 with one side fixedly connected with that the wall carried on the back mutually, mounting panel 1 carries on the back one side fixedly connected with fixed plate 3 with the wall, mounting panel 1 has pinch-off plate 4 with one side slip joint that the wall carried on the back mutually, fixed plate 3 and pinch-off plate 4's lower surface all contacts with the upper surface of accepting board 2, fixedly connected with two sets of telescopic links 5 on pinch-off plate 4 and the lateral wall that fixed plate 3 carried on the back mutually, fixedly connected with connecting plate 6 on mounting panel 1 and the lateral wall that the wall carried on the back mutually, the one end that two sets of telescopic links 5 kept away from pinch-off plate 4 all passes the lateral wall of connecting plate 6 and extends, the equal activity of lateral wall of two sets of telescopic links 5 has cup jointed and has supported tight spring 7, through mounting panel 1, accept board 2, Fixed plate 3, clamping plate 4, telescopic link 5, connecting plate 6 and the setting of supporting tight spring 7, mounting panel 1 is on the wall through 11 fixed mounting of four groups of dead levers, the stable centre gripping of electrical instrument is accepting board 2, between fixed plate 3 and the clamping plate 4, when electronic component in the electrical instrument damages, the user can be fast from accepting board 2, take off electrical instrument between fixed plate 3 and the clamping plate 4 and maintain, when the electrical instrument maintenance finishes, equally can install electrical instrument on mounting panel 1 fast, thereby prevented that electrical instrument and wall are connected unstably, the condition that probably falls from the wall body, the effectual safety in utilization who guarantees electrical instrument, and simultaneously, the installation or the dismantlement degree of difficulty of user to electrical instrument has been reduced, satisfy user's demand.
Two sets of spouts 12 have been seted up to one side that mounting panel 1 carried on the back mutually with the wall, and the equal fixedly connected with slider 41 of department is relative with two sets of spouts 12 to clamp plate 4, and slider 41 establishes to "T" shape, and two sets of sliders 41 adapt sliding clamping respectively in the inslot of two sets of spouts 12 for slider 41 can' T drop from the inslot of spout 12, has increased the stability of device.
The equal fixedly connected with dead lever 11 in the equal four corners department of one side that mounting panel 1 and wall are relative, four groups of dead levers 11 are all fixed pegging graft in the wall for mounting panel 1 is stable to be fixed on the wall under the cooperation of four groups of dead levers 11.
The through hole 61 is all seted up with two sets of telescopic links 5 relative department to the connecting plate 6, and two sets of telescopic links 5 keep away from the one end of pinch-off blades 4 and pass two sets of through holes 61 respectively and extend, and the equal fixedly connected with limiting plate 52 of the end that extends of two sets of telescopic links 5, limiting plate 52 establish to be circular, and the diameter of limiting plate 52 is greater than the aperture of through hole 61 for limiting plate 52 does not have from passing through hole 61, has improved the stability of device.
The lateral wall activity of telescopic link 5 has cup jointed spacing ring 51, and the diameter of spacing ring 51 is greater than the aperture of through-hole 61, and the one end of propping tight spring 7 offsets with clamp plate 4, and the other end of propping tight spring 7 offsets with spacing ring 51, and the diameter of propping tight spring 7 is less than the diameter of spacing ring 51 for the stable work of propping tight spring 7 is between spacing ring 51 and clamp plate 4.
The upper surface of clamp plate 4 is equipped with roof 8, the logical groove 81 of rectangle has been seted up to the upper surface of roof 8, threaded groove 42 has all been seted up to the upper surface of clamp plate 4 and the upper surface of fixed plate 3, roof 8 passes through the bolt respectively with fixed plate 3 and clamp plate 4 fixed connection, setting through roof 8, when clamp plate 4 is accepting board 2 with the electric instrument chucking, when fixed plate 3 and clamp plate 4 are between, roof 8 passes through bolt and fixed plate 3 and clamp plate's 4 upper surface fixed connection, thereby prevented that clamp plate 4 is probably to pass through the condition of slider 41 along spout 12 motion, make stable being located of electric instrument accept board 2, fixed plate 3, between clamp plate 4 and the roof 8, the stability of device has been increased, user's demand is satisfied.
The working principle is as follows: when a user uses the utility model, the user takes the mounting plate 1, the four groups of fixed rods 11 at the back side of the mounting plate 1 are fixedly inserted at the proper positions of the wall body, thereby realizing the fixed connection between the mounting plate 1 and the wall surface, the electrical instrument is taken up, the clamping plate 4 is pushed towards the direction of the connecting plate 6, the clamping plate 4 drives the two groups of slide blocks 41 to move along the two groups of slide grooves 12, the clamping plate 4 drives the two groups of telescopic rods 5 to move along the two groups of through holes 61 towards the direction far away from the bearing plate 2, the clamping plate 4 drives the abutting springs 7 to do compression movement towards the side wall of the spacing ring 51, the side wall of the spacing ring 51 close to the connecting plate 6 is jointed with the connecting plate 6, at the moment, the user can place the electrical instrument on the upper surface of the bearing plate 2, the clamping plate 4 is loosened, under the elastic action of the two groups of abutting springs 7, the side wall of the clamping plate 4 opposite to the fixed plate 3 is jointed with the electrical instrument, thereby realized fixing the stable joint of electrical instrument between accepting board 2, fixed plate 3 and clamping plate 4.
Further, the user can take up roof 8, places roof 8 at the upper surface of fixed plate 3 and clamp plate 4, uses the bolt to pass through rectangle logical groove 81 and threaded connection at the inslot of screw thread recess 42, uses the bolt with roof 8 and fixed plate 3 fixed connection to fixed plate 3 and clamp plate 4 relatively fixed has been realized, thereby has made more stable being located of electric instrument and has accepted between board 2, fixed plate 3 and the clamp plate 4.
Furthermore, when electronic parts in the electric instrument are damaged and need to be maintained, the steps of mounting the electric instrument on the bearing plate 2, the fixing plate 3 and the clamping plate 4 are reversely operated, so that the electric instrument can be quickly taken down from the mounting plate 1, and maintenance personnel can conveniently maintain the electric instrument.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides an electric instrument is used in environmental protection of convenient maintenance, includes mounting panel (1), its characterized in that: the mounting plate (1) is fixedly connected on the wall surface, one side of the mounting plate (1) opposite to the wall surface is fixedly connected with a bearing plate (2), one side of the mounting plate (1) opposite to the wall surface is fixedly connected with a fixing plate (3), a clamping plate (4) is slidably clamped at one side of the mounting plate (1) opposite to the wall surface, the lower surfaces of the fixing plate (3) and the clamping plate (4) are both contacted with the upper surface of the bearing plate (2), two groups of telescopic rods (5) are fixedly connected on the side wall of the clamping plate (4) opposite to the fixed plate (3), fixedly connected with connecting plate (6), two sets of on the lateral wall that mounting panel (1) and wall carried on the back mutually the one end that pinch-off blades (4) were kept away from in telescopic link (5) all passes the lateral wall of connecting plate (6) and extends, and is two sets of support tight spring (7) have all been cup jointed in the equal activity of lateral wall of telescopic link (5).
2. The electric meter for environmental protection convenient for maintenance of claim 1, wherein: two sets of spout (12) have been seted up with one side that the wall was carried on the back mutually to mounting panel (1), equal fixedly connected with slider (41) of department is relative with two sets of spout (12) in clamp plate (4), slider (41) are established to "T" shape, and are two sets of slider (41) adaptation slip joint is at the inslot of two sets of spout (12) respectively.
3. The electric meter for environmental protection convenient for maintenance of claim 1, wherein: the wall surface fixing device is characterized in that fixing rods (11) are fixedly connected to four corners of one side, opposite to the wall surface, of the mounting plate (1), and the four groups of fixing rods (11) are fixedly inserted into the wall body.
4. The electric meter for environmental protection convenient for maintenance of claim 1, wherein: through-hole (61) have all been seted up with two sets of telescopic link (5) relative department in connecting plate (6), and are two sets of the one end that pinch-off blades (4) were kept away from in telescopic link (5) passes two sets of through-holes (61) respectively and extends, and is two sets of the equal fixedly connected with limiting plate (52) of extension end of telescopic link (5), establish to circularly limiting plate (52), the diameter of limiting plate (52) is greater than the aperture of through-hole (61).
5. The electric meter for environmental protection convenient for maintenance of claim 4, wherein: the side wall of the telescopic rod (5) is movably sleeved with a limiting ring (51), the diameter of the limiting ring (51) is larger than the aperture of the through hole (61), one end of the abutting spring (7) abuts against the clamping plate (4), the other end of the abutting spring (7) abuts against the limiting ring (51), and the diameter of the abutting spring (7) is smaller than that of the limiting ring (51).
6. The electric meter for environmental protection convenient for maintenance of claim 1, wherein: the upper surface of clamp plate (4) is equipped with roof (8), the logical groove of rectangle (81) has been seted up to the upper surface of roof (8), threaded groove (42) have all been seted up to the upper surface of clamp plate (4) and the upper surface of fixed plate (3), roof (8) pass through the bolt respectively with fixed plate (3) and clamp plate (4) fixed connection.
