Abstract
本实用新型公开了一种建筑施工用除尘装置，涉及施工除尘装置领域，包括支撑板，所述支撑板的顶端连接有支撑柱，且支撑柱的一侧设置有横向拨盘，所述支撑柱的顶端连接有连接柱，且连接柱的顶端连接有横向换向器，所述横向换向器的一侧连接有换向球，且换向球的一侧设置有纵向换向器，所述纵向换向器的一侧连接有纵向拨盘，所述换向球的顶端连接有机箱，所述机箱的内部安装有电机，且电机的输出端连接有扇叶，所述电机的两端连接有连接条，所述机箱的一侧连接有防尘布袋。本实用新型通过设置横向拨盘、横向换向器、纵向拨盘、纵向换向器等实现该装置的角度调节功能，从而使该装置具备多角度调整状态，由此提高该装置的实用性和操作性。
The utility model discloses a dust removal device for building construction, which relates to the field of construction dust removal devices. A connecting column is connected to the top of the connecting column, and a transverse commutator is connected to the top of the connecting column. One side of the transverse commutator is connected with a reversing ball, and one side of the reversing ball is provided with a longitudinal One side of the longitudinal commutator is connected with a longitudinal dial, the top of the reversing ball is connected with a chassis, a motor is installed inside the chassis, and the output end of the motor is connected with a fan blade, and both ends of the motor are connected There are connecting strips, and a dust-proof cloth bag is connected to one side of the chassis. The utility model realizes the angle adjustment function of the device by arranging a transverse dial, a transverse commutator, a longitudinal dial, a longitudinal commutator, etc., so that the device has a multi-angle adjustment state, thereby improving the practicability and the practicability of the device. operability.
Description
Technical Field
The utility model relates to a construction dust collector field specifically is a dust collector for construction.
Background
Along with the demand of cities, properties, roads, greening and the like are further expanded along with the demand of the cities, and certain maintenance needs to be carried out on the surrounding environment when the facilities are trimmed, so that the influence of smoke on the surrounding facilities is avoided.
Most job sites all have and are equipped with dust collector, however these most dust collector do not possess the angular adjustment function, can not effective accurate dust removal to some special job sites to most dust collector is comparatively inconvenient to the change of dust bag, causes the use of many inconvenient.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problem that most of dust removing devices do not have angle adjustment and dust bags are inconvenient to replace, the dust removing device for building construction is provided.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a dust collector for construction, includes the backup pad, the top of backup pad is connected with the support column, and one side of support column is provided with horizontal driver plate, the top of support column is connected with the spliced pole, and the top of spliced pole is connected with horizontal commutator, one side of horizontal commutator is connected with the switching-over ball, and one side of switching-over ball is provided with vertical commutator, one side of vertical commutator is connected with vertical driver plate, the top of switching-over ball is connected with quick-witted case, the internally mounted of machine case has the motor, and the output of motor is connected with the flabellum, the both ends of motor are connected with the connecting strip, one side of machine case is connected with dustproof sack, and the outer wall of machine case and dustproof sack junction is provided with the screw thread wall, machine case and dustproof sack junction are provided with sealed the pad, and the outer wall of dustproof sack is provided with the connecting cover.
Preferably, the bottom end of the supporting plate is provided with a bearing, and the bearing is connected with a moving wheel.
Preferably, the transverse driving plate is rotatably connected with the transverse commutator through a connecting column, and a rotating shaft is arranged at the connecting part between the connecting column and the supporting column.
Preferably, the outer wall of the case is provided with a protective net, and the case is connected with the motor through a connecting strip.
Preferably, the longitudinal driving plate is rotatably connected with the reversing ball through a longitudinal reverser, and a connecting hole matched with the reversing ball is formed in the connecting position of the supporting column and the reversing ball.
Preferably, the inner wall of the connecting cover is provided with threads matched with the threaded wall, and the connecting cover is matched with the threaded wall.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model realizes the angle adjusting function of the device by arranging the transverse driving plate, the transverse commutator, the longitudinal driving plate, the longitudinal commutator and the like, thereby leading the device to have a multi-angle adjusting state and improving the practicability and the operability of the device;
2. the utility model discloses a set up convenient to detach installation function that threaded wall, sealed pad, connection lid realized dustproof sack to convenient to detach clearance was maintained and is installed after the use, improves the convenience that the clearance was maintained and the convenience of dismantlement from this.
Drawings

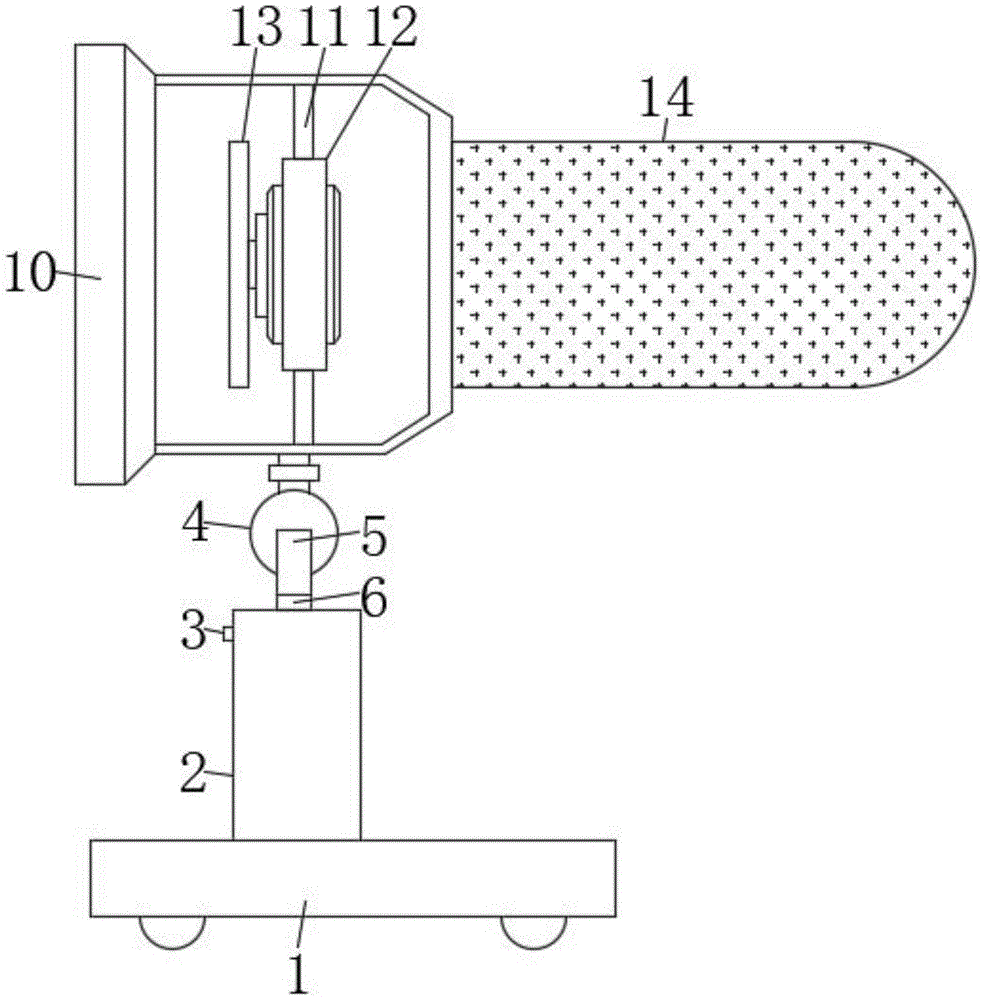

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the connection structure of the reversing ball of the present invention;
fig. 3 is a schematic view of the connection of the dustproof cloth bag of the present invention.
In the figure: 1. a support plate; 2. a support pillar; 3. a transverse drive plate; 4. a reversing ball; 5. a transverse commutator; 6. connecting columns; 7. a longitudinal commutator; 8. a longitudinal drive plate; 9. a connecting cover; 10. a chassis; 11. a connecting strip; 12. a motor; 13. a fan blade; 14. a dust-proof cloth bag; 15. a threaded wall; 16. and a gasket.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected" and "disposed" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention according to its overall structure.
The motor (YS7124) mentioned in the utility model can be obtained by market or private ordering.
Referring to fig. 1-3, a dust removing device for building construction comprises a support plate 1, a support column 2 is connected to the top end of the support plate 1, a horizontal dial 3 is arranged on one side of the support column 2, a connection column 6 is connected to the top end of the support column 2, a horizontal commutator 5 is connected to the top end of the connection column 6, a reversing ball 4 is connected to one side of the horizontal commutator 5, a longitudinal commutator 7 is arranged on one side of the reversing ball 4, a longitudinal dial 8 is connected to one side of the longitudinal commutator 7, a case 10 is connected to the top end of the reversing ball 4, a motor 12 is arranged in the case 10, fan blades 13 are connected to the output end of the motor 12, a connection bar 11 is connected to both ends of the motor 12, a dustproof cloth bag 14 is connected to one side of the case 10, a threaded wall 15 is arranged on the outer wall of the connection part of the case 10 and the dustproof cloth bag 14, a sealing gasket 16 is arranged at the connection part of the case 10 and the dustproof cloth bag 14, and the outer wall of the dustproof cloth bag 14 is provided with a connecting cover 9.
Please refer to fig. 1, the bottom of the supporting plate 1 is provided with a bearing, and the bearing is connected with a moving wheel, so that the device can realize the function of convenient movement, and the problems of difficult movement and difficult movement caused by the use of the device can be avoided, thereby improving the mobility of the device.
Please refer to fig. 2, the horizontal driving plate 3 is rotatably connected to the horizontal diverter 5 through the connection column 6, and a rotation shaft is disposed at the connection position between the connection column 6 and the support column 2, so that the horizontal driving plate 3 can be effectively connected to the horizontal diverter 5, and the horizontal rotation adjustment effect of the chassis 10 is realized through the horizontal diverter 5.
Please refer to fig. 2, a protective screen is disposed on an outer wall of the casing 10, and the casing 10 is connected to the motor 12 through the connecting bar 11, so that the casing 10 prevents impurities or building debris from entering the inside of the casing and damaging the fan blades 13 during the air suction process.
Please refer to fig. 2, the longitudinal dial 8 is rotatably connected to the direction changing ball 4 through the longitudinal direction changer 7, and a connection hole matched with the direction changing ball 4 is formed at a connection position of the support column 2 and the direction changing ball 4, so that the longitudinal dial 8 can effectively drive the case 10 to realize the adjustment of the longitudinal angle, thereby improving the angle change and adjustment of the case 10.
Please refer to fig. 3, the inner wall of the connection cover 9 is provided with a thread matching with the thread wall 15, and the connection cover 9 is engaged with the thread wall 15, so that the connection cover 9 can be effectively connected with the case 10 through the thread wall 15, and the convenience and practicability of the connection are improved.
The working principle is as follows: when the power supply is switched on to use the device, firstly, the device is placed in a required place, then the motor 12 is started, the motor 12 drives the fan blades 13 to rotate through the output end of the motor and extract the outside smoke and dust, when the outside smoke and dust is extracted and enters the dustproof cloth bag 14, the gas is discharged from the dustproof cloth bag 14, the dust, particulate matters and the like are accumulated at the bottom end of the dustproof cloth bag 14, when the air inlet angle of the device is required to be adjusted, the transverse drive plate 3 is stirred to drive the reversing ball 4 to rotate through the connecting post 6, because the reversing ball is connected with the case 10, when the transverse reversing 5 rotates, the effect of transversely rotating the case 10 is realized, when the longitudinal drive plate 8 is stirred, the longitudinal drive plate 8 drives the longitudinal reversing 7 to rotate, the longitudinal reversing ball 4 is driven by the longitudinal reversing 7 to realize the longitudinal angle adjustment, when the dustproof cloth bag 14 is required to be cleaned after the device is used, the connecting cover 9 is rotated to be separated from the connection with the threaded wall 15, then the connecting cover 9 and the sealing gasket 16 are taken down, then the dustproof cloth bag 14 is sleeved into the connecting cover 9 after being cleaned, then the sealing gasket 16 is placed into the connecting cover 9, and finally the connecting cover 9 is connected with the case 10 through the threaded wall 15.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a dust collector for construction, includes backup pad (1), its characterized in that: the top end of the supporting plate (1) is connected with a supporting column (2), one side of the supporting column (2) is provided with a transverse driving plate (3), the top end of the supporting column (2) is connected with a connecting column (6), the top end of the connecting column (6) is connected with a transverse commutator (5), one side of the transverse commutator (5) is connected with a reversing ball (4), one side of the reversing ball (4) is provided with a longitudinal commutator (7), one side of the longitudinal commutator (7) is connected with a longitudinal driving plate (8), the top end of the reversing ball (4) is connected with a case (10), a motor (12) is installed inside the case (10), the output end of the motor (12) is connected with fan blades (13), the two ends of the motor (12) are connected with connecting strips (11), one side of the case (10) is connected with a dustproof cloth bag (14), and the outer wall of the connection part of the case (10) and the dustproof cloth bag (14) is provided with a threaded wall (15), a sealing gasket (16) is arranged at the joint of the case (10) and the dustproof cloth bag (14), and a connecting cover (9) is arranged on the outer wall of the dustproof cloth bag (14).
2. The dust removing device for building construction according to claim 1, wherein: the bottom of backup pad (1) sets up the bearing, and the bearing is connected with and removes the wheel.
3. The dust removing device for building construction according to claim 1, wherein: the transverse driving plate (3) is rotatably connected with the transverse commutator (5) through a connecting column (6), and a rotating shaft is arranged at the joint between the connecting column (6) and the supporting column (2).
4. The dust removing device for building construction according to claim 1, wherein: the outer wall of the case (10) is provided with a protective net, and the case (10) is connected with the motor (12) through a connecting strip (11).
5. The dust removing device for building construction according to claim 1, wherein: the longitudinal driving plate (8) is rotatably connected with the reversing ball (4) through a longitudinal reverser (7), and a connecting hole matched with the reversing ball (4) is formed in the connecting position of the supporting column (2) and the reversing ball (4).
6. The dust removing device for building construction according to claim 1, wherein: the inner wall of the connecting cover (9) is provided with threads matched with the thread wall (15), and the connecting cover (9) is matched with the thread wall (15).
