CN213994510U

CN213994510U - An air filter and anti-sputum splash device

Info

Publication number: CN213994510U
Application number: CN202022377226.7U
Authority: CN
Inventors: 许梦雅; 鲁一君; 鲁献忠; 梁莉莉; 张振香
Original assignee: Second Affiliated Hospital of Zhengzhou Unviersity
Current assignee: Second Affiliated Hospital of Zhengzhou Unviersity
Priority date: 2020-10-22
Filing date: 2020-10-22
Publication date: 2021-08-20
Anticipated expiration: 2030-10-22

Abstract

An air filtration and anti-sputum splashing device effectively solves the problems of easy splashing of sputum in patients with tracheotomy and easy cross-infection when breathing; The upper and lower axial through holes are respectively opened, and the through hole on the right side is coaxially provided with a threaded pipe. The upper end of the threaded pipe extends out of the through hole and is threadedly connected with a collection bottle with an opening facing downward. There are air outlet holes that are evenly distributed along the circumferential direction and run up and down. The through hole on the left is provided with a filter cartridge coaxially. The filter cartridge and the plurality of air outlet holes are provided with filter cotton. The axial hose is provided with a tee pipe in the shell, and the three free ends of the tee pipe are respectively connected with two through holes and the hose; the structure is simple, the conception is novel, the use is convenient, and the practicability is strong.

Description

Air filtering and sputum splashing prevention device

Technical Field

The utility model relates to the technical field of medical care instruments, especially an air filtration prevents sputum splash device.

Background

Various symptoms of dyspnea, such as respiratory failure, respiratory obstruction and the like, can be encountered in clinic, and a tracheal tube needs to be inserted into a tracheotomy so as to keep the trachea unobstructed. After the patient inhales dust in the air, irritant cough is easily generated, sputum in the trachea can be sprayed out from the sleeve, the incision dressing is easily polluted, incision infection is caused, pathogenic bacteria in the patient body are easily spread into the air, cross infection between the patient and family members is caused, and the treatment of the patient's condition is not facilitated.

SUMMERY OF THE UTILITY MODEL

To the above situation, for overcoming the defect of prior art, the utility model aims at providing an filtration and prevent sputum splash device, the effectual trachea of having solved opens the easy splash of patient's sputum, and causes cross infection's problem easily when breathing.

The technical scheme of its solution is, the utility model discloses an oval-shaped shell, axial through-hole about the left and right sides of lateral wall is seted up respectively on the shell, the coaxial screwed pipe that is equipped with in the through-hole on right side, the screwed pipe upper end stretches out through-hole and threaded connection has the collecting flask that the opening is down, set up a plurality of ventholes that link up from top to bottom along its circumferencial direction equipartition under the collecting flask on the lateral wall, the coaxial cartridge filter that is equipped with in the left through-hole, all be equipped with in cartridge filter and a plurality of venthole and cross the filter pulp, axial hose about the lateral wall rear end is equipped with on the shell, be equipped with the three-way pipe in the shell, the three free end of three-way pipe respectively with two through-holes and hose connection.

Compared with the prior art, the beneficial effects of the utility model are that: three-way pipe and receiving flask that are equipped with, can collect patient spun sputum, prevent that the sputum splash from causing the incision to infect, the filter pulp that is equipped with, can effectively filter the respiratory air of patient, prevent to take place cross infection between patient and the family members, hose and ribbon that are equipped with, be convenient for fix this device on tracheal cannula, the check valve that admits air that is equipped with, can effectively avoid the sputum to get into in the cartridge filter, the flowing back check valve that is equipped with, avoid the sputum suction of patient in with the receiving flask, this simple structure, the design is novel, high durability and convenient use, therefore, the clothes hanger is strong in practicability.

Drawings

Fig. 1 is an isometric view of the present invention.

Fig. 2 is a perspective view of the utility model.

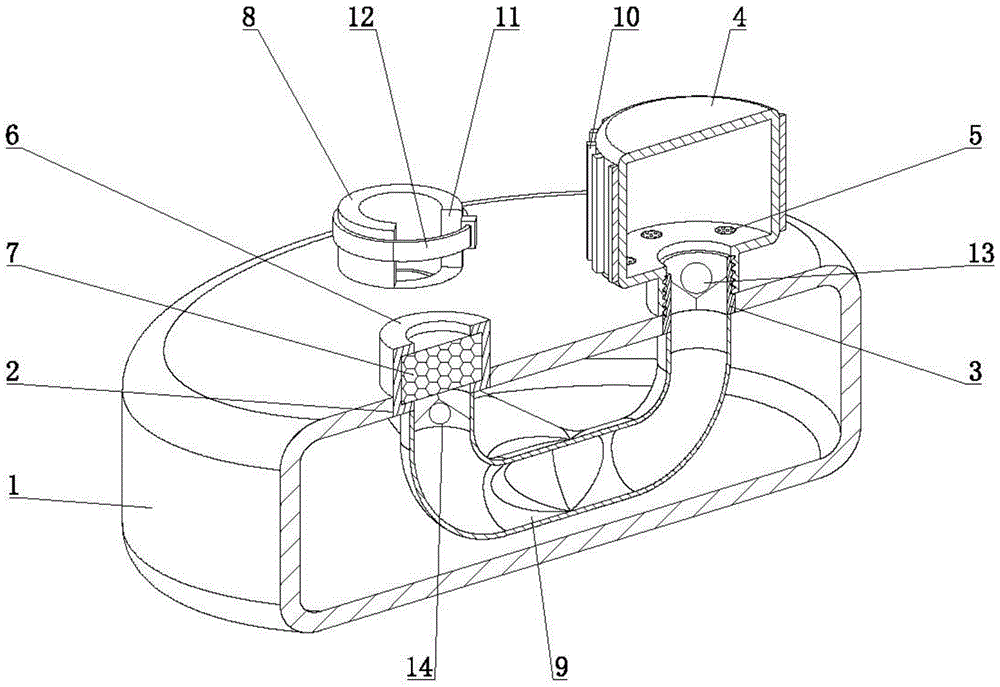

Fig. 3 is a full-section left-side perspective view diagram of the utility model.

Fig. 4 is a top isometric view of the present invention.

Detailed Description

The following describes the embodiments of the present invention in further detail with reference to the accompanying drawings.

By figure 1 to 4, including oval-shaped shell 1, axial through-hole 2 about the left and right sides of lateral wall has been seted up respectively on shell 1, the coaxial screwed pipe 3 that is equipped with in the through-hole 2 on right side, the screwed pipe 3 upper end stretches out through-hole 2 and threaded connection has collection bottle 4 that the opening is down, set up a plurality of ventholes 5 that link up from top to bottom along its circumferencial direction equipartition on the lateral wall under collection bottle 4, the coaxial cartridge filter 6 that is equipped with in the left through-hole 2, all be equipped with filter pulp 7 in cartridge filter 6 and a plurality of venthole 5, axial hose 8 about lateral wall rear end is equipped with on shell 1, be equipped with three-way pipe 9 in the shell 1, three free end of three-way pipe 9 is connected with two through-holes 2 and hose 8 respectively.

The diameter of the flexible tube 8 is larger than that of the tracheal tube in order to fix the device on the tracheal tube.

In order to facilitate the disassembly of the collecting bottle 4, a plurality of anti-slip strips 10 which are uniformly distributed along the circumferential direction are arranged on the outer edge surface of the collecting bottle 4 in the vertical direction.

In order to fix the tracheal cannula conveniently, the front end of the hose 8 is provided with a through groove 11, and the upper end of the hose 8 extends out of the shell 1 and is provided with a binding belt 12.

In order to prevent the patient from sucking out the sputum of the collecting bottle 4, the right end of the three-way pipe 9 is provided with a liquid discharge one-way valve 13 with an opening far away from the three-way pipe 9.

In order to prevent the sputum from entering the filter cylinder 6, the left end of the three-way pipe 9 is provided with an air inlet one-way valve 14 with an opening facing the three-way pipe 9.

When the utility model is used, the free end of the tracheal cannula on the body of a patient is inserted into the hose 8, then the ribbon 12 is tensioned, and the inner surface of the hose 8 is contacted with the outer surface of the tracheal cannula after the ribbon 12 is tensioned because the hose 8 is provided with the through groove 11, so the device is fixed on the tracheal hose 8;

when a patient inhales, the liquid drainage one-way valve 13 is closed, the air inlet one-way valve 14 is opened, outside air enters the three-way pipe 9 through the filter cotton 7 in the filter cylinder 6, the filter cotton 7 effectively filters the air entering the three-way pipe 9, the respiratory tract of the patient is protected, the risk of lower respiratory tract infection of the patient is reduced, the filtered air enters the patient body through the hose 8, when sputum of the patient is sprayed out of the tracheal cannula, the air inlet one-way valve 14 is closed, the liquid drainage one-way valve 13 is opened, the sputum enters the three-way pipe 9 through the hose 8 and then enters the collection bottle 4 through the threaded pipe 3;

when a patient exhales, the liquid discharge one-way valve 13 is closed, the air inlet one-way valve 14 is opened, the gas exhaled by the patient enters the three-way pipe 9 through the hose 8, then enters the collecting bottle 4 through the threaded pipe 3, and is finally filtered and discharged into the outside air through the filter cotton 7 in the air outlet 5, so that germs in the patient are prevented from being discharged into the outside air, and the cross infection between the patient and the family members is effectively avoided;

when the sputum in the receiving flask 4 was too much, medical personnel accessible a plurality of antislip strips 10 anticlockwise rotation receiving flask 4 twisted off receiving flask 4 from screwed pipe 3, handled the sputum in the receiving flask 4 after, fixed receiving flask 4 on screwed pipe 3 again can.

Claims

1. An air filtering and sputum splashing preventing device comprises an oval shell (1), the novel filter is characterized in that the left side and the right side of the upper side wall of the shell (1) are respectively provided with an upper axial through hole (2) and a lower axial through hole (2), a threaded pipe (3) is coaxially arranged in the through hole (2) on the right side, the upper end of the threaded pipe (3) stretches out of the through hole (2) and is in threaded connection with a collecting bottle (4) with a downward opening, a plurality of air outlet holes (5) which are uniformly distributed along the circumferential direction of the collecting bottle (4) and are communicated up and down are formed in the lower side wall of the collecting bottle (4), a filter cartridge (6) is coaxially arranged in the through hole (2) on the left side, filter cotton (7) is arranged in the filter cartridge (6) and the air outlet holes (5), the rear end of the upper side wall of the shell (1) is provided with an upper axial hose (8).

2. An air filtering and sputum spray preventing device as claimed in claim 1 wherein the diameter of the hose (8) is larger than the tracheal tube diameter.

3. An air filtering and sputum splashing preventing device according to claim 1, wherein a plurality of anti-slip strips (10) are arranged on the outer edge surface of the collecting bottle (4) in the up-down direction and are uniformly distributed along the circumferential direction.

4. An air filtering and sputum splashing preventing device according to claim 1, wherein the front end of the hose (8) is provided with a through groove (11), and the upper end of the hose (8) extends out of the housing (1) and is provided with a binding belt (12).

5. An air filtering and sputum spray preventing device as claimed in claim 1, wherein the right end of the three-way pipe (9) is provided with a liquid discharge one-way valve (13) which is opened away from the three-way pipe (9).

6. An air filtering and sputum spray preventing device as claimed in claim 1, wherein the left end of the three-way pipe (9) is provided with an air inlet one-way valve (14) opening towards the three-way pipe (9).
