Abstract

The utility model discloses a solar photovoltaic power generation board adjusting device relates to solar facilities technical field, including the installation base, the top of installation base is rotated and is connected with rotating device, the first motor of top fixedly connected with of installation base, the output fixedly connected with driving gear of first motor, rotating device's top fixedly connected with support frame, the top fixedly connected with roof of support frame, the top fixedly connected with pivot seat of roof, it has solar panel to articulate on the pivot seat, solar panel's bottom articulates there is the connecting rod, solar panel's one end is kept away from to the connecting rod and the top of sliding block is articulated. Because solar panel's inside is provided with light induction system to the operation of the first motor of effect control through well accuse device and second motor makes solar panel can be along with the sun motion, guarantees that solar panel accepts maximum illumination all the time, thereby has promoted the generating efficiency.

Description

Solar photovoltaic power generation board adjusting device
Technical Field
The utility model relates to a solar facilities technical field specifically is a solar photovoltaic electricity generation board adjusting device.
Background
The solar cell is also called as a solar chip or a photocell, and is a photoelectric semiconductor slice which directly generates electricity by utilizing sunlight, because human beings face serious threats of exhaustion of fossil fuels such as petroleum, coal and the like, the fossil fuels have limited reserves and pollute the environment, the solar energy as a novel energy has the advantages of no pollution, free use, no transportation, huge reserves and the like, the solar photovoltaic power generation is a new energy technology which directly converts solar energy into electric energy by utilizing the photovoltaic effect, the photovoltaic power generation has great significance for solving energy crisis and protecting human living environment, at present, most solar power generation devices use a solar photovoltaic panel to absorb the solar energy, and then convert the absorbed solar energy into electric energy to generate electricity.
The solar cell panel of prior art generally is better daylighting, installs in the building top more, for fixed mounting, perhaps only can carry out limited angle modulation to the solar photovoltaic board, however the illumination position of sun can change along with the time, leads to solar panel can't receive abundant illumination sometimes, can cause the speed that solar energy received the short electricity generation that leads to of illumination time to slow down like this, leads to the generating efficiency step-down to this, we provide a solar photovoltaic electricity generation board adjusting device.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a solar photovoltaic electricity generation board adjusting device has solved the problem of proposing in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a solar photovoltaic power generation plate adjusting device comprises an installation base, wherein the top of the installation base is rotatably connected with a rotating device, the top of the installation base is fixedly connected with a first motor, the output end of the first motor is fixedly connected with a driving gear, the top of the rotating device is fixedly connected with a support frame, the top of the support frame is fixedly connected with a top plate, the top of the top plate is fixedly connected with a first fixing plate, the top of the top plate is fixedly connected with a second fixing plate, a lead screw is rotatably connected between the second fixing plate and the first fixing plate, a sliding block is in threaded connection with the lead screw, a second motor is fixedly connected to the outer part of the first fixing plate, the output end of the second motor is fixedly connected with the lead screw, the top of the top plate is fixedly connected with a rotating shaft seat, and a solar panel is hinged on the rotating shaft seat, the bottom of the solar panel is hinged to a connecting rod, and one end, away from the solar panel, of the connecting rod is hinged to the top of the sliding block.
Preferably, the mounting base comprises a fixing bottom plate, the top of the fixing bottom plate is fixedly connected with an outer circular ring, the top of the fixing bottom plate is fixedly connected with an inner circular ring, the outer portion of the inner circular ring is fixedly connected with a limiting ring, and the fixing bottom plate is provided with a fixing hole.
Preferably, the rotating device comprises a rotary disc, external teeth are fixedly connected to the outer portion of the rotary disc and meshed with the driving gear, a mounting hole is formed in the top of the rotary disc, an annular groove is formed in the rotary disc, the annular groove is matched with the limiting ring, rolling wheels are arranged at the bottom of the rotary disc, and the bottom of the rotary disc is rotatably connected between the outer annular ring and the inner annular ring.
Preferably, the bottom of the support frame passes through the mounting hole through the bolt and is fixedly connected with the top of the turntable, and the two support frames are symmetrically arranged.
Preferably, the top plate, the first fixing plate, the second fixing plate, the screw rod, the sliding block and the second motor are symmetrically arranged in two.
Preferably, the inside of installation base is provided with battery and well accuse device, and solar panel's inside is provided with light induction system, equal electric connection between battery, well accuse device, light induction system, first motor and the second motor.
(III) advantageous effects
The utility model provides a solar photovoltaic electricity generation board adjusting device. The method has the following beneficial effects:
the utility model provides a solar photovoltaic power generation board adjusting device, because bottom at rotating device is provided with the gyro wheel, it rotates to drive the driving gear through first motor work, thereby it rotates in the installation base to drive rotating device, drive solar panel's rotation regulation, it rotates to drive the lead screw through the second motor, thereby it moves on the lead screw to drive the sliding block, connecting rod on the sliding block is through articulated with the solar panel bottom, jack-up one side of solar panel bottom, realize solar panel's angle modulation, because solar panel's inside is provided with light induction system, and the operation of first motor of effect control through well accuse device and second motor makes solar panel can be along with solar motion, guarantee that solar panel accepts maximum illumination all the time, thereby the generating efficiency has been promoted.
Drawings

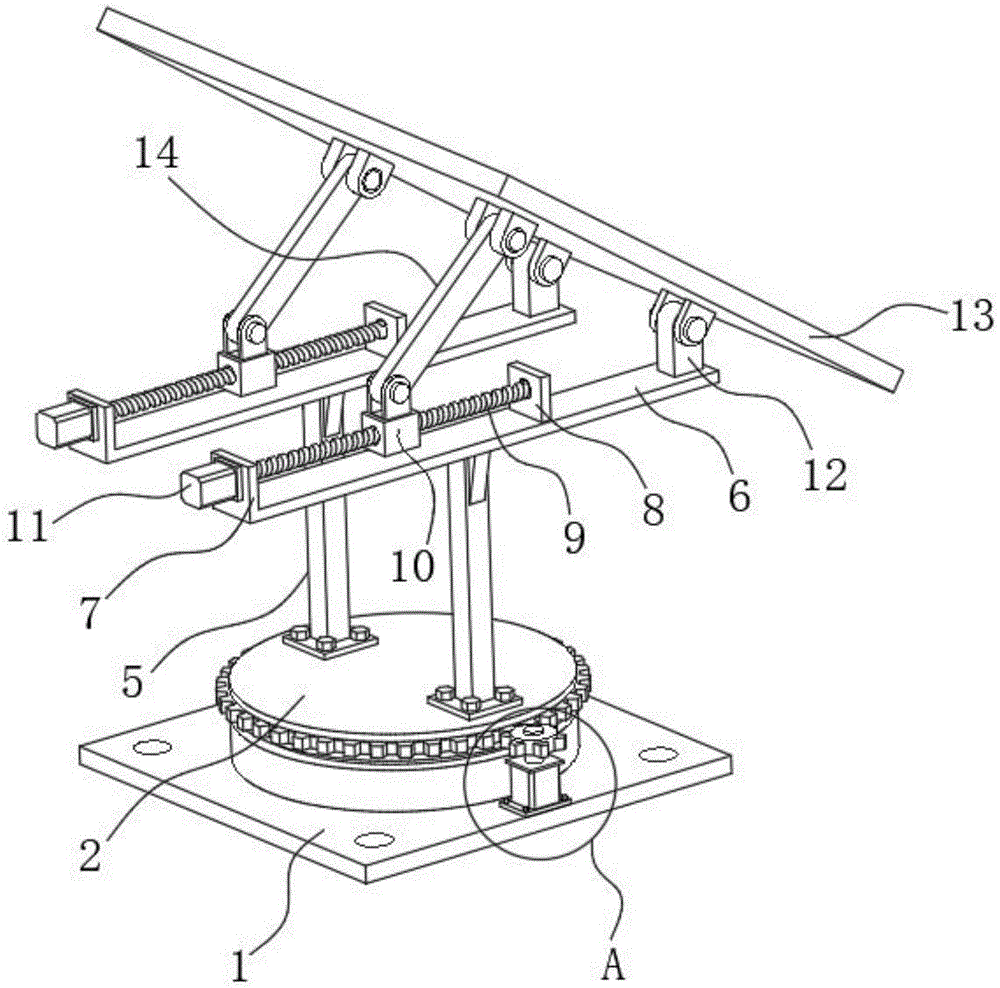

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is an enlarged view of a portion A of FIG. 1;
FIG. 3 is a schematic view of the structure of the installation base of the present invention;
FIG. 4 is a schematic view of the structure of the rotating device of the present invention;
fig. 5 is a schematic structural view of the rotating device in different directions of the present invention.
In the figure: the device comprises a mounting base 1, a fixing bottom plate 101, an outer ring 102, an inner ring 103, a limiting ring 104, a fixing hole 105, a rotating device 2, a rotating disc 201, an outer tooth 202, a mounting hole 203, an annular groove 204, a roller 205, a first motor 3, a driving gear 4, a support frame 5, a top plate 6, a first fixing plate 7, a second fixing plate 8, a lead screw 9, a sliding block 10, a second motor 11, a rotating shaft seat 12, a solar panel 13 and a connecting rod 14.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a solar photovoltaic power generation plate adjusting device comprises an installation base 1, wherein the top of the installation base 1 is rotatably connected with a rotating device 2, the top of the installation base 1 is fixedly connected with a first motor 3, the output end of the first motor 3 is fixedly connected with a driving gear 4, the top of the rotating device 2 is fixedly connected with two support frames 5, the two support frames 5 are symmetrically arranged, the top of each support frame 5 is fixedly connected with a top plate 6, the top of each top plate 6 is fixedly connected with a first fixing plate 7, the top of each top plate 6 is fixedly connected with a second fixing plate 8, a lead screw 9 is rotatably connected between each second fixing plate 8 and the corresponding first fixing plate 7, a sliding block 10 is in threaded connection with each lead screw 9, a second motor 11 is fixedly connected to the outer part of each first fixing plate 7, and the two top plates 6, the first fixing plates 7, the second fixing plates 8, the lead screws 9, the sliding blocks 10 and the second motors 11 are symmetrically arranged, the output and the lead screw 9 fixed connection of second motor 11, the top fixedly connected with pivot seat 12 of roof 6, articulated on the pivot seat 12 have solar panel 13, and solar panel 13's bottom articulates there is connecting rod 14, and the one end that solar panel 13 was kept away from to connecting rod 14 is articulated with the top of sliding block 10.
Further, the mounting base 1 includes a fixed base plate 101, an outer ring 102 is fixedly connected to the top of the fixed base plate 101, an inner ring 103 is fixedly connected to the top of the fixed base plate 101, a limiting ring 104 is fixedly connected to the outside of the inner ring 103, and a fixing hole 105 is formed in the fixed base plate 101.
Further, rotating device 2 includes carousel 201, the outside fixedly connected with external tooth 202 of carousel 201, external tooth 202 meshes with driving gear 4, mounting hole 203 has been seted up at the top of carousel 201, the bottom of support frame 5 passes mounting hole 203 fixed connection at the top of carousel 201 through the bolt, ring channel 204 has been seted up to the inside of carousel 201, ring channel 204 and spacing ring 104 phase-match, the bottom of carousel 201 is provided with gyro wheel 205, gyro wheel 205's setting makes rotating device 2 can rotate in a flexible way on installation base 1, the bottom of carousel 201 rotates between outer ring 102 and inner ring 103 to be connected.
In addition, the inside of installation base 1 is provided with battery and central control device, and the inside of solar panel 13 is provided with light induction system, all electric connection between battery, central control device, light induction system, first motor 3 and the second motor 11.
The working principle is as follows: light induction system who sets up among solar panel 13, light induction system and well accuse device and first motor 3 and 11 electric connection of second motor, through well accuse device first motor 3 and 11 operation of second motor, first motor 3 work drives driving gear 4 and rotates, thereby drive rotating device 2 and rotate 1 in the installation base, drive solar panel 13's rotation regulation, it rotates to drive lead screw 9 through second motor 11, thereby drive sliding block 8 and move on lead screw 9, connecting rod 14 on the sliding block 8 is through articulated bottom solar panel 13, jack-up one side of solar panel 13 bottom, realize solar panel 13's angle modulation, make solar panel 13 towards the direction of sunshine through light induction system's response, the generating efficiency has been promoted.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The utility model provides a solar photovoltaic electricity generation board adjusting device, includes installation base (1), its characterized in that: the top of the mounting base (1) is rotatably connected with a rotating device (2), the top of the mounting base (1) is fixedly connected with a first motor (3), the output end of the first motor (3) is fixedly connected with a driving gear (4), the top of the rotating device (2) is fixedly connected with a support frame (5), the top of the support frame (5) is fixedly connected with a top plate (6), the top of the top plate (6) is fixedly connected with a first fixing plate (7), the top of the top plate (6) is fixedly connected with a second fixing plate (8), a lead screw (9) is rotatably connected between the second fixing plate (8) and the first fixing plate (7), a sliding block (10) is in threaded connection with the lead screw (9), a second motor (11) is fixedly connected with the outside of the first fixing plate (7), and the output end of the second motor (11) is fixedly connected with the lead screw (9), the top fixedly connected with pivot seat (12) of roof (6), it has solar panel (13) to articulate on pivot seat (12), the bottom of solar panel (13) articulates there is connecting rod (14), the one end that solar panel (13) were kept away from in connecting rod (14) is articulated with the top of sliding block (10).
2. The solar photovoltaic power generation panel adjusting device of claim 1, wherein: the mounting base (1) comprises a fixed base plate (101), an outer circular ring (102) is fixedly connected to the top of the fixed base plate (101), an inner circular ring (103) is fixedly connected to the top of the fixed base plate (101), a limiting ring (104) is fixedly connected to the outer portion of the inner circular ring (103), and a fixing hole (105) is formed in the fixed base plate (101).
3. The solar photovoltaic power generation panel adjusting device of claim 1, wherein: rotating device (2) includes carousel (201), the outside fixedly connected with external tooth (202) of carousel (201), external tooth (202) and driving gear (4) meshing, mounting hole (203) have been seted up at the top of carousel (201), ring channel (204) have been seted up to the inside of carousel (201), ring channel (204) and spacing ring (104) phase-match, the bottom of carousel (201) is provided with gyro wheel (205), the bottom of carousel (201) rotates between outer ring (102) and interior ring (103) and is connected.
4. The solar photovoltaic power generation panel adjusting device of claim 1, wherein: the bottom of support frame (5) passes mounting hole (203) fixed connection at the top of carousel (201) through the bolt, support frame (5) symmetry is provided with two.
5. The solar photovoltaic power generation panel adjusting device of claim 1, wherein: roof (6), first fixed plate (7), second fixed plate (8), lead screw (9), sliding block (10) and second motor (11) all are provided with two symmetrically.
6. The solar photovoltaic power generation panel adjusting device of claim 1, wherein: the solar energy water heater is characterized in that a storage battery and a central control device are arranged inside the mounting base (1), a light sensing device is arranged inside the solar panel (13), and the storage battery, the central control device, the light sensing device, the first motor (3) and the second motor (11) are electrically connected.
