Abstract
本实用新型公开了管式余热循环利用装置，包括管式余热循环利用装置主体，所述管式余热循环利用装置主体的外侧连接有连接口，所述管式余热循环利用装置主体的外侧安装有稳固机构，所述管式余热循环利用装置主体的底部固定有支撑架，所述支撑架的底部设置有支撑机构，所述稳固机构包括安装套，所述安装套的内部通过安装轴活动连接有第一活动架；本实用新型设置有稳固机构，通过挤压弹簧提供弹力，第一保护套与第二保护套可贴合在连接部位的外侧，并能够确保管道连接部位的稳固，避免了变形与松动的情况；本实用新型设置有支撑机构，可方便的完成支撑块的安装固定，且橡胶垫能够确保安装后放置结构稳定。
The utility model discloses a tubular waste heat recycling device, comprising a main body of the tubular waste heat recycling device, a connection port is connected to the outer side of the main body of the tubular waste heat recycling device, and an outer side of the main body of the tubular waste heat recycling device is installed with a connecting port. A stabilization mechanism, a support frame is fixed at the bottom of the main body of the tubular waste heat recycling device, a support mechanism is arranged at the bottom of the support frame, and the stabilization mechanism includes an installation sleeve, and the inside of the installation sleeve is movably connected with the installation shaft. The first movable frame; the utility model is provided with a stabilizing mechanism, which provides elastic force by squeezing the spring, the first protective cover and the second protective cover can fit on the outer side of the connection part, and can ensure the stability of the pipe connection part and avoid deformation The utility model is provided with a support mechanism, which can conveniently complete the installation and fixation of the support block, and the rubber pad can ensure the stability of the placement structure after installation.
Description
Technical Field
The utility model belongs to the technical field of waste heat recovery, concretely relates to tubular waste heat cyclic utilization device.
Background
The tubular waste heat recycling device is high-efficiency heat exchange energy-saving equipment using a heat pipe as a heat transfer element, is suitable for recycling waste heat of flue gas, and uses the recycled waste heat for heating water, preheating air, generating steam and the like.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a tubular waste heat recycling device can ensure the firm at pipe connection position, has avoided the deformation and the not hard up condition, and the installation of completion supporting shoe that simultaneously can be convenient is fixed, and the rubber pad can ensure to place stable in structure after the installation.
In order to achieve the above object, the utility model provides a following technical scheme: the tubular waste heat recycling device comprises a tubular waste heat recycling device main body, wherein a connector is connected to the outer side of the tubular waste heat recycling device main body, a stabilizing mechanism is installed on the outer side of the tubular waste heat recycling device main body, a support frame is fixed to the bottom of the tubular waste heat recycling device main body, and a support mechanism is arranged at the bottom of the support frame;
the stabilizing mechanism comprises an installation sleeve, the inside of the installation sleeve is connected with a first movable frame through an installation shaft, one end of the first movable frame is fixed with a first protective sleeve, the outside of the first movable frame is connected with a second movable sleeve through a hinge, one end of the second movable sleeve is fixed with a second protective sleeve, the other end of the second movable sleeve is connected with a connecting block, the outside of the connecting block is provided with a handle rod, and one side of the first movable frame is connected with an extrusion spring.
As a further aspect of the present invention: the supporting mechanism comprises a supporting block, a rubber pad is embedded into the bottom of the supporting block, a connecting spring is arranged inside the supporting block, one end of the connecting spring is connected with a limiting plate, the other side of the limiting plate is connected with a connecting rod, and an installation block is fixed to the other end of the connecting rod.
As a further aspect of the present invention: a through hole is formed in the supporting block, and the size of the through hole is matched with that of the connecting rod.
As a further aspect of the present invention: one end of the first protective sleeve is provided with a positioning block, and the inside of the second protective sleeve is provided with a positioning groove.
As a further aspect of the present invention: the handle rod is fixedly bonded with the connecting block, and anti-skid grains are arranged on the outer side of the handle rod.
As a further aspect of the present invention: the outside of installation cover has been seted up logical groove, and the size that just leads to the groove and the size adaptation of handle bar.
As a further aspect of the present invention: the through-hole that holds first protective sheath and second protective sheath activity is seted up in the outside of installation cover.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) the utility model discloses be provided with firm mechanism, provide elasticity through the extrusion spring, first protective sheath and second protective sheath can laminate in the outside at the connection position to can ensure the firm at pipe connection position, avoid warping and the not hard up condition.
(2) The utility model discloses be provided with supporting mechanism, the installation of completion supporting shoe that can be convenient is fixed, and the rubber pad can ensure to place stable in structure after the installation.
Drawings

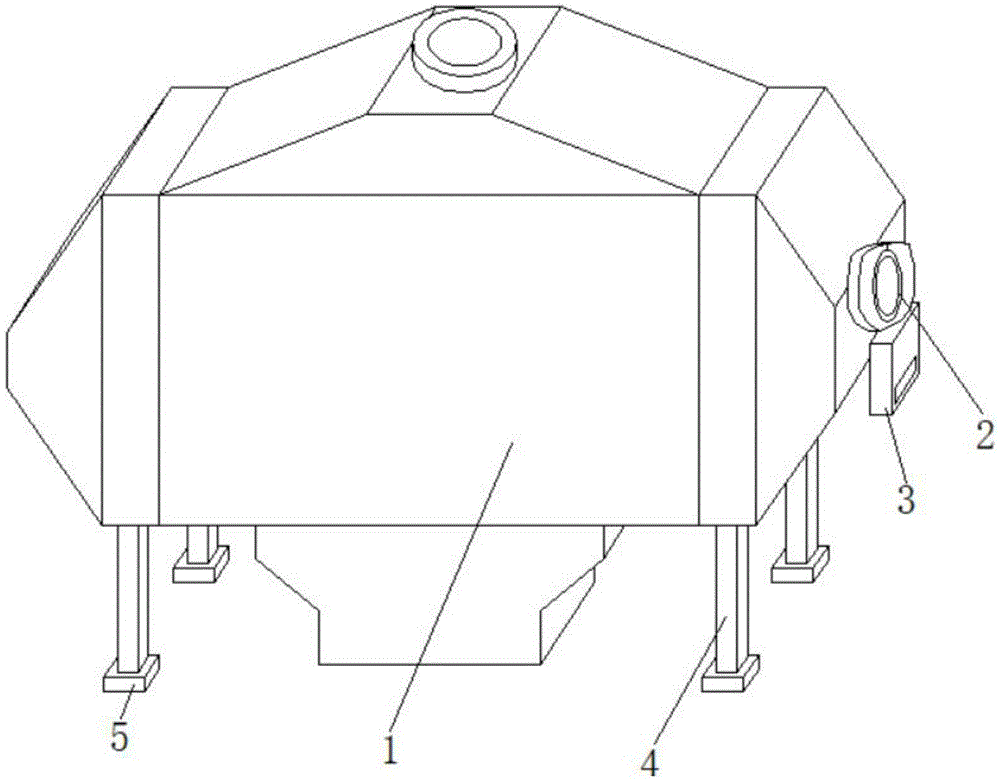

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the structure of the fixing mechanism of the present invention;
FIG. 3 is a schematic structural view of the supporting mechanism of the present invention;
in the figure: 1. the tubular waste heat recycling device main body; 2. a connecting port; 3. a stabilizing mechanism; 31. installing a sleeve; 32. a first movable frame; 33. a first protective sheath; 34. a second movable sleeve; 35. a second protective cover; 36. connecting blocks; 37. a handle bar; 38. a compression spring; 4. a support frame; 5. a support mechanism; 51. a support block; 52. a rubber pad; 53. a connecting spring; 54. a limiting plate; 55. a connecting rod; 56. and (7) installing the block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: the tubular waste heat recycling device comprises a tubular waste heat recycling device main body 1, wherein a connector 2 is connected to the outer side of the tubular waste heat recycling device main body 1, a stabilizing mechanism 3 is installed on the outer side of the tubular waste heat recycling device main body 1, a support frame 4 is fixed to the bottom of the tubular waste heat recycling device main body 1, and a support mechanism 5 is arranged at the bottom of the support frame 4;
the stabilizing mechanism 3 comprises a mounting sleeve 31, a first movable frame 32 is movably connected inside the mounting sleeve 31 through a mounting shaft, a first protective sleeve 33 is fixed at one end of the first movable frame 32, a second movable sleeve 34 is movably connected outside the first movable frame 32 through a hinge, a second protective sleeve 35 is fixed at one end of the second movable sleeve 34, a connecting block 36 is connected at the other end of the second movable sleeve 34, a handle rod 37 is arranged outside the connecting block 36, an extrusion spring 38 is connected to one side of the first movable frame 32, when a user connects a pipeline with the tubular waste heat recycling device main body 1, the connecting block 36 can be driven to move by pulling the handle rod 37, and one end of the second movable sleeve 34 can be pulled simultaneously, at the moment, the first protective sleeve 33 can be separated from the second protective sleeve 35, and the connection of the pipeline can be facilitated, after the pipeline is connected, the elastic force can be provided by the extrusion spring 38, at this time, the first protective sleeve 33 and the second protective sleeve 35 can be attached to the outer side of the connecting part, the stability of the connecting part of the pipeline can be ensured, and the deformation and looseness are avoided.
As an embodiment of the utility model, supporting mechanism 5 includes supporting shoe 51, the bottom embedding of supporting shoe 51 has rubber pad 52, the inside of supporting shoe 51 is provided with coupling spring 53, coupling spring 53's one end is connected with limiting plate 54, limiting plate 54's opposite side is connected with connecting rod 55, connecting rod 55's the other end is fixed with installation piece 56, the user is when assembling supporting frame 4 with supporting shoe 51, only need with supporting frame 4 insert in the recess of supporting shoe 51 can, accessible coupling spring 53 promotes limiting plate 54 and connecting rod 55 and removes in the lump this moment, and can make installation piece 56 card go into in the supporting frame 4, thereby convenient completion supporting shoe 51's installation is fixed, and rubber pad 52 can ensure to place stable in structure after the installation.
As an embodiment of the present invention, the through hole is provided inside the supporting block 51, and the size of the through hole is matched with the size of the connecting rod 55.
As an embodiment of the present invention, the one end of the first protection sleeve 33 is provided with a positioning block, and the positioning groove is disposed inside the second protection sleeve 35.
As an embodiment of the utility model, the handle rod 37 is fixed with the connecting block 36 by bonding, and the outside of the handle rod 37 is provided with anti-skid lines.
As an embodiment of the present invention, the outer side of the mounting sleeve 31 is provided with a through groove, and the size of the through groove is matched with the size of the handle rod 37.
As an embodiment of the present invention, the through hole for accommodating the first protection sleeve 33 and the second protection sleeve 35 is disposed outside the mounting sleeve 31.
The utility model discloses a theory of operation: when the device is used, when a user connects a pipeline with the tubular waste heat recycling device main body 1, the connecting block 36 can be driven to move by pulling the handle rod 37, one end of the second movable sleeve 34 can be pulled at the same time, the first protective sleeve 33 and the second protective sleeve 35 can be separated at the moment, the pipeline can be conveniently connected, after the pipeline is connected, the elastic force can be provided by the extrusion spring 38, at the moment, the first protective sleeve 33 and the second protective sleeve 35 can be attached to the outer side of the connecting part, the stability of the connecting part of the pipeline can be ensured, and the deformation and looseness conditions are avoided; the user when assembling support frame 4 and supporting shoe 51, only need with support frame 4 insert in the recess in supporting shoe 51 can, accessible connecting spring 53 promotes limiting plate 54 and connecting rod 55 and removes in the lump this moment to can make installation piece 56 card go into in the support frame 4, thereby convenient completion supporting shoe 51's installation is fixed, and rubber pad 52 can ensure to place stable in structure after the installation.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
