Abstract

The utility model relates to the technical field of water removal and filtration, and discloses a concealed multifunctional water remover, comprising a water removal casing and a cover body, the cover body is covered above the water removal casing, and the water removal One side of the water shell is connected with a water removal pipe, at least one slot hole is provided on the upper surface of the cover body, a collection bin is detachably connected to the slot hole, and a number of hooks are fixed at intervals on the upper surface of the collection bin. The upper surface of the slot hole is provided with steps, the steps are provided with grooves equal to the number of the hooks at intervals, the hooks are hooked in the grooves, and the upper surface of the collection bin and the steps are provided. Leave a gap. Compared with the prior art, in the present invention, a cover body is arranged on the water removal shell, and a collection bin is installed by using the slot holes on the cover body. It overflows from the gap between the upper surface of the collection bin and the steps, and part of the sundries are retained in the collection bin, which is not easy to block the drain pipe.

Description

Hidden multi-functional dehydrator

Technical Field

The utility model relates to a go water, filtration technical field, in particular to hidden multi-functional dehydrator.

Background

Such as bathroom floors, bathtubs, etc., are provided with a drain opening, and a drainer is generally installed in the drain opening. The main function of the water remover is to realize the drainage and water storage of the sanitary ware, and the quality of the performance of the water remover directly influences the using effect of water removal of a bathroom. The traditional water removing device is basically a water removing pool communicated with a water removing pipe, the bottom of the water removing pool is provided with a hollow part, and a filter screen is arranged above the water removing pool.

However, the above-mentioned dehydration device has the following defects: in a bathroom or the like, when the water remover is used, sundries such as a lot of hair are easily generated, a filter device is not arranged or a sundry collecting device is not arranged, garbage such as hair and sundries falling off in the process of washing and bathing easily and directly enters a sewer pipe, even if the garbage falls into the sewer pipe, the garbage is difficult to clean when the garbage is collected for a certain period of time, and the blockage of the sewer pipe is easily caused after the garbage is used for a long time.

SUMMERY OF THE UTILITY MODEL

Utility model purpose: to the problem that exists among the prior art, the utility model provides a hidden multi-functional dehydrator through set up the lid on the casing that anhydrates to utilize slotted hole installation collection storehouse on the lid, water falls into in collecting the storehouse after overflowing from lid top, and overflows from the clearance between collection storehouse upper surface and the step after overflowing, and partial debris are kept in collecting the storehouse, and water is discharged from the water pipe that anhydrates the casing after overflowing from the clearance, prevents that dehydrator from blockking up, is convenient for clear up debris.

The technical scheme is as follows: the utility model provides a hidden multi-functional dehydrator, including casing, the lid that anhydrates, the lid fits the casing top that anhydrates, casing one side intercommunication that anhydrates has the dewatering pipe, at least one slotted hole is seted up to the lid upper surface, can dismantle in the slotted hole and be connected with the collection storehouse, collection storehouse upper surface interval is fixed with a plurality of trip, the slotted hole upper surface is provided with the step, the interval be provided with on the step with trip quantity equals the recess, the trip collude in the recess, collect the storehouse upper surface with leave the clearance between the step.

Further, a gap is reserved between the bottom of the collecting bin and the bottom of the dewatering shell.

Furthermore, still be equipped with a communicating pipe on the slotted hole, communicating pipe one end external diameter slightly is greater than step size on the slotted hole, and with the step extrusion is fixed, its other end external diameter is less than collect the internal diameter of storehouse, and it inserts in collecting the storehouse, the terminal with leave the clearance between the collection storehouse bottom.

Further, a rubber ring matched with the communication pipe in shape is fixed at one end, in contact with the step, of the communication pipe.

Furthermore, a barrier strip is further fixed at the upper end of the communicating pipe along the radial direction of the communicating pipe.

Furthermore, the edge of the upper surface of the dewatering shell is coated with a layer of rubber backing ring, the cover body covers the rubber backing ring, and the cover body is fixedly connected with the dewatering shell through screws.

Further, the lid upper surface sets up the spacing arch of a plurality of, lid one side articulates there is flip, flip articulates cover in the lid top, just flip's inside wall with spacing protruding contact.

Further, a handle needle is vertically fixed at the bottom of the collecting bin upwards.

Has the advantages that:

1. the utility model discloses a set up the lid on the casing that anhydrates to utilize the slotted hole installation on the lid to collect the storehouse, water falls into to collect the storehouse after overflowing from lid top, and overflows from the clearance between collection storehouse upper surface and the step after the overflow, and partial debris are kept in collecting the storehouse, and water overflows the back from the clearance and discharges from the water pipe that anhydrates of casing.

2. The utility model discloses a fixed collection storehouse of communicating pipe prevents to collect the outside that the storehouse drifted out the lid under the too much condition of water, can prevent moreover that the debris of collecting in the collection storehouse from spilling over.

3. The utility model discloses rubber circle on communicating pipe plays waterproof reinforced (rfd) effect.

4. The utility model discloses set up the blend stop in communicating pipe upper end, can play a filterable purpose, debris such as hair in the bathroom can be caught on by the blend stop, can not get into inside the dehydrator along with water to block up the dewatering pipe.

5. The utility model discloses set up the rubber backing ring on the casing that anhydrates, the phenomenon of leaking can not appear between lid and the casing that anhydrates.

6. The utility model discloses still set up a flip on the lid, after the installation dehydrator, in the time of the use, can utilize flip to cover whole dehydrator, and spacing arch can not influence water again from flip below inflow dehydrator, elegant appearance.

7. The utility model discloses set up the handle needle at the bottom of collecting the storehouse, when the debris in the storehouse is collected in the clearance, can take out the storehouse through the handle needle, clean health is also safer taking out the in-process moreover.

Drawings

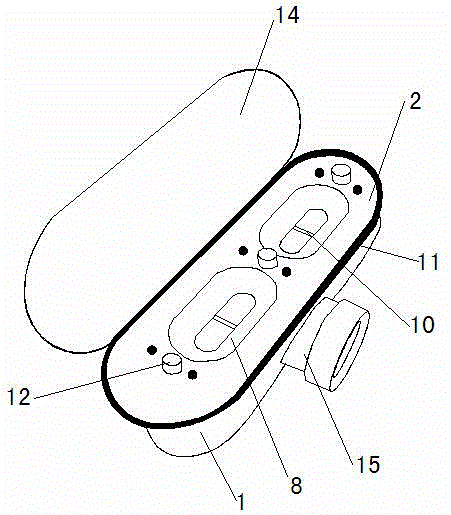

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the structure of the dewatering housing of the present invention;

FIG. 3 is a schematic view of the cover structure of the present invention;

FIG. 4 is a schematic view of the collecting chamber of the present invention;

FIG. 5 is a schematic view of the structure of the communicating tube of the present invention;

fig. 6 is the schematic view of the connection structure of the dewatering shell and the collecting bin of the present invention.

The device comprises a water removal shell, a cover body, a groove hole, a step, a groove, a collecting bin, a clamping hook, a communicating pipe, a rubber ring, a retaining strip, a rubber backing ring, a limiting bulge, a handle needle, a flip cover and a water removal pipe, wherein the water removal shell is 1-2-the cover body, the groove hole is 3-the groove hole, the step is 4-the groove is 5-the groove, the collecting bin is 6-the clamping hook, the communicating pipe is 8-the rubber ring, the retaining strip.

Detailed Description

The present invention will be described in detail with reference to the accompanying drawings.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

The utility model discloses a hidden multi-functional dehydrator, mainly can be used for the bathroom, places such as shower room, it is main including casing 1 that anhydrates, lid 2 lid fits 1 top of casing that anhydrates, 1 one side intercommunication of casing that anhydrates has the downcomer 15, at least one slotted hole 3 is seted up to lid 2 upper surface, see figure 1, in this embodiment, slotted hole 3 sets up for a pair ofly, casing 1 that anhydrates is rectangular shape, can dismantle in the slotted hole 3 and be connected with and collect storehouse 6, it is fixed with a plurality of trip 7 to collect 6 upper surface intervals in the storehouse, see figure 2, the 3 upper surface of slotted hole is provided with step 4, the interval is provided with the recess 5 that equals with trip 7 quantity on step 4, trip 7 colludes in recess 5, it leaves the clearance to collect between 6 upper surface in storehouse and the step 4. Water enters the collecting bin 6 from the slotted hole 3, spreads to the gap through the collecting bin 6, spreads to the dewatering shell 1 from the gap, and is discharged through the dewatering pipe 15.

In order not to influence the discharge of water flow, a gap is reserved between the bottom of the collection bin 6 and the bottom of the dewatering shell 1, and water is prevented from being influenced by the collection bin 6 when spreading into the dewatering shell 1.

In order to facilitate the fixed storehouse 6 of collecting, the utility model discloses still be equipped with a communicating pipe 8 on slotted hole 3, 8 one end external diameters of communicating pipe slightly are greater than 4 sizes of step on the slotted hole 3, and extrude fixedly with step 4, and its other end external diameters are less than the internal diameter of collecting storehouse 6, and in it inserted the storehouse 6 of collecting, leave the clearance between 8 terminal and the 6 storehouse bottoms in storehouse of collecting the storehouse of communicating pipe. Through extrusion between communicating pipe 8 and step 4 fixed, prevent to collect storehouse 6 from dropping from slotted hole 3, water is arranged in 8 to collecting storehouse 6 communicating pipe moreover, and debris can stop in 8 communicating pipe and collection storehouse 6, prevent to block up following water pipe 15.

When water enters the collecting bin 6 through the communicating pipe 8, in order to solve the problem of water leakage caused by the fact that the communicating pipe 8 is not sealed with the step 4, a rubber ring 9 matched with the communicating pipe 8 in shape is fixed at one end, in contact with the step 4, of the communicating pipe 8.

And a barrier strip 10 is fixed at the upper end of the communicating pipe 8 along the radial direction of the communicating pipe 8. The blend stop plays the effect of supporting communicating pipe 8, can play a filterable purpose moreover, and debris such as hair are kept off the outside through blend stop 10, and debris such as non-hair although get into collection storehouse 6, because communicating pipe 8 has stretched into in the collection storehouse 6, debris are difficult to cross communicating pipe 8 and discharge in the casing that anhydrates 1 from the upper end clearance in collection storehouse 6.

In order to prevent the water leakage between the cover body 2 and the dewatering shell 1, the edge of the upper surface of the dewatering shell 1 is coated with a layer of rubber backing ring 11, the cover body 2 is coated on the rubber backing ring 11, and the cover body 2 is fixedly connected with the dewatering shell 1 through screws. When the bathroom water draining device is installed, the water draining shell 1 is located below a bathroom floor, the cover body is located above the bathroom floor, and the water draining shell 1 and the cover body are connected through a water draining hole in the bathroom floor, wherein the shape of the water draining hole is matched with that of the water draining shell 1.

The upper surface of the cover body 2 is provided with a plurality of limiting bulges 12, one side of the cover body 2 is hinged with a turnover cover 14, the turnover cover 14 is hinged and covered above the cover body 2, and the inner side wall of the turnover cover 14 is contacted with the limiting bulges 12. When the dewatering device is used, the cover body 2 can be covered by the flip 14, the flip 14 is covered above due to the existence of the limiting protrusion 12, the drainage effect cannot be influenced, and water flows into the dewatering device from one side edge of the flip 14 and is discharged out of the dewatering shell body 1 through the collecting bin 6. When rubbish, debris in clearance collection storehouse 6, turn over flip 14 and open, take out communicating pipe 8 earlier, later take out collection storehouse 6 and empty debris wherein, and for the ease of taking out collection storehouse 6, difficult rubbish and debris that contact the inside moreover still upwards vertically are fixed with handle needle 13 at the bottom of collection storehouse 6, take out through handle needle 13 when taking out collection storehouse 6, catch up with the health.

The above embodiments are only for illustrating the technical concept and features of the present invention, and the purpose of the embodiments is to enable those skilled in the art to understand the contents of the present invention and to implement the present invention, which cannot limit the protection scope of the present invention. All equivalent changes and modifications made according to the spirit of the present invention should be covered by the protection scope of the present invention.

Claims (8)

1. The utility model provides a hidden multi-functional dehydrator, its characterized in that, includes casing (1), lid (2) that anhydrates, lid (2) lid fits casing (1) top that anhydrates, casing (1) one side intercommunication that anhydrates has water pipe (15), at least one slotted hole (3) are seted up to lid (2) upper surface, can dismantle in slotted hole (3) and be connected with collection storehouse (6), collection storehouse (6) upper surface interval is fixed with a plurality of trip (7), slotted hole (3) upper surface is provided with step (4), the interval is provided with on step (4) with recess (5) that trip (7) quantity equals, trip (7) collude in recess (5), collect storehouse (6) upper surface with leave the clearance between step (4).

2. The hidden multifunctional dehydrator according to claim 1, wherein a gap is left between the bottom of the collection bin (6) and the bottom of the dehydrating housing (1).

3. The hidden multifunctional dehydrator according to claim 1, wherein a communicating pipe (8) is further disposed on the slot (3), an outer diameter of one end of the communicating pipe (8) is slightly larger than a size of the step (4) on the slot (3) and is fixed to the step (4) in an extruding manner, an outer diameter of the other end of the communicating pipe (8) is smaller than an inner diameter of the collecting bin (6) and is inserted into the collecting bin (6), and a gap is left between an end of the communicating pipe (8) and a bin bottom of the collecting bin (6).

4. The hidden multifunctional dehydrator according to claim 3, wherein a rubber ring (9) matched with the shape of the communication pipe (8) is fixed at one end of the communication pipe (8) contacted with the step (4).

5. The hidden multifunctional dehydrator according to claim 4, wherein the upper end of the communicating pipe (8) is further fixed with a barrier strip (10) along the radial direction of the communicating pipe (8).

6. The hidden multifunctional dehydrator according to claim 1, wherein the edge of the upper surface of the dehydrating casing (1) is covered with a layer of rubber gasket ring (11), the cover body (2) covers the rubber gasket ring (11), and the cover body (2) and the dehydrating casing (1) are fixedly connected through screws.

7. The hidden multifunctional dehydrator according to any one of claims 1 to 6, wherein a plurality of limiting protrusions (12) are disposed on the upper surface of the cover (2), a flip cover (14) is hinged to one side of the cover (2), the flip cover (14) is hinged to cover the cover (2), and the inner sidewall of the flip cover (14) contacts with the limiting protrusions (12).

8. The hidden multifunctional dehydrator according to any one of claims 1 to 6, wherein the bottom of the collecting bin (6) is vertically fixed with a handle needle (13) upwards.
