Abstract
本实用新型公开了一种涤纶布料收卷装置，包括第一固定板和第二固定板，第一固定板和第二固定板之间转动设置有收卷辊，第一固定板和第二固定板的一侧均开设有伸缩腔，两个伸缩腔的内壁滑动设置有缓冲杆，缓冲杆的外壁且位于收卷辊的下方位置处转动套接有缓冲辊，两个伸缩腔内壁的顶端均固定连接有弹簧，缓冲杆的两个端部均固定连接有连接板，两个连接板之间转动连接有两个转杆，两个转杆的外壁均固定套接有助转辊。本实用新型利用缓冲辊、弹簧和两个助转辊的设置，通过收卷辊不断收卷变粗后对缓冲辊挤压，使得缓冲辊下降，从而使得涤纶布穿过两个助转辊之间可以一直水平进行收卷，避免涤纶布损坏，提高了收卷装置的收卷质量。
The utility model discloses a polyester fabric winding device, comprising a first fixing plate and a second fixing plate, a winding roller is rotatably arranged between the first fixing plate and the second fixing plate, the first fixing plate and the second fixing plate One side of the plate is provided with a telescopic cavity, the inner walls of the two telescopic cavity are slidably provided with a buffer rod, and the outer wall of the buffer rod is rotated and sleeved with a buffer roller at the position below the winding roller. A spring is fixedly connected, a connecting plate is fixedly connected to both ends of the buffer rod, two rotating rods are rotatably connected between the two connecting plates, and the outer walls of the two rotating rods are fixedly sleeved with rotation-assisting rollers. The utility model utilizes the arrangement of the buffer roller, the spring and the two assist rollers, and the buffer roller is squeezed by the take-up roller which is continuously wound and thickened, so that the buffer roller is lowered, so that the polyester fabric can pass through between the two assist rollers. Rewinding can be performed horizontally all the time to avoid damage to the polyester fabric and improve the rewinding quality of the rewinding device.
Description
Technical Field
The utility model relates to a woven dacron field, in particular to woven dacron coiling mechanism.
Background
Polyester fiber, commonly known as "polyester", is a synthetic fiber obtained by spinning polyester formed by polycondensation of organic dibasic acid and dihydric alcohol, is called PET fiber for short, belongs to a high molecular compound, and is the first major variety of the current synthetic fiber. The polyester fiber has the advantages of good crease resistance and shape retention, high strength and elastic recovery capability, firmness and durability, crease resistance, no ironing and no hair sticking.
The terylene cloth is wound by the winding roller after being produced, and the winding roller becomes thick along with the continuous winding of the winding roller, so that the winding angle of the terylene cloth is continuously changed, the tension of the winding roller on the terylene cloth is continuously changed during winding, the terylene cloth is easily torn, and the winding quality of the winding device is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a woven dacron coiling mechanism to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a woven dacron coiling mechanism, includes first fixed plate and second fixed plate, first fixed plate and second fixed plate are the symmetry and place, it is provided with the wind-up roll to rotate between first fixed plate and the second fixed plate, flexible chamber has all been seted up to one side of first fixed plate and second fixed plate, two the inner wall in flexible chamber slides and is provided with the buffer beam, the buffer beam is just located the below position department rotation of wind-up roll and has cup jointed the buffer roll, two the equal fixedly connected with spring in top of flexible intracavity wall, two the one end of spring all with the outer wall fixed connection of buffer beam, the equal fixedly connected with connecting plate of two tip of buffer beam, two rotate between the connecting plate and be connected with two bull sticks, two the outer wall of bull stick all fixedly cup joints the roller that helps.
Preferably, two the spout has all been seted up at the front and the back of flexible intracavity wall, and is a plurality of the equal fixedly connected with slider of inner wall of spout, it is a plurality of one side of slider all with the outer wall fixed connection of buffer beam.
Preferably, two the jack has all been seted up to the bottom of flexible intracavity wall, two the inner wall of jack all activity interlude is connected with the cutting, two the top of cutting all with the outer wall fixed connection of buffer beam, two the cutting sets up respectively in the inside of corresponding position department spring.
Preferably, the installation cavity has been seted up on the top of second fixed plate, the one end of wind-up roll is rotated and is connected with first main shaft, the bottom fixedly connected with guide block of first main shaft outer wall, the guide way has been seted up to the bottom of installation cavity inner wall, the inner wall of guide way and the outer wall sliding connection of guide block, movable through-hole has been seted up in the front of second fixed plate, threaded hole has been seted up to the outer wall of first main shaft, movable through-hole inner wall activity interlude is connected with positioning bolt, positioning bolt's one end is connected with the inner wall screw thread of threaded hole and rotates.
Preferably, the other end fixedly connected with second main shaft of wind-up roll, one side of first fixed plate is rotated and is connected with the pivot, the one end fixedly connected with installation pipe of pivot, the mounting hole has been seted up to the one end of installation pipe, the inner wall of mounting hole and the one end activity interlude of second main shaft are connected, the one end fixedly connected with locating piece of second main shaft, the constant head tank has been seted up to the inner wall of mounting hole, the outer wall of locating piece and the inner wall activity interlude of constant head tank are connected.
Preferably, a servo motor is arranged on one side of the first fixing plate, an output shaft of the servo motor is in transmission connection with the other end of the rotating shaft, a motor base is fixedly connected to one side of the first fixing plate, and the top end of the motor base is fixedly connected with the outer wall of the servo motor.
The utility model discloses a technological effect and advantage:
(1) the utility model discloses utilize the setting of buffer roll, spring and two to help the commentaries on classics roller, through the wind-up roll constantly rolling become thick after to the buffer roll extrusion, make the buffer roll descend, make two help the commentaries on classics roller follow the buffer roll removal always, the buffer roll pastes the dacron on the wind-up roll always under the elastic action of spring simultaneously, thereby make the dacron pass between two help the commentaries on classics rollers and can carry out the rolling by the level always, avoid the dacron to damage, improved the rolling quality of coiling mechanism;
(2) the utility model discloses utilize the setting of installation cavity, first main shaft, second main shaft and installation pipe, through relieving the location to first main shaft in the installation cavity to wind-up roll after the rolling can be pulled down fast has improved the convenience that the wind-up roll was dismantled.
Drawings

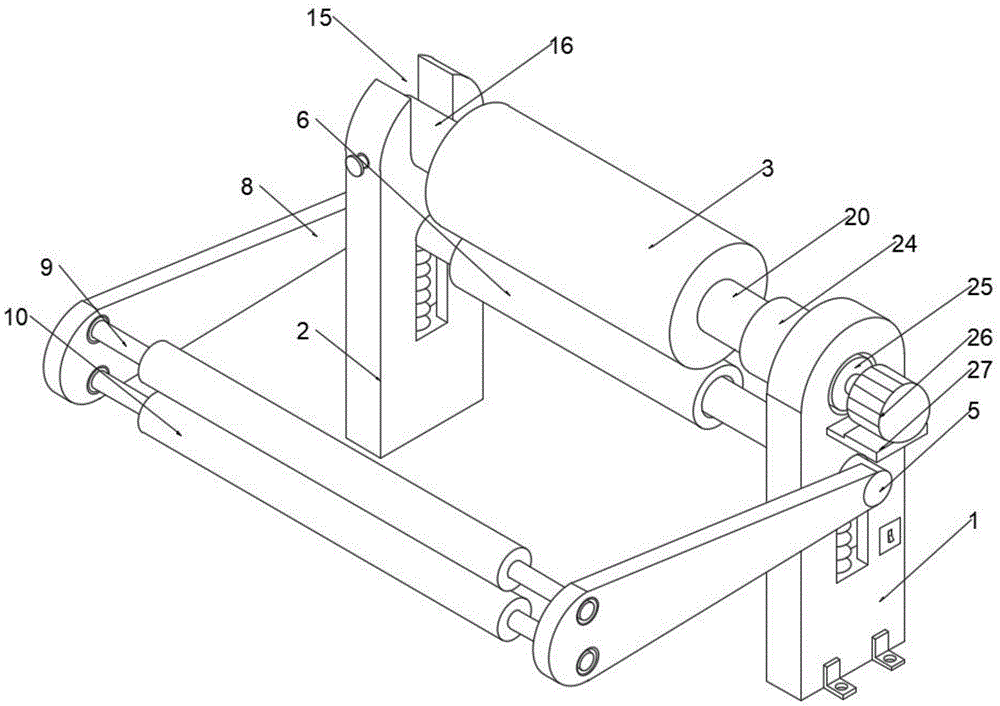

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic side sectional view of the second fixing plate of the present invention.
Fig. 3 is the front sectional structural schematic view of the installation tube of the present invention.
In the figure: 1. a first fixing plate; 2. a second fixing plate; 3. a wind-up roll; 4. a telescoping chamber; 5. a buffer rod; 6. a buffer roller; 7. a spring; 8. a connecting plate; 9. a rotating rod; 10. a rotation-assisting roller; 11. a chute; 12. a slider; 13. a jack; 14. cutting; 15. a mounting cavity; 16. a first main shaft; 17. a guide groove; 18. a guide block; 19. positioning the bolt; 20. a second main shaft; 21. installing a pipe; 22. mounting holes; 23. positioning blocks; 24. positioning a groove; 25. a rotating shaft; 26. a servo motor; 27. a motor base.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a terylene cloth winding device as shown in figures 1-3, which comprises a first fixing plate 1 and a second fixing plate 2, wherein the first fixing plate 1 and the second fixing plate 2 are symmetrically arranged, a winding roller 3 is rotatably arranged between the first fixing plate 1 and the second fixing plate 2, one side of the first fixing plate 1 and one side of the second fixing plate 2 are both provided with a telescopic cavity 4, the inner walls of the two telescopic cavities 4 are slidably provided with a buffer rod 5, the outer wall of the buffer rod 5 is rotatably sleeved with a buffer roller 6 at the lower position of the winding roller 3, the top ends of the inner walls of the two telescopic cavities 4 are both fixedly connected with springs 7, one ends of the two springs 7 are both fixedly connected with the outer wall of the buffer rod 5, the buffer roller 6 can be always attached to the wound terylene cloth by the elastic action of the springs 7, two end parts of the buffer rod 5 are both fixedly connected with connecting plates 8, and two rotating rods 9 are rotatably connected between the two connecting plates 8, the outer walls of the two rotating rods 9 are fixedly sleeved with the rotation assisting rollers 10, the polyester fabric passes through the two rotation assisting rollers 10 to be wound, and the space between the two rotation assisting rollers 10, the space between the winding roller 3 and the buffer roller 6 are horizontal, so that the polyester fabric is ensured to be wound horizontally all the time;
the front and the back of the inner walls of the two telescopic cavities 4 are both provided with sliding chutes 11, the inner walls of the sliding chutes 11 are both fixedly connected with sliding blocks 12, one sides of the sliding blocks 12 are both fixedly connected with the outer wall of the buffer rod 5, and the sliding chutes 11 limit the sliding blocks 12 so that the buffer roller 6 cannot move left and right;
the bottom ends of the inner walls of the two telescopic cavities 4 are respectively provided with a jack 13, the inner walls of the two jacks 13 are movably connected with inserting strips 14 in an inserting way, the top ends of the two inserting strips 14 are fixedly connected with the outer wall of the buffer rod 5, the two inserting strips 14 are respectively arranged inside the springs 7 at corresponding positions, the connecting plate 8 cannot collapse due to the limitation of the jacks 13 on the inserting strips 14, and the stability of the winding device is improved;
the top end of the second fixing plate 2 is provided with a mounting cavity 15, one end of the winding roller 3 is rotatably connected with a first main shaft 16, the bottom end of the outer wall of the first main shaft 16 is fixedly connected with a guide block 18, the bottom end of the inner wall of the mounting cavity 15 is provided with a guide groove 17, the inner wall of the guide groove 17 is in sliding connection with the outer wall of the guide block 18, the front side of the second fixing plate 2 is provided with a movable through hole, the outer wall of the first main shaft 16 is provided with a threaded hole, the inner wall of the movable through hole is movably inserted and connected with a positioning bolt 19, one end of the positioning bolt 19 is in threaded connection with the inner wall of the threaded hole, and the positioning bolt 19;
the other end of the winding roller 3 is fixedly connected with a second main shaft 20, one side of the first fixing plate 1 is rotatably connected with a rotating shaft 25, one end of the rotating shaft 25 is fixedly connected with a mounting pipe 21, one end of the mounting pipe 21 is provided with a mounting hole 22, the inner wall of the mounting hole 22 is movably connected with one end of the second main shaft 20 in an inserting manner, one end of the second main shaft 20 is fixedly connected with a positioning block 23, the inner wall of the mounting hole 22 is provided with a positioning groove 24, the outer wall of the positioning block 23 is movably connected with the inner wall of the positioning groove 24 in an inserting manner, and the positioning block 23 is inserted into the positioning groove 24, so that the second main shaft 20 can be driven to rotate by the mounting pipe 21;
one side of first fixed plate 1 is provided with servo motor 26, servo motor 26's output shaft is connected with the other end transmission of pivot 25, one side fixedly connected with motor cabinet 27 of first fixed plate 1, the top of motor cabinet 27 and servo motor 26's outer wall fixed connection, the switch is installed to one side of first fixed plate 1, servo motor 26 passes through switch and external power supply electric connection, the operating personnel of being convenient for control servo motor 26's switch, the security and the convenience of operation have been improved.
The utility model discloses the theory of operation: the first spindle 16 is inserted into the installation cavity 15 by aligning the guide block 18 with the guide groove 17, the wind-up roll 3 is pushed to insert the second spindle 20 into the installation tube 21, the installation tube 21 is rotated to insert the positioning block 23 into the positioning groove 24, the positioning bolt 19 is inserted into the movable through hole, the positioning bolt 19 is screwed into the threaded hole to position the first spindle 16, the polyester fabric passes through the two auxiliary rollers 10, one end of the polyester fabric is fixed on the wind-up roll 3, the switch of the servo motor 26 is turned on to drive the rotating shaft 25 to rotate so that the wind-up roll 3 rotates to wind, the buffer roller 6 is squeezed as the wind-up roll 3 rolls to be thick, the buffer rod 5 squeezes the spring 7 to drive the buffer roller 6 to descend, and the connecting plate 8 drives the two auxiliary rollers 10 to move downwards, so that the wind-up angle of the polyester fabric is kept horizontal.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
