Abstract
本实用新型公开了灯丝支架自动收料机，包括：工作台，工作台上设置有用于对接灯丝支架成型设备的输送带，输送带的侧端设置有驱动输送带工作的旋转机构；工作台上还设置有送纸机构，送纸机构的出纸口与输送带的入料口相对设置；送纸机构的出纸口处预设有切纸机构；送纸机构与输送带之间设置有收纳隔纸装置；收纳隔纸装置的下端设置有收料下降装置及接料装置，实现自动化的灯丝支架的下料收集与堆叠，无需过多的人工参与，只需安排负责最后卸料的工作人员，操作便捷高效，可实现一个工作人员同时对多台设备进行控制的效果，有效的提高工作效率与降低劳动成本。
The utility model discloses an automatic feeder for filament brackets, comprising: a workbench, on which a conveyor belt for docking a filament bracket forming device is arranged, and a rotating mechanism for driving the conveyor belt to work is arranged on the side end of the conveyor belt; A paper feeding mechanism is also provided, and the paper output port of the paper feeding mechanism is arranged opposite to the feeding port of the conveyor belt; a paper cutting mechanism is preset at the paper output port of the paper feeding mechanism; a storage mechanism is arranged between the paper feeding mechanism and the conveyor belt Paper separation device; the lower end of the storage paper separation device is provided with a material receiving and lowering device and a material receiving device, which realizes the automatic collection and stacking of the filament brackets without excessive manual participation, and only needs to arrange the staff responsible for the final unloading. , the operation is convenient and efficient, and it can achieve the effect of one staff member controlling multiple devices at the same time, effectively improving work efficiency and reducing labor costs.
Description
Technical Field
The utility model belongs to the technical field of mechanical equipment, a automatic material machine of receiving of filament support is related to.
Background
The receiving work of the production of present LED filament support is mostly received through the form of manual processing, and the receiving work of this mode is slower, needs great hand labor power, can't reach the high-efficient processing of high benefit.
SUMMERY OF THE UTILITY MODEL
In order to achieve the above purpose, the utility model adopts the following technical scheme:
automatic material machine of receiving of filament support includes: the working table is provided with a conveying belt for butting the lamp filament support forming equipment, and the side end of the conveying belt is provided with a rotating mechanism for driving the conveying belt to work;
the workbench is also provided with a paper feeding mechanism, and a paper outlet of the paper feeding mechanism is opposite to a material inlet of the conveying belt;
a paper cutting mechanism is preset at the paper outlet of the paper feeding mechanism;
a paper accommodating and separating device is arranged between the paper feeding mechanism and the conveying belt;
the lower end of the paper storage and separation device is provided with a material receiving descending device and a material receiving device.
Furthermore, an embedded groove penetrating through the table top is formed in the table top of the workbench;
receiving device includes: two driving rollers respectively arranged at two ends of the embedded groove and a working motor for driving the driving rollers to rotate;
a plurality of transmission belts are nested between the transmission rollers.
Further, accomodate the paper spacer and include: the two groups of symmetrically arranged cylinders are formed by a top cylinder positioned at the top and a plurality of pushing cylinders stacked and arranged at the lower end of the top cylinder;
the top cylinders and the pushing cylinders in the two cylinder groups are oppositely provided with telescopic rods which face to the middle part;
the top of the top cylinders of the two cylinder groups is provided with a limiting plate, and the limiting plate spans between the two pushing cylinders;
the lower sides of the tail ends of the piston rods of each top cylinder and each pushing cylinder are provided with supporting plates, and the pushing cylinders are also provided with limiting plates;
one end of the limiting plate is installed on the pushing cylinder, and the other end of the limiting plate extends to the front side of a piston rod of the pushing cylinder.
As a further aspect of the present invention: receive material descending device includes: lifting module is provided with the lift connecting rod on lifting module's the lift slider, sets up the vertical lift bracing piece that upwards extends around being provided with two on the lift connecting rod, and lift bracing piece penetrates to receive between two promotion cylinders of holding paper separating device to lower extreme from the middle of the drive belt, and the fixed stay board is installed at the lift bracing piece top.
The utility model has the advantages that: realize the unloading of automatic filament support and collect and pile up, need not too much artifical the participation, only need arrange the staff who is responsible for the last unloading, the simple operation is high-efficient, can realize that a staff carries out the effect controlled to many equipment simultaneously, effectual improvement work efficiency and reduction labour cost.
Drawings

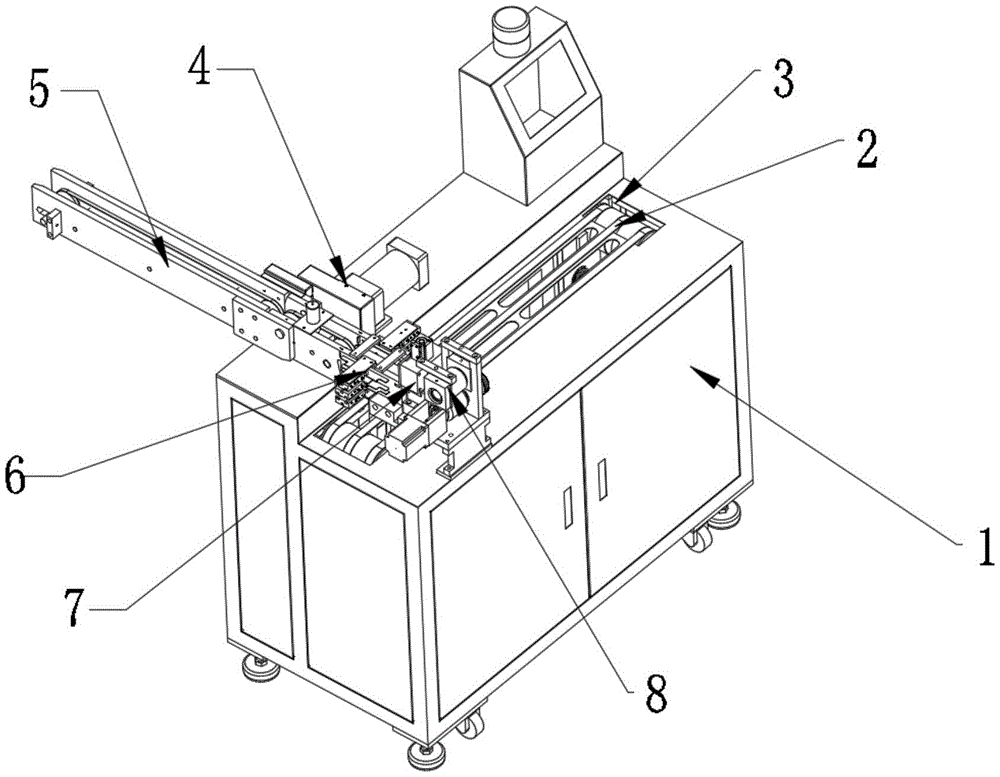

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural view of the material receiving device of the present invention.
Fig. 3 is a schematic structural view of the paper separating device for storage in the present invention.
Fig. 4 is a schematic structural view of the material receiving and descending device of the present invention.
Detailed Description
The technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it should be understood that the described embodiments are only a part of the embodiments of the present application, and not all of the embodiments, and it should be understood that the present application is not limited to the example embodiments disclosed and described herein. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the embodiments of the present invention, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as fixed or detachable connections or as an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
The utility model provides a please refer to and draw together 1 ~ 4, in the embodiment of the utility model, the automatic material machine of receiving of filament support, include: the lamp filament support forming device comprises a workbench 1, wherein a conveying belt 5 for butting lamp filament support forming equipment is arranged on the workbench 1, and a rotating mechanism 4 for driving the conveying belt 5 to work is arranged at the side end of the conveying belt 5;
the workbench 1 is also provided with a paper feeding mechanism 8, and a paper outlet of the paper feeding mechanism 8 is opposite to a material inlet of the conveying belt 5;
the paper feeding mechanism 8 receives an external paper feeding device;
a paper cutting mechanism 7 is arranged in advance at the paper outlet of the paper feeding mechanism 8;
a storage paper separation device 6 is arranged between the paper feeding mechanism 8 and the conveyer belt 5;
the lower end of the paper storage and separation device 6 is provided with a material receiving descending device and a material receiving device 2.
Further, an embedded groove 3 penetrating through the table top is formed in the table top of the workbench 1;
receiving device 2 includes: two driving rollers 21 respectively arranged at two ends of the embedded groove 3 and a working motor 22 for driving the driving rollers 21 to rotate;
a plurality of transmission belts 23 are nested between the transmission rollers 21.
Further, the storage paper separation device 6 includes: two symmetrically arranged cylinder groups, wherein each cylinder group comprises a top cylinder 61 positioned at the top and a plurality of pushing cylinders 62 stacked at the lower end of the top cylinder 61;
the telescopic rods arranged oppositely to the top cylinder 61 and the pushing cylinder 62 in the two cylinder groups face to the middle part;
limiting plates 64 are mounted at the tops of the top cylinders 61 of the two cylinder groups, and the limiting plates 64 span between the two pushing cylinders 62;
the lower sides of the tail ends of the piston rods of each top cylinder 61 and each pushing cylinder 62 are provided with supporting plates 63, and the pushing cylinders 62 are also provided with limiting plates 64;
one end of the stopper plate 64 is mounted on the push cylinder 62, and the other end extends to the front side of the piston rod of the push cylinder 62.
Further, receive material descending device includes: lifting module 13 is provided with lifting connecting rod 12 on lifting module 13's the lifting slide block, lifting connecting rod 12 is last to be provided with two front and back sets up the vertical lift support pole 11 that upwards extends, and lift support pole 11 penetrates to accomodate between two promotion cylinders 62 of paper separating device 6 to lower extreme from the middle of drive belt 23, and fixed support plate 10 is installed at lift support pole 11 top.
In the feeding process of the filament support, the collecting tray 9 is placed on the fixed supporting plate 10 of the conveying belt, the molded filament support is fed from the conveying belt 5, is stored and stacked on the collecting tray 9 by the storage paper separation device 6, meanwhile, the separation paper is brought into the paper feeding mechanism 8 to be cut by the paper cutting mechanism 7, and is placed on the filament support through the storage paper separation device 6 to serve as separation paper between the filament supports;
when the quantity on the aggregate containing tray 9 reaches a certain quantity, the material receiving descending device drives the material receiving descending device to descend to the transmission belt 23 of the material receiving device, and the material is taken out by the transmission belt 23 to finish discharging.
It is further noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. The term "comprising", without further limitation, means that the element so defined is not excluded from the group consisting of additional identical elements in the process, method, article, or apparatus that comprises the element.
The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present application. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the application. Thus, the present application is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
