CN213973335U

CN213973335U - Notebook clamping component for accountant

Info

Publication number: CN213973335U
Application number: CN202022890794.7U
Authority: CN
Inventors: 薛雯; 辛爱云; 崔海霞; 毕素红
Original assignee: Jiaozuo university
Current assignee: Jiaozuo university
Priority date: 2020-12-07
Filing date: 2020-12-07
Publication date: 2021-08-17
Anticipated expiration: 2030-12-07

Abstract

The utility model relates to the technical field of accounting notepads, in particular to an accounting notepad clamping assembly, comprising a notepad body, a surface of the notepad body is fixed with a pen slot, and a surface of the notepad body above the pen slot is provided with a an assembly groove, a clamping assembly is installed inside the assembly groove, the clamping assembly includes a bill placing groove and a return spring, the bill placing groove is vertically inserted inside the assembly groove, and the assembly on one side of the bill placing groove A label slot is inserted inside the slot. Through the design of the clamping component, the utility model inserts and fixes the bill placing groove as a whole in the assembling groove, so that the required bills can be stacked in the bill placing groove as a whole. The bills are clamped to prevent the bills from being scattered and dropped, and the bills in the bill placement slot can also be easily taken for accounting.

Description

Notebook clamping component for accountant

Technical Field

The utility model relates to an accounting notepad technical field specifically is a notepad centre gripping subassembly is used in accounting.

Background

The account checking is to check the account, and means in the accounting, in order to ensure that the records of the account book are correct and reliable, the related data in the account book are checked and checked, the existing accounting can be checked by manual calculation in the accounting process, at this time, an auxiliary note book is needed to record the data in the accounting to improve the efficiency, but in the accounting process, a plurality of corresponding notes are used for accounting, and the notes are randomly clamped in a common note book and are easy to drop, so that a note book clamping component for accounting is urgently needed to solve the problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a notepad centre gripping subassembly for accounting to propose the arbitrary clamp of current bill in solving above-mentioned background art and in ordinary notepad, take place the problem that drops very easily.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides an accounting is with note book centre gripping subassembly, includes the note book main part, the fixed surface of note book main part has a groove, and the note book main part surface of a groove top has seted up the assembly groove, the internally mounted of assembly groove has the centre gripping subassembly, the centre gripping subassembly is including bill standing groove and reset spring, and the vertical insertion of bill standing groove is established inside the assembly groove, the inside label groove that is equipped with of inserting of assembly groove one side, the inner wall of bill standing groove is inserted and is equipped with the grip block, and one side of grip block is through reset spring and bill standing groove inner wall fixed connection, the both ends of grip block all are fixed with the sliding tray, the sliding block has all been seted up to the inner wall both sides of bill standing groove, and sliding connection between sliding block and the sliding tray.

Preferably, the notebook body is provided with two groups, one of the two groups is fixedly provided with a buckle at one end of the notebook body, and the other group is provided with a patch on one end surface thereof, and the patch is connected with the buckle in a sticking manner.

Preferably, the surfaces of the clamping plate and the pen groove are pressed with rubber gaskets.

Preferably, the sliding block is provided with a convex-shaped groove, and the sliding groove is a convex-shaped block matched with the sliding groove.

Preferably, the bottom of the assembly groove is fixed with a slot, and the inner walls of the assembly groove and the slot are pressed with gaskets.

Compared with the prior art, the beneficial effects of the utility model are that:

this notebook centre gripping subassembly is used in accounting, traditional structure compares, design through the centre gripping subassembly, fix the bill standing groove whole insertion in the assembly tank, can stack the whole in the bill standing groove of required bill, the grip block is through holding the bill under reset spring's self spring action simultaneously, prevent that the bill from taking place the condition that falls in disorder, and the bill in the bill standing groove that also can conveniently take carries out the accounting, and the label design of depositing in the cooperation label groove, can take out the label and paste and do the mark on every page or leaf side in the notebook main part, can take notes important content mark so that can quick finding, can make the quick thing that seeks oneself of finding of accounting, design is simple reasonable on its overall structure, the practicality is very high, easily popularize and apply.

Drawings

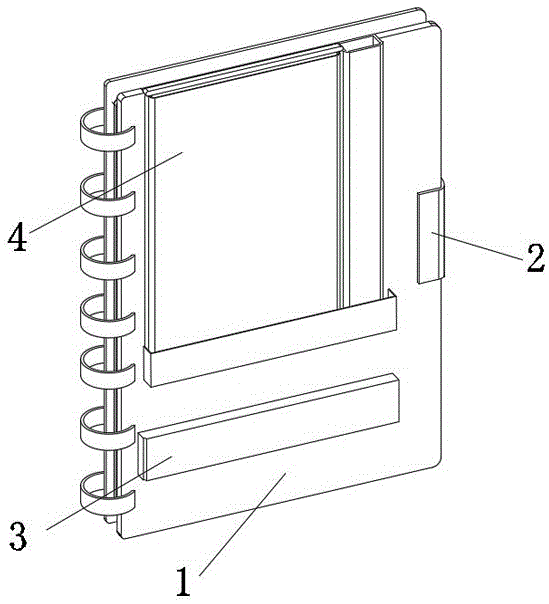

Fig. 1 is a schematic structural perspective view of the present invention;

FIG. 2 is a schematic perspective view of the cross section of the structure of the present invention;

FIG. 3 is a perspective view of the clamping assembly of the present invention;

fig. 4 is an enlarged schematic view of the structure at a in fig. 3 according to the present invention;

fig. 5 is a schematic expanded perspective view of the structure of the notepad body of the present invention.

In the figure: 1. a notebook body; 2. a button buckle; 3. a pen slot; 4. a clamping assembly; 41. a bill placing slot; 42. a label slot; 43. a clamping plate; 44. a return spring; 45. a slider; 46. a sliding groove; 5. assembling a groove; 6. and (4) a slot.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides an embodiment: the utility model provides a notepad centre gripping subassembly for accounting, including notepad main part 1, the fixed surface of notepad main part 1 has a groove 3, and the assembly groove 5 has been seted up on notepad main part 1 surface above groove 3, the internally mounted of assembly groove 5 has centre gripping subassembly 4, centre gripping subassembly 4 is including bill standing groove 41 and reset spring 44, bill standing groove 41 is vertical to be inserted and to be established inside assembly groove 5, the inside label groove 42 that is inserted of assembly groove 5 of bill standing groove 41 one side, the inner wall of bill standing groove 41 is inserted and is equipped with grip block 43, and reset spring 44 and bill standing groove 41 inner wall fixed connection are passed through to one side of grip block 43, the both ends of grip block 43 all are fixed with sliding tray 46, sliding block 45 has all been seted up to the inner wall both sides of bill standing groove 41, and sliding connection between sliding block 45 and the sliding tray 46.

Furthermore, the notebook body 1 is provided with two groups, one end of one group of the notebook body 1 is fixedly provided with the button 2, one end surface of the other group of the notebook body 1 is provided with the patch, and the patch is adhered and connected with the button 2, according to the attached drawings 1 and 5, when the notebook body 1 is unfolded and is ready to be closed, the button 2 can be moved forward to be adhered with the patch, and the notebook body 1 can be integrally fixed.

Further, grip block 43 and the equal pressfitting of surface in groove 3 have a rubber gasket, as shown in figure 1 and figure 3, design through the rubber gasket, it mainly adopts the main material to be that natural latex raw materials foams and forms, it is fabulous to have elasticity, the resilience is good, the rubber characteristic that can not warp, thereby make grip block 43 and groove 3 and bill and the contact surface between the pen have certain resilience, play the cushioning effect, reducible condition because grip block 43 and groove 3's extrusion force is too big to cause bill and pen surface to be impaired.

Further, the sliding block 45 is provided with the convex groove, the sliding groove 46 is set as the convex block matched with the sliding groove, as shown in fig. 4, after the folded bills are integrally placed in the bill placing groove 41, the clamping plate 43 is loosened by hands, the clamping plate 43 clamps the bills through the self elasticity of the reset spring 44 and the sliding action between the sliding block 45 and the sliding groove 46, the bills are prevented from falling randomly, and the convex groove and the convex block are matched for use between the sliding block 45 and the sliding groove 46, so that the bills are not easy to fall off in the sliding process.

Further, the bottom position department of assembly groove 5 is fixed with slot 6, and the inner wall of assembly groove 5 and slot 6 all the pressfitting has the gasket, as shown according to figure 1 and figure 2, when preparing the assembly, in the assembly groove 5 is gone into to bill standing groove 41 card, then along with assembly groove 5 is vertical down, it can to make it insert slot 6 internal fixation, and through the design of gasket, can reduce the fit clearance between assembly groove 5 and slot 6 and bill standing groove 41, the stability of being connected between assembly groove 5 and slot 6 and the bill standing groove 41 has been strengthened.

The working principle is as follows: when the bill storage box is ready to be assembled, the bill storage box 41 is clamped into the assembly groove 5, then the bill storage box is vertically downwards along the assembly groove 5 to be inserted into the slot 6 for fixing, then the label groove 42 is installed as above, then bills required for accounting are uniformly stacked in the recording process, the top of the clamping plate 43 is held by hand and shifted to one side, the stacked bills are integrally placed into the bill storage box 41, the clamping plate 43 is released by hand, the clamping plate 43 clamps the bills under the self-elastic force of the reset spring 44 and the sliding action between the sliding block 45 and the sliding groove 46, the bills are prevented from being scattered and falling off, the bills in the bill storage box 41 can be conveniently taken for accounting, meanwhile, in the accounting and recording process of the notebook main body 1, when important contents are recorded, the labels are taken out from the matching label groove 42, corresponding marks are made on the surface of the notebook, the label is taken out and attached to each page of edge in the notebook main body 1 to be marked, important content marks can be recorded so as to be found quickly, and an accountant can find the object which the accountant wants to find quickly.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a notepad centre gripping subassembly for accounting, includes notepad main part (1), its characterized in that: the surface of the notebook main body (1) is fixed with a pen groove (3), the surface of the notebook main body (1) above the pen groove (3) is provided with an assembly groove (5), the inside of the assembly groove (5) is provided with a clamping component (4), the clamping component (4) comprises a bill placing groove (41) and a return spring (44), the bill placing groove (41) is vertically inserted inside the assembly groove (5), the inside of the assembly groove (5) at one side of the bill placing groove (41) is inserted with a label groove (42), the inner wall of the bill placing groove (41) is inserted with a clamping plate (43), one side of the clamping plate (43) is fixedly connected with the inner wall of the bill placing groove (41) through the return spring (44), the two ends of the clamping plate (43) are both fixed with sliding grooves (46), the two sides of the inner wall of the bill placing groove (41) are both provided with sliding blocks (45), and the sliding block (45) is connected with the sliding groove (46) in a sliding way.

2. The accounting notepad holding assembly of claim 1, wherein: the notebook body (1) is provided with two groups, one end of one group of the notebook body (1) is fixedly provided with a button buckle (2), the surface of one end of the other group of the notebook body (1) is provided with a patch, and the patch is connected with the button buckle (2) in a sticking way.

3. The accounting notepad holding assembly of claim 1, wherein: rubber gaskets are pressed on the surfaces of the clamping plate (43) and the pen groove (3).

4. The accounting notepad holding assembly of claim 1, wherein: the sliding block (45) is provided with a convex-shaped groove, and the sliding groove (46) is a convex-shaped block matched with the sliding groove.

5. The accounting notepad holding assembly of claim 1, wherein: the bottom position department of assembling groove (5) is fixed with slot (6), and the inner wall of assembling groove (5) and slot (6) all the pressfitting have the gasket.
