CN213968791U

CN213968791U - Electronic components processing apparatus for producing convenient to reason material

Info

Publication number: CN213968791U
Application number: CN202022879604.1U
Authority: CN
Inventors: 冯莹亮; 赵学荣
Original assignee: Foshan Kesenmengsi Metal Co ltd
Current assignee: Foshan Kesenmengsi Metal Co ltd
Priority date: 2020-12-05
Filing date: 2020-12-05
Publication date: 2021-08-17
Anticipated expiration: 2030-12-05

Abstract

A processing and production device for electronic components that is convenient for material sorting, the utility model relates to the technical field of electronic component production devices. A motor is fixedly arranged, and the output shaft of the motor is connected with the right end of the transmission rod; a sliding rail is fixedly arranged on the bracket, a mounting seat is slidably arranged on the sliding rail, a wire groove is fixedly arranged on the mounting seat, and the bracket is screwed with a bearing through a bearing. The screw rod is screwed on the mounting seat through threads, the right end of the screw rod is fixedly provided with a No. 1 gear, the transmission rod is fixed with a No. 2 gear, and the No. 1 gear is meshed with the No. 2 gear; The lead wire is wound and cut to prevent lead wire production, the amount of material preparation is small, the production cost is low, and a large number of finished products can be produced at the same time.

Description

Electronic components processing apparatus for producing convenient to reason material

Technical Field

The utility model relates to an electronic component apparatus for producing technical field, concretely relates to electronic components processing apparatus for producing convenient to reason material.

Background

When the pin wire of the electronic element is produced, the long section wire can be cut, and then the pin wire with moderate length can be produced.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to prior art's defect and not enough, provide a reasonable in design, convenient to use's electronic components processing apparatus for producing of reason material of being convenient for, it carries out pin line production through preventing that single pin line is cut off around rolling up, and the volume of prepareeing materials is few, low in production cost is honest and clean, and can produce a large amount of finished products simultaneously.

In order to achieve the above object, the utility model adopts the following technical scheme: the winding board is rotatably arranged in the bracket through a bearing, cutter grooves are formed in the upper side and the lower side of the winding board, a transmission rod is fixedly arranged on a right end shaft of the winding board, a motor is fixedly arranged on the bracket, and an output shaft of the motor is connected with the right end of the transmission rod; a slide rail is fixedly arranged on the support, the slide rail is arranged below the front side of the winding plate, an installation seat is arranged on the slide rail in a sliding manner, a wire guide groove is fixedly arranged on the installation seat, a lead screw is screwed on the support through a bearing, the lead screw is screwed on the installation seat through a thread, a first gear is fixedly arranged at the right end of the lead screw, a second gear is fixedly arranged on the transmission rod, and the first gear is meshed with the second gear; the upper and lower bilateral symmetry of winder is fixed and is provided with the knife rest, all fixed guide bar that is provided with on the left and right sides wall of support, the left and right sides movable sleeve respectively of knife rest is established on the guide bar of the left and right sides, the fixed cutting knife that is provided with on the knife rest, both ends are all fixed and are provided with the rack about the knife rest of upper and lower both sides, and the flank of tooth of the rack of upper and lower both sides sets up in opposite directions, be equipped with No. three gears through the bearing soon on the support, the rack of upper and lower both sides respectively with the side meshing setting of carrying on the back mutually on No. three gears, the fixed electric putter that is provided with on the support, electric putter's output shaft is fixed to be set up on the upper surface of the knife rest of upside.

Further, the tool rest is symmetrically hinged with fixing plates through spring hinges in the front and back direction, clamping rollers are rotatably arranged on the movable edges of the fixing plates through bearings, and the clamping rollers on the front side and the rear side are symmetrically arranged on the front side and the rear side of the winding plate.

Furthermore, the right end of the knife rest is fixedly provided with a limiting groove on the opposite side wall, and the limiting grooves on the upper side and the lower side are symmetrically arranged on the upper side and the lower side of the winding plate.

Furthermore, a winding post is fixedly arranged on the front side wall of the right end of the winding plate.

After the structure is adopted, the utility model discloses beneficial effect does: an electronic components processing apparatus for producing convenient to reason material, it carries out pin line production through preventing that single pin line cuts around rolling up, the volume of prepareeing material is few, low in production cost is honest and clean, and can produce a large amount of finished products simultaneously, the utility model has the advantages of simple structure, it is reasonable to set up, the cost of manufacture is low.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

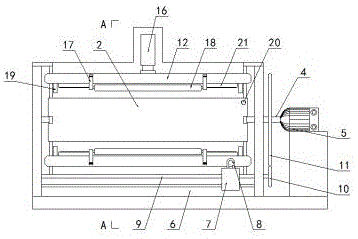

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is a right side view of fig. 1.

Fig. 3 is a sectional view a-a in fig. 1.

Description of reference numerals:

the wire winding machine comprises a support 1, a wire winding plate 2, a cutter groove 3, a transmission rod 4, a motor 5, a sliding rail 6, a mounting seat 7, a wire guide groove 8, a screw rod 9, a first gear 10, a second gear 11, a cutter rest 12, a guide rod 13, a rack 14, a third gear 15, an electric push rod 16, a fixing plate 17, a clamping roller 18, a limiting groove 19, a wire winding column 20 and a cutting knife 21.

Detailed Description

The present invention will be further described with reference to the accompanying drawings.

Referring to fig. 1 to 3, the present embodiment includes a bracket 1, a winding board 2, a mounting base 7, and a knife rest 12, wherein the winding board 2 is rotatably disposed in the bracket 1 through a bearing, knife grooves 3 are disposed on both upper and lower sides of the winding board 2, a transmission rod 4 is riveted on a right end shaft of the winding board 2, a motor 5 is riveted on the bracket 1, and an output shaft of the motor 5 is connected to a right end of the transmission rod 4; a sliding rail 6 is riveted on the support 1, the sliding rail 6 is arranged below the front side of the winding plate 2, an installation seat 7 is arranged on the sliding rail 6 in a sliding manner, a wire guide groove 8 is riveted on the installation seat 7, a lead screw 9 is screwed on the support 1 through a bearing, the lead screw 9 is screwed on the installation seat 7 through a thread, a first gear 10 is riveted at the right end of the lead screw 9, a second gear 11 is riveted on the transmission rod 4, and the first gear 10 is meshed with the second gear 11; the upper side and the lower side of the winding plate 2 are symmetrically riveted with knife rests 12, the left side wall and the right side wall of the bracket 1 are all riveted with guide rods 13, the left side and the right side of the knife rests 12 are respectively movably sleeved on the guide rods 13 on the left side and the right side, the knife rests 12 are riveted with cutting knives 21, the left end and the right end of the knife rests 12 on the upper side and the lower side are all riveted with racks 14, the tooth surfaces of the racks 14 on the upper side and the lower side are oppositely arranged, the bracket 1 is rotatablely provided with a third gear 15 through a bearing, the racks 14 on the upper side and the lower side are respectively meshed with the opposite side edges of the third gear 15, the bracket 1 is riveted with an electric push rod 16, the output shaft of the electric push rod 16 is riveted on the upper surface of the knife rest 12 on the upper side, the front side and the rear side of the knife rests 12 are symmetrically hinged with fixing plates 17 through springs, the movable edges of the fixing plates 17 are rotatablely provided with clamping rollers 18 through the bearings, the clamping rollers 18 on the front side and the rear side are symmetrically arranged on the front side and the rear side of the winding plate 2, the right-hand member of knife rest 12 is riveted on the lateral wall in opposite directions and is equipped with

spacing groove

19, 19 symmetries in the spacing groove of upper and lower both sides set up the upper and lower both sides at winder 2, rivet on the lateral wall before the right-hand member of winder 2 and be equipped with wrapping post 20, knife rest 12 is when closing up through electric putter 16 drive, at first spacing groove 19 blocks winder 2, it is vertical to keep winder 2, and then sword groove 3 aligns with cutting knife 21, press from both sides tight roller 18 contact winder 2 after that, the lead wire that accomplishes on winder 2 presss from both sides tightly, prevent to be interrupted the in-process product and splash, when winding, the lead wire of long root passes through wrapping post 20 fixedly, and then carries out the coiling.

The working principle of the specific embodiment is as follows: before the starting device, the mounting base 7 is reset, so that the mounting base 7 is positioned at the rightmost end of the sliding rail 6, when the device is used, the whole pin wire penetrates through the wire guide groove 8 and is tightly bound on the winding post 20, the motor 5 is started, the motor 5 drives the winding board 2 to rotate, so that the pin wire is wound on the winding board 2, meanwhile, the motor 5 drives the screw rod 9 to rotate through the meshed first gear 10 and the second gear 11, so that the screw rod 9 pushes the mounting base 7 to move leftwards on the sliding rail 6, so that the mounting base 7 drives the pin wire needing to be wound to move leftwards, and finally, the pin wire is uniformly wound on the winding board 2, after the winding is completed, the winding board 2 is rotated vertically, the electric push rod 16 is started, the electric push rod 16 presses the upper knife rest 12 downwards, so that the knife rest 12 drives the third gear 15 to rotate through the rack 14, so that the gear drives the rack 14 on the lower knife rest 12, and drives the lower knife rest 12 to rise, and then the knife rests 12 on the upper and lower sides are synchronously folded towards the middle, and the pin line wound on the winding board 2 is cut off by a cutting knife 21, so as to obtain short pin lines with equal length; when the lead wire on the wire winding plate 2 is cut, the tool rest 12 is clamped, the limit groove 19 is clamped on the wire winding plate 2 to keep the wire winding plate 2 vertical, then the clamping roller 18 clamps the wire winding plate 2 and clamps the lead wire on the wire winding plate 2, and finally cutting is carried out, so that the cut lead wire is clamped and does not splash.

After adopting above-mentioned structure, this embodiment beneficial effect does: this embodiment an electronic components processing apparatus for producing convenient to reason material, it cuts after coiling the pin line coiling of root through the winder, and then output pin line finished product, when the wire winding, through the mount pad with the winder linkage operation drive the wire guide and advance, and then realize evenly coiling long section pin line on the winder, realize that finished product processing's size is unanimous.

The above description is only for the purpose of illustrating the technical solutions of the present invention and not for the purpose of limiting the same, and other modifications or equivalent replacements made by those of ordinary skill in the art to the technical solutions of the present invention should be covered within the scope of the claims of the present invention as long as they do not depart from the spirit and scope of the technical solutions of the present invention.

Claims

1. The utility model provides an electronic components processing apparatus for producing convenient to reason material which characterized in that: the wire winding device comprises a support (1), a wire winding plate (2), a mounting seat (7) and a tool rest (12), wherein the wire winding plate (2) is rotatably arranged in the support (1) through a bearing, tool grooves (3) are respectively formed in the upper side edge and the lower side edge of the wire winding plate (2), a transmission rod (4) is fixedly arranged on a right end shaft of the wire winding plate (2), a motor (5) is fixedly arranged on the support (1), and an output shaft of the motor (5) is connected with the right end of the transmission rod (4); a sliding rail (6) is fixedly arranged on the support (1), the sliding rail (6) is arranged below the front side of the winding plate (2), an installation seat (7) is arranged on the sliding rail (6) in a sliding mode, a wire guide groove (8) is fixedly arranged on the installation seat (7), a lead screw (9) is arranged on the support (1) in a rotating mode through a bearing, the lead screw (9) is connected to the installation seat (7) in a rotating mode through a penetrating thread, a first gear (10) is fixedly arranged at the right end of the lead screw (9), a second gear (11) is fixedly arranged on the transmission rod (4), and the first gear (10) is meshed with the second gear (11); the upper side and the lower side of the winding plate (2) are symmetrically and fixedly provided with knife rests (12), the left side wall and the right side wall of the support (1) are respectively and fixedly provided with guide rods (13), the left side and the right side of each knife rest (12) are respectively movably sleeved on the guide rods (13) on the left side and the right side, the knife rests (12) are fixedly provided with cutting knives (21), the left end and the right end of each knife rest (12) on the upper side and the lower side are respectively and fixedly provided with racks (14), tooth surfaces of the racks (14) on the upper side and the lower side are oppositely arranged, the support (1) is rotatably provided with a third gear (15) through a bearing, the racks (14) on the upper side and the lower side are respectively meshed with the side edges of the third gear (15), an electric push rod (16) is fixedly arranged on the support (1), and an output shaft of the electric push rod (16) is fixedly arranged on the upper surface of the knife rest (12) on the upper side.

2. The electronic component processing and producing device convenient for material arrangement according to claim 1, characterized in that: the winding machine is characterized in that the tool rest (12) is hinged with fixing plates (17) symmetrically in the front and back direction through spring hinges, clamping rollers (18) are arranged on the movable edges of the fixing plates (17) in a rotating mode through bearings, and the clamping rollers (18) on the front side and the rear side are symmetrically arranged on the front side and the rear side of the winding plate (2).

3. The electronic component processing and producing device convenient for material arrangement according to claim 1, characterized in that: the limiting groove (19) is fixedly arranged on the opposite side wall of the right end of the tool rest (12), and the limiting grooves (19) on the upper side and the lower side are symmetrically arranged on the upper side and the lower side of the winding plate (2).

4. The electronic component processing and producing device convenient for material arrangement according to claim 1, characterized in that: and a winding post (20) is fixedly arranged on the front side wall of the right end of the winding plate (2).
