Abstract
本实用新型公开了光缆加工设备技术领域的一种电子通信光缆定量截取装置，包括底座，底座的上端设置有安装机构，底座的中部固定有L形架，L形架的底端设置有切割机构，L形架的两侧对称固定有条形板，条形板的下端开设有两个矩形槽槽，矩形槽的内部固定有伸缩弹簧，伸缩弹簧的底端固定有伸缩杆，伸缩杆的底端固定有U形架，U形架的内部转动限制有转轴，转轴的外侧套设有压辊，底座的上端两侧分别对称开设有凹槽一和凹槽二，凹槽一和凹槽二的内部均转动限制有转杆，转杆的外侧套设有转辊，底座的外侧设置有两个转动电机，转动电机的输出轴贯穿延伸入凹槽二，且贯穿端部与转杆连接；本实用新型能够更换新的光缆卷，使用方便。
The utility model discloses a quantitative interception device for electronic communication optical cables in the technical field of optical cable processing equipment. , the two sides of the L-shaped frame are symmetrically fixed with strip plates, the lower end of the strip plate is provided with two rectangular grooves, the interior of the rectangular grooves is fixed with a telescopic spring, the bottom end of the telescopic spring is fixed with a telescopic rod, and the bottom of the telescopic rod is fixed with a telescopic rod. The end is fixed with a U-shaped frame, the inner rotation of the U-shaped frame is restricted by a rotating shaft, the outer side of the rotating shaft is sleeved with a pressure roller, and the upper end of the base is symmetrically provided with grooves 1 and 2, and grooves 1 and 2. There are rotating rods inside the rotating rods, the outer side of the rotating rod is sleeved with a rotating roller, and the outer side of the base is provided with two rotating motors, the output shafts of the rotating motors extend through the groove two, and the penetrating end is connected with the rotating rod; The utility model can replace the new optical cable reel, and is convenient to use.
Description
Technical Field
The utility model relates to an optical cable processing equipment technical field, concretely relates to electronic communication optical cable ration intercepting device.
Background
The optical cable is a communication cable composed of optical fibers and a protective sleeve, is one of important modes of modern information transmission, has the advantages of large capacity, long relay distance, good confidentiality, interference resistance, low cost, high transmission rate and the like, and needs the matching of a cable intercepting device when a cable with a certain length needs to be used.
Although the traditional scheme realizes the cutting and cutting of the optical cable, the traditional scheme still has the defects that: firstly, the traditional optical cable quantitative intercepting device needs to manually pull the optical cable to cut, and after the cutting is finished, the optical cable quantitative intercepting device is manually fed, so that the operation is complex, and safety risks exist; and secondly, in the using process, the optical cable is usually coiled, and when one coil of optical cable is used up, a new optical cable coil is inconvenient to replace, so that the use is inconvenient.
Therefore, it is necessary to design a quantitative intercepting device for an optical communication cable.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an electronic communication optical cable ration intercepting device to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a quantitative intercepting device for an electronic communication optical cable comprises a base, supporting legs are fixed on the periphery of the bottom end of the base, an installing mechanism is arranged at the upper end of the base, an L-shaped frame is fixed in the middle of the base, a cutting mechanism is arranged at the bottom end of the L-shaped frame, a cutting groove is formed in the upper end of the base and located below the cutting mechanism, strip-shaped plates are symmetrically fixed on two sides of the L-shaped frame, two rectangular grooves are formed in the lower ends of the strip-shaped plates, a telescopic spring is fixed inside each rectangular groove, a telescopic rod is fixed at the bottom end of each telescopic spring, a U-shaped frame is fixed at the bottom end of each telescopic rod, a rotating shaft is limited by rotation inside each U-shaped frame, a compression roller is sleeved outside each rotating shaft, a first groove and a second groove are symmetrically formed in two sides of the upper end of the base respectively, and a rotating rod is limited by rotation inside each of the first groove and the second groove, the outer side cover of bull stick is equipped with the commentaries on classics roller, the outside of base is provided with two and rotates the motor, the output shaft that rotates the motor runs through to extend into recess two, and runs through the tip and be connected with the bull stick.
Further, among the above-mentioned electronic communication optical cable ration intercepting device, installation mechanism includes horizontal plate, riser, round bar, rotor plate, round hole, commentaries on classics ball, locking Assembly and draw-in groove, the rear end of horizontal plate is fixed with the riser, the bottom and the base of riser are fixed, the front end of horizontal plate articulates there is the rotor plate, the round hole has been seted up at the middle part of rotor plate, the inside of round hole evenly is provided with a plurality of commentaries on classics balls, the inside of round hole is provided with the round bar, the rear end of round bar is rotated and is restricted in the riser, the draw-in groove has been seted up in the outside of rotor plate, the position that the outside of base is close to the draw-in.
Further, among the above-mentioned electronic communication optical cable ration intercepting device, locking Assembly includes fixed block, kelly, arm-tie and removal spring, the fixed block is fixed in the outside of base, the inside of fixed block slides and is provided with the kelly, the outer end of kelly is fixed with the arm-tie, the outside cover of kelly is equipped with the removal spring, the both ends of removing the spring are fixed with fixed block and arm-tie respectively, the inner and the draw-in groove joint of kelly.
Furthermore, in the device for quantitatively intercepting the electronic communication optical cable, the cutting mechanism comprises an electric push rod, a cutter holder and a cutting knife, the electric push rod is fixed at the bottom end of the L-shaped frame, the cutter holder is fixed at the bottom end of the electric push rod, and the cutting knife is arranged in the cutter holder.
Furthermore, in the device for quantitatively intercepting the electronic communication optical cable, the bottom ends of the supporting legs are fixed with anti-slip pads.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses be provided with installation mechanism and be used for installing the optical cable book, in the course of the work, make the optical cable pass the compression roller and change between the roller, start the rotation motor, drive the optical cable and carry forward, after the cutting is accomplished, can realize automatic unloading, the simple operation has improved the security when wholly using.
2. The utility model discloses a be provided with installation mechanism and be convenient for change the optical cable book, after a volume optical cable used up, the optical cable book that can more renew, convenient to use.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

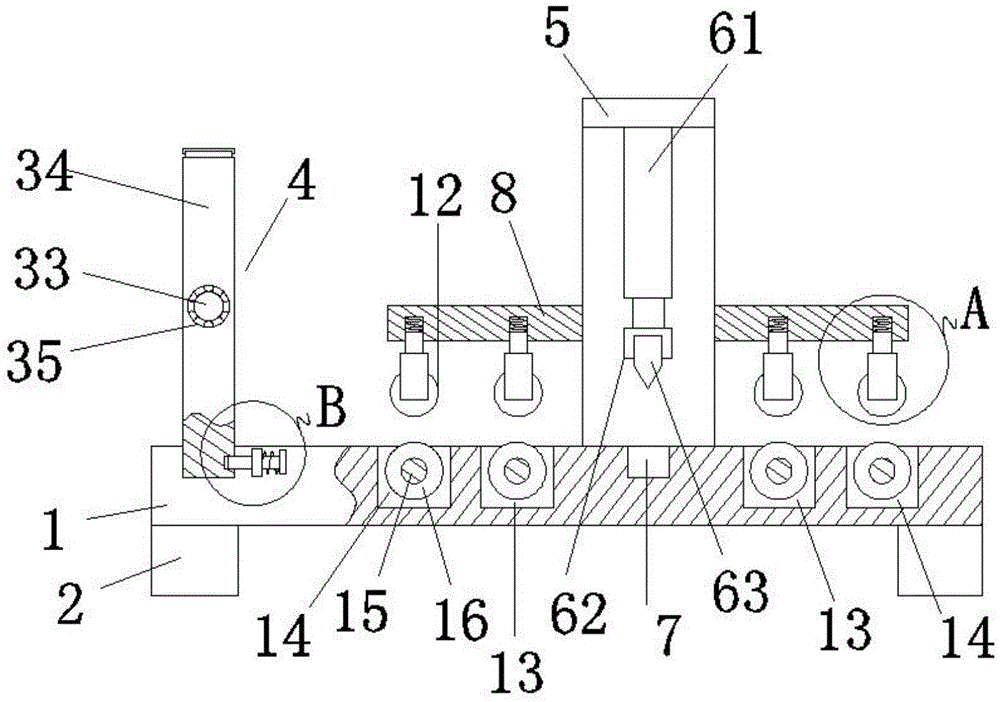

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged schematic view of the present invention at A in FIG. 1;
FIG. 3 is an enlarged schematic view of the present invention at B in FIG. 1;
FIG. 4 is a schematic view of the connection between the horizontal plate and the rotating plate according to the present invention;
fig. 5 is a front view of the present invention;
FIG. 6 is a schematic view of the U-shaped frame structure of the present invention;
in the drawings, the components represented by the respective reference numerals are listed below:
1-base, 2-support leg, 3-mounting mechanism, 31-horizontal plate, 32-vertical plate, 33-round rod, 34-rotating plate, 35-round hole, 36-rotating ball, 37-locking component, 371-fixed block, 372-clamping rod, 373-pulling plate, 374-moving spring, 38-clamping groove, 4-telescopic rod, 5-L-shaped frame, 6-cutting mechanism, 7-cutting groove, 8-strip-shaped plate, 9-rectangular groove, 10-telescopic spring, 11-U-shaped frame, 12-pressing roller, 13-groove I, 14-groove II, 15-rotating rod, 16-rotating roller, 17-rotating shaft and 18-rotating motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: a quantitative intercepting device for an electronic communication optical cable comprises a base 1, supporting legs 2 are fixed on the periphery of the bottom end of the base 1, anti-skid pads are fixed at the bottom ends of the supporting legs 2, an installing mechanism 3 is arranged at the upper end of the base 1, an L-shaped frame 5 is fixed in the middle of the base 1, a cutting mechanism 6 is arranged at the bottom end of the L-shaped frame 5, a cutting groove 7 is formed in the upper end of the base 1 and is positioned below the cutting mechanism 6, strip-shaped plates 8 are symmetrically fixed on two sides of the L-shaped frame 5, two rectangular grooves 9 are formed in the lower ends of the strip-shaped plates 8, a telescopic spring 10 is fixed inside the rectangular grooves 9, a telescopic rod 4 is fixed at the bottom end of the telescopic spring 10, a U-shaped frame 11 is fixed at the bottom end of the telescopic rod 4, a rotating shaft 17 is limited in the U-shaped frame 11, a compression roller 12 is sleeved on the outer side of the rotating shaft 17, a first groove 13 and a second groove 14 are respectively symmetrically formed in two sides of the upper end of the base 1, rotating rod 15 is limited in the first groove 13 and the second groove 14, the outer side of the rotating rod 15 is sleeved with a rotating roller 16, the outer side of the base 1 is provided with two rotating motors 18, and output shafts of the rotating motors 18 penetrate through the second grooves 14 and extend into the rotating rod 15, and the penetrating end portions of the output shafts are connected with the rotating rod 15.
Wherein, installation mechanism 3 includes horizontal plate 31, the riser 32, the round bar 33, the rotor plate 34, round hole 35, change ball 36, locking Assembly 37 and draw-in groove 38, the rear end of horizontal plate 31 is fixed with riser 32, the bottom of riser 32 is fixed with base 1, the front end of horizontal plate 31 articulates there is rotor plate 34, round hole 35 has been seted up at rotor plate 34's middle part, the inside even rotation restriction of round hole 35 has a plurality of balls 36 that change, the inside of round hole 35 is provided with round bar 33, the rear end of round bar 33 rotates and restricts in riser 32, draw-in groove 38 has been seted up in rotor plate 34's the outside, the position that the draw-in groove 38 is close to in base 1's the outside is provided with locking Assembly 37.
Locking assembly 37 includes fixed block 371, kelly 372, arm-tie 373 and removal spring 374, the fixed block 371 is fixed in the outside of base 1, the inside slip of fixed block 371 is provided with kelly 372, the outer end of kelly 372 is fixed with arm-tie 373, the outside cover of kelly 372 is equipped with removal spring 374, the both ends of removing spring 374 are fixed with fixed block 371 and arm-tie 373 respectively, the inner and the draw-in groove 38 joint of kelly 372, when kelly 372 and draw-in groove 38 joint, remove spring 374 and be in original state.
The cutting mechanism 6 comprises an electric push rod 61, a cutter seat 62 and a cutting knife 63, the electric push rod 61 is fixed at the bottom end of the L-shaped frame 5, the cutter seat 62 is fixed at the bottom end of the electric push rod 61, and the cutting knife 63 is arranged inside the cutter seat 62.
The working principle of the embodiment is as follows: during the use, hand pulling plate 373 makes card pole 372 and draw-in groove 38 separation, and rotatory rotating plate 34 makes round bar 33 break away from the inside of round hole 35. Then, the optical cable coil is sleeved outside the round rod 33, and then the rotating plate 34 is rotated to restore the original position, so that the clamping rod 372 is clamped with the clamping groove 38 again, and the installation work of the optical cable coil is realized. After the optical cable roll is installed, the optical cable is pulled out to penetrate between the compression roller 12 and the rotary roller 16, the two rotary motors 18 are started to convey the optical cable forwards, after the optical cable is conveyed to a position needing cutting, the electric push rod 61 is controlled to extend, the optical cable is cut by the cutting knife 63, the optical cable after cutting is conveyed forwards continuously, and a material collecting frame can be placed on one side of the base 1 and used for collecting the optical cable after cutting is completed.
It is worth noting that: whole device passes through total control system and realizes control to rotating motor and electric putter, because the rotating motor and the electric putter that total control system matches are equipment commonly used, belong to current mature technology, no longer give unnecessary details its electric connection relation and concrete circuit structure here.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (5)
1. The utility model provides an electronic communication optical cable ration intercepting device, includes base (1), its characterized in that: the bottom of the base (1) is fixed with support legs (2) all around, the upper end of the base (1) is provided with an installing mechanism (3), the middle of the base (1) is fixed with an L-shaped frame (5), the bottom of the L-shaped frame (5) is provided with a cutting mechanism (6), the upper end of the base (1) is located below the cutting mechanism (6) and is provided with a cutting groove (7), two sides of the L-shaped frame (5) are symmetrically fixed with strip-shaped plates (8), the lower end of each strip-shaped plate (8) is provided with two rectangular grooves (9), an expansion spring (10) is fixed inside each rectangular groove (9), the bottom end of each expansion spring (10) is fixed with a telescopic rod (4), the bottom end of each telescopic rod (4) is fixed with a U-shaped frame (11), the rotation inside each U-shaped frame (11) is limited by a rotating shaft (17), the outer side of each rotating shaft (17) is sleeved with a compression roller (12), recess one (13) and recess two (14) have been seted up to the upper end both sides symmetry respectively of base (1), the inside of recess one (13) and recess two (14) is all rotated the restriction and is had bull stick (15), the outside cover of bull stick (15) is equipped with changes roller (16), the outside of base (1) is provided with two and rotates motor (18), the output shaft that rotates motor (18) runs through and extends into recess two (14), and runs through the tip and be connected with bull stick (15).
2. An electronic communication cable quantitative interception apparatus according to claim 1, wherein: the mounting mechanism (3) comprises a horizontal plate (31), a vertical plate (32), a round rod (33), a rotating plate (34), a round hole (35), a rotating ball (36), a locking component (37) and a clamping groove (38), a vertical plate (32) is fixed at the rear end of the horizontal plate (31), the bottom end of the vertical plate (32) is fixed with the base (1), the front end of the horizontal plate (31) is hinged with a rotating plate (34), the middle part of the rotating plate (34) is provided with a round hole (35), a plurality of rotating balls (36) are uniformly arranged inside the round hole (35), a round rod (33) is arranged inside the round hole (35), the rear end of the round rod (33) is limited to the vertical plate (32) in rotation, the outer side of the rotating plate (34) is provided with a clamping groove (38), and a locking component (37) is arranged at the position, close to the clamping groove (38), of the outer side of the base (1).
3. An electronic communication cable quantitative interception apparatus according to claim 2, wherein: locking Assembly (37) include fixed block (371), kelly (372), arm-tie (373) and remove spring (374), the outside in base (1) is fixed in fixed block (371), the inside slip of fixed block (371) is provided with kelly (372), the outer end of kelly (372) is fixed with arm-tie (373), the outside cover of kelly (372) is equipped with and removes spring (374), the both ends of removing spring (374) are fixed with fixed block (371) and arm-tie (373) respectively, the inner and draw-in groove (38) joint of kelly (372).
4. An electronic communication cable quantitative interception apparatus according to claim 1, wherein: the cutting mechanism (6) comprises an electric push rod (61), a cutter seat (62) and a cutting knife (63), the electric push rod (61) is fixed at the bottom end of the L-shaped frame (5), the cutter seat (62) is fixed at the bottom end of the electric push rod (61), and the cutting knife (63) is arranged inside the cutter seat (62).
5. An electronic communication cable quantitative interception apparatus according to claim 1, wherein: and the bottom ends of the supporting legs (2) are fixed with anti-skid pads.
