CN213966232U

CN213966232U - A forced V-type mixer for the production of antibacterial cream

Info

Publication number: CN213966232U
Application number: CN202022660475.7U
Authority: CN
Inventors: 白瑞文; 薛卫华; 岳健
Original assignee: Shaanxi Youzhi Health Science Co ltd
Current assignee: Shaanxi Youzhi Health Science Co ltd
Priority date: 2020-11-17
Filing date: 2020-11-17
Publication date: 2021-08-17
Anticipated expiration: 2030-11-17

Abstract

The utility model relates to the technical field of mixers, and discloses a forced V-type mixer for the production of antibacterial paste, which solves the problem that the general mixer has poor mixing effect and is inconvenient for staff to add materials during the use process. The problem includes a body, the top of the body is fixedly installed with an organic cover, the top middle of the cover is fixedly installed with a stirring motor, the bottom middle of the cover is fixedly installed with a casing, and the inside of the casing is installed with a stirring shaft and a rotating shaft , and the top of the rotating shaft is fixedly connected with the output shaft of the stirring motor, a stirring rod is fixedly installed on the stirring shaft at equal distances, and a feeding mechanism is fixedly installed on one side of the body; The combined use of the internal gear ring and the stirring motor can drive the rotating shaft to stir the material through the stirring motor, and at the same time make multiple stirring shafts perform circular motion stirring. The combined use of the two improves the stirring efficiency.

Description

Production of antibacterial cream mixes machine with compulsory V type

Technical Field

The utility model belongs to the technical field of mix the machine, specifically be a compulsory V type mixes machine is used in production of antibacterial cream.

Background

The antibacterial cream not only can inhibit the reproduction of bacteria, but also has the functions of diminishing inflammation and sterilizing, the using method is simpler, and after the skin is cleaned, a proper amount of antibacterial cream is applied to the affected part; the main components of the antibacterial cream are various herbal plant extracts such as sophora flavescens, stemona, mint, fructus kochiae and the like, and the antibacterial cream is elaborately prepared by combining the modern technology, and a mixer is required to be used for processing in the production process.

The stirring effect of a common mixer is poor in the using process, and workers are not convenient to add materials.

Disclosure of Invention

To the above situation, for overcoming prior art's defect, the utility model provides an antibacterial cream production is with compulsory V type mixer, the effectual in-process that mixes the machine and use of having solved, stirring effect is relatively poor, and the staff of being not convenient for adds the problem of material.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a production of antibacterial cream is with compulsory V type mixer, includes the organism, the top fixed mounting of organism has the cover, and the top middle part fixed mounting of cover has agitator motor, and the bottom middle part fixed mounting of cover has the casing, and the internally mounted of casing has (mixing) shaft and pivot, and the top of pivot and agitator motor's output shaft fixed connection, and equidistance fixed mounting has the puddler on the (mixing) shaft, and one side fixed mounting of organism has feeding mechanism.

Preferably, the rotating shaft is fixedly provided with a driving gear, the driving gear is engaged with driven gears at equal intervals, and the driven gears are fixedly arranged on the corresponding stirring shafts.

Preferably, an inner gear ring is fixedly mounted on the inner wall of the shell, the driven gear is in meshed connection with the inner gear ring, and an annular groove is further formed in the shell.

Preferably, the structure of the rotating shaft is the same as that of the stirring shaft, the stirring shaft and the rotating shaft are fixedly arranged inside the corresponding through holes, and the through holes are formed in the protection plate.

Preferably, the feeding mechanism comprises a feeding motor, the feeding motor is fixedly installed at the top end of the material box, a cylinder is fixedly installed at the bottom end of the material box, the auger is rotatably installed inside the cylinder, and a hopper is fixedly installed at the bottom of the cylinder.

Preferably, the output shaft of the feeding motor is fixedly connected with the auger, and the bin and the hopper are both fixedly arranged on the machine body.

Preferably, a discharge hole is formed at the bottom end of the machine body, and a sealing cover is installed at the bottom end of the discharge hole.

Compared with the prior art, the beneficial effects of the utility model are that:

1) in the work, through the matched use of the rotating shaft, the driving gear, the driven gear, the inner gear ring, the stirring motor and the like, the stirring motor can drive the rotating shaft to stir materials, and meanwhile, the stirring shafts are used in a circular motion mode, so that the stirring efficiency is improved, and the stirring effect is good;

2) the feeding motor, the auger, the material box, the hopper and the like are matched for use, materials can be put into the feeding motor, the auger and the material box from the bottom, and then the materials are conveyed to the inside of the machine body through the auger and the material box, so that the feeding motor, the auger, the material box, the hopper and the like are convenient for workers to add the materials, and the operation is convenient.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

In the drawings:

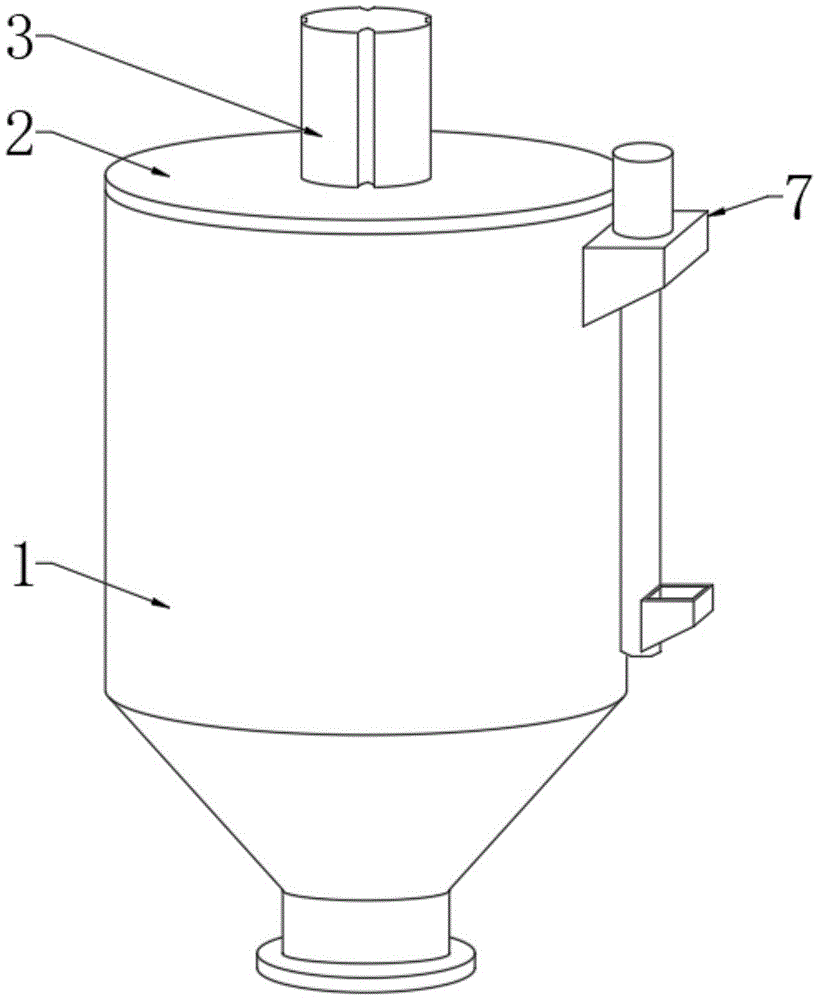

fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the internal structure of the present invention;

FIG. 3 is a schematic view of the housing mounting structure of the present invention;

fig. 4 is a schematic view of the mounting structure of the feeding mechanism of the present invention.

In the figure: 1. a body; 2. a machine cover; 3. a stirring motor; 4. a housing; 401. an inner gear ring; 402. an annular groove; 5. a stirring shaft; 6. a stirring rod; 7. a feeding mechanism; 701. a feeding motor; 702. a material box; 703. a cylinder; 704. a packing auger; 705. a hopper; 8. a rotating shaft; 9. a driving gear; 10. a driven gear; 11. and (4) a protective plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Embodiment one, given by fig. 1-4, the utility model discloses an organism 1, organism 1's top fixed mounting has cover 2, cover 2's top middle part fixed mounting has agitator motor 3, can provide power, cover 2's bottom middle part fixed mounting has casing 4, casing 4's internally mounted has (mixing) shaft 5 and pivot 8, and pivot 8's top and agitator motor 3's output shaft fixed connection, equidistant fixed mounting has puddler 6 on (mixing) shaft 5, can play good stirring effect, one side fixed mounting of organism 1 has feeding mechanism 7, be convenient for carry the top with the material of bottom.

In the second embodiment, on the basis of the first embodiment, a driving gear 9 is fixedly installed on the rotating shaft 8, driven gears 10 are connected to the driving gear 9 in an equidistant meshing manner, the driven gears 10 are fixedly installed on the corresponding stirring shafts 5, and the driving gear 9 can drive the stirring shafts 5 to move.

In the third embodiment, on the basis of the second embodiment, an inner gear ring 401 is fixedly mounted on the inner wall of the housing 4, the driven gear 10 is in meshed connection with the inner gear ring 401, and an annular groove 402 is further formed in the housing 4, so that the driven gear 10 can be conveniently mounted.

Fourth embodiment, on the basis of first embodiment, the structure of pivot 8 is the same with the structure of (mixing) shaft 5, and inside (mixing) shaft 5 and the equal fixed mounting of pivot 8 in the through-hole that corresponds, the through-hole was seted up on guard plate 11, can play good guard effect.

In the fifth embodiment, on the basis of the first embodiment, the feeding mechanism 7 includes a feeding motor 701, the feeding motor 701 is fixedly installed at the top end of the material box 702, a cylinder 703 is fixedly installed at the bottom end of the material box 702, an auger 704 is rotatably installed inside the cylinder 703, a hopper 705 is fixedly installed at the bottom of the cylinder 703, and the material can be conveyed through the auger 704.

Sixth embodiment, on the basis of fifth embodiment, the output shaft of the feeding motor 701 is fixedly connected with the packing auger 704, and the bin 702 and the hopper 705 are both fixedly installed on the machine body 1, so that the materials can be conveniently conveyed into the bin 702.

Seventh embodiment, on the basis of the first embodiment, a discharge hole is formed at the bottom end of the machine body 1, and a sealing cover is installed at the bottom end of the discharge hole, so that a good plugging effect can be achieved.

The working principle is as follows: when the material conveying device works, firstly, materials are placed into the hopper 705, then the packing auger 704 is driven to rotate through the feeding motor 701, the materials are conveyed into the material box 702, and then the materials enter the machine body 1, and the material conveying process can be completed; then drive pivot 8 through agitator motor 3 and rotate, the driven gear 10 on the (mixing) shaft 5 is driven through the engaged mode to rotate to the driving gear 9 in the pivot 8, and driven gear 10 moves along ring gear 401 simultaneously to make (mixing) shaft 5 carry out circular motion at the in-process of rotation, make the puddler 6 on the pivot 8 and puddler 6 on the (mixing) shaft 5 stir the material jointly, thereby play good stirring effect.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a production of antibacterial cream mixes machine with compulsory V type, includes organism (1), its characterized in that: the top fixed mounting of organism (1) has cover (2), and the top middle part fixed mounting of cover (2) has agitator motor (3), and the bottom middle part fixed mounting of cover (2) has casing (4), and the internally mounted of casing (4) has (mixing) shaft (5) and pivot (8), and the top of pivot (8) and the output shaft fixed connection of agitator motor (3), equidistant fixed mounting has puddler (6) on (mixing) shaft (5), and one side fixed mounting of organism (1) has feeding mechanism (7).

2. The forced V-shaped mixer for producing the antibacterial cream according to claim 1, which is characterized in that: a driving gear (9) is fixedly mounted on the rotating shaft (8), driven gears (10) are meshed with the driving gear (9) at equal intervals, and the driven gears (10) are fixedly mounted on the corresponding stirring shafts (5).

3. The forced V-shaped mixer for producing the antibacterial cream according to claim 2, which is characterized in that: an inner gear ring (401) is fixedly mounted on the inner wall of the shell (4), the driven gear (10) is meshed with the inner gear ring (401) and connected, and an annular groove (402) is formed in the shell (4).

4. The forced V-shaped mixer for producing the antibacterial cream according to claim 1, which is characterized in that: the structure of pivot (8) is the same with the structure of (mixing) shaft (5), and inside the through-hole that corresponds was all fixed mounting in (mixing) shaft (5) and pivot (8), the through-hole was seted up on guard plate (11).

5. The forced V-shaped mixer for producing the antibacterial cream according to claim 1, which is characterized in that: the feeding mechanism (7) comprises a feeding motor (701), the feeding motor (701) is fixedly installed at the top end of the material box (702), a cylinder (703) is fixedly installed at the bottom end of the material box (702), an auger (704) is rotatably installed inside the cylinder (703), and a hopper (705) is fixedly installed at the bottom of the cylinder (703).

6. The forced V-shaped mixer for producing the antibacterial cream according to claim 5, characterized in that: an output shaft of the feeding motor (701) is fixedly connected with the packing auger (704), and the material box (702) and the material hopper (705) are fixedly arranged on the machine body (1).

7. The forced V-shaped mixer for producing the antibacterial cream according to claim 1, which is characterized in that: the bottom of the machine body (1) is provided with a discharge hole, and the bottom of the discharge hole is provided with a sealing cover.
