CN213965844U - Wisdom is fume extractor for fire control

Info

Publication number: CN213965844U
Application number: CN202022920132.XU
Authority: CN
Inventors: 潘中华
Original assignee: Shijiazhuang Jindun Safety Technology Engineering Co ltd
Current assignee: Shijiazhuang Jindun Safety Technology Engineering Co ltd
Priority date: 2020-12-09
Filing date: 2020-12-09
Publication date: 2021-08-17
Anticipated expiration: 2030-12-09

Abstract

The utility model discloses an intelligent fire-fighting smoke exhaust device, which comprises a box body, a top cover of the box body is closed with an upper cover, the upper cover is provided with a plurality of first through holes, and the box body is fixedly connected with an upper cover. A first snap ring, the top of the first snap ring is provided with an orifice plate, the orifice plate is provided with an activated carbon layer, a third snap ring is provided above the activated carbon layer, and the top of the third snap ring is provided There is a filter cloth, the top of the filter cloth is provided with a second card, and the second card is internally sleeved with bolts. When the utility model is used, the air pump is electrically connected to the external power supply, and the air pump removes the smoke. It is transported into the box through the connecting pipe, and the impurities in the smoke are further mixed with the water in the box to form waste water, which reduces the discharge of impurities in the smoke, and further the smoke rises through the orifice plate and the activated carbon layer, and the activated carbon layer filters the impurities in the smoke. , the filtered smoke is filtered through the filter cloth, and then discharged from the box through the first through hole.

Description

Wisdom is fume extractor for fire control

Technical Field

The utility model relates to a fume extractor technical field specifically is a wisdom is fume extractor for fire control.

Background

"fire control" is to eliminate hidden troubles and prevent disasters (i.e. the general term for preventing and solving human, natural and accidental disasters in life, work and learning process of people), and the meaning of the narrow sense is that: meaning (extinguishing) fire.

When a fire disaster happens to a building, a large amount of smoke is generated, in order to exhaust the smoke out of the building, smoke exhausting devices are installed in a plurality of organizations, but the smoke is exhausted from the building and then directly exhausted into the air by the existing smoke exhausting devices, so that the quality of the air is greatly influenced, and therefore, an intelligent smoke exhausting device for fire fighting is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a smoke exhaust apparatus is used in wisdom fire control to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a smoke exhaust device for intelligent fire fighting comprises a box body, wherein an upper cover is covered at the top of the box body, a plurality of first through holes are formed in the upper cover, a first snap ring is fixedly connected in the box body, a pore plate is arranged at the top of the first snap ring, an activated carbon layer is arranged on the pore plate, a third snap ring is arranged above the activated carbon layer, a filter cloth is arranged at the top of the third snap ring, a second snap ring is arranged above the filter cloth, a bolt is sleeved in the second snap ring, one end of the bolt penetrates through the filter cloth and the third snap ring and is arranged outside the third snap ring, the bolt is in threaded connection with the second snap ring and the third snap ring, a connecting pipe is fixedly connected to one side of the box body, one end of the connecting pipe is arranged in the box body, an air suction pump is fixedly connected to the other end of the connecting pipe, and a pipe body is fixedly connected to an air inlet of the air suction pump, the other side fixedly connected with inlet tube and outlet pipe of box, inlet tube and outlet pipe all are linked together with the inner chamber of box.

As a further aspect of the present invention: the surface of the upper cover is fixedly connected with a baffle.

As a further aspect of the present invention: both sides of the upper cover are fixedly connected with handles.

As a further aspect of the present invention: and one side of the box body is provided with an observation window.

As a further aspect of the present invention: and a second valve is arranged in the water outlet pipe.

As a further aspect of the present invention: a first valve is arranged in the water inlet pipe.

As a further aspect of the present invention: the bottom of the box body is fixedly connected with a plurality of support legs.

As a further aspect of the present invention: the bottom ends of the support legs are fixedly connected with rubber pads.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses when using, with aspiration pump and external power supply electric connection, in the aspiration pump carried smog into the box through the connecting tube, further the impurity of smog mixes with the water in the box and forms waste water, reduce the emission that has miscellaneous material of smog, further smog up rises through orifice plate and activated carbon layer, the impurity of activated carbon layer in to smog filters, after the smog rethread filter cloth after the filtration filters, through first through-hole discharge box, at this moment, impurity in the smog has been by great reduction, thereby avoid causing big harmful effects to the air.

2. The utility model discloses a baffle can avoid the rainwater to cause the pollution to filter cloth and active carbon layer in getting into the box through first through-hole, also can block moreover that debris fall on and cause the jam of first through-hole in the first through-hole.

Drawings

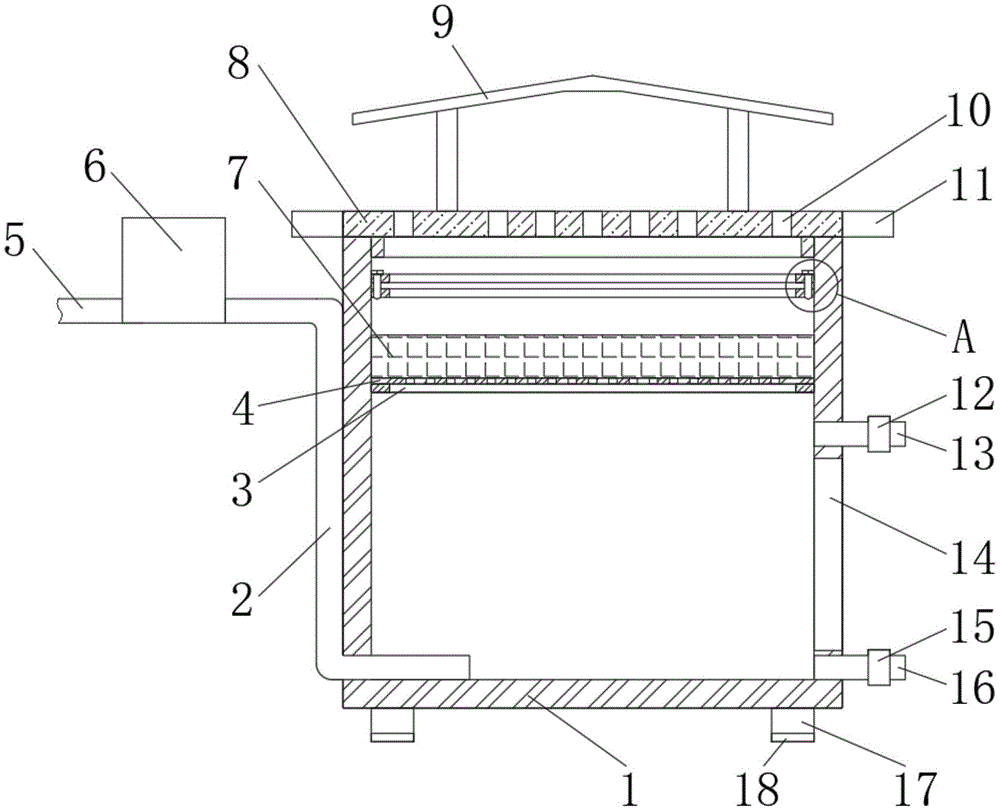

Fig. 1 is a schematic structural diagram of an intelligent smoke exhaust device for fire fighting.

Fig. 2 is a perspective view of an intelligent smoke exhaust device for fire fighting.

Fig. 3 is an enlarged schematic view of a portion a in fig. 1.

Fig. 4 is a schematic structural diagram of a first clasp of an intelligent smoke exhaust device for fire fighting.

Fig. 5 is a schematic structural diagram of a hole plate of an intelligent smoke exhaust device for fire fighting.

Fig. 6 is a schematic structural view of a leg of the intelligent smoke exhauster for fire fighting.

Shown in the figure: the device comprises a box body 1, a connecting pipe 2, a first clamping ring 3, a pore plate 4, a pipe body 5, an air pump 6, an activated carbon layer 7, an upper cover 8, a baffle 9, a first through hole 10, a handle 11, a first valve 12, a water inlet pipe 13, an observation window 14, a second valve 15, a water outlet pipe 16, a support leg 17, a rubber pad 18, a second through hole 19, a bolt 20, a second clamping ring 21, filter cloth 22 and a third clamping ring 23.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to 6, in an embodiment of the present invention, a smart smoke exhaust device for fire protection includes a box body 1, a connecting pipe 2, a first snap ring 3, a perforated plate 4, a pipe body 5, an air pump 6, an activated carbon layer 7, an upper cover 8, a baffle 9, a first through hole 10, a handle 11, a first valve 12, a water inlet pipe 13, an observation window 14, a second valve 15, a water outlet pipe 16, a support leg 17, a rubber pad 18, a second through hole 19, a bolt 20, a second snap ring 21, a filter cloth 22, and a third snap ring 23, wherein the upper cover 8 covers the top of the box body 1, the upper cover 8 is provided with a plurality of first through holes 10, the first snap ring 3 is fixedly connected in the box body 1, the perforated plate 4 is provided at the top of the first snap ring 3, the activated carbon layer 7 is provided on the perforated plate 4, a third snap ring 23 is provided above the activated carbon layer 7, the filter cloth 22 is provided at the top of the third snap ring 23, a second clamping ring 21 is arranged above the filter cloth 22, a bolt 20 is sleeved in the second clamping ring 21, one end of the bolt 20 penetrates through the filter cloth 22 and the third clamping ring 23 and is arranged outside the third clamping ring 23, the bolt 20 is in threaded connection with the second clamping ring 21 and the third clamping ring 23, a connecting pipe 2 is fixedly connected to one side of the box body 1, one end of the connecting pipe 2 is arranged in the box body 1, an air suction pump 6 is fixedly connected to the other end of the connecting pipe 2, a pipe body 5 is fixedly connected to an air inlet of the air suction pump 6, a water inlet pipe 13 and a water outlet pipe 16 are fixedly connected to the other side of the box body 1, the water inlet pipe 13 and the water outlet pipe 16 are both communicated with an inner cavity of the box body 1, water is conveyed to the box body 1 through the water inlet pipe 13 at ordinary times, when the air suction pump 6 is used, the air suction pump 6 is electrically connected with an external power supply, and conveys smoke into the box body 1 through the connecting pipe 2, further the impurity of smog mixes with the water in the box 1 and forms waste water, reduces the emission that has miscellaneous material of smog, and further smog up rises through orifice plate 4 and active carbon layer 7, and active carbon layer 7 filters the impurity in smog, and the smog after the filtration filters the back through filter cloth 22 again, through first through-hole 10 discharge box 1, and at this moment, impurity in the smog has been by great reduction to avoid causing big harmful effects to the air.

The fixed surface of upper cover 8 is connected with baffle 9, the equal fixedly connected with handle 11 in both sides of upper cover 8, baffle 9 can avoid the rainwater to cause the pollution to filter cloth 22 and active carbon layer 7 in getting into box 1 through first through-hole 10, also can block in addition that debris fall and cause the jam of first through-hole 10 in first through-hole 10.

One side of box 1 is provided with observation window 14, can observe the volume and the change of the water in the box 1 through observation window 14 to in time add new water or change water.

A second valve 15 is arranged in the water outlet pipe 16, and a first valve 12 is arranged in the water inlet pipe 13.

The bottom of the box body 1 is fixedly connected with a plurality of support legs 17, and the bottom ends of the support legs 17 are fixedly connected with rubber pads 18.

The utility model discloses a theory of operation is:

at ordinary times, water is conveyed to the box body 1 through the water inlet pipe 13, when the water-saving air suction box is used, the air suction pump 6 is electrically connected with an external power supply, smoke is conveyed into the box body 1 through the connecting pipe 2 by the air suction pump 6, impurities of the smoke are further mixed with the water in the box body 1 to form waste water, the emission of mixed substances of the smoke is reduced, the smoke further ascends to pass through the pore plate 4 and the activated carbon layer 7, the impurities in the smoke are filtered by the activated carbon layer 7, the filtered smoke is discharged out of the box body 1 through the first through hole 10 after being filtered by the filter cloth 22, at the moment, the impurities in the smoke are greatly reduced, so that the large adverse effect on air is avoided, the baffle 9 can prevent rainwater from entering the box body 1 through the first through hole 10 to pollute the filter cloth 22 and the activated carbon layer 7, and can prevent impurities from falling into the first through hole 10 to cause the blockage of the first through hole 10, the amount and the change of the water in the box body 1 can be observed through the observation window 14, thereby adding new water or replacing water in time.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. An intelligent fire-fighting smoke exhaust device, comprising a box body (1), characterized in that: the top cover of the box body (1) is closed with an upper cover (8), and the upper cover (8) is provided with several The first through hole (10) of the box body (1) is fixedly connected with a first snap ring (3), the top of the first snap ring (3) is provided with an orifice plate (4), the hole An activated carbon layer (7) is provided on the plate (4), a third snap ring (23) is provided above the activated carbon layer (7), and a filter cloth (22) is provided on the top of the third snap ring (23). A second card (21) is arranged above the filter cloth (22), a bolt (20) is sleeved inside the second card (21), and one end of the bolt (20) penetrates through the filter cloth (21). 22) and the third snap ring (23) are arranged outside the third snap ring (23), the bolt (20) is threadedly connected with the second snap ring (21) and the third snap ring (23). One side of (1) is fixedly connected with a connecting pipe (2), one end of the connecting pipe (2) is arranged in the box (1), and the other end of the connecting pipe (2) is fixedly connected with an air pump (6). ), the air inlet of the air pump (6) is fixedly connected with a pipe body (5), and the other side of the box body (1) is fixedly connected with a water inlet pipe (13) and a water outlet pipe (16). Both the water inlet pipe (13) and the water outlet pipe (16) are communicated with the inner cavity of the box body (1).

2 . The smoke exhaust device for intelligent fire fighting according to claim 1 , wherein a baffle plate ( 9 ) is fixedly connected to the surface of the upper cover ( 8 ). 3 .

3. A smoke exhaust device for smart firefighting according to claim 1, characterized in that: both sides of the upper cover (8) are fixedly connected with handles (11).

4. A smoke exhaust device for intelligent firefighting according to claim 1, characterized in that: an observation window (14) is provided on one side of the box body (1).

5 . The smoke exhaust device for smart firefighting according to claim 1 , wherein a second valve ( 15 ) is arranged in the water outlet pipe ( 16 ). 6 .

6 . The smoke exhaust device for smart firefighting according to claim 1 , wherein a first valve ( 12 ) is arranged in the water inlet pipe ( 13 ). 7 .

7 . The smoke exhaust device for smart firefighting according to claim 1 , wherein a plurality of supporting feet ( 17 ) are fixedly connected to the bottom of the box body ( 1 ). 8 .

8 . The smoke exhaust device for smart firefighting according to claim 7 , wherein a rubber pad ( 18 ) is fixedly connected to the bottom end of the support foot ( 17 ). 9 .
