Abstract
本实用新型属于快速擦拭烘干清洗装置技术领域，尤其是一种肛肠科护理用的清洗装置，针对现有少数的肛肠科护理用的清洗装置，在对肛肠进行清洗后没有更好的对其进行擦拭烘干问题，现提出如下方案，其包括箱体，所述箱体内固定安装有隔板，隔板的一侧转动连接有第一转动杆，第一转动杆上固定连接有第一锥齿轮，第一转动杆上固定安装有凸块，凸块的一端固定连接有擦拭棉，所述隔板的一侧固定连接有托板，托板上转动连接有第二转动杆，第二转动杆的一端固定连接有第二锥齿轮，第二锥齿轮与第一锥齿轮啮合，且第二转动杆的另一端固定连接有第一圆柱。本实用新型结构简单，在对肛肠进行清洗后，便于对肛肠烘干擦拭，方便人们使用。
The utility model belongs to the technical field of fast wiping, drying and cleaning devices, in particular to a cleaning device for anorectal nursing, aiming at the few existing cleaning devices for anorectal nursing, there is no better cleaning device after cleaning the anorectum. To solve the problem of wiping and drying, the following solution is proposed, which includes a box body, a partition plate is fixedly installed in the box body, a first rotating rod is rotatably connected to one side of the partition plate, and a first cone is fixedly connected to the first rotating rod Gear, a bump is fixedly installed on the first rotating rod, one end of the bump is fixedly connected with a wiping cotton, one side of the baffle is fixedly connected with a support plate, and the support plate is rotatably connected with a second rotating rod, the second rotating One end of the rod is fixedly connected with a second bevel gear, which meshes with the first bevel gear, and the other end of the second rotating rod is fixedly connected with a first cylinder. The utility model has a simple structure, and is convenient for drying and wiping the anorectum after cleaning the anorectum, which is convenient for people to use.
Description
Technical Field
The utility model relates to a clean stoving belt cleaning device technical field fast, especially relate to a belt cleaning device that anus intestines branch of academic or vocational study nursing was used.
Background
Medical devices refer to instruments, equipment, appliances, in-vitro diagnostic reagents and calibrators, materials and other similar or related items used directly or indirectly by humans, including computer software needed, and the utility is mainly obtained by physical means and not by pharmacological, immunological or metabolic means, or is only assisted by such means, and the anus of a patient in the anorectal department has bacteria and needs to be cleaned frequently.
A few cleaning devices for anorectal nursing do not better wipe and dry the anorectal after cleaning the anorectal.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the cleaning device for nursing anorectal department in a small number is not better to clean the anorectal department after cleaning the anorectal department and air-dry the defect, and providing the cleaning device for nursing anorectal department.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a belt cleaning device that anus intestines branch of academic or vocational study nursing was used, comprises a box body, fixed mounting has the baffle in the box, and one side of baffle is rotated and is connected with first dwang, the first bevel gear of fixedly connected with on the first dwang, and fixed mounting has the lug on the first dwang, and the cotton is cleaned to the one end fixedly connected with of lug, one side fixedly connected with layer board of baffle rotates on the layer board and is connected with the second dwang, the one end fixedly connected with second bevel gear of second dwang, second bevel gear and the meshing of first bevel gear, and the first cylinder of the other end fixedly connected with of.
Preferably, a frame is fixedly mounted in the box body, a motor is arranged in the frame, and an output shaft of the motor is fixedly connected with a third rotating rod.
Preferably, the third rotating rod is fixedly connected with a second cylinder, the second cylinder and the first cylinder are in transmission connection with the same transmission belt, and one end of the third rotating rod is fixedly connected with fan blades.
Preferably, the top fixed mounting of box has the dimple, and first slot hole has all been seted up to the bottom of dimple and the top of box, and one side of box is equipped with the outlet, is equipped with the valve on the outlet, and the bottom fixedly connected with of box has two support columns.
Preferably, one side fixed mounting of box has the layer board, is equipped with the water tank on the layer board, and one side intercommunication of water tank has first water pipe, and the one end intercommunication of first water pipe has the booster pump, and one side intercommunication of booster pump has the second water pipe, and one side to the box of box are passed to the one end of second water pipe, and the one end intercommunication of second water pipe has the shower nozzle.
Compared with the prior art, the utility model has the advantages of:
(1) this scheme is owing to set up water tank, first water pipe, booster pump, second water pipe and shower nozzle, and the first water pipe of booster pump accessible is taken water out in the water tank rethread second water pipe inflow shower nozzle and is sprayed, has realized the purpose that washes the anus intestines.
(2) This scheme is owing to set up first dwang, the lug, clean the cotton, first bevel gear, second bevel gear, the second dwang, first cylinder, the second cylinder, the transmission band, third dwang and flabellum, the third dwang drives the flabellum rotation and bloies, the third dwang drives the second cylinder rotation simultaneously, the second cylinder passes through the first cylinder rotation of transmission band transmission, first cylinder passes through the second dwang and drives second bevel gear rotation, second bevel gear drives first dwang through first bevel gear and rotates, first dwang passes through the lug and drives to clean cotton rotation, the purpose of drying and cleaning the anus intestines has been realized.
The utility model discloses simple structure, convenient to use is being washed the anus intestines, is convenient for dry to the anus intestines and cleans, makes things convenient for people to use.
Drawings

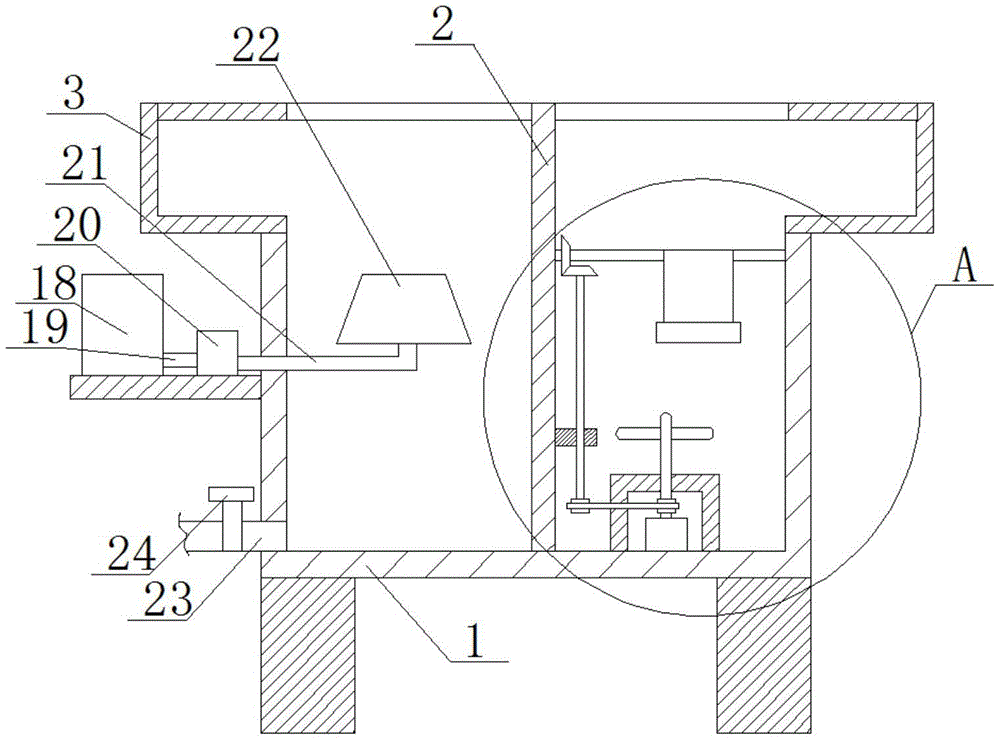

Fig. 1 is a schematic structural view of a cleaning device for anorectal nursing provided by the present invention;
fig. 2 is a schematic view of a three-dimensional structure of a nozzle of a cleaning device for anorectal nursing provided by the utility model;
fig. 3 is a schematic structural view of a part a of a cleaning device for anorectal nursing of the present invention.
In the figure: the device comprises a box body 1, a partition plate 2, a recess 3, a first rotating rod 4, a protruding block 5, a wiping cotton 6, a first bevel gear 7, a second bevel gear 8, a supporting plate 9, a second rotating rod 10, a first cylinder 11, a frame 12, a motor 13, a third rotating rod 14, a transmission belt 15, fan blades 16, a second cylinder 17, a water tank 18, a first water pipe 19, a booster pump 20, a second water pipe 21, a spray head 22, a water outlet 23 and a valve 24.
Detailed Description
The technical solutions in the embodiments will be described clearly and completely with reference to the drawings in the embodiments, and it is obvious that the described embodiments are only a part of the embodiments, but not all embodiments.
Example one
Referring to fig. 1-3, a cleaning device for anorectal nursing, which comprises a box body 1, a partition plate 2 is fixedly mounted in the box body 1, one side of the partition plate 2 is rotatably connected with a first rotating rod 4, a first bevel gear 7 is fixedly connected to the first rotating rod 4, a bump 5 is fixedly mounted on the first rotating rod 4, a wiping cotton 6 is fixedly connected to one end of the bump 5, a supporting plate 9 is fixedly connected to one side of the partition plate 2, a second rotating rod 10 is rotatably connected to the supporting plate 9, a second bevel gear 8 is fixedly connected to one end of the second rotating rod 10, the second bevel gear 8 is meshed with the first bevel gear 7, and a first cylinder 11 is fixedly connected to the other end of the second rotating rod 10.
In this embodiment, a frame 12 is fixedly installed in the box body 1, a motor 13 is installed in the frame 12, and an output shaft of the motor 13 is fixedly connected with a third rotating rod 14.
In this embodiment, fixedly connected with second cylinder 17 on the third dwang 14, second cylinder 17 is connected with same transmission band 15 with the transmission of first cylinder 11, and the one end fixedly connected with flabellum 16 of third dwang 14.
In this embodiment, the top of box 1 is fixedly mounted with recess 3, and first slot hole has all been seted up to the bottom of recess 3 and the top of box 1, and one side of box 1 is equipped with outlet 23, is equipped with valve 24 on the outlet 23, and the bottom fixedly connected with of box 1 has two support columns.
In this embodiment, one side fixed mounting of box 1 has the layer board, is equipped with water tank 18 on the layer board, and one side intercommunication of water tank 18 has first water pipe 19, and the one end intercommunication of first water pipe 19 has booster pump 20, and one side intercommunication of booster pump 20 has second water pipe 21, and the one end of second water pipe 21 is passed one side of box 1 to in the box 1, and the one end intercommunication of second water pipe 21 has shower nozzle 22.
Example two
Referring to fig. 1-3, a belt cleaning device that anus intestines branch of academic or vocational study nursing was used, including box 1, welding installation has baffle 2 in the box 1, one side of baffle 2 is rotated and is connected with first dwang 4, welded connection has first bevel gear 7 on the first dwang 4, welded connection has lug 5 on the first dwang 4, the one end of lug 5 is equipped with through splint cleans cotton 6 (clean cotton 6 can be changed), one side welded connection of baffle 2 has layer board 9, it is connected with second dwang 10 to rotate on the layer board 9, the one end welded connection of second dwang 10 has second bevel gear 8, second bevel gear 8 meshes with first bevel gear 7, and the other end welded connection of second dwang 10 has first cylinder 11.
In this embodiment, a frame 12 is installed in the box body 1 by welding, a motor 13 is arranged in the frame 12, an output shaft of the motor 13 is connected with a third rotating rod 14 by welding, and an output shaft of the motor 13 can drive the third rotating rod 14 to rotate.
In this embodiment, welded connection has second cylinder 17 on the third dwang 14, and second cylinder 17 is connected with same transmission band 15 with the 11 transmissions of first cylinder, and the one end welded connection of third dwang 14 has flabellum 16, and third dwang 14 can drive the flabellum rotation.
In this embodiment, the recess 3 is welded and installed on the top of the box body 1, the first long hole is formed in the bottom of the recess 3 and the top of the box body 1, the water outlet 23 is formed in one side of the box body 1, the valve 24 is arranged on the water outlet 23, the two support columns are welded and connected to the bottom of the box body 1, and water in the box body 1 can be discharged from the water outlet 23 by opening the valve 24.
In this embodiment, the layer board is installed in one side welding of box 1, be equipped with water tank 18 on the layer board, one side intercommunication of water tank 18 has first water pipe 19, the one end intercommunication of first water pipe 19 has booster pump 20, one side intercommunication of booster pump 20 has second water pipe 21, one end of second water pipe 21 is passed one side of box 1 to in the box 1, the one end intercommunication of second water pipe 21 has shower nozzle 22, booster pump 20 accessible first water pipe 19 is taken water out in the water tank 18 rethread second water pipe 21 inflow shower nozzle 22 and is sprayed.
In this embodiment, when the patient needs to clean the anus and intestine, the patient sits on one side of the recess 3, the booster pump 20 can pump water out of the water tank 18 through the first water pipe 19 and then flow into the spray head 22 through the second water pipe 21 to flush the anus and intestine, after flushing, the patient can sit on the other side of the recess 3, meanwhile, the motor 13 is started, the output shaft of the motor 13 drives the third rotating rod 14 to rotate, the third rotating rod 14 drives the fan blades 16 to rotate to blow air to the anus and the intestine, meanwhile, the third rotating rod 14 drives the second cylinder 17 to rotate, the second cylinder 17 drives the first cylinder 11 to rotate through the transmission belt 15, the first cylinder 11 drives the second bevel gear 8 to rotate through the second rotating rod 10, the second bevel gear 8 drives the first rotating rod 4 to rotate through the first bevel gear 7, the first rotating rod 4 drives the wiping cotton 6 to rotate through the lug 5 to wipe the anorectal part of the patient, and the wiping and drying can be carried out.
The above descriptions are only preferred embodiments of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the scope of the present invention, and the technical solutions and the utility model concepts of the present invention are equivalent to, replaced or changed.
Claims (5)
1. A cleaning device for anorectal department nursing comprises a box body (1) and is characterized in that a partition plate (2) is fixedly installed in the box body (1), one side of the partition plate (2) is rotatably connected with a first rotating rod (4), a first bevel gear (7) is fixedly connected onto the first rotating rod (4), a lug (5) is fixedly installed on the first rotating rod (4), and one end of the lug (5) is fixedly connected with a wiping cotton (6);
one side fixedly connected with layer board (9) of baffle (2), it is connected with second dwang (10) to rotate on layer board (9), the one end fixedly connected with second bevel gear (8) of second dwang (10), second bevel gear (8) and first bevel gear (7) meshing, and the first cylinder (11) of the other end fixedly connected with of second dwang (10).
2. The cleaning device for anorectal department nursing according to claim 1, wherein a frame (12) is fixedly installed in the box body (1), a motor (13) is arranged in the frame (12), and an output shaft of the motor (13) is fixedly connected with a third rotating rod (14).
3. The cleaning device for anorectal nursing according to claim 2, wherein the third rotating rod (14) is fixedly connected with a second cylinder (17), the second cylinder (17) and the first cylinder (11) are in transmission connection with a same transmission belt (15), and one end of the third rotating rod (14) is fixedly connected with a fan blade (16).
4. The cleaning device for anorectal department nursing according to claim 1, wherein a recess (3) is fixedly mounted at the top of the box body (1), first long holes are formed in the bottom of the recess (3) and the top of the box body (1), a water outlet (23) is formed in one side of the box body (1), a valve (24) is arranged on the water outlet (23), and two support columns are fixedly connected to the bottom of the box body (1).
5. The cleaning device for anorectal department nursing according to claim 1, wherein a supporting plate is fixedly mounted on one side of the box body (1), a water tank (18) is arranged on the supporting plate, one side of the water tank (18) is communicated with a first water pipe (19), one end of the first water pipe (19) is communicated with a booster pump (20), one side of the booster pump (20) is communicated with a second water pipe (21), one end of the second water pipe (21) penetrates through one side of the box body (1) to the inside of the box body (1), and one end of the second water pipe (21) is communicated with a spray head (22).
