Abstract

The utility model discloses a non-woven pet pad, which relates to the field of pet supplies. A waterproof layer is arranged at the bottom of the layer, an interlayer is arranged at the bottom of the waterproof layer, a moisture-proof cloth is arranged at the bottom of the interlayer, and a Velcro wool surface is arranged around the damp-proof cloth. The utility model is provided with a waterproof cloth, a hook surface of the Velcro and a wooly surface of the Velcro. When the user needs to clean the pet pad, the hook surface of the Velcro is torn off, the non-woven fabric is removed, and the non-woven fabric is cleaned and dried. After that, replace the active sponge layer, fit the new active sponge layer, align the hook surface of the Velcro with the fur surface of the Velcro, and use it again. This pet pad can be repeatedly used and cleaned. It is convenient and quick to paste and disassemble. The non-woven fabric and the waterproof cloth are two layers, which are easy to dry after cleaning.

Description

Non-woven fabric pet mat

Technical Field

The utility model relates to a pet articles for use field specifically is a non-woven fabrics pet pad.

Background

The situation of raising pets such as puppies and kittens in modern society is increasing, and the use of pet pads is more and more common in order to prevent urine of the pets from polluting the environment and provide more comfortable resting conditions for the pets.

The main structure of current pet pad is the one deck non-woven fabrics, can not carry out better waterproof, and the hair and the urine that drop of pet are stained with and stay on the pet pad, and the smell is bad, and difficult washing leads to the pet pad when the pet runs on it easily not level and smooth enough, and is mixed and disorderly easily.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a: in order to solve the problems of difficult cleaning, bad smell and easy mess, a non-woven fabric pet mat is provided.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a non-woven fabrics pet pad, includes the non-woven fabrics, the bottom of non-woven fabrics is provided with the active sponge layer, and the active sponge layer bottom is provided with the magic all around and pastes the face of colluding, and the bottom of active sponge layer is provided with the waterproof layer, and the bottom of waterproof layer is provided with the intermediate layer, and interbedded bottom is provided with damp proof cloth, is provided with the magic around the damp proof cloth and pastes the hair side.

Preferably, the interior of the interlayer is filled with silk-like cotton, and the surface of the interlayer is made of cotton cloth.

Preferably, the number of the hook and loop fastening surfaces and the number of the loop and loop fastening rough surfaces are four, and the four loop and loop fastening rough surfaces are distributed around the active sponge layer and the damp-proof cloth.

Preferably, the bottom of the moisture-proof cloth is provided with rubber anti-skidding lines, and four corners of the bottom of the moisture-proof cloth are provided with suckers.

Preferably, the hook-and-loop fastener is attached to the hook-and-loop fastener rough surface, and the hook-and-loop fastener rough surface is sewn with cotton threads at the edge of the damp-proof cloth.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses a waterproof cloth, magic tape collude face and magic tape hair side have been set up, when the user need wash the pet pad, tear magic tape collude face, take off the non-woven fabrics again, wash the non-woven fabrics after drying, change the active sponge layer, after laminating new active sponge layer, aim at magic tape collude face magic tape hair side and paste, reuse, this kind of pet pad can carry out the washing of using repeatedly many times, use magic tape to paste dismantlement convenient and fast, non-woven fabrics and waterproof cloth are two-layer, dry easily after wasing;

2. the utility model discloses a be provided with active sponge layer, damp proof cloth and intermediate layer, absorb the pet through the active carbon because the stink that urine and body odor lead to, the antiskid line is made to the rubber that the damp proof cloth bottom set up, makes whole pet pad laminating ground, has increased frictional force, makes whole pet pad flat, and is difficult for folding, and the intermediate layer is inside to be filled imitative silk floss, and is soft, cold-proof.

Drawings

Fig. 1 is a front view of the present invention;

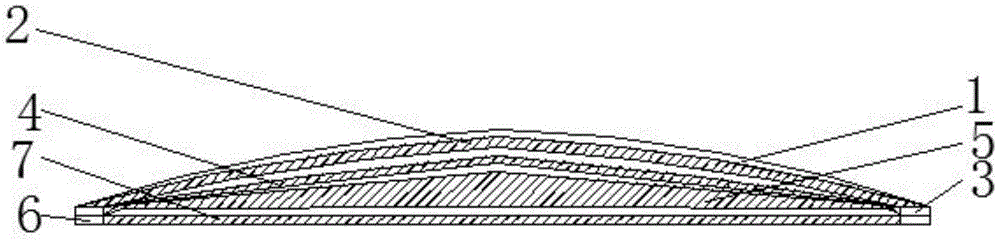

FIG. 2 is a main sectional view of the present invention;

fig. 3 is a top view of the present invention.

In the figure: 1. non-woven fabrics; 2. an active sponge layer; 3. hook surface of magic tape; 4. a waterproof layer; 5. an interlayer; 6. magic tape hair side; 7. a damp-proof cloth.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected" and "disposed" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention according to its overall structure.

Please refer to fig. 1-3, a non-woven fabric pet mat, comprising a non-woven fabric 1, wherein the bottom of the non-woven fabric 1 is provided with an active sponge layer 2, the bottom of the active sponge layer 2 is provided with a hook and loop surface 3, the bottom of the active sponge layer 2 is provided with a waterproof layer 4, the bottom of the waterproof layer 4 is provided with an interlayer 5, the bottom of the interlayer 5 is provided with a damp-proof cloth 7, and the periphery of the damp-proof cloth 7 is provided with a hook and loop surface 6.

Please refer to fig. 2, the interior of the interlayer 5 is filled with silk-like cotton, the surface of the interlayer 5 is made of cotton cloth, the softness of the silk-like cotton is high, bacteria are not easily grown in the interior, and the interior of the pet mat is not easy to rot.

Please refer to fig. 3, the number of the hook and loop fastener surfaces 3 and the hook and loop fastener rough surfaces 6 is four, and the four hook and loop fastener surfaces 3 and the hook and loop fastener rough surfaces 6 are distributed around the active sponge layer 2 and the damp-proof cloth 7, so that the peripheries are more attached.

Please refer to fig. 2, the bottom of the damp-proof cloth 7 is provided with rubber anti-slip lines, and four corners of the bottom of the damp-proof cloth 7 are provided with suckers, so that the damp-proof cloth 7 is flat and not easy to be folded, and the pet is not easy to slip when running on the damp-proof cloth.

Please refer to fig. 3, the hook and loop fastener 3 is attached to the hook and loop fastener matte 6, the hook and loop fastener matte 6 is sewn with the edge cotton thread of the damp-proof cloth 7, and the hook and loop fastener 3 and the hook and loop fastener matte 6 can be torn and attached for repeated use.

The working principle is as follows: the raiser paves the dampproof surface 7 of pet pad to ground, the pet spills the urine when the pet pad carelessly, it needs to wash the pet pad to watch to support the person, with 1 and the active sponge layer 2 on the waterproof layer 4 cushion from the pet and tear down from magic tape hair side 6 through magic tape hook surface 3, wash the non-woven fabrics, change active sponge layer 2 again, clean on the waterproof layer 4, dry the back and laminate 3 of hook surface 3 with non-woven fabrics 1 and active sponge layer 2 on magic tape hair side 6 through the magic tape hook surface, magic tape hook surface 3 and magic tape hair side 6's use, and is convenient and fast, make the pet pad, can use repeatedly, active sponge layer 2 can absorb the remaining smell of pet.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (5)

1. A non-woven pet pad, comprising a non-woven fabric (1), characterized in that: the bottom of the non-woven fabric (1) is provided with an active sponge layer (2), and the bottom of the active sponge layer (2) Velcro hook surfaces (3) are provided around, the bottom of the active sponge layer (2) is provided with a waterproof layer (4), the bottom of the waterproof layer (4) is provided with an interlayer (5), and the interlayer (5) ) is provided with a moisture-proof cloth (7) at the bottom, and the periphery of the moisture-proof cloth (7) is provided with a Velcro wool surface (6). 2. A non-woven pet pad according to claim 1, characterized in that: the interior of the interlayer (5) is filled with imitation silk cotton, and the surface of the interlayer (5) is cotton cloth. 3. A non-woven pet pad according to claim 1, characterized in that: the number of the hook surface of the Velcro (3) and the fur surface of the Velcro (6) is four groups, and the four groups of the Velcro The hook surface (3) and the Velcro wool surface (6) are distributed around the active sponge layer (2) and the moisture-proof cloth (7). 4. A non-woven pet pad according to claim 1, characterized in that: the bottom of the moisture-proof cloth (7) is provided with rubber anti-skid patterns, and the four corners of the bottom of the moisture-proof cloth (7) are provided with suction cups. 5. A non-woven pet pad according to claim 1, characterized in that: the hook surface of the Velcro (3) and the fleece surface of the Velcro (6) are attached, and the fleece surface of the Velcro (6) ) to the edge of the moisture-proof cloth (7).
