Abstract

The utility model provides a computer module fixing frame, comprising a protective box, an opening is formed on the protective box, the protective box is detachably connected with a fixing seat for sealing the opening, the fixing seat comprises a sealing plate and a fixing seat A fixed block on the sealing plate, a groove for placing the computer module is opened on the fixed block, a limit plate for clamping the computer module is slidably connected in the groove, and a fan is also installed on the top of the protective box , the air outlet of the fan faces the groove, and a reset block is vertically slid in the protective box. The utility model solves the problem that the computer module is prone to tilt or bulge when the chassis is shaken, and the chassis and the fixing device need to be opened in turn when the computer module is pressed and reset again, which is relatively cumbersome, resulting in no need to open the chassis and fix it. The device enables the computer module to have the effect of resetting.

Description

Computer module mount

Technical Field

The utility model relates to a technical field is used in the computer assembly, especially relates to a computer module mount.

Background

The computer module is also called as core board, computer module, com (computer on module), and is composed of processor or microcontroller, internal memory, storage, power management and circuit board, and needs operating system, such as Linux, WINCE, QNX, etc. which are composed of the above-mentioned structures and constitute a minimized computer system.

At present, when the computer equipment, all need to use computer module fixing device to fix computer module at quick-witted incasement, but current fixing device is fixing computer module at quick-witted incasement back, the inconvenient user removes dust and clears up computer module, and when the case takes place to rock, can drive the computer module fixing device of quick-witted incasement and rock together, it produces perk or arch along with rocking easily to lead to the computer module in the computer module fixing device, cause the unable normal use of computer, and press the computer module again and reset then need open quick-witted case and fixing device in proper order, and is comparatively loaded down with trivial details.

SUMMERY OF THE UTILITY MODEL

Not enough to exist among the prior art, the utility model provides a computer module mount, when the machine case that its had solved to exist among the prior art takes place to rock, leads to computer module to take place perk or arch easily, and press the computer module again and reset then need open quick-witted case and fixing device in proper order, comparatively loaded down with trivial details problem.

According to the utility model discloses an embodiment, a computer module mount, including the protection box, the opening has been seted up on the protection box, the protection box can be dismantled and be connected with and be used for sealed open-ended fixing base, the fixing base includes the closing plate and fixes the fixed block on the closing plate, set up the recess that is used for placing computer module on the fixed block, sliding connection has the limiting plate that is used for pressing from both sides tight computer module in the recess, the fan is still installed at the top of protection box, the air outlet of fan is towards the recess, vertical slip has the reset block in the protection box, the electric telescopic handle who is used for driving the reset block to remove is installed at protection box top, a plurality of ventilation holes have all been seted up on protection box and the reset block.

The technical principle and the beneficial effects of the utility model are that: this computer module mount, set up the open-ended protection box and be used for sealing the open-ended fixing base of placing computer module through setting up, make computer module can obtain the protection of protection box and fixing base, avoided external force collision direct action on computer module, damage computer module, air outlet through setting up is towards computer module fan, make computer module can blow off the dust on the computer module when obtaining the forced air cooling, reset block and the electric telescopic handle who drives the motion of reset block through setting up, make the user can not need not open quick-witted case and fixing device, only drive reset block through control electric telescopic handle and press the perk or bellied computer module, it is fixed to make it obtain normal chucking.

Drawings

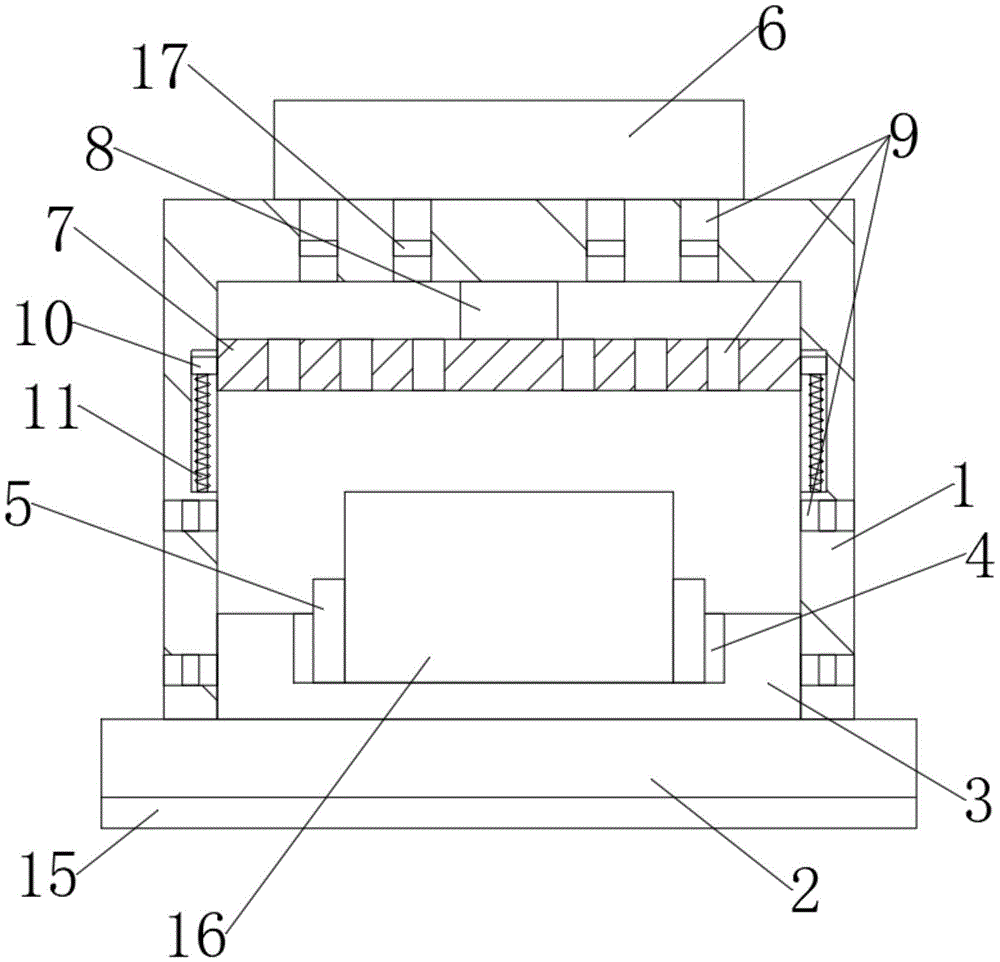

Fig. 1 is a cross-sectional view of an embodiment of the present invention.

Fig. 2 is a top view of the fixing base according to the embodiment of the present invention.

In the above drawings: 1. a protective case; 2. a sealing plate; 3. a fixed block; 4. a groove; 5. a limiting plate; 6. a fan; 7. a reset block; 8. an electric telescopic rod; 9. a vent hole; 10. a second slider; 11. a return spring; 12. a first threaded hole; 13. a second threaded hole; 14. mounting holes; 15. a shock absorbing sponge; 16. a computer module; 17. a dust screen; 18. a first slider; 19. a first slide rail.

Detailed Description

The technical solution of the present invention will be further explained with reference to the accompanying drawings and embodiments.

As shown in fig. 1 and 2, an embodiment of the present invention provides a computer module fixing frame, including a protection box 1, wherein an opening is formed on the protection box 1, the protection box 1 is detachably connected with a fixing seat for sealing the opening, specifically, the fixing seat includes a sealing plate 2 and a fixing block 3 fixed on the sealing plate 2, when the sealing plate 2 seals the opening of the protection box 1, the fixing block 3 is embedded into the protection box 1, the sealing plate 2 is provided with a first threaded hole 12, the bottom of the protection box 1 is also provided with a first threaded hole 12, the sealing plate 2 is connected with the protection box 1 through a bolt, the sealing plate 2 is further provided with a second threaded hole 13, when in use, a second threaded hole 13 is also manually formed on a case, the sealing plate 2 is connected with the case through a bolt, the bottom of the sealing plate 2 is fixedly connected with a damping sponge 15, through the damping sponge 15, when the sealing plate 2 is fixed in the case, the influence of the vibration of the case on the protection box 1 and the internal structure can be reduced.

The fixing block 3 is provided with a groove 4 for placing a computer module 16, the groove 4 is internally and slidably connected with two limiting plates 5 for clamping the computer module 16, specifically, the number of the limiting plates 5 is two, the fixing block 3 is provided with a first sliding rail 19, two ends of each limiting plate 5 are respectively and fixedly connected with a first slider 18, the first sliders 18 are slidably connected into the first sliding rails 19, the fixing block 3 is detachably connected with limiting bolts (not shown in the figure) for limiting the limiting plates 5, a plurality of mounting holes 14 are arranged above the first sliding rails 19, the mounting holes 14 are internally and threadedly connected with limiting bolts, after the limiting plates 5 are used for clamping and limiting the computer module 16, the limiting bolts are screwed into the mounting holes 14 at two sides of the position of the first slider 18 for limiting the limiting plates 5, and are connected with the limiting plates 5 in the groove 4 in a sliding manner, make the user can fix spacingly according to computer module 16's size, all be provided with insulating pad, it is specific on the limiting plate 5 in the recess 4, insulating pad is prior art, and no longer the giving details here, insulating pad fixed connection can be effectively insulating when making computer module 16 take place the electric leakage through the insulating pad that sets up in limiting plate 5 surface and the 3 surfaces of fixed block, avoids the normal work of electric leakage influence quick-witted incasement other parts.

Fan 6 is still installed at the top of protection box 1, fan 6's air outlet is towards recess 4, a plurality of ventilation holes 9 have been seted up on the protection box 1, and through the fan 6 that sets up, make computer module 16 also can blow to the dust removal on computer module 16 surface when can obtain the heat dissipation in protection box 1, make the difficult adhesion of dust on computer module 16, the ventilation hole 9 of protection box 1 both sides is the air outlet. A reset block 7 vertically slides in the protective box 1, a plurality of vent holes 9 are also arranged on the reset block 7, a protective pad (not shown in the figure) is fixedly connected to the bottom of the reset block 7, a vent hole 9 is also formed in the protective pad, the vent hole 9 in the protective pad is communicated with the vent hole 9 in the reset block 7, through the arranged ventilation holes 9, the fan 6 can directly blow air to the computer module 16, the air vents 9 on the protective box 1 are all provided with dust screens 17, specifically, the dust screens 17 are fixedly connected with the protective box 1, through the dust screen 17, the external dust can not enter the protective box 1 through the vent holes 9, specifically, the protective cushion is a rubber soft cushion in the prior art, through the arranged rubber cushion, the computer module 16 can be prevented from being damaged when being pressed by the reset block 7 for resetting.

A second sliding rail is arranged in the protection box 1, two ends of the reset block 7 are fixedly connected with a second slider 10, the second slider 10 is connected in the second sliding rail in a sliding manner, a reset spring 11 is further arranged in the second sliding rail, the second slider 10 is fixedly connected with the top end of the reset spring 11, the bottom end of the reset spring 11 is fixedly connected in the second sliding rail, the extension direction of the reset spring 11 is vertical, an electric telescopic rod 8 for driving the reset block 7 to move is arranged at the top of the protection box 1, when the electric telescopic rod 8 is in the shortest extension state, the reset spring 11 is not stretched or compressed and deformed, and the electric telescopic rod 8 can still extend to the maximum length under the influence of the elastic force of the reset spring 11, the reset block 7 is driven to press the computer module 16, and particularly, the electric telescopic rod 8 and the installation technology thereof are the prior art, the description is omitted, and the situation that the computer module 16 is crushed due to the fact that the speed is too high when the reset block 7 is driven to move downwards when the electric telescopic rod 8 is powered off suddenly is avoided through the arranged reset spring 11.

When the computer module protection device is used, the computer module 16 is manually placed in the groove 4, the limiting plate 5 is manually slid to clamp the computer module 16, then the limiting bolt is screwed into the mounting hole 14 to fix and limit the limiting plate 5, finally the sealing plate 2 and the protection box 1 are fixed through the bolt, the computer module 16 fixing frame is fixed in the case through the bolt, the fan 6 is manually started to radiate the computer module 16 and blow off a small amount of dust adhered to the computer module 16, the dust screen 17 intercepts most of external dust, when the case shakes to cause the computer module 16 to tilt from the groove 4 or the computer module 16 integrally moves outwards from the groove 4, the electric telescopic rod 8 is manually started to drive the reset block 7 to press down the computer module 16, so that the computer module returns to the groove 4 to be fixed, and the reset spring 11 can avoid sudden power failure of the electric telescopic rod 8, the speed is too high when the reset block 7 is driven to move downwards, and the computer module 16 is crushed.

Finally, although the present invention has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that the present invention can be modified or replaced by other means without departing from the spirit and scope of the present invention, which should be construed as limited only by the appended claims.

Claims (4)

1. The utility model provides a computer module mount, includes the protection box, the opening has been seted up on the protection box, its characterized in that: the utility model discloses a computer protection box, including protection box, fixed block, fan, electric telescopic handle, protection box and reset block, protection box can be dismantled and be connected with and be used for sealed open-ended fixing base, the fixing base includes the closing plate and fixes the fixed block on the closing plate, set up the recess that is used for placing computer module on the fixed block, sliding connection has the limiting plate that is used for pressing from both sides tight computer module in the recess, the fan is still installed at protection box's top, the air outlet of fan is towards the recess, vertical slip has the reset block in the protection box, the electric telescopic handle who is used for driving the reset block removal is installed at protection box top, a plurality of ventilation holes have all been seted up on protection box and the reset block, the bottom fixedly connected with of reset block protects and fills up, the ventilation hole has also been seted up on the protection pad, ventilation hole on the protection pad is linked together with the ventilation hole on the reset block, all be provided with the dust screen in the ventilation hole on the protection box.

2. A computer module holder as claimed in claim 1, wherein: the fixed block is detachably connected with a limiting bolt used for limiting the limiting plate.

3. A computer module holder as claimed in claim 1, wherein: and insulating pads are arranged on the limiting plate and in the grooves.

4. A computer module holder as claimed in claim 1, wherein: the bottom of the sealing plate is fixedly connected with a damping sponge.
